IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

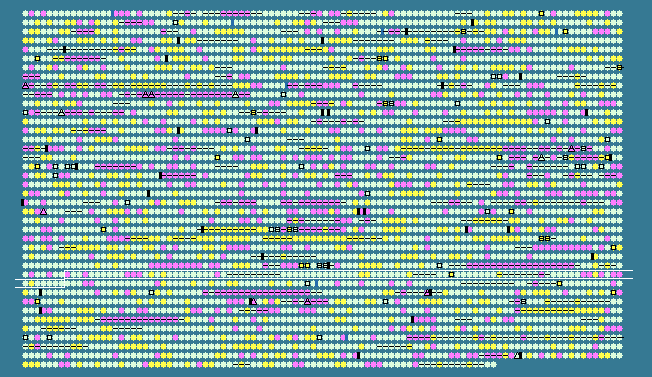

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2908	 42.98	-1	3377642..3378004	+	120	123443311	-	YE3102	-	hypothetical protein
2909	 48.04	0	3378070..3379245	+	391	123443312	-	YE3103	-	hypothetical protein
2910	 47.47	0	3379242..3380507	+	421	123443313	-	YE3104	-	putative mutase
2911	 42.62	-1	3380563..3380928	+	121	123443314	-	YE3105	-	hypothetical protein
2912	 47.66	0	3381038..3382321	+	427	123443315	-	YE3106	-	hypothetical protein
2913	 48.28	0	3382624..3382884	+	86	123443316	rpmE2	YE3107	-	50S ribosomal protein L31 type B
2914	 45.14	0	3382900..3383043	+	47	123443317	rpmJ	YE3108	-	50S ribosomal protein L36
2915	 48.58	0	3383171..3384049	-	292	123443318	-	YE3109	-	periplasmic solute binding protein
2916	 49.53	0	3384095..3384952	-	285	123443319	-	YE3110	-	putative ABC-transporter membrane protein
2917	 48.42	0	3384949..3385677	-	242	123443320	-	YE3111	-	ABC transport system ATP-binding protein
2918	 34.18	-2	3386447..3386800	+	117	123443321	-	YE3113	-	hypothetical protein
2919	 42.01	-1	3386958..3387326	+	122	123443322	-	YE3114	-	hypothetical protein
2920	 35.78	-2	3387372..3387575	+	67	123443323	ymoA	YE3115	-	hemolysin expression-modulating protein
2921	 47.44	0	3388337..3388726	+	129	123443324	-	YE3116	-	putative 6-O-methylguanine DNA methyltransferase family protein
2922	 51.60	0	3388778..3389308	-	176	123443325	ybaY	YE3117	-	putative lipoprotein
2923	 48.26	0	3389566..3390429	+	287	123443326	tesB	YE3118	-	acyl-CoA thioesterase II
2924	 52.31	0	3390729..3392024	-	431	123443327	amtB	YE3119	-	ammonium transporter
2925	 44.84	0	3392058..3392396	-	112	123443328	glnK	YE3120	-	nitrogen regulatory protein P-II 2
2926	 50.59	0	3392827..3394605	-	592	123443329	mdl	YE3121	-	putative multidrug transporter membrane\ATP-binding components
2927	 48.90	0	3394598..3396364	-	588	123443330	mdl	YE3122	-	putative multidrug transporter membrane\ATP-binding components
2928	 46.54	0	3396639..3397100	-	153	123443331	-	YE3123	-	transcription regulator AsnC
2929	 49.95	0	3397227..3398267	+	346	123443332	-	YE3124	-	putative pyridoxal-phosphate dependent protein
2930	 47.20	0	3398394..3399215	-	273	123443333	-	YE3125	-	putative haloacid dehalogenase-like hydrolase
2931	 49.53	0	3399319..3401022	+	567	123443334	-	YE3126	-	hypothetical protein
2932	 45.92	0	3401136..3401834	+	232	123443335	-	YE3127	-	queuosine biosynthesis protein QueC
2933	 41.67	-1	3401921..3402328	-	135	123443336	-	YE3128	-	hypothetical protein
2934	 44.44	0	3402575..3402997	-	140	123443337	-	YE3129	-	hypothetical protein
2935	 48.07	0	3403136..3405022	-	628	123443338	ppiD	YE3130	-	peptidyl-prolyl cis-trans isomerase (rotamase D)
2936	 47.99	0	3405222..3405494	-	90	123443339	hopD	YE3131	-	transcriptional regulator HU subunit beta
2937	 48.62	0	3405712..3408066	-	784	123443340	capR	YE3132	-	DNA-binding ATP-dependent protease La
2938	 47.64	0	3408261..3409532	-	423	123443341	clpX	YE3133	-	ATP-dependent protease ATP-binding subunit
2939	 46.31	0	3409738..3410361	-	207	123443342	clpP	YE3134	-	ATP-dependent Clp protease proteolytic subunit
2940	 46.90	0	3410818..3412122	-	434	123443343	tig	YE3135	-	trigger factor
2941	 49.28	0	3412077..3412352	-	91	123443344	-	YE3136	-	hypothetical protein
2942	 45.65	0	3412538..3412870	-	110	123443345	bolA	YE3137	-	transcriptional regulator BolA
2943	 46.98	0	3413221..3413799	+	192	123443346	yajG	YE3138	-	hypothetical protein
2944	 47.80	0	3413877..3415355	+	492	123443347	ampG	YE3139	-	muropeptide transporter
2945	 44.87	0	3415620..3416399	+	259	123443348	yfeN	YE3140	-	hypothetical protein
2946	 45.25	0	3416762..3417718	+	318	123443349	cyoA	YE3141	-	cytochrome o ubiquinol oxidase subunit II
2947	 50.10	0	3417723..3419714	+	663	123443350	cyoB	YE3142	-	cytochrome O ubiquinol oxidase subunit I
2948	 49.92	0	3419704..3420318	+	204	123443351	cyoC	YE3143	-	cytochrome o ubiquinol oxidase subunit III
2949	 45.83	0	3420378..3420665	+	95	123443352	cyoD	YE3144	-	cytochrome O ubiquinol oxidase subunit CyoD
2950	 46.02	0	3420676..3421566	+	296	123443353	cyoE	YE3145	-	protoheme IX farnesyltransferase
2951	 49.82	0	3421737..3423107	+	456	123443354	yajR	YE3146	-	putative transporter
2952	 47.36	0	3423161..3423652	-	163	123443355	-	YE3147	-	nucleotide-binding protein
2953	 48.94	0	3423827..3424108	+	93	123443356	-	YE3148	-	hypothetical protein
2954	 49.67	0	3423990..3424901	+	303	123443357	apbA	YE3149	-	2-dehydropantoate 2-reductase
2955	 50.42	0	3424864..3425460	+	198	123443358	thiJ	YE3150	-	hypothetical protein
2956	 46.83	0	3425622..3427073	-	483	123443359	thiI	YE3151	-	thiamine biosynthesis protein ThiI
2957	 52.55	+1	3427349..3427603	+	84	123443360	xseB	YE3153	-	exodeoxyribonuclease VII small subunit
2958	 52.33	0	3427608..3428528	+	306	123443361	ispA	YE3154	-	geranyltranstransferase
2959	 50.05	0	3428582..3430441	+	619	123443362	b0420	YE3155	-	1-deoxy-D-xylulose-5-phosphate synthase
2960	 50.51	0	3430443..3430931	-	162	123443363	-	YE3156	-	hypothetical protein
2961	 48.39	0	3430950..3431447	-	165	123443364	pgpA	YE3157	-	phosphatidylglycerophosphatase A
2962	 50.00	0	3431440..3432429	-	329	123443365	thiL	YE3158	-	thiamine monophosphate kinase
2963	 50.12	0	3432509..3432925	-	138	123443366	nusB	YE3159	-	transcription antitermination protein NusB
2964	 47.98	0	3432951..3433421	-	156	123443367	ribH	YE3160	-	riboflavin synthase subunit beta
2965	 54.14	+1	3433556..3434665	-	369	123443368	ribD	YE3161	-	bifunctional diaminohydroxyphosphoribosylaminopyrimidine deaminase/5-amino-6-(5-phosphoribosylamino)uracil reductase
2966	 49.56	0	3434730..3435179	-	149	123443369	-	YE3162	-	transcriptional regulator NrdR
2967	 48.71	0	3435444..3436412	-	322	123443370	secF	YE3163	-	preprotein translocase subunit SecF
2968	 49.57	0	3436423..3438270	-	615	123443371	secD	YE3164	-	preprotein translocase subunit SecD
2969	 44.74	0	3438298..3438630	-	110	123443372	yajC	YE3165	-	preprotein translocase subunit YajC
2970	 47.58	0	3438743..3439879	-	378	123443373	tgt	YE3166	-	queuine tRNA-ribosyltransferase
2971	 50.79	0	3440614..3440928	+	104	123443374	-	YE3169	-	IS1669 hypothetical protein
2972	 51.25	0	3440946..3441743	+	265	123443375	-	YE3170	-	putative transposase for insertion element IS1669
2973	 49.22	0	3442296..3443384	-	362	123443376	queA	YE3172	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
2974	 48.11	0	3443527..3444108	+	193	123443377	-	YE3173	-	hypothetical protein
2975	 48.59	0	3444333..3444935	+	200	123443378	ahpC	YE3174	-	putative alkyl hydroperoxide reductase subunit c
2976	 49.55	0	3445681..3447444	+	587	123443379	ggt	YE3175	-	gamma-glutamyltranspeptidase precursor
2977	 49.63	0	3447512..3448192	-	226	123443380	-	YE3176	-	short chain dehydrogenase
2978	 50.03	0	3448526..3450364	-	612	123443381	malZ	YE3177	-	maltodextrin glucosidase
2979	 48.42	0	3450729..3452120	-	463	123443382	proY	YE3178	-	putative proline-specific permease
2980	 51.52	0	3452196..3453515	-	439	123443383	brnQ	YE3179	-	branched-chain amino acid transport system II carrier protein
2981	 48.82	0	3454879..3456195	-	438	123443384	phoR	YE3181	-	phosphate regulon sensor protein
2982	 48.84	0	3456220..3456909	-	229	123443385	phoB	YE3182	-	phosphate regulon transcriptional regulatory protein
2983	 49.31	0	3457179..3458417	+	412	123443386	sbcD	YE3183	-	exonuclease subunit SbcD
2984	 47.83	0	3458414..3462103	+	1229	123443387	sbcC	YE3184	-	exonuclease
2985	 49.84	0	3462393..3463307	-	304	123443388	-	YE3185	-	fructokinase
2986	 45.61	0	3463646..3464557	+	303	123443389	rdgC	YE3186	-	recombination associated protein
2987	 43.75	0	3464629..3464916	-	95	123443390	-	YE3187	-	hypothetical protein
2988	 50.67	0	3465400..3465924	-	174	123443391	aroL	YE3188	-	shikimate kinase II
2989	 48.60	0	3466167..3468308	-	713	123443392	-	YE3189	-	putative hydroxamate-type ferrisiderophore receptor
2990	 45.13	0	3468295..3469413	-	372	123443393	-	YE3190	-	hypothetical protein
2991	 45.52	0	3469636..3470193	-	185	123443394	-	YE3191	-	putative methyltransferase
2992	 47.04	0	3470438..3470707	-	89	123443395	-	YE3192	-	hypothetical protein
2993	 45.91	0	3470920..3471690	-	256	123443396	-	YE3193	-	hypothetical protein
2994	 42.63	-1	3471834..3472328	+	164	123443397	-	YE3194	-	acetyltransferase (GNAT) family protein
2995	 40.39	-1	3472473..3472727	-	84	123443398	-	YE3195	-	hypothetical protein
2996	 52.31	0	3472856..3481480	-	2874	123443399	-	YE3196	-	putative cyclic beta 1-2 glucan synthetase
2997	 41.07	-1	3481855..3482604	-	249	123443400	-	YE3197	-	hypothetical protein
2998	 44.82	0	3482808..3484130	-	440	123443401	aglB	YE3198	-	6-phospho-alpha-glucosidase
2999	 43.82	0	3484142..3485686	-	514	123443402	aglA	YE3199	-	PTS system, alpha-glucoside-specific IIBC component
3000	 38.96	-1	3485925..3486635	+	236	123443403	-	YE3200	-	GntR family transcription regulatory protein
3001	 50.48	0	3486704..3487963	-	419	123443404	proA	YE3201	-	gamma-glutamyl phosphate reductase
3002	 51.99	0	3487973..3489076	-	367	123443405	proB	YE3202	-	gamma-glutamyl kinase
3003	 47.51	0	3489232..3489633	-	133	123443406	crl	YE3203	-	DNA-binding transcriptional regulator Crl
3004	 48.64	0	3489693..3490940	-	415	123443407	frsA	YE3204	-	fermentation/respiration switch protein
3005	 47.93	0	3491191..3491649	-	152	123443408	gpp	YE3205	-	xanthine-guanine phosphoribosyltransferase
3006	 50.03	0	3491957..3493417	+	486	123443409	pepD	YE3206	-	aminoacyl-histidine dipeptidase
3007	 48.35	0	3493491..3494549	-	352	123443410	dinP	YE3207	-	DNA polymerase IV
47.74	MEAN

4.70	STD DEV
