IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

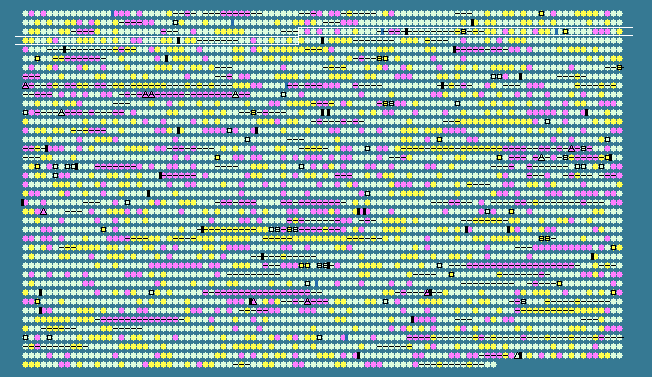

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
247	 44.67	0	297377..299008	+	543	123440650	ubiB	YE0258	-	putative ubiquinone biosynthesis protein UbiB
248	 43.07	0	299209..299475	+	88	123440651	b3836	YE0259	-	Sec-independent protein translocase protein TatA
249	 50.38	0	299479..300135	+	218	123440652	mtta2	YE0260	-	Sec-independent protein translocase protein TatB
250	 42.56	-1	300138..300917	+	259	123440653	mttB	YE0261	-	TatABCE protein translocation system subunit
251	 49.43	0	300973..301755	+	260	123440654	mttC	YE0262	-	DNase TatD
252	 48.09	0	301770..302792	+	340	123440655	hemB	YE0263	-	delta-aminolevulinic acid dehydratase
253	 42.74	-1	302881..303369	-	162	123440656	rfaH	YE0264	-	transcriptional activator RfaH
254	 48.76	0	303638..305134	+	498	123440657	-	YE0265	-	3-octaprenyl-4-hydroxybenzoate decarboxylase
255	 48.43	0	305189..305890	+	233	123440658	fre	YE0266	-	FMN reductase
256	 52.41	0	305990..307153	-	387	123440659	fadA	YE0267	-	3-ketoacyl-CoA thiolase
257	 49.63	0	307165..309354	-	729	123440660	fadB	YE0268	-	multifunctional fatty acid oxidation complex subunit alpha
258	 46.67	0	309626..310975	+	449	123440661	pepQ	YE0269	-	proline dipeptidase
259	 49.24	0	311626..313077	+	483	123440662	trkH	YE0272	-	potassium transporter
260	 46.82	0	313099..313632	+	177	123440663	hemG	YE0273	-	protoporphyrinogen oxidase
261	 46.34	0	319709..320746	+	345	123440664	murB	YE0274	-	UDP-N-acetylenolpyruvoylglucosamine reductase
262	 43.23	0	320743..321702	+	319	123440665	bioR	YE0275	-	biotin--protein ligase
263	 41.96	-1	321742..322692	-	316	123440666	coaA	YE0276	-	pantothenate kinase
264	 44.93	0	322902..323453	-	183	123440667	-	YE0277	-	putative acetyltransferase
265	 48.02	0	324617..325801	+	394	123440668	tufA	YE0278	-	elongation factor Tu
266	 50.26	0	326041..326424	+	127	123440669	secE	YE0279	-	preprotein translocase subunit SecE
267	 48.35	0	326426..326971	+	181	123440670	nusG	YE0280	-	transcription antitermination protein NusG
268	 47.79	0	327165..327593	+	142	123440671	rplK	YE0281	-	50S ribosomal protein L11
269	 48.23	0	327597..328301	+	234	123440672	rplA	YE0282	-	50S ribosomal protein L1
270	 50.00	0	328676..329179	+	167	123440673	rplJ	YE0283	-	50S ribosomal protein L10
271	 46.61	0	329248..329616	+	122	123440674	rplL	YE0284	-	50S ribosomal protein L7/L12
272	 49.76	0	329960..333988	+	1342	123440675	rpoB	YE0286	-	DNA-directed RNA polymerase subunit beta
273	 51.41	0	334125..338345	+	1406	123440676	rpoC	YE0287	-	DNA-directed RNA polymerase subunit beta'
274	 55.88	+1	338397..339731	-	444	123440677	-	YE0288	-	transposase for insertion sequence element IS1660
275	 50.84	0	339869..340999	-	376	123440678	thiH	YE0289	-	thiamine biosynthesis protein ThiH
276	 52.85	+1	340992..341780	-	262	123440679	thiG	YE0290	-	thiazole synthase
277	 49.54	0	341782..341997	-	71	123440680	thiS	YE0290A	-	sulfur carrier protein ThiS
278	 52.62	+1	341994..342776	-	260	123440681	thiF	YE0291	-	thiamine biosynthesis protein
279	 52.61	+1	342760..343371	-	203	123440682	thiE	YE0292	-	thiamine-phosphate pyrophosphorylase
280	 50.34	0	343427..345313	-	628	123440683	thiC	YE0293	-	thiamine biosynthesis protein ThiC
281	 44.05	0	345825..346328	-	167	123440684	rsd	YE0295	-	anti-RNA polymerase sigma 70 factor
282	 51.53	0	346420..347205	+	261	123440685	nudC	YE0296	-	NADH pyrophosphatase
283	 50.47	0	347286..348353	+	355	123440686	hemE	YE0297	-	uroporphyrinogen decarboxylase
284	 51.63	0	348377..349081	+	234	123440687	nfi	YE0298	-	endonuclease V
285	 44.84	0	349127..349717	+	196	123440688	-	YE0299	-	hypothetical protein
286	 43.84	0	349906..350181	+	91	123440689	hupA	YE0300	-	transcriptional regulator HU subunit alpha
287	 52.42	0	350186..350887	+	233	123440690	yjaH	YE0301	-	hypothetical protein
288	 52.55	+1	350982..352277	-	431	123440691	purD	YE0302	-	phosphoribosylamine--glycine ligase
289	 51.07	0	352303..353892	-	529	123440692	purH	YE0303	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
290	 50.79	0	360392..360706	+	104	123440693	-	YE0304	-	IS1669 hypothetical protein
291	 51.25	0	360724..361521	+	265	123440694	-	YE0305	-	putative transposase for insertion element IS1669
292	 44.79	0	361779..362948	+	389	123440695	-	YE0306	-	putative hydrolase
293	 47.16	0	362987..364642	-	551	123440696	actP	YE0307	-	acetate permease
294	 45.83	0	364639..364950	-	103	123440697	-	YE0308	-	hypothetical protein
295	 48.55	0	365004..366962	-	652	123440698	acs	YE0309	-	acetyl-CoA synthetase
296	 42.92	-1	367882..369195	+	437	123440699	gltP	YE0310	-	glutamate/aspartate:proton symporter
297	 43.13	0	369338..369970	-	210	123440700	-	YE0311	-	putative two-component response regulator
298	 38.81	-1	370458..371078	+	206	123440701	-	YE0312	-	AraC family transcriptional regulator
299	 50.45	0	372183..372404	+	73	123440702	-	YE0314	-	hypothetical protein
300	 51.63	0	372693..373490	-	265	123440703	-	YE0315	-	hypothetical protein
301	 51.38	0	373868..374410	+	180	123440704	-	YE0316	-	putative DNA-binding protein
302	 52.28	0	374403..375368	+	321	123440705	-	YE0317	-	putative two-component system sensor protein
303	 51.03	0	375471..378245	+	924	123440706	-	YE0318	-	putative exported iron receptor protein
304	 51.03	0	378373..380079	+	568	123440707	-	YE0319	-	putative membrane transport protein ATP-binding component
305	 51.92	0	380064..382850	+	928	123440708	-	YE0320	-	exported Zinc protease
306	 43.25	0	382982..383233	+	83	123440709	-	YE0321	-	antitoxin YefM
307	 46.90	0	383508..386036	-	842	123440710	-	YE0322	-	putative inner-membrane transport protein
308	 48.66	0	386263..388395	+	710	123440711	foxA	YE0323	-	ferrioxamine receptor precursor
309	 50.17	0	388865..390373	+	502	123440712	-	YE0324	-	putative ATP/GTP-binding protein
310	 54.43	+1	390519..391319	-	266	123440713	hemV	YE0327	-	hemin importer ATP-binding subunit
311	 55.52	+1	391312..392316	-	334	123440714	hemU	YE0328	-	hemin transport system permease protein HmuU
312	 52.98	+1	392313..393152	-	279	123440715	hemT	YE0329	-	hemin-binding periplasmic protein
313	 48.65	0	393149..394186	-	345	123440716	hemS	YE0330	-	hemin transport protein
314	 51.94	0	394303..396366	-	687	123440717	hemR	YE0331	-	hemin receptor precursor
315	 45.93	0	396539..396784	-	81	123440718	hemP	YE0332	-	hemin uptake protein
316	 53.00	+1	396816..397466	-	216	123440719	-	YE0333	-	hypothetical protein
317	 49.27	0	397463..398008	-	181	123440720	-	YE0334	-	hypothetical protein
318	 50.08	0	398005..399318	-	437	123440721	hemN	YE0335	-	coproporphyrinogen III oxidase
319	 42.09	-1	399955..400947	+	330	123440722	tdcB	YE0336	-	threonine dehydratase
320	 42.59	-1	400972..402300	+	442	123440723	tdcC	YE0337	-	threonine/serine transporter TdcC
321	 48.61	0	402319..403575	+	418	123440724	tdcD	YE0338	-	propionate/acetate kinase
322	 48.89	0	403626..405920	+	764	123440725	tdcE	YE0339	-	keto-acid formate acetyltransferase
323	 44.87	0	406326..406637	-	103	123440726	-	YE0340	-	hypothetical protein
324	 51.94	0	406648..407421	-	257	123440727	-	YE0341	-	putative dehydrogenase/reductase
325	 51.78	0	407491..408471	-	326	123440728	-	YE0342	-	putative aldo/keto reductase
326	 50.11	0	408604..409497	+	297	123440729	-	YE0343	-	LysR family transcriptional regulator
327	 48.09	0	411687..412262	-	191	123440730	-	YE0346	-	putative transcriptional regulator
328	 52.58	+1	412574..413737	+	387	123440731	glxK	YE0347	-	putative glycerate kinase
329	 52.62	+1	413785..415521	-	578	123440732	dipZ	YE0348	-	thiol:disulfide interchange protein precursor
330	 51.16	0	415497..415799	-	100	123440733	-	YE0349	-	divalent-cation tolerance protein CutA
331	 49.23	0	416005..417306	-	433	123440734	b4138	YE0350	-	anaerobic C4-dicarboxylate transporter
332	 46.56	0	417426..418862	-	478	123440735	aspA	YE0351	-	aspartate ammonia-lyase
333	 44.51	0	419304..419831	+	175	123440736	-	YE0352	-	FxsA
334	 47.62	0	420084..420377	+	97	123440737	groES	YE0353	-	co-chaperonin GroES
335	 50.33	0	420434..422086	+	550	123440738	groEL	YE0354	-	chaperonin GroEL
336	 48.97	0	422468..422806	+	112	123440739	-	YE0355	-	putative lipoprotein
337	 49.90	0	422874..423911	-	345	123440740	-	YE0356	-	hypothetical protein
338	 48.50	0	423947..424513	+	188	123440741	b4147	YE0357	-	elongation factor P
339	 40.15	-1	424699..424830	+	43	123440742	ecnB	YE0358	-	entericidin B precursor
340	 50.16	0	425009..425323	+	104	123440743	sugE	YE0359	-	quaternary ammonium compound-resistance protein SugE
341	 45.93	0	425325..425864	-	179	123440744	-	YE0360	-	outer membrane lipoprotein Blc
342	 51.54	0	426013..426369	-	118	123440745	b4151	YE0361	-	fumarate reductase subunit D
343	 47.58	0	426386..426778	-	130	123440746	b4152	YE0362	-	fumarate reductase subunit C
344	 49.25	0	426795..427529	-	244	123440747	b4153	YE0363	-	fumarate reductase iron-sulfur subunit
345	 52.63	+1	427522..429345	-	607	123440748	b4154	YE0364	-	fumarate reductase flavoprotein subunit
346	 51.12	0	429789..430766	+	325	123440749	b4155	YE0365	-	lysyl-tRNA synthetase
47.74	MEAN

4.70	STD DEV
