IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

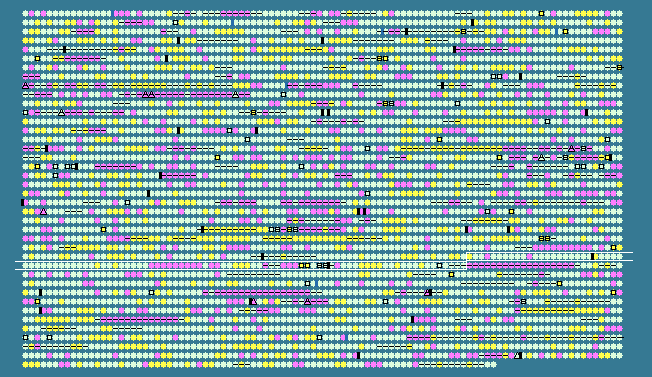

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2775	 53.44	+1	3223856..3226555	+	899	123443178	kdpD	YE2963	-	sensor protein KdpD
2776	 50.19	0	3226714..3227241	+	175	123443179	kdpE	YE2964	-	two-component regulatory protein response regulator KdpE
2777	 48.48	0	3227334..3227762	+	142	123443180	-	YE2965	-	hypothetical protein
2778	 35.95	-2	3227908..3229359	+	483	123443181	-	YE2966	-	putative hemolysin
2779	 49.91	0	3229442..3231082	-	546	123443182	pgm	YE2967	-	phosphoglucomutase
2780	 48.33	0	3231175..3231714	-	179	123443183	seqA	YE2968	-	replication initiation regulator SeqA
2781	 48.05	0	3231928..3232722	+	264	123443184	-	YE2969	-	hypothetical protein
2782	 47.92	0	3233066..3233353	+	95	123443185	-	YE2970	-	LexA regulated protein
2783	 48.64	0	3233420..3235078	-	552	123443186	-	YE2971	-	putative methyl-accepting chemotaxis protein
2784	 46.21	0	3235301..3235828	+	175	123443187	fldA	YE2972	-	flavodoxin FldA
2785	 43.62	0	3236197..3236643	+	148	123443188	fur	YE2973	-	ferric uptake regulator
2786	 48.21	0	3237040..3239715	-	891	123443189	chb	YE2974	-	chitobiase precursor
2787	 48.01	0	3239808..3240134	-	108	123443190	-	YE2975	-	putative lipoprotein
2788	 48.86	0	3240195..3241598	-	467	123443191	ybfM	YE2976	-	hypothetical protein
2789	 49.10	0	3242234..3243901	-	555	123443192	glnS	YE2977	-	glutaminyl-tRNA synthetase
2790	 49.90	0	3244095..3246128	-	677	123443193	nagE	YE2978	-	pts system, N-acetylglucosamine-specific IIABC component
2791	 46.44	0	3246499..3247299	+	266	123443194	nagB	YE2979	-	glucosamine-6-phosphate deaminase
2792	 47.21	0	3247319..3248464	+	381	123443195	nagA	YE2980	-	N-acetylglucosamine-6-phosphate deacetylase
2793	 48.53	0	3248478..3249701	+	407	123443196	nagC	YE2981	-	putative N-acetylglucosamine regulatory protein
2794	 48.74	0	3249912..3250664	+	250	123443197	nagD	YE2982	-	UMP phosphatase
2795	 48.17	0	3251009..3252673	+	554	123443198	asnB	YE2983	-	asparagine synthetase B
2796	 51.69	0	3253760..3254941	-	393	123443199	ubiF	YE2984	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
2797	 48.14	0	3255184..3256608	+	474	123443200	miaB	YE2985	-	putative tRNA-thiotransferase
2798	 50.37	0	3256887..3257978	+	363	123443201	-	YE2986	-	hypothetical protein
2799	 46.20	0	3257975..3258448	+	157	123443202	-	YE2987	-	putative metalloprotease
2800	 47.21	0	3258563..3259441	+	292	123443203	ybeX	YE2988	-	hypothetical protein
2801	 50.76	0	3259449..3261026	+	525	123443204	lnt	YE2989	-	apolipoprotein N-acyltransferase
2802	 47.35	0	3261035..3261619	+	194	123443205	-	YE2990	-	hypothetical protein
2803	 46.99	0	3262206..3263120	+	304	123443206	glnH	YE2991	-	glutamate and aspartate transporter subunit
2804	 47.37	0	3263298..3264038	+	246	123443207	gltJ	YE2992	-	putative glutamate/aspartate transport system permease
2805	 50.37	0	3264038..3264712	+	224	123443208	gltK	YE2993	-	putative glutamate/aspartate transport system permease
2806	 46.50	0	3264709..3265437	+	242	123443209	gltL	YE2994	-	putative glutamate/aspartate transport ATP-binding protein
2807	 45.96	0	3265493..3265975	-	160	123443210	-	YE2995	-	hypothetical protein
2808	 50.75	0	3266354..3268936	+	860	123443211	leuS	YE2996	-	leucyl-tRNA synthetase
2809	 50.64	0	3268951..3269574	+	207	123443212	rlpB	YE2997	-	LPS-assembly lipoprotein RplB
2810	 47.73	0	3269571..3270605	+	344	123443213	holA	YE2998	-	DNA polymerase III subunit delta
2811	 48.42	0	3270595..3271257	+	220	123443214	nadD	YE2999	-	nicotinic acid mononucleotide adenylyltransferase
2812	 47.48	0	3271557..3271874	+	105	123443215	-	YE3000	-	hypothetical protein
2813	 53.72	+1	3271878..3272348	+	156	123443216	-	YE3001	-	SPOUT methyltransferase superfamily protein
2814	 50.37	0	3272423..3274318	+	631	123443217	mrdA	YE3002	-	penicillin-binding protein 2
2815	 47.26	0	3274355..3275467	+	370	123443218	mrdB	YE3003	-	cell wall shape-determining protein
2816	 54.37	+1	3275477..3276574	+	365	123443219	rlpA	YE3004	-	rare lipoprotein A
2817	 48.27	0	3276788..3277999	+	403	123443220	dacA	YE3005	-	D-alanyl-D-alanine carboxypeptidase fraction A
2818	 45.83	0	3278148..3278411	+	87	123443221	-	YE3006	-	hypothetical protein
2819	 50.14	0	3278566..3279279	+	237	123443222	lipB	YE3007	-	lipoyltransferase
2820	 48.55	0	3279468..3280433	+	321	123443223	lip	YE3008	-	lipoyl synthase
2821	 48.15	0	3280576..3280791	-	71	123443224	tatE	YE3009	-	twin argininte translocase protein A
2822	 44.16	0	3280995..3282047	+	350	123443225	adrA	YE3010	-	diguanylate cyclase/phosphodiesterase domain-containing protein
2823	 43.23	0	3282095..3282478	+	127	123443226	crcB	YE3011	-	hypothetical protein
2824	 43.81	0	3282778..3282987	-	69	123443227	cspE	YE3012	-	cold shock protein CspE
2825	 37.37	-2	3283362..3283733	+	123	123443228	-	YE3013	-	hypothetical protein
2826	 36.76	-2	3283919..3284530	-	203	123443229	-	YE3014	-	LuxR family regulatory protein
2827	 36.13	-2	3284883..3285848	+	321	123443230	-	YE3015	-	hypothetical protein
2828	 42.95	-1	3285999..3286643	-	214	123443231	-	YE3016	-	serine/threonine protein phosphatase
2829	 38.46	-1	3286894..3287088	-	64	123443232	-	YE3017	-	hypothetical protein
2830	 39.24	-1	3287435..3287722	+	95	123443233	-	YE3018	-	hypothetical protein
2831	 44.50	0	3287740..3289512	-	590	123443234	-	YE3019	-	putative ABC transport protein
2832	 44.24	0	3290029..3291504	-	491	123443235	-	YE3020	-	putative lyase
2833	 41.92	-1	3291534..3293129	-	531	123443236	-	YE3021	-	putative phenylalanine and histidine ammonia-lyase
2834	 47.06	0	3293587..3294708	-	373	123443237	-	YE3022	-	hypothetical protein
2835	 49.01	0	3295097..3296053	-	318	123443238	-	YE3023	-	hypothetical protein
2836	 51.59	0	3296382..3297071	+	229	123443239	copR	YE3024	-	transcriptional activator
2837	 51.96	0	3297087..3298562	+	491	123443240	-	YE3025	-	putative two-component system sensor protein
2838	 57.14	+1	3298631..3298987	+	118	123443241	-	YE3026	-	hypothetical protein
2839	 50.85	0	3299086..3299850	+	254	123443242	-	YE3027	-	exported protein
2840	 50.70	0	3301140..3301991	+	283	123443243	-	YE3031	-	putative aldo/keto reductase
2841	 42.51	-1	3302151..3302477	-	108	123443244	-	YE3032	-	hypothetical protein
2842	 49.78	0	3302712..3303623	+	303	123443245	-	YE3033	-	LysR family transcriptional regulator
2843	 45.43	0	3303626..3304741	-	371	123443246	-	YE3034	-	NADH:flavin oxidoreductase / NADH oxidase family protein
2844	 42.48	-1	3305377..3305715	+	112	123443247	-	YE3035	-	hypothetical protein
2845	 41.36	-1	3305700..3306347	+	215	123443248	-	YE3036	-	hypothetical protein
2846	 39.27	-1	3307405..3308364	+	319	123443249	-	YE3039	-	hypothetical protein
2847	 53.00	+1	3308773..3309072	+	99	123443250	-	YE3040	-	transposase for insertion element IS3
2848	 52.16	0	3309069..3309461	+	130	123443251	-	YE3041	-	transposase for insertion element IS3
2849	 46.14	0	3309489..3310058	-	189	123443252	-	YE3042	-	hypothetical protein
2850	 46.25	0	3310600..3310932	+	110	123443253	tnpA	YE3043	-	IS1329 transposase A
2851	 49.20	0	3311022..3311771	+	249	123443254	tnpB	YE3044	-	transposase B
2852	 50.00	0	3312100..3312981	+	293	123443255	ads	YE3045	-	bifunctional 5,10-methylene-tetrahydrofolate dehydrogenase/ 5,10-methylene-tetrahydrofolate cyclohydrolase
2853	 44.13	0	3312981..3313193	+	70	123443256	-	YE3046	-	hypothetical protein
2854	 48.56	0	3313398..3314783	-	461	123443257	cysS	YE3048	-	cysteinyl-tRNA synthetase
2855	 46.26	0	3314996..3315490	+	164	123443258	ppiB	YE3049	-	peptidyl-prolyl cis-trans isomerase B (rotamase B)
2856	 45.64	0	3315501..3316223	+	240	123443259	-	YE3050	-	UDP-2,3-diacylglucosamine hydrolase
2857	 54.86	+1	3316400..3316924	+	174	123443260	purE	YE3051	-	phosphoribosylaminoimidazole carboxylase catalytic subunit PurE
2858	 51.83	0	3316921..3317985	+	354	123443261	purK	YE3052	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
2859	 53.48	+1	3318139..3320565	-	808	123443262	ybbP	YE3053	-	putative permease
2860	 52.40	0	3320562..3321248	-	228	123443263	ybbA	YE3054	-	putative ABC transporter ATP-binding protein YbbA
2861	 50.08	0	3321216..3321854	+	212	123443264	apeA	YE3055	-	multifunctional acyl-CoA thioesterase I and protease I and lysophospholipase L1
2862	 51.09	0	3321900..3322676	+	258	123443265	ybbO	YE3056	-	short chain dehydrogenase
2863	 51.26	0	3322748..3323617	+	289	123443266	ybbN	YE3057	-	putative thioredoxin
2864	 47.10	0	3323815..3324729	+	304	123443267	-	YE3058	-	hypothetical protein
2865	 51.11	0	3324732..3325181	+	149	123443268	ybbJ	YE3059	-	hypothetical protein
2866	 46.90	0	3325227..3325646	-	139	123443269	cueR	YE3060	-	putative regulatory protein
2867	 52.12	0	3325843..3328599	+	918	123443270	ybaR	YE3061	-	copper exporting ATPase
2868	 50.25	0	3328681..3329490	+	269	123443271	-	YE3062	-	hypothetical protein
2869	 48.54	0	3329766..3330245	+	159	123443272	-	YE3063	-	hypothetical protein
2870	 47.35	0	3330944..3331963	+	339	123443273	-	YE3064	-	putative transposase for IS1667
2871	 47.67	0	3332365..3334017	-	550	123443274	ushA	YE3066	-	bifunctional UDP-sugar hydrolase/5'-nucleotidase periplasmic precursor
2872	 46.97	0	3334410..3335516	+	368	123443275	fsr	YE3067	-	putative membrane efflux protein
2873	 48.94	0	3335753..3337444	+	563	123443276	rosB	YE3068	-	putative cation:proton antiport protein
2874	 44.37	0	3337519..3338823	-	434	123443277	gsk	YE3069	-	inosine-guanosine kinase
47.74	MEAN

4.70	STD DEV
