IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

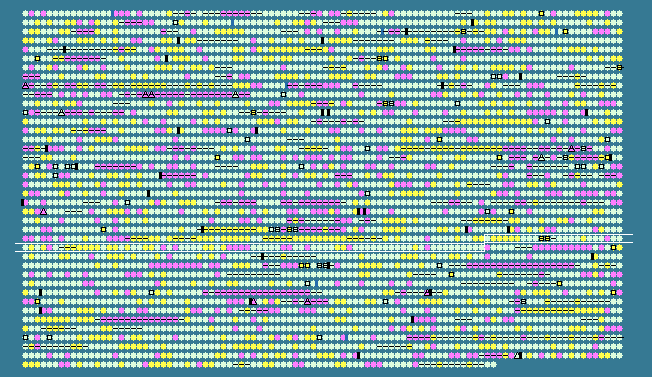

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2578	 50.78	0	3001692..3002591	+	299	123442981	hisG	YE2765	-	ATP phosphoribosyltransferase
2579	 52.94	+1	3002595..3003920	+	441	123442982	hisD	YE2766	-	histidinol dehydrogenase
2580	 51.38	0	3003917..3005041	+	374	123442983	hisC	YE2767	-	histidinol-phosphate aminotransferase
2581	 52.06	0	3005038..3006105	+	355	123442984	hisB	YE2768	-	imidazole glycerol-phosphate dehydratase/histidinol phosphatase
2582	 51.61	0	3006105..3006695	+	196	123442985	hisH	YE2769	-	imidazole glycerol phosphate synthase subunit HisH
2583	 54.07	+1	3006701..3007438	+	245	123442986	hisA	YE2770	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
2584	 48.01	0	3007420..3008196	+	258	123442987	hisF	YE2771	-	imidazole glycerol phosphate synthase subunit HisF
2585	 47.80	0	3008190..3008804	+	204	123442988	hisI	YE2772	-	bifunctional phosphoribosyl-AMP cyclohydrolase/phosphoribosyl-ATP pyrophosphatase protein
2586	 47.62	0	3009059..3010465	-	468	123442989	gnd	YE2773	-	6-phosphogluconate dehydrogenase
2587	 55.98	+1	3010777..3012114	+	445	123442990	-	YE2774	-	transposase for insertion sequence element IS1660
2588	 55.91	+1	3012170..3012956	+	261	123442991	-	YE2775	-	transposase for insertion sequence element IS1665
2589	 47.65	0	3013002..3013895	-	297	123442992	galF	YE2777	-	UTP-glucose-1-phosphate uridylyltransferase
2590	 46.15	0	3013961..3014842	-	293	123442993	galU	YE2778	-	UTP-glucose-1-phosphate uridylyltransferase
2591	 48.52	0	3015331..3016917	+	528	123442994	-	YE2779	-	hypothetical protein
2592	 48.20	0	3017011..3018369	-	452	123442995	dcuC	YE2780	-	C4-dicarboxylate transporter DcuC
2593	 47.73	0	3018701..3020548	-	615	123442996	-	YE2781	-	putative assembly protein
2594	 53.09	+1	3020613..3021194	-	193	123442997	dcd	YE2782	-	deoxycytidine triphosphate deaminase
2595	 45.95	0	3021280..3021921	-	213	123442998	b2066	YE2783	-	uridine kinase
2596	 49.87	0	3022059..3023171	-	370	123442999	-	YE2784	-	putative ATPase
2597	 47.88	0	3023451..3025478	+	675	123443000	metG	YE2785	-	methionyl-tRNA synthetase
2598	 34.05	-2	3025558..3026394	-	278	123443001	-	YE2786	-	hypothetical protein
2599	 48.63	0	3026840..3027931	+	363	123443002	-	YE2787	-	putative sugar ABC transporter
2600	 50.24	0	3028130..3029383	+	417	123443003	-	YE2788	-	hypothetical protein
2601	 47.26	0	3029582..3030802	+	406	123443004	-	YE2789	-	putative multidrug resistance protein
2602	 51.72	0	3030901..3031308	+	135	123443005	yohJ	YE2790	-	hypothetical protein
2603	 50.00	0	3031305..3032000	+	231	123443006	yohK	YE2791	-	hypothetical protein
2604	 51.41	0	3032139..3033023	+	294	123443007	cdd	YE2792	-	cytidine deaminase
2605	 41.09	-1	3033097..3033444	-	115	123443008	-	YE2793	-	putative lipoprotein
2606	 50.41	0	3033911..3035608	+	565	123443009	maeA	YE2794	-	malate dehydrogenase
2607	 50.00	0	3035775..3036578	+	267	123443010	sanA	YE2795	-	hypothetical protein
2608	 53.05	+1	3036629..3036907	-	92	123443011	hypC	YE2796	-	putative hydrogenase isoenzymes formation protein
2609	 53.16	+1	3036948..3037295	-	115	123443012	hypA	YE2797	-	hydrogenase nickel incorporation protein
2610	 54.67	+1	3037703..3038344	+	213	123443013	hyfA	YE2798	-	hydrogenase-4 component A
2611	 54.24	+1	3038341..3040368	+	675	123443014	hyfB	YE2799	-	hydrogenase 4 subunit B
2612	 55.87	+1	3040380..3041333	+	317	123443015	hyfC	YE2800	-	hydrogenase-4 component C
2613	 52.93	+1	3041352..3042821	+	489	123443016	hyfD	YE2801	-	hydrogenase 4 subunit D
2614	 50.90	0	3042833..3043498	+	221	123443017	hyfE	YE2802	-	hydrogenase 4 membrane subunit
2615	 54.40	+1	3043503..3045140	+	545	123443018	hyfF	YE2803	-	hydrogenase 4 subunit F
2616	 54.10	+1	3045142..3046947	+	601	123443019	hyfG	YE2804	-	hydrogenase-4 component G
2617	 48.30	0	3046959..3047546	+	195	123443020	hyfH	YE2805	-	hydrogenase 4 subunit H
2618	 52.04	0	3047543..3048349	+	268	123443021	hyfI	YE2806	-	hydrogenase-4 component I
2619	 49.50	0	3048342..3048743	+	133	123443022	hyfJ	YE2807	-	hydrogenase-4 component J
2620	 50.63	0	3048740..3049213	+	157	123443023	hycI	YE2808	-	hydrogenase 3 maturation protease
2621	 54.88	+1	3049640..3050182	+	180	123443024	hydN	YE2809	-	4Fe-4S ferrodoxin
2622	 51.26	0	3050211..3052358	+	715	123443025	fdhF	YE2810	-	formate dehydrogenase H
2623	 45.05	0	3052602..3054761	-	719	123443026	hyfR	YE2811	-	putative hydrogenlyase transcriptional activator
2624	 42.57	-1	3055206..3056060	+	284	123443027	focB	YE2812	-	putative formate transporter
2625	 44.71	0	3056171..3057181	-	336	123443028	mglC	YE2813	-	beta-methylgalactoside transporter inner membrane component
2626	 40.83	-1	3057202..3058722	-	506	123443029	mglA	YE2814	-	galactose/methyl galaxtoside transporter ATP-binding protein
2627	 44.61	0	3058918..3059910	-	330	123443030	mglB	YE2815	-	galactose-binding protein
2628	 50.87	0	3060265..3061302	-	345	123443031	galS	YE2816	-	DNA-binding transcriptional regulator GalS
2629	 50.56	0	3061484..3062650	-	388	123443032	yeiB	YE2817	-	hypothetical protein
2630	 46.61	0	3062705..3063367	-	220	123443033	folE	YE2818	-	GTP cyclohydrolase I
2631	 53.37	+1	3063522..3064694	-	390	123443034	-	YE2819	-	hypothetical protein
2632	 53.45	+1	3064831..3065700	+	289	123443035	-	YE2820	-	LysR family transcriptional regulator
2633	 47.35	0	3065971..3067119	+	382	123443036	-	YE2821	-	alcohol dehydrogenase
2634	 51.25	0	3067140..3067982	+	280	123443037	-	YE2822	-	putative esterase
2635	 34.68	-2	3068765..3071137	+	790	123443038	-	YE2823	-	hypothetical protein
2636	 34.20	-2	3071142..3072404	+	420	123443039	-	YE2824	-	hypothetical protein
2637	 35.30	-2	3072406..3073065	+	219	123443040	-	YE2825	-	ABC transporter ATP-binding protein
2638	 37.30	-2	3073083..3074393	+	436	123443041	-	YE2826	-	putative heme-binding protein
2639	 46.48	0	3074501..3075040	-	179	123443042	-	YE2827	-	hypothetical protein
2640	 49.11	0	3075244..3076479	+	411	123443043	bisB	YE2828	-	molybdopterin biosynthesis protein MoeA
2641	 48.22	0	3076519..3077304	+	261	123443044	chlN	YE2829	-	molybdopterin biosynthesis protein MoeB
2642	 46.56	0	3077686..3080112	+	808	123443045	-	YE2830	-	hypothetical protein
2643	 46.43	0	3080223..3081818	-	531	123443046	ybiT	YE2831	-	ABC transporter ATP-binding protein
2644	 42.34	-1	3081998..3083407	-	469	123443047	-	YE2832	-	hypothetical protein
2645	 42.39	-1	3083465..3084403	-	312	123443048	-	YE2833	-	hypothetical protein
2646	 46.90	0	3084900..3085592	+	230	123443049	-	YE2834	-	hypothetical protein
2647	 47.54	0	3085714..3086241	-	175	123443050	ompX	YE2835	-	outer membrane protein X
2648	 29.78	-2	3086365..3086589	-	74	123443051	-	YE2836	-	hypothetical protein
2649	 50.34	0	3086644..3087531	+	295	123443052	-	YE2837	-	threonine and homoserine efflux system
2650	 51.02	0	3087545..3088036	+	163	123443053	-	YE2838	-	hypothetical protein
2651	 45.99	0	3088214..3088774	+	186	123443054	-	YE2839	-	hypothetical protein
2652	 50.45	0	3088834..3089388	+	184	123443055	-	YE2840	-	putative RNA polymerase sigma factor
2653	 52.25	0	3089385..3090050	+	221	123443056	-	YE2841	-	hypothetical protein
2654	 52.25	0	3090075..3090851	+	258	123443057	tam	YE2842	-	trans-aconitate 2-methyltransferase
2655	 43.73	0	3091166..3091675	+	169	123443058	dps	YE2843	-	DNA starvation/stationary phase protection protein Dps
2656	 50.19	0	3091792..3092058	+	88	123443059	-	YE2844	-	hypothetical protein
2657	 46.77	0	3092445..3093188	+	247	123443060	glnH	YE2845	-	glutamine ABC transporter periplasmic protein
2658	 50.38	0	3093255..3093911	+	218	123443061	glnP	YE2846	-	glutamine ABC transporter permease protein
2659	 48.41	0	3093908..3094630	+	240	123443062	glnQ	YE2847	-	glutamine ABC transporter ATP-binding protein
2660	 47.20	0	3094913..3096145	-	410	123443063	-	YE2848	-	putative chemotactic transducer
2661	 47.92	0	3096772..3097779	-	335	123443064	-	YE2849	-	putative SAM-dependent methyltransferase
2662	 49.53	0	3097906..3098547	+	213	123443065	-	YE2850	-	hypothetical protein
2663	 44.83	0	3098674..3098934	+	86	123443066	-	YE2851	-	hypothetical protein
2664	 46.75	0	3099086..3100948	-	620	123443067	-	YE2852	-	putative peptidase
2665	 50.76	0	3101167..3102147	-	326	123443068	ybiB	YE2853	-	hypothetical protein
2666	 52.34	0	3102357..3103061	-	234	123443069	aqpZ	YE2854	-	aquaporin Z
2667	 49.91	0	3103372..3105555	-	727	123443070	dinG	YE2855	-	ATP-dependent DNA helicase DinG
2668	 42.56	-1	3105995..3107110	+	371	123443071	ompC2	YE2856	-	outer membrane protein C2
2669	 46.07	0	3107234..3108544	-	436	123443072	-	YE2857	-	hypothetical protein
2670	 48.82	0	3108825..3109715	+	296	123443073	-	YE2858	-	hypothetical protein
2671	 49.51	0	3109970..3110884	-	304	123443074	-	YE2859	-	LysR family transcriptional regulator
2672	 48.19	0	3110994..3111740	+	248	123443075	-	YE2860	-	putative short chain dehydrogenase
2673	 47.14	0	3111996..3112799	-	267	123443076	-	YE2861	-	hypothetical protein
2674	 48.15	0	3112831..3113559	-	242	123443077	-	YE2862	-	putative ABC transport integral membrane subunit
2675	 46.24	0	3113658..3114602	-	314	123443078	-	YE2863	-	putative ABC transport ATP-binding subunit
2676	 46.58	0	3114599..3115753	-	384	123443079	-	YE2864	-	putative ABC transport integral membrane subunit
2677	 45.87	0	3115862..3116794	-	310	123443080	-	YE2865	-	putative substrate-binding transport protein
47.74	MEAN

4.70	STD DEV
