IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

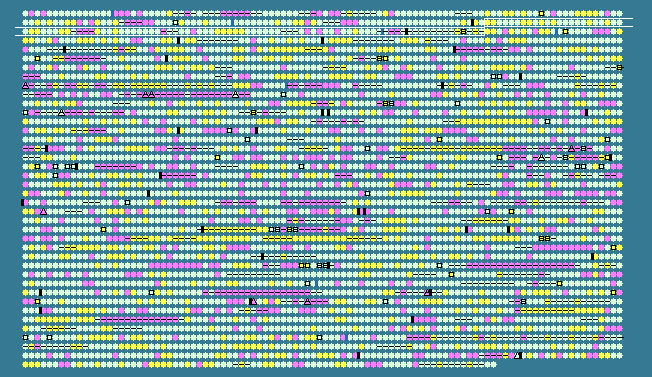

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
178	 51.41	0	221720..222466	-	248	123440581	hemD	YE0186	-	uroporphyrinogen-III synthase
179	 51.70	0	222463..223404	-	313	123440582	hemC	YE0187	-	porphobilinogen deaminase
180	 49.47	0	223809..226355	+	848	123440583	cyaA	YE0189	-	adenylate cyclase
181	 48.60	0	226526..226846	-	106	123440584	cyaY	YE0190	-	frataxin-like protein
182	 49.02	0	226960..227163	+	67	123440585	-	YE0191	-	putative lipoprotein
183	 50.67	0	227252..228076	+	274	123440586	dapF	YE0192	-	diaminopimelate epimerase
184	 51.35	0	228170..228874	+	234	123440587	-	YE0193	-	hypothetical protein
185	 53.62	+1	228871..229782	+	303	123440588	xerC	YE0194	-	site-specific tyrosine recombinase XerC
186	 50.91	0	229782..230498	+	238	123440589	-	YE0195	-	flavin mononucleotide phosphatase
187	 52.47	+1	230599..232761	+	720	123440590	uvrD	YE0196	-	DNA-dependent helicase II
188	 48.34	0	233186..233758	-	190	123440591	-	YE0197	-	TetR family regulatory protein
189	 51.66	0	234065..235297	+	410	123440592	-	YE0198	-	hypothetical protein
190	 50.78	0	235324..236154	+	276	123440593	-	YE0199	-	hypothetical protein
191	 49.32	0	236657..237607	+	316	123440594	corA	YE0200	-	magnesium/nickel/cobalt transporter CorA
192	 49.94	0	237795..238685	-	296	123440595	rarD	YE0201	-	hypothetical protein
193	 48.41	0	238765..239235	-	156	123440596	-	YE0202	-	hypothetical protein
194	 46.42	0	239416..240294	+	292	123440597	pldA	YE0203	-	phospholipase A
195	 52.08	0	240371..242221	+	616	123440598	recQ	YE0204	-	ATP-dependent DNA helicase RecQ
196	 49.92	0	242284..242904	+	206	123440599	rhtC	YE0205	-	threonine efflux system
197	 49.76	0	242954..243574	-	206	123440600	rhtB	YE0206	-	homoserine/homoserine lactone efflux protein
198	 51.70	0	243778..244833	+	351	123440601	pldB	YE0207	-	lysophospholipase L2
199	 48.40	0	244845..245654	+	269	123440602	-	YE0208	-	putative sugar phosphatase
200	 46.65	0	245866..246864	-	332	123440603	glpQ	YE0209	-	glycerophosphodiester phosphodiesterase
201	 50.33	0	247088..248452	-	454	123440604	glpT	YE0210	-	sn-glycerol-3-phosphate transporter
202	 54.11	+1	248974..250629	+	551	123440605	glpA	YE0212	-	sn-glycerol-3-phosphate dehydrogenase subunit A
203	 54.04	+1	250619..251893	+	424	123440606	glpB	YE0213	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
204	 48.20	0	251932..253155	+	407	123440607	glpC	YE0214	-	sn-glycerol-3-phosphate dehydrogenase subunit C
205	 45.95	0	253311..253754	-	147	123440608	dcrB	YE0215	-	hypothetical protein
206	 47.43	0	253896..254576	-	226	123440609	yhhQ	YE0216	-	hypothetical protein
207	 51.37	0	254823..255077	+	84	123440610	-	YE0217	-	cell developmental protein SirA
208	 51.87	0	255099..257429	-	776	123440611	zntA	YE0218	-	zinc/cadmium/mercury/lead-transporting ATPase
209	 49.60	0	257713..258339	-	208	123440612	yhhN	YE0219	-	hypothetical protein
210	 43.30	0	258627..258947	+	106	123440613	-	YE0221	-	hypothetical protein
211	 43.75	0	258986..259369	+	127	123440614	-	YE0222	-	hypothetical protein
212	 39.56	-1	259410..259682	-	90	123440615	yhhL	YE0223	-	hypothetical protein
213	 51.35	0	259672..260226	-	184	123440616	-	YE0224	-	16S rRNA m(2)G966-methyltransferase
214	 48.16	0	260574..262097	+	507	123440617	ftsY	YE0225	-	cell division protein
215	 50.52	0	262103..262771	+	222	123440618	ftsE	YE0226	-	cell division protein FtsE
216	 51.45	0	262860..263720	+	286	123440619	ftsX	YE0227	-	cell division protein FtsX
217	 48.37	0	264131..264988	+	285	123440620	fam	YE0228	-	RNA polymerase factor sigma-32
218	 47.33	0	265084..265476	-	130	123440621	yhhK	YE0229	-	putative acetyltransferase
219	 48.21	0	265898..267013	+	371	123440622	livJ	YE0230	-	branched-chain amino acid-binding protein
220	 49.51	0	267172..268098	+	308	123440623	livH	YE0231	-	branched-chain amino acid transporter permease subunit LivH
221	 49.73	0	268095..269381	+	428	123440624	livM	YE0232	-	leucine/isoleucine/valine transporter permease subunit
222	 50.91	0	269378..270145	+	255	123440625	livG	YE0233	-	leucine/isoleucine/valine transporter ATP-binding subunit
223	 49.57	0	270190..270891	+	233	123440626	livF	YE0234	-	leucine/isoleucine/valine transporter ATP-binding subunit
224	 33.99	-2	270952..272022	-	356	123440627	-	YE0235	-	hypothetical protein
225	 46.05	0	272084..272602	-	172	123440628	-	YE0236	-	hypothetical protein
226	 48.25	0	272611..273240	-	209	123440629	-	YE0237	-	hypothetical protein
227	 44.54	0	273233..273919	-	228	123440630	-	YE0238	-	hypothetical protein
228	 46.82	0	273937..276249	-	770	123440631	-	YE0239	-	hypothetical protein
229	 38.57	-1	276430..276906	-	158	123440632	-	YE0240	-	hypothetical protein
230	 47.05	0	277469..278788	+	439	123440633	ugpB	YE0241	-	glycerol-3-phosphate transporter periplasmic binding protein
231	 50.11	0	278898..279785	+	295	123440634	ugpA	YE0242	-	glycerol-3-phosphate transporter permease
232	 49.76	0	279782..280627	+	281	123440635	ugpE	YE0243	-	glycerol-3-phosphate transporter membrane protein
233	 52.07	0	280634..281722	+	362	123440636	ugpC	YE0244	-	glycerol-3-phosphate transporter ATP-binding subunit
234	 52.50	+1	281719..282459	+	246	123440637	ugpQ	YE0245	-	cytoplasmic glycerophosphodiester phosphodiesterase
235	 52.71	+1	282591..283550	+	319	123440638	-	YE0246	-	hypothetical protein
236	 53.33	+1	283705..284604	+	299	123440639	yigM	YE0247	-	hypothetical protein
237	 52.52	+1	284492..285445	-	317	123440640	metR	YE0248	-	LysR family transcriptional regulator
238	 50.64	0	285551..287827	+	758	123440641	metE	YE0249	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
239	 48.80	0	287893..288603	-	236	123440642	-	YE0250	-	putative carboxymethylenebutenolidase
240	 49.48	0	289388..290149	+	253	123440643	udp	YE0251	-	uridine phosphorylase
241	 47.87	0	290482..291279	+	265	123440644	-	YE0252	-	hypothetical protein
242	 47.25	0	291621..293438	+	605	123440645	-	YE0253	-	putative carbon starvation protein
243	 48.78	0	293567..294097	+	176	123440646	-	YE0254	-	hypothetical protein
244	 46.67	0	294370..295824	+	484	123440647	rumC	YE0255	-	putative DNA recombination protein
245	 45.77	0	295958..296713	+	251	123440648	ubiE	YE0256	-	ubiquinone/menaquinone biosynthesis methyltransferase
246	 45.51	0	296757..297380	+	207	123440649	-	YE0257	-	hypothetical protein
247	 44.67	0	297377..299008	+	543	123440650	ubiB	YE0258	-	putative ubiquinone biosynthesis protein UbiB
248	 43.07	0	299209..299475	+	88	123440651	b3836	YE0259	-	Sec-independent protein translocase protein TatA
249	 50.38	0	299479..300135	+	218	123440652	mtta2	YE0260	-	Sec-independent protein translocase protein TatB
250	 42.56	-1	300138..300917	+	259	123440653	mttB	YE0261	-	TatABCE protein translocation system subunit
251	 49.43	0	300973..301755	+	260	123440654	mttC	YE0262	-	DNase TatD
252	 48.09	0	301770..302792	+	340	123440655	hemB	YE0263	-	delta-aminolevulinic acid dehydratase
253	 42.74	-1	302881..303369	-	162	123440656	rfaH	YE0264	-	transcriptional activator RfaH
254	 48.76	0	303638..305134	+	498	123440657	-	YE0265	-	3-octaprenyl-4-hydroxybenzoate decarboxylase
255	 48.43	0	305189..305890	+	233	123440658	fre	YE0266	-	FMN reductase
256	 52.41	0	305990..307153	-	387	123440659	fadA	YE0267	-	3-ketoacyl-CoA thiolase
257	 49.63	0	307165..309354	-	729	123440660	fadB	YE0268	-	multifunctional fatty acid oxidation complex subunit alpha
258	 46.67	0	309626..310975	+	449	123440661	pepQ	YE0269	-	proline dipeptidase
259	 49.24	0	311626..313077	+	483	123440662	trkH	YE0272	-	potassium transporter
260	 46.82	0	313099..313632	+	177	123440663	hemG	YE0273	-	protoporphyrinogen oxidase
261	 46.34	0	319709..320746	+	345	123440664	murB	YE0274	-	UDP-N-acetylenolpyruvoylglucosamine reductase
262	 43.23	0	320743..321702	+	319	123440665	bioR	YE0275	-	biotin--protein ligase
263	 41.96	-1	321742..322692	-	316	123440666	coaA	YE0276	-	pantothenate kinase
264	 44.93	0	322902..323453	-	183	123440667	-	YE0277	-	putative acetyltransferase
265	 48.02	0	324617..325801	+	394	123440668	tufA	YE0278	-	elongation factor Tu
266	 50.26	0	326041..326424	+	127	123440669	secE	YE0279	-	preprotein translocase subunit SecE
267	 48.35	0	326426..326971	+	181	123440670	nusG	YE0280	-	transcription antitermination protein NusG
268	 47.79	0	327165..327593	+	142	123440671	rplK	YE0281	-	50S ribosomal protein L11
269	 48.23	0	327597..328301	+	234	123440672	rplA	YE0282	-	50S ribosomal protein L1
270	 50.00	0	328676..329179	+	167	123440673	rplJ	YE0283	-	50S ribosomal protein L10
271	 46.61	0	329248..329616	+	122	123440674	rplL	YE0284	-	50S ribosomal protein L7/L12
272	 49.76	0	329960..333988	+	1342	123440675	rpoB	YE0286	-	DNA-directed RNA polymerase subunit beta
273	 51.41	0	334125..338345	+	1406	123440676	rpoC	YE0287	-	DNA-directed RNA polymerase subunit beta'
274	 55.88	+1	338397..339731	-	444	123440677	-	YE0288	-	transposase for insertion sequence element IS1660
275	 50.84	0	339869..340999	-	376	123440678	thiH	YE0289	-	thiamine biosynthesis protein ThiH
276	 52.85	+1	340992..341780	-	262	123440679	thiG	YE0290	-	thiazole synthase
277	 49.54	0	341782..341997	-	71	123440680	thiS	YE0290A	-	sulfur carrier protein ThiS
47.74	MEAN

4.70	STD DEV
