IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

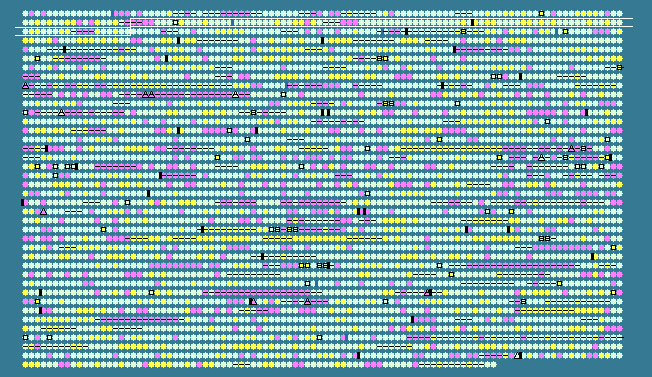

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
119	 40.25	-1	141014..141649	+	211	123440522	-	YE0123	-	hemophore HasA
120	 40.98	-1	141797..142450	+	217	123440523	-	YE0124	-	hemophore
121	 39.41	-1	142509..143150	+	213	123440524	-	YE0125	-	hemophore
122	 35.80	-2	143211..143819	+	202	123440525	-	YE0126	-	hemophore
123	 47.03	0	144005..145786	+	593	123440526	-	YE0127	-	ABC transporter protein
124	 47.20	0	145917..147149	+	410	123440527	-	YE0128	-	HlyD family secretion protein
125	 46.32	0	147226..148026	+	266	123440528	-	YE0129	-	hypothetical protein
126	 44.39	0	148114..149307	-	397	123440529	tpn1330	YE0130	-	transposase for IS1330
127	 51.48	0	149422..150870	-	482	123440530	-	YE0131	-	dihydrolipoamide dehydrogenase
128	 47.54	0	151070..151801	-	243	123440531	-	YE0132	-	putative peroxiredoxin/glutaredoxin family protein
129	 49.09	0	151949..152881	+	310	123440532	oxyR	YE0133	-	DNA-binding transcriptional regulator OxyR
130	 48.89	0	152864..154264	-	466	123440533	sth	YE0134	-	soluble pyridine nucleotide transhydrogenase
131	 53.02	+1	154470..155114	+	214	123440534	-	YE0135	-	DNA-binding transcriptional repressor FabR
132	 44.35	0	155245..155607	+	120	123440535	yijD	YE0136	-	hypothetical protein
133	 49.18	0	155840..156943	-	367	123440536	trmA	YE0138	-	tRNA (uracil-5-)-methyltransferase
134	 47.66	0	157369..159267	+	632	123440537	btuB	YE0139	-	vitamin B12/cobalamin outer membrane transporter
135	 50.23	0	159212..160075	+	287	123440538	dga	YE0140	-	glutamate racemase
136	 44.93	0	166814..167770	+	318	123440539	-	YE0141	-	putative periplasmic protein precursor
137	 45.61	0	167855..169345	+	496	123440540	-	YE0142	-	putative sugar transport system ATP-binding protein
138	 48.24	0	169357..170376	+	339	123440541	-	YE0143	-	putative sugar transport system permease
139	 45.72	0	170376..171344	+	322	123440542	-	YE0144	-	inner membrane ABC transporter permease protein YjfF
140	 47.05	0	171355..172236	-	293	123440543	-	YE0145	-	transcriptional regulator HdfR
141	 50.74	0	172356..172694	+	112	123440544	-	YE0146	-	hypothetical protein
142	 50.07	0	172798..174321	-	507	123440545	-	YE0147	-	putative magnesium chelatase family protein
143	 52.40	0	174892..176538	+	548	123440546	ilvG	YE0148	-	acetolactate synthase 2 catalytic subunit
144	 46.90	0	176535..176792	+	85	123440547	ilvM	YE0149	-	acetolactate synthase 2 regulatory subunit
145	 50.92	0	176815..177741	+	308	123440548	ilvE	YE0150	-	branched-chain amino acid aminotransferase
146	 53.00	+1	177853..179703	+	616	123440549	ilvD	YE0151	-	dihydroxy-acid dehydratase
147	 53.66	+1	179709..181253	+	514	123440550	ilvA	YE0152	-	threonine dehydratase
148	 33.47	-2	181439..182935	+	498	123440551	-	YE0153	-	hypothetical protein
149	 52.15	0	182937..183818	-	293	123440552	ilvY	YE0154	-	DNA-binding transcriptional regulator IlvY
150	 48.95	0	184071..185549	+	492	123440553	ilvC	YE0155	-	ketol-acid reductoisomerase
151	 45.72	0	185847..186524	-	225	123440554	-	YE0157	-	putative chaperone protein
152	 49.34	0	186571..187938	-	455	123440555	-	YE0158	-	hypothetical protein
153	 44.91	0	187956..190175	-	739	123440556	-	YE0159	-	putative outer membrane usher protein
154	 42.04	-1	190653..191330	-	225	123440557	-	YE0160	-	putative fimbrial chaperone
155	 44.26	0	191517..192047	-	176	123440558	-	YE0161	-	putative fimbrial protein
156	 42.20	-1	192664..192945	-	93	123440559	ppiC	YE0162	-	peptidyl-prolyl cis-trans isomerase C
157	 48.20	0	193159..195183	+	674	123440560	rep	YE0163	-	ATP-dependent DNA helicase Rep
158	 46.63	0	195239..197065	-	608	123440561	pehX	YE0164	-	exo-poly-alpha-D-galacturonosidase precursor
159	 50.43	0	197407..198903	-	498	123440562	gppA	YE0165	-	guanosine pentaphosphate phosphohydrolase
160	 48.10	0	198907..199983	-	358	123440563	mmrA	YE0166	-	putative DEAD-box helicase
161	 46.79	0	200312..200638	+	108	123440564	fipA	YE0167	-	thioredoxin 1
162	 47.46	0	201295..202554	+	419	123440565	rho	YE0168	-	transcription termination factor Rho
163	 45.72	0	202836..203933	+	365	123440566	b3784	YE0169	-	putative undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
164	 47.93	0	203969..205030	+	353	123440567	b3785	YE0170	-	lipopolysaccharide biosynthesis protein WzzE
165	 49.07	0	205110..206240	+	376	123440568	nfrC	YE0171	-	UDP-N-acetylglucosamine 2-epimerase
166	 49.80	0	206237..207499	+	420	123440569	wecC	YE0172	-	UDP-N-acetyl-D-mannosamine dehydrogenase
167	 50.00	0	207496..208563	+	355	123440570	rffG	YE0173	-	dTDP-D-glucose-4,6-dehydratase
168	 48.98	0	208794..209675	+	293	123440571	rffH	YE0174	-	glucose-1-phosphate thymidylyltransferase
169	 48.96	0	209764..210390	+	208	123440572	b3790	YE0175	-	TDP-fucosamine acetyltransferase
170	 48.72	0	210392..211522	+	376	123440573	b3791	YE0176	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
171	 49.48	0	211524..212780	+	418	123440574	b3792	YE0177	-	putative lipopolysaccharide biosynthesis protein
172	 49.54	0	212803..213888	+	361	123440575	-	YE0178	-	4-alpha-L-fucosyltransferase
173	 48.08	0	213885..215261	+	458	123440576	rffT	YE0179	-	putative entero common antigen polymerase
174	 51.56	0	215354..216028	+	224	123440577	rffM	YE0180	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
175	 49.50	0	216379..217770	+	463	123440578	-	YE0181	-	putative transport protein YifK
176	 52.33	0	219361..220560	-	399	123440579	hemY	YE0184	-	putative protoheme IX biogenesis protein
177	 50.31	0	220563..221687	-	374	123440580	hemX	YE0185	-	putative uroporphyrinogen III C-methyltransferase
178	 51.41	0	221720..222466	-	248	123440581	hemD	YE0186	-	uroporphyrinogen-III synthase
179	 51.70	0	222463..223404	-	313	123440582	hemC	YE0187	-	porphobilinogen deaminase
180	 49.47	0	223809..226355	+	848	123440583	cyaA	YE0189	-	adenylate cyclase
181	 48.60	0	226526..226846	-	106	123440584	cyaY	YE0190	-	frataxin-like protein
182	 49.02	0	226960..227163	+	67	123440585	-	YE0191	-	putative lipoprotein
183	 50.67	0	227252..228076	+	274	123440586	dapF	YE0192	-	diaminopimelate epimerase
184	 51.35	0	228170..228874	+	234	123440587	-	YE0193	-	hypothetical protein
185	 53.62	+1	228871..229782	+	303	123440588	xerC	YE0194	-	site-specific tyrosine recombinase XerC
186	 50.91	0	229782..230498	+	238	123440589	-	YE0195	-	flavin mononucleotide phosphatase
187	 52.47	+1	230599..232761	+	720	123440590	uvrD	YE0196	-	DNA-dependent helicase II
188	 48.34	0	233186..233758	-	190	123440591	-	YE0197	-	TetR family regulatory protein
189	 51.66	0	234065..235297	+	410	123440592	-	YE0198	-	hypothetical protein
190	 50.78	0	235324..236154	+	276	123440593	-	YE0199	-	hypothetical protein
191	 49.32	0	236657..237607	+	316	123440594	corA	YE0200	-	magnesium/nickel/cobalt transporter CorA
192	 49.94	0	237795..238685	-	296	123440595	rarD	YE0201	-	hypothetical protein
193	 48.41	0	238765..239235	-	156	123440596	-	YE0202	-	hypothetical protein
194	 46.42	0	239416..240294	+	292	123440597	pldA	YE0203	-	phospholipase A
195	 52.08	0	240371..242221	+	616	123440598	recQ	YE0204	-	ATP-dependent DNA helicase RecQ
196	 49.92	0	242284..242904	+	206	123440599	rhtC	YE0205	-	threonine efflux system
197	 49.76	0	242954..243574	-	206	123440600	rhtB	YE0206	-	homoserine/homoserine lactone efflux protein
198	 51.70	0	243778..244833	+	351	123440601	pldB	YE0207	-	lysophospholipase L2
199	 48.40	0	244845..245654	+	269	123440602	-	YE0208	-	putative sugar phosphatase
200	 46.65	0	245866..246864	-	332	123440603	glpQ	YE0209	-	glycerophosphodiester phosphodiesterase
201	 50.33	0	247088..248452	-	454	123440604	glpT	YE0210	-	sn-glycerol-3-phosphate transporter
202	 54.11	+1	248974..250629	+	551	123440605	glpA	YE0212	-	sn-glycerol-3-phosphate dehydrogenase subunit A
203	 54.04	+1	250619..251893	+	424	123440606	glpB	YE0213	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
204	 48.20	0	251932..253155	+	407	123440607	glpC	YE0214	-	sn-glycerol-3-phosphate dehydrogenase subunit C
205	 45.95	0	253311..253754	-	147	123440608	dcrB	YE0215	-	hypothetical protein
206	 47.43	0	253896..254576	-	226	123440609	yhhQ	YE0216	-	hypothetical protein
207	 51.37	0	254823..255077	+	84	123440610	-	YE0217	-	cell developmental protein SirA
208	 51.87	0	255099..257429	-	776	123440611	zntA	YE0218	-	zinc/cadmium/mercury/lead-transporting ATPase
209	 49.60	0	257713..258339	-	208	123440612	yhhN	YE0219	-	hypothetical protein
210	 43.30	0	258627..258947	+	106	123440613	-	YE0221	-	hypothetical protein
211	 43.75	0	258986..259369	+	127	123440614	-	YE0222	-	hypothetical protein
212	 39.56	-1	259410..259682	-	90	123440615	yhhL	YE0223	-	hypothetical protein
213	 51.35	0	259672..260226	-	184	123440616	-	YE0224	-	16S rRNA m(2)G966-methyltransferase
214	 48.16	0	260574..262097	+	507	123440617	ftsY	YE0225	-	cell division protein
215	 50.52	0	262103..262771	+	222	123440618	ftsE	YE0226	-	cell division protein FtsE
216	 51.45	0	262860..263720	+	286	123440619	ftsX	YE0227	-	cell division protein FtsX
217	 48.37	0	264131..264988	+	285	123440620	fam	YE0228	-	RNA polymerase factor sigma-32
218	 47.33	0	265084..265476	-	130	123440621	yhhK	YE0229	-	putative acetyltransferase
47.74	MEAN

4.70	STD DEV
