IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

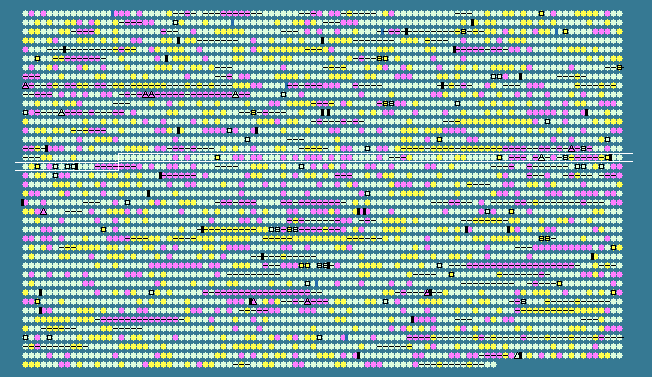

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1617	 46.87	0	1916221..1917675	-	484	123442020	phoQ	YE1717	-	sensor protein PhoQ
1618	 44.79	0	1917681..1918352	-	223	123442021	phoP	YE1718	-	DNA-binding transcriptional regulator PhoP
1619	 45.83	0	1918424..1919047	-	207	123442022	-	YE1719	-	putative lipoprotein
1620	 47.05	0	1919235..1920605	-	456	123442023	purB	YE1720	-	adenylosuccinate lyase
1621	 49.44	0	1920631..1921257	-	208	123442024	-	YE1721	-	hypothetical protein
1622	 50.27	0	1921382..1922503	-	373	123442025	trmU	YE1722	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1623	 46.53	0	1922690..1923136	-	148	123442026	-	YE1723	-	hypothetical protein
1624	 46.57	0	1923129..1923755	-	208	123442027	ymfC	YE1724	-	putative pseudouridine synthase
1625	 46.65	0	1923886..1925139	+	417	123442028	icd	YE1725	-	isocitrate dehydrogenase
1626	 42.62	-1	1925672..1926532	+	286	123442029	-	YE1726	-	hypothetical protein
1627	 44.72	0	1926684..1927904	+	406	123442030	-	YE1727	-	putative inner membrane protein
1628	 41.76	-1	1929451..1929711	-	86	123442031	-	YE1730	-	hypothetical protein
1629	 50.13	0	1929885..1931444	-	519	123442032	aer	YE1731	-	putative methyl-accepting chemotaxis protein
1630	 46.41	0	1932015..1933283	-	422	123442033	umuC	YE1732	-	putative UV protection and mutation protein
1631	 45.17	0	1933283..1933696	-	137	123442034	umuD	YE1733	-	putative UV protection and mutation protein
1632	 50.79	0	1934339..1934653	+	104	123442035	-	YE1735	-	IS1669 hypothetical protein
1633	 51.25	0	1934671..1935468	+	265	123442036	-	YE1736	-	putative transposase for insertion element IS1669
1634	 51.05	0	1936070..1936927	-	285	123442037	-	YE1738	-	hypothetical protein
1635	 47.37	0	1937261..1937602	+	113	123442038	-	YE1739	-	hypothetical protein
1636	 43.16	0	1937666..1937950	-	94	123442039	-	YE1740	-	hypothetical protein
1637	 43.83	0	1938628..1939542	-	304	123442040	-	YE1742	-	putative inner membrane protein
1638	 45.62	0	1939494..1940600	+	368	123442041	-	YE1743	-	AraC family transcriptional regulator
1639	 40.51	-1	1940624..1941013	-	129	123442042	-	YE1744	-	hypothetical protein
1640	 37.18	-2	1941092..1941403	-	103	123442043	hdeB	YE1745	-	acid-resistance protein
1641	 44.60	0	1942268..1943590	+	440	123442044	-	YE1746	-	hypothetical protein
1642	 48.41	0	1943804..1944652	-	282	123442045	-	YE1747	-	hypothetical protein
1643	 47.35	0	1944755..1946473	-	572	123442046	-	YE1748	-	putative ABC transporter ATP-binding protein
1644	 43.10	0	1946673..1947092	+	139	123442047	-	YE1749	-	putative acetyltransferase
1645	 45.04	0	1947359..1948861	+	500	123442048	-	YE1750	-	amino acid permease
1646	 39.39	-1	1949296..1949460	+	54	123442049	-	YE1752	-	hypothetical protein
1647	 44.44	0	1949519..1949905	-	128	123442050	-	YE1753	-	AraC family transcription regulator
1648	 41.25	-1	1950571..1950810	+	79	123442051	-	YE1756	-	hypothetical protein
1649	 43.19	0	1950903..1951115	-	70	123442052	-	YE1757	-	hypothetical protein
1650	 41.67	-1	1951825..1952100	+	91	123442053	-	YE1758	-	hypothetical protein
1651	 46.00	0	1952302..1952601	+	99	123442054	-	YE1759	-	hypothetical protein
1652	 43.70	0	1952684..1952953	+	89	123442055	-	YE1760	-	hypothetical protein
1653	 46.84	0	1953145..1954536	+	463	123442056	aroP	YE1761	-	aromatic amino acid transport protein
1654	 44.23	0	1954778..1955392	-	204	123442057	-	YE1762	-	palmitoyl transferase for Lipid A
1655	 41.03	-1	1956382..1956498	+	38	123442058	-	YE1764	-	hypothetical protein
1656	 46.19	0	1956541..1956750	+	69	123442059	cspC1	YE1765	-	cold shock-like protein CspC
1657	 47.50	0	1956828..1957547	-	239	123442060	-	YE1766	-	hypothetical protein
1658	 49.94	0	1957750..1959459	+	569	123442061	ftsI2	YE1767	-	peptidoglycan synthetase
1659	 49.13	0	1959577..1960437	+	286	123442062	rrmA	YE1768	-	23S rRNA methyltransferase A
1660	 39.43	-1	1960600..1960878	-	92	123442063	-	YE1769	-	hypothetical protein
1661	 49.23	0	1961046..1963121	-	691	123442064	-	YE1770	-	hypothetical protein
1662	 47.35	0	1963919..1965973	+	684	123442065	fcuA	YE1771	-	ferrichrome receptor protein
1663	 47.72	0	1966103..1966672	-	189	123442066	yebN	YE1772	-	hypothetical protein
1664	 34.20	-2	1967113..1967574	-	153	123442067	yobD	YE1773	-	hypothetical protein
1665	 51.85	0	1967791..1968654	-	287	123442068	gptB	YE1775	-	mannose-specific PTS system protein IID
1666	 50.88	0	1968688..1969485	-	265	123442069	manY	YE1776	-	PTS system, mannose-specific IIC component
1667	 47.10	0	1969703..1970668	-	321	123442070	gptB	YE1777	-	PTS system, mannose-specific IIAB component
1668	 50.36	0	1971438..1972982	+	514	123442071	yoaE	YE1778	-	hypothetical protein
1669	 51.21	0	1973872..1975236	-	454	123442072	sdaA	YE1779	-	L-serine dehydratase
1670	 51.53	0	1975689..1976276	-	195	123442073	-	YE1780	-	hypothetical protein
1671	 49.60	0	1976289..1977659	-	456	123442074	pabB	YE1781	-	para-aminobenzoate synthase component I
1672	 48.06	0	1977842..1978099	+	85	123442075	-	YE1782	-	hypothetical protein
1673	 53.13	+1	1978355..1979536	-	393	123442076	purT	YE1784	-	phosphoribosylglycinamide formyltransferase 2
1674	 51.77	0	1979790..1981172	+	460	123442077	dbpA	YE1785	-	ATP-dependent RNA helicase DbpA
1675	 45.48	0	1981268..1981588	+	106	123442078	-	YE1786	-	hypothetical protein
1676	 46.93	0	1981628..1981936	+	102	123442079	-	YE1787	-	hypothetical protein
1677	 50.56	0	1982039..1982398	+	119	123442080	-	YE1788	-	hypothetical protein
1678	 47.74	0	1982588..1984642	+	684	123442081	ptrB	YE1789	-	oligopeptidase B
1679	 48.11	0	1984654..1985316	-	220	123442082	exoX	YE1790	-	exodeoxyribonuclease X
1680	 51.64	0	1985629..1986633	-	334	123442083	-	YE1791	-	transposase for insertion sequence element IS1328
1681	 47.65	0	1987170..1988126	+	318	123442084	pip	YE1793	-	proline iminopeptidase
1682	 44.02	0	1988176..1988409	-	77	123442085	holE	YE1794	-	DNA polymerase III subunit theta
1683	 42.94	-1	1988793..1989302	+	169	123442086	ftn	YE1795	-	ferritin
1684	 43.93	0	1989693..1990079	+	128	123442087	-	YE1796	-	putative copper resistance protein
1685	 47.34	0	1990081..1990965	+	294	123442088	-	YE1797	-	putative copper resistance protein D
1686	 42.02	-1	1991047..1991403	+	118	123442089	yebY	YE1798	-	hypothetical protein
1687	 44.89	0	1991800..1992855	-	351	123442090	int	YE1799	-	phage integrase
1688	 45.19	0	1992830..1993099	-	89	123442091	xis	YE1800	-	excisionase
1689	 43.04	0	1993206..1993514	-	102	123442092	-	YE1801	-	phage-like protein
1690	 44.54	0	1993532..1993870	-	112	123442093	-	YE1802	-	hypothetical protein
1691	 49.20	0	1993951..1994700	-	249	123442094	tnpB	YE1803	-	transposase B
1692	 51.50	0	1995934..1996935	+	333	123442095	-	YE1805	-	phage portal vertex protein
1693	 29.31	-2	1996992..1997513	-	173	123442096	-	YE1806	-	hypothetical protein
1694	 30.52	-2	1997545..1998006	-	153	123442097	-	YE1807	-	hypothetical protein
1695	 37.77	-2	1998216..2000696	-	826	123442098	yenI	YE1808	-	methyltransferase-endonuclease
1696	 42.86	-1	2000971..2001138	-	55	123442099	-	YE1809	-	hypothetical protein
1697	 54.17	+1	2001434..2001697	+	87	123442100	-	YE1810	-	insertion element protein
1698	 56.00	+1	2001724..2002473	+	249	123442101	-	YE1811	-	transposase for insertion element IS1222
1699	 50.76	0	2003309..2003704	+	131	123442102	-	YE1813	-	putative exported phage-related protein
1700	 45.79	0	2003704..2004000	+	98	123442103	-	YE1814	-	hypothetical protein
1701	 50.46	0	2003987..2004529	+	180	123442104	-	YE1815	-	hypothetical protein
1702	 51.56	0	2004575..2005024	+	149	123442105	-	YE1816	-	putative phage endopeptidase
1703	 52.04	0	2005427..2006431	+	334	123442106	-	YE1818	-	transposase for insertion sequence element IS1328
1704	 46.04	0	2006793..2007209	+	138	123442107	-	YE1819	-	phage-like protein
1705	 40.41	-1	2007722..2008258	+	178	123442108	ail	YE1820	-	attachment invasion locus protein
1706	 46.53	0	2008650..2008937	+	95	123442109	trp1400A	YE1822	-	IS1400 transposase A
1707	 49.19	0	2010666..2011838	+	390	123442110	-	YE1825	-	putative DNA-binding protein
1708	 49.07	0	2011853..2012602	-	249	123442111	tnpB	YE1826	-	transposase B
1709	 46.25	0	2012692..2013024	-	110	123442112	tnpA	YE1827	-	IS1329 transposase A
1710	 45.72	0	2013890..2014438	-	182	123442113	pgsA	YE1829	-	phosphatidylglycerophosphate synthetase
1711	 44.90	0	2014497..2016329	-	610	123442114	uvrC	YE1830	-	excinuclease ABC subunit C
1712	 44.90	0	2016322..2016978	-	218	123442115	uvrY	YE1831	-	response regulator
1713	 42.67	-1	2017670..2017894	+	74	123442116	-	YE1832	-	hypothetical protein
1714	 42.48	-1	2018006..2018344	+	112	123442117	glpM	YE1833	-	hypothetical protein
1715	 40.78	-1	2018375..2018629	-	84	123442118	-	YE1834	-	hypothetical protein
1716	 41.43	-1	2019471..2019890	-	139	123442119	-	YE1835	-	putative DNA-binding protein
47.74	MEAN

4.70	STD DEV
