IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

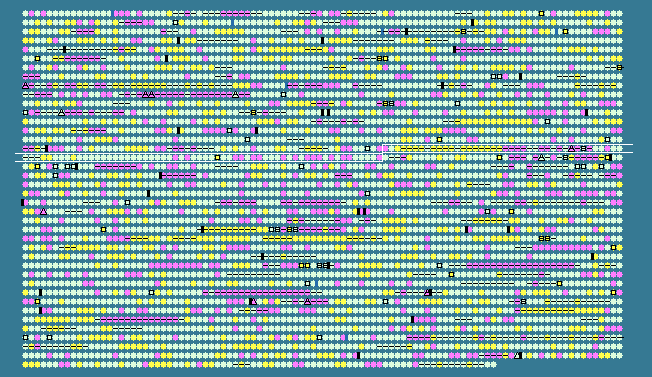

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1561	 44.02	0	1861208..1861441	-	77	123441964	-	YE1659	-	hypothetical protein
1562	 49.76	0	1861923..1862537	-	204	123441965	-	YE1661	-	putative phage tail fiber assembly protein
1563	 52.64	+1	1862537..1863919	-	460	123441966	gpH	YE1662	-	variable tail fibre protein
1564	 56.17	+1	1863916..1864458	-	180	123441967	gpI	YE1663	-	phage tail protein
1565	 59.30	+2	1864451..1865359	-	302	123441968	gpJ	YE1664	-	baseplate assembly protein
1566	 52.71	+1	1865356..1865706	-	116	123441969	gpW	YE1665	-	baseplate assembly protein
1567	 56.48	+1	1865703..1866350	-	215	123441970	gpV	YE1666	-	baseplate assembly protein
1568	 45.92	0	1866458..1867045	-	195	123441971	-	YE1667	-	putative Fic-related phage protein
1569	 53.24	+1	1867324..1867941	-	205	123441972	gpS	YE1669	-	tail completion protein
1570	 53.50	+1	1867984..1868454	-	156	123441973	gpR	YE1670	-	tail completion protein r
1571	 55.16	+1	1868553..1868978	-	141	123441974	lysB	YE1671	-	phage lysin
1572	 55.05	+1	1868983..1869378	-	131	123441975	-	YE1672	-	putative phagelysin
1573	 50.90	0	1869365..1869751	-	128	123441976	-	YE1672A	-	putative phage holin
1574	 56.86	+1	1869789..1869992	-	67	123441977	gpX	YE1673	-	phage tail protein
1575	 58.80	+2	1869993..1870475	-	160	123441978	gpL	YE1674	-	phage head completion/stabilization protein
1576	 54.57	+1	1870596..1871306	-	236	123441979	gpM	YE1675	-	phage terminase/endonuclease subunit
1577	 52.44	0	1871335..1872381	-	348	123441980	gpN	YE1676	-	major phage capsid protein precursor
1578	 52.40	0	1872414..1873268	-	284	123441981	gpO	YE1677	-	putative phage capsid scaffolding protein
1579	 53.87	+1	1873426..1875144	+	572	123441982	gpP	YE1678	-	terminase, ATPase subunit
1580	 55.33	+1	1875147..1876187	+	346	123441983	gpQ	YE1679	-	putative portal vertex protein
1581	 35.76	-2	1876566..1877924	-	452	123441984	-	YE1681	-	prophage encoded DNA modification methylase
1582	 32.66	-2	1878009..1878452	-	147	123441985	-	YE1682	-	hypothetical protein
1583	 29.27	-2	1878468..1879427	-	319	123441986	-	YE1683	-	putative prophage encoded two-component system response regulator
1584	 30.90	-2	1879424..1881802	-	792	123441987	-	YE1684	-	putative prophage encoded two-component system histidine kinase
1585	 50.81	0	1882132..1884420	-	762	123441988	gpA	YE1686	-	phage replication protein
1586	 48.89	0	1884420..1884644	-	74	123441989	-	YE1687	-	hypothetical protein
1587	 41.67	-1	1884644..1884871	-	75	123441990	-	YE1688	-	hypothetical protein
1588	 40.96	-1	1884949..1885197	-	82	123441991	-	YE1689	-	hypothetical protein
1589	 46.81	0	1885233..1885514	-	93	123441992	-	YE1689A	-	hypothetical protein
1590	 44.19	0	1885529..1885795	-	88	123441993	-	YE1690	-	phage DNA-binding protein
1591	 47.67	0	1885885..1886184	+	99	123441994	cI	YE1691	-	phage repressor protein
1592	 44.11	0	1886248..1887231	+	327	123441995	int	YE1692	-	P2-like phage integrase
1593	 33.95	-2	1887316..1888287	+	323	123441996	-	YE1693	-	hypothetical protein
1594	 46.84	0	1888605..1889063	+	152	123441997	tnp	YE1694	-	transposase for IS1541
1595	 40.67	-1	1889227..1890057	-	276	123441998	-	YE1695	-	hypothetical protein
1596	 48.54	0	1890125..1891669	-	514	123441999	-	YE1696	-	putative ABC transport protein, ATP-binding component
1597	 45.71	0	1891740..1892450	-	236	123442000	-	YE1697	-	hypothetical protein
1598	 40.59	-1	1892594..1893847	-	417	123442001	-	YE1698	-	hypothetical protein
1599	 49.80	0	1894430..1896220	-	596	123442002	-	YE1699	-	putative ABC-transport protein, solute binding component
1600	 48.05	0	1896368..1897189	+	273	123442003	-	YE1700	-	shikimate 5-dehydrogenase
1601	 48.02	0	1897265..1897618	+	117	123442004	-	YE1701	-	purine nucleoside phosphoramidase
1602	 44.87	0	1897655..1898044	+	129	123442005	ycfL	YE1702	-	putative lipoprotein
1603	 50.10	0	1898186..1898680	+	164	123442006	-	YE1703	-	putative lipoprotein
1604	 53.07	+1	1898898..1899581	+	227	123442007	-	YE1704	-	hypothetical protein
1605	 52.44	0	1899737..1900762	+	341	123442008	ycfO	YE1705	-	beta-hexosaminidase
1606	 46.78	0	1900765..1901307	+	180	123442009	-	YE1706	-	hypothetical protein
1607	 49.04	0	1901695..1902999	+	434	123442010	ndh	YE1707	-	NADH dehydrogenase
1608	 49.07	0	1903698..1904237	+	179	123442011	ycfJ	YE1708	-	hypothetical protein
1609	 51.38	0	1904376..1907822	-	1148	123442012	mfd	YE1709	-	transcription-repair coupling factor
1610	 50.46	0	1908143..1909345	+	400	123442013	lolC	YE1710	-	outer membrane-specific lipoprotein transporter subunit LolC
1611	 50.07	0	1909338..1910042	+	234	123442014	lolD	YE1711	-	lipoprotein transporter ATP-binding subunit
1612	 50.24	0	1910054..1911301	+	415	123442015	lolE	YE1712	-	outer membrane-specific lipoprotein transporter subunit LolE
1613	 47.92	0	1911367..1912278	+	303	123442016	-	YE1713	-	N-acetyl-D-glucosamine kinase
1614	 50.42	0	1912439..1913275	+	278	123442017	cobB	YE1714	-	NAD-dependent deacetylase
1615	 45.79	0	1913580..1914815	+	411	123442018	pepT	YE1715	-	peptidase T
1616	 49.91	0	1915015..1916136	-	373	123442019	-	YE1716	-	hypothetical protein
1617	 46.87	0	1916221..1917675	-	484	123442020	phoQ	YE1717	-	sensor protein PhoQ
1618	 44.79	0	1917681..1918352	-	223	123442021	phoP	YE1718	-	DNA-binding transcriptional regulator PhoP
1619	 45.83	0	1918424..1919047	-	207	123442022	-	YE1719	-	putative lipoprotein
1620	 47.05	0	1919235..1920605	-	456	123442023	purB	YE1720	-	adenylosuccinate lyase
1621	 49.44	0	1920631..1921257	-	208	123442024	-	YE1721	-	hypothetical protein
1622	 50.27	0	1921382..1922503	-	373	123442025	trmU	YE1722	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
1623	 46.53	0	1922690..1923136	-	148	123442026	-	YE1723	-	hypothetical protein
1624	 46.57	0	1923129..1923755	-	208	123442027	ymfC	YE1724	-	putative pseudouridine synthase
1625	 46.65	0	1923886..1925139	+	417	123442028	icd	YE1725	-	isocitrate dehydrogenase
1626	 42.62	-1	1925672..1926532	+	286	123442029	-	YE1726	-	hypothetical protein
1627	 44.72	0	1926684..1927904	+	406	123442030	-	YE1727	-	putative inner membrane protein
1628	 41.76	-1	1929451..1929711	-	86	123442031	-	YE1730	-	hypothetical protein
1629	 50.13	0	1929885..1931444	-	519	123442032	aer	YE1731	-	putative methyl-accepting chemotaxis protein
1630	 46.41	0	1932015..1933283	-	422	123442033	umuC	YE1732	-	putative UV protection and mutation protein
1631	 45.17	0	1933283..1933696	-	137	123442034	umuD	YE1733	-	putative UV protection and mutation protein
1632	 50.79	0	1934339..1934653	+	104	123442035	-	YE1735	-	IS1669 hypothetical protein
1633	 51.25	0	1934671..1935468	+	265	123442036	-	YE1736	-	putative transposase for insertion element IS1669
1634	 51.05	0	1936070..1936927	-	285	123442037	-	YE1738	-	hypothetical protein
1635	 47.37	0	1937261..1937602	+	113	123442038	-	YE1739	-	hypothetical protein
1636	 43.16	0	1937666..1937950	-	94	123442039	-	YE1740	-	hypothetical protein
1637	 43.83	0	1938628..1939542	-	304	123442040	-	YE1742	-	putative inner membrane protein
1638	 45.62	0	1939494..1940600	+	368	123442041	-	YE1743	-	AraC family transcriptional regulator
1639	 40.51	-1	1940624..1941013	-	129	123442042	-	YE1744	-	hypothetical protein
1640	 37.18	-2	1941092..1941403	-	103	123442043	hdeB	YE1745	-	acid-resistance protein
1641	 44.60	0	1942268..1943590	+	440	123442044	-	YE1746	-	hypothetical protein
1642	 48.41	0	1943804..1944652	-	282	123442045	-	YE1747	-	hypothetical protein
1643	 47.35	0	1944755..1946473	-	572	123442046	-	YE1748	-	putative ABC transporter ATP-binding protein
1644	 43.10	0	1946673..1947092	+	139	123442047	-	YE1749	-	putative acetyltransferase
1645	 45.04	0	1947359..1948861	+	500	123442048	-	YE1750	-	amino acid permease
1646	 39.39	-1	1949296..1949460	+	54	123442049	-	YE1752	-	hypothetical protein
1647	 44.44	0	1949519..1949905	-	128	123442050	-	YE1753	-	AraC family transcription regulator
1648	 41.25	-1	1950571..1950810	+	79	123442051	-	YE1756	-	hypothetical protein
1649	 43.19	0	1950903..1951115	-	70	123442052	-	YE1757	-	hypothetical protein
1650	 41.67	-1	1951825..1952100	+	91	123442053	-	YE1758	-	hypothetical protein
1651	 46.00	0	1952302..1952601	+	99	123442054	-	YE1759	-	hypothetical protein
1652	 43.70	0	1952684..1952953	+	89	123442055	-	YE1760	-	hypothetical protein
1653	 46.84	0	1953145..1954536	+	463	123442056	aroP	YE1761	-	aromatic amino acid transport protein
1654	 44.23	0	1954778..1955392	-	204	123442057	-	YE1762	-	palmitoyl transferase for Lipid A
1655	 41.03	-1	1956382..1956498	+	38	123442058	-	YE1764	-	hypothetical protein
1656	 46.19	0	1956541..1956750	+	69	123442059	cspC1	YE1765	-	cold shock-like protein CspC
1657	 47.50	0	1956828..1957547	-	239	123442060	-	YE1766	-	hypothetical protein
1658	 49.94	0	1957750..1959459	+	569	123442061	ftsI2	YE1767	-	peptidoglycan synthetase
1659	 49.13	0	1959577..1960437	+	286	123442062	rrmA	YE1768	-	23S rRNA methyltransferase A
1660	 39.43	-1	1960600..1960878	-	92	123442063	-	YE1769	-	hypothetical protein
47.74	MEAN

4.70	STD DEV
