IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

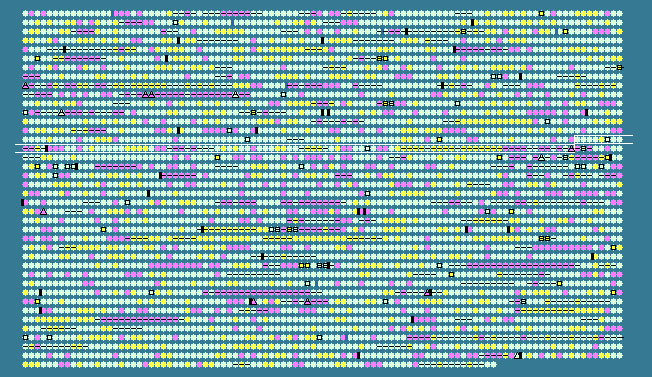

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1493	 48.27	0	1787680..1789734	+	684	123441896	helD	YE1586	-	DNA helicase IV
1494	 49.24	0	1789797..1790255	-	152	123441897	mgsA	YE1587	-	methylglyoxal synthase
1495	 46.79	0	1790459..1791127	-	222	123441898	-	YE1588	-	hypothetical protein
1496	 46.76	0	1791459..1791875	+	138	123441899	-	YE1589	-	hypothetical protein
1497	 51.55	0	1791980..1792495	+	171	123441900	-	YE1590	-	insertion element IS1664 protein
1498	 46.52	0	1792531..1793349	+	272	123441901	-	YE1591	-	putative transposase for IS1664 element
1499	 50.63	0	1793399..1793716	-	105	123441902	-	YE1592	-	hypothetical protein
1500	 47.51	0	1793779..1794963	-	394	123441903	-	YE1593	-	hypothetical protein
1501	 36.59	-2	1795183..1795428	+	81	123441904	-	YE1594	-	hypothetical protein
1502	 40.71	-1	1795441..1795806	+	121	123441905	-	YE1595	-	hypothetical protein
1503	 51.25	0	1795826..1796104	+	92	123441906	-	YE1596	-	putative acylphosphatase
1504	 50.76	0	1796132..1796458	-	108	123441907	-	YE1597	-	putative sulfite reductase subunit protein
1505	 34.15	-2	1798138..1798872	+	244	123441908	yenR	YE1599	-	quorum-sensing transcriptional activator
1506	 36.07	-2	1798865..1799521	-	218	123441909	yenI	YE1600	-	N-acylhomoserine lactone synthase
1507	 43.62	0	1799809..1800741	+	310	123441910	-	YE1601	-	exported membrane protein
1508	 49.88	0	1800852..1802579	-	575	123441911	-	YE1602	-	potassium/proton antiporter
1509	 45.03	0	1802899..1803240	-	113	123441912	-	YE1603	-	hypothetical protein
1510	 38.16	-2	1803355..1804494	-	379	123441913	mdoC	YE1604	-	glucans biosynthesis protein
1511	 46.65	0	1804827..1806380	+	517	123441914	mdoG	YE1605	-	glucan biosynthesis protein G
1512	 53.47	+1	1806418..1808955	+	845	123441915	mdoH	YE1606	-	glucosyltransferase MdoH
1513	 50.85	0	1810022..1811557	-	511	123441916	-	YE1609	-	putative peptide transport protein
1514	 49.96	0	1811991..1813235	-	414	123441917	-	YE1610	-	MFS family transporter
1515	 48.51	0	1813531..1813965	-	144	123441918	-	YE1611	-	hypothetical protein
1516	 50.38	0	1814333..1815265	-	310	123441919	htrB	YE1612	-	lipid A biosynthesis lauroyl acyltransferase
1517	 51.19	0	1815509..1816012	-	167	123441920	ttrR	YE1613	-	tetrathionate reductase complex: two-component system response regulator
1518	 53.09	+1	1816071..1817831	-	586	123441921	ttrS	YE1614	-	tetrathionate reductase complex: sensory transduction histidine kinase
1519	 53.33	+1	1817970..1818704	+	244	123441922	ttrB	YE1615	-	tetrathionate reductase subunit B
1520	 52.67	+1	1818701..1819786	+	361	123441923	ttrC	YE1616	-	tetrathionate reductase subunit C
1521	 55.09	+1	1819779..1822862	+	1027	123441924	ttrA	YE1617	-	tetrathionate reductase subunit A
1522	 44.92	0	1823339..1824391	+	350	123441925	-	YE1619	-	hypothetical protein
1523	 44.26	0	1824492..1825553	+	353	123441926	tqsA	YE1620	-	putative transport protein
1524	 36.92	-2	1826063..1826647	-	194	123441927	-	YE1621	-	LuxR family regulatory protein
1525	 47.59	0	1826906..1828027	-	373	123441928	solA	YE1622	-	N-methyltryptophan oxidase
1526	 43.92	0	1828291..1828545	-	84	123441929	bssS	YE1623	-	biofilm formation regulatory protein BssS
1527	 42.68	-1	1828908..1829153	-	81	123441930	dinI	YE1624	-	DNA damage-inducible protein I
1528	 49.19	0	1829270..1830316	-	348	123441931	b1062	YE1625	-	dihydroorotase
1529	 43.40	0	1830565..1830852	+	95	123441932	-	YE1626	-	hypothetical protein
1530	 50.92	0	1830922..1834452	-	1176	123441933	rne	YE1627	-	ribonuclease E
1531	 47.40	0	1835029..1835988	+	319	123441934	rluC	YE1628	-	23S rRNA pseudouridylate synthase C
1532	 48.80	0	1836039..1836620	-	193	123441935	-	YE1629	-	Maf-like protein
1533	 45.95	0	1836762..1837292	+	176	123441936	-	YE1630	-	hypothetical protein
1534	 56.55	+1	1837298..1837465	+	55	123441937	rpmF	YE1631	-	50S ribosomal protein L32
1535	 50.72	0	1837502..1838536	+	344	123441938	plsX	YE1632	-	putative glycerol-3-phosphate acyltransferase PlsX
1536	 51.66	0	1838543..1839508	+	321	123441939	fabH	YE1633	-	3-oxoacyl-(acyl carrier protein) synthase III
1537	 50.75	0	1839562..1840491	+	309	123441940	fabD	YE1634	-	malonyl CoA-acyl carrier protein transacylase
1538	 50.20	0	1840505..1841239	+	244	123441941	fabG	YE1635	-	3-ketoacyl-(acyl-carrier-protein) reductase
1539	 42.19	-1	1841393..1841629	+	78	123441942	acpP	YE1636	-	acyl carrier protein
1540	 50.36	0	1841724..1842962	+	412	123441943	fabF	YE1637	-	3-oxoacyl-(acyl carrier protein) synthase II
1541	 50.67	0	1843200..1844024	+	274	123441944	pabC	YE1638	-	4-amino-4-deoxychorismate lyase
1542	 47.86	0	1844086..1845111	+	341	123441945	yceG	YE1639	-	hypothetical protein
1543	 51.96	0	1845101..1845739	+	212	123441946	tdk	YE1640	-	thymidylate kinase
1544	 53.27	+1	1845739..1846746	+	335	123441947	holB	YE1641	-	DNA polymerase III subunit delta'
1545	 48.89	0	1846761..1847570	+	269	123441948	-	YE1642	-	putative metallodependent hydrolase
1546	 50.42	0	1847878..1849311	+	477	123441949	glcA	YE1643	-	glucose-specific PTS system IIBC components
1547	 47.83	0	1849385..1849729	-	114	123441950	ogr	YE1643A	-	phage late control protein
1548	 54.14	+1	1849792..1850901	-	369	123441951	gpD	YE1644	-	regulator of late gene expression
1549	 53.27	+1	1851043..1852221	+	392	123441952	fI	YE1645	-	major tail sheath protein
1550	 54.65	+1	1852233..1852748	+	171	123441953	fII	YE1646	-	major tail tube protein
1551	 50.22	0	1852764..1853215	+	150	123441955	gpE'	YE1647A	-	putative phage tail protein E'
1552	 48.46	0	1852764..1853087	+	107	123441954	gpE	YE1647	-	putative phage tail protein
1553	 52.31	0	1856433..1856843	+	136	123441956	gpU	YE1650	-	putative phage tail protein
1554	 36.11	-2	1856945..1857232	+	95	123441957	-	YE1651	-	hypothetical protein
1555	 40.98	-1	1857369..1857551	-	60	123441958	-	YE1652	-	hypothetical protein
1556	 49.40	0	1857643..1857891	-	82	123441959	-	YE1653	-	hypothetical protein
1557	 49.05	0	1857891..1858259	+	122	123441960	-	YE1654	-	hypothetical protein
1558	 50.00	0	1858406..1859353	-	315	123441961	-	YE1655	-	putative transposase
1559	 48.60	0	1860141..1860461	-	106	123441962	-	YE1657	-	hypothetical protein
1560	 42.96	-1	1860804..1861208	-	134	123441963	-	YE1658	-	hypothetical protein
1561	 44.02	0	1861208..1861441	-	77	123441964	-	YE1659	-	hypothetical protein
1562	 49.76	0	1861923..1862537	-	204	123441965	-	YE1661	-	putative phage tail fiber assembly protein
1563	 52.64	+1	1862537..1863919	-	460	123441966	gpH	YE1662	-	variable tail fibre protein
1564	 56.17	+1	1863916..1864458	-	180	123441967	gpI	YE1663	-	phage tail protein
1565	 59.30	+2	1864451..1865359	-	302	123441968	gpJ	YE1664	-	baseplate assembly protein
1566	 52.71	+1	1865356..1865706	-	116	123441969	gpW	YE1665	-	baseplate assembly protein
1567	 56.48	+1	1865703..1866350	-	215	123441970	gpV	YE1666	-	baseplate assembly protein
1568	 45.92	0	1866458..1867045	-	195	123441971	-	YE1667	-	putative Fic-related phage protein
1569	 53.24	+1	1867324..1867941	-	205	123441972	gpS	YE1669	-	tail completion protein
1570	 53.50	+1	1867984..1868454	-	156	123441973	gpR	YE1670	-	tail completion protein r
1571	 55.16	+1	1868553..1868978	-	141	123441974	lysB	YE1671	-	phage lysin
1572	 55.05	+1	1868983..1869378	-	131	123441975	-	YE1672	-	putative phagelysin
1573	 50.90	0	1869365..1869751	-	128	123441976	-	YE1672A	-	putative phage holin
1574	 56.86	+1	1869789..1869992	-	67	123441977	gpX	YE1673	-	phage tail protein
1575	 58.80	+2	1869993..1870475	-	160	123441978	gpL	YE1674	-	phage head completion/stabilization protein
1576	 54.57	+1	1870596..1871306	-	236	123441979	gpM	YE1675	-	phage terminase/endonuclease subunit
1577	 52.44	0	1871335..1872381	-	348	123441980	gpN	YE1676	-	major phage capsid protein precursor
1578	 52.40	0	1872414..1873268	-	284	123441981	gpO	YE1677	-	putative phage capsid scaffolding protein
1579	 53.87	+1	1873426..1875144	+	572	123441982	gpP	YE1678	-	terminase, ATPase subunit
1580	 55.33	+1	1875147..1876187	+	346	123441983	gpQ	YE1679	-	putative portal vertex protein
1581	 35.76	-2	1876566..1877924	-	452	123441984	-	YE1681	-	prophage encoded DNA modification methylase
1582	 32.66	-2	1878009..1878452	-	147	123441985	-	YE1682	-	hypothetical protein
1583	 29.27	-2	1878468..1879427	-	319	123441986	-	YE1683	-	putative prophage encoded two-component system response regulator
1584	 30.90	-2	1879424..1881802	-	792	123441987	-	YE1684	-	putative prophage encoded two-component system histidine kinase
1585	 50.81	0	1882132..1884420	-	762	123441988	gpA	YE1686	-	phage replication protein
1586	 48.89	0	1884420..1884644	-	74	123441989	-	YE1687	-	hypothetical protein
1587	 41.67	-1	1884644..1884871	-	75	123441990	-	YE1688	-	hypothetical protein
1588	 40.96	-1	1884949..1885197	-	82	123441991	-	YE1689	-	hypothetical protein
1589	 46.81	0	1885233..1885514	-	93	123441992	-	YE1689A	-	hypothetical protein
1590	 44.19	0	1885529..1885795	-	88	123441993	-	YE1690	-	phage DNA-binding protein
1591	 47.67	0	1885885..1886184	+	99	123441994	cI	YE1691	-	phage repressor protein
1592	 44.11	0	1886248..1887231	+	327	123441995	int	YE1692	-	P2-like phage integrase
47.74	MEAN

4.70	STD DEV
