IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

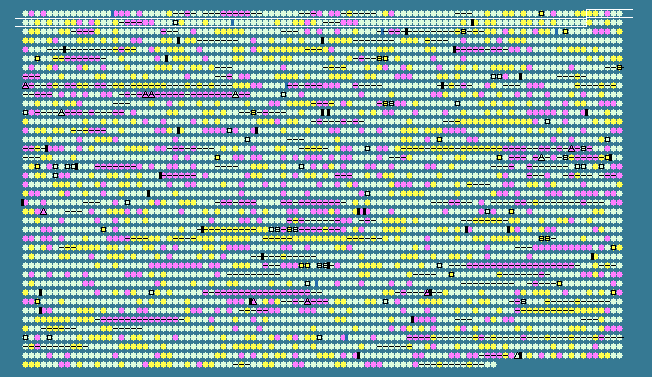

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
95	 51.34	0	107115..108125	-	336	123440498	glpX	YE0098	-	fructose 1,6-bisphosphatase II
96	 52.10	0	108307..109830	-	507	123440499	glpK	YE0099	-	glycerol kinase
97	 50.53	0	109907..110755	-	282	123440500	glpF	YE0100	-	glycerol uptake facilitator protein
98	 44.17	0	111350..111589	+	79	123440501	-	YE0101	-	hypothetical protein
99	 45.47	0	111726..112211	-	161	123440502	menG	YE0102	-	ribonuclease activity regulator protein RraA
100	 50.29	0	112342..113196	-	284	123440503	menA	YE0103	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
101	 49.55	0	113424..114755	-	443	123440504	hslU	YE0104	-	ATP-dependent protease ATP-binding subunit
102	 49.71	0	114810..115334	-	174	123440505	hslV	YE0105	-	ATP-dependent protease peptidase subunit
103	 56.60	+1	115434..116297	-	287	123440506	ftsN	YE0106	-	cell division protein FtsN
104	 48.59	0	116363..117391	-	342	123440507	cytR	YE0107	-	DNA-binding transcriptional regulator CytR
105	 53.52	+1	117622..119820	-	732	123440508	priA	YE0108	-	primosome assembly protein PriA
106	 50.23	0	120213..120431	+	72	123440509	rpmE	YE0109	-	50S ribosomal protein L31
107	 49.06	0	120521..120838	-	105	123440510	metJ	YE0110	-	transcriptional repressor protein MetJ
108	 52.33	0	121214..122371	+	385	123440511	metB	YE0111	-	cystathionine gamma-synthase
109	 53.24	+1	122379..124814	+	811	123440512	metL	YE0112	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
110	 32.57	-2	124892..127000	-	702	123440513	-	YE0113	-	hypothetical protein
111	 48.47	0	127374..128258	+	294	123440514	metF	YE0114	-	5,10-methylenetetrahydrofolate reductase
112	 41.23	-1	128578..129780	+	400	123440515	-	YE0115	-	hypothetical protein
113	 53.14	+1	129861..132500	-	879	123440516	glu	YE0116	-	phosphoenolpyruvate carboxylase
114	 50.80	0	132848..134032	-	394	123440517	argE	YE0117	-	acetylornithine deacetylase
115	 50.65	0	134395..135399	+	334	123440518	argC	YE0119	-	N-acetyl-gamma-glutamyl-phosphate reductase
116	 52.55	+1	135487..136251	+	254	123440519	argB	YE0120	-	acetylglutamate kinase
117	 49.27	0	136489..137862	+	457	123440520	argH	YE0121	-	argininosuccinate lyase
118	 43.77	0	138584..140911	+	775	123440521	-	YE0122	-	putative TonB dependent receptor protein
119	 40.25	-1	141014..141649	+	211	123440522	-	YE0123	-	hemophore HasA
120	 40.98	-1	141797..142450	+	217	123440523	-	YE0124	-	hemophore
121	 39.41	-1	142509..143150	+	213	123440524	-	YE0125	-	hemophore
122	 35.80	-2	143211..143819	+	202	123440525	-	YE0126	-	hemophore
123	 47.03	0	144005..145786	+	593	123440526	-	YE0127	-	ABC transporter protein
124	 47.20	0	145917..147149	+	410	123440527	-	YE0128	-	HlyD family secretion protein
125	 46.32	0	147226..148026	+	266	123440528	-	YE0129	-	hypothetical protein
126	 44.39	0	148114..149307	-	397	123440529	tpn1330	YE0130	-	transposase for IS1330
127	 51.48	0	149422..150870	-	482	123440530	-	YE0131	-	dihydrolipoamide dehydrogenase
128	 47.54	0	151070..151801	-	243	123440531	-	YE0132	-	putative peroxiredoxin/glutaredoxin family protein
129	 49.09	0	151949..152881	+	310	123440532	oxyR	YE0133	-	DNA-binding transcriptional regulator OxyR
130	 48.89	0	152864..154264	-	466	123440533	sth	YE0134	-	soluble pyridine nucleotide transhydrogenase
131	 53.02	+1	154470..155114	+	214	123440534	-	YE0135	-	DNA-binding transcriptional repressor FabR
132	 44.35	0	155245..155607	+	120	123440535	yijD	YE0136	-	hypothetical protein
133	 49.18	0	155840..156943	-	367	123440536	trmA	YE0138	-	tRNA (uracil-5-)-methyltransferase
134	 47.66	0	157369..159267	+	632	123440537	btuB	YE0139	-	vitamin B12/cobalamin outer membrane transporter
135	 50.23	0	159212..160075	+	287	123440538	dga	YE0140	-	glutamate racemase
136	 44.93	0	166814..167770	+	318	123440539	-	YE0141	-	putative periplasmic protein precursor
137	 45.61	0	167855..169345	+	496	123440540	-	YE0142	-	putative sugar transport system ATP-binding protein
138	 48.24	0	169357..170376	+	339	123440541	-	YE0143	-	putative sugar transport system permease
139	 45.72	0	170376..171344	+	322	123440542	-	YE0144	-	inner membrane ABC transporter permease protein YjfF
140	 47.05	0	171355..172236	-	293	123440543	-	YE0145	-	transcriptional regulator HdfR
141	 50.74	0	172356..172694	+	112	123440544	-	YE0146	-	hypothetical protein
142	 50.07	0	172798..174321	-	507	123440545	-	YE0147	-	putative magnesium chelatase family protein
143	 52.40	0	174892..176538	+	548	123440546	ilvG	YE0148	-	acetolactate synthase 2 catalytic subunit
144	 46.90	0	176535..176792	+	85	123440547	ilvM	YE0149	-	acetolactate synthase 2 regulatory subunit
145	 50.92	0	176815..177741	+	308	123440548	ilvE	YE0150	-	branched-chain amino acid aminotransferase
146	 53.00	+1	177853..179703	+	616	123440549	ilvD	YE0151	-	dihydroxy-acid dehydratase
147	 53.66	+1	179709..181253	+	514	123440550	ilvA	YE0152	-	threonine dehydratase
148	 33.47	-2	181439..182935	+	498	123440551	-	YE0153	-	hypothetical protein
149	 52.15	0	182937..183818	-	293	123440552	ilvY	YE0154	-	DNA-binding transcriptional regulator IlvY
150	 48.95	0	184071..185549	+	492	123440553	ilvC	YE0155	-	ketol-acid reductoisomerase
151	 45.72	0	185847..186524	-	225	123440554	-	YE0157	-	putative chaperone protein
152	 49.34	0	186571..187938	-	455	123440555	-	YE0158	-	hypothetical protein
153	 44.91	0	187956..190175	-	739	123440556	-	YE0159	-	putative outer membrane usher protein
154	 42.04	-1	190653..191330	-	225	123440557	-	YE0160	-	putative fimbrial chaperone
155	 44.26	0	191517..192047	-	176	123440558	-	YE0161	-	putative fimbrial protein
156	 42.20	-1	192664..192945	-	93	123440559	ppiC	YE0162	-	peptidyl-prolyl cis-trans isomerase C
157	 48.20	0	193159..195183	+	674	123440560	rep	YE0163	-	ATP-dependent DNA helicase Rep
158	 46.63	0	195239..197065	-	608	123440561	pehX	YE0164	-	exo-poly-alpha-D-galacturonosidase precursor
159	 50.43	0	197407..198903	-	498	123440562	gppA	YE0165	-	guanosine pentaphosphate phosphohydrolase
160	 48.10	0	198907..199983	-	358	123440563	mmrA	YE0166	-	putative DEAD-box helicase
161	 46.79	0	200312..200638	+	108	123440564	fipA	YE0167	-	thioredoxin 1
162	 47.46	0	201295..202554	+	419	123440565	rho	YE0168	-	transcription termination factor Rho
163	 45.72	0	202836..203933	+	365	123440566	b3784	YE0169	-	putative undecaprenyl-phosphate alpha-N-acetylglucosaminyltransferase
164	 47.93	0	203969..205030	+	353	123440567	b3785	YE0170	-	lipopolysaccharide biosynthesis protein WzzE
165	 49.07	0	205110..206240	+	376	123440568	nfrC	YE0171	-	UDP-N-acetylglucosamine 2-epimerase
166	 49.80	0	206237..207499	+	420	123440569	wecC	YE0172	-	UDP-N-acetyl-D-mannosamine dehydrogenase
167	 50.00	0	207496..208563	+	355	123440570	rffG	YE0173	-	dTDP-D-glucose-4,6-dehydratase
168	 48.98	0	208794..209675	+	293	123440571	rffH	YE0174	-	glucose-1-phosphate thymidylyltransferase
169	 48.96	0	209764..210390	+	208	123440572	b3790	YE0175	-	TDP-fucosamine acetyltransferase
170	 48.72	0	210392..211522	+	376	123440573	b3791	YE0176	-	TDP-4-oxo-6-deoxy-D-glucose transaminase
171	 49.48	0	211524..212780	+	418	123440574	b3792	YE0177	-	putative lipopolysaccharide biosynthesis protein
172	 49.54	0	212803..213888	+	361	123440575	-	YE0178	-	4-alpha-L-fucosyltransferase
173	 48.08	0	213885..215261	+	458	123440576	rffT	YE0179	-	putative entero common antigen polymerase
174	 51.56	0	215354..216028	+	224	123440577	rffM	YE0180	-	putative UDP-N-acetyl-D-mannosaminuronic acid transferase
175	 49.50	0	216379..217770	+	463	123440578	-	YE0181	-	putative transport protein YifK
176	 52.33	0	219361..220560	-	399	123440579	hemY	YE0184	-	putative protoheme IX biogenesis protein
177	 50.31	0	220563..221687	-	374	123440580	hemX	YE0185	-	putative uroporphyrinogen III C-methyltransferase
178	 51.41	0	221720..222466	-	248	123440581	hemD	YE0186	-	uroporphyrinogen-III synthase
179	 51.70	0	222463..223404	-	313	123440582	hemC	YE0187	-	porphobilinogen deaminase
180	 49.47	0	223809..226355	+	848	123440583	cyaA	YE0189	-	adenylate cyclase
181	 48.60	0	226526..226846	-	106	123440584	cyaY	YE0190	-	frataxin-like protein
182	 49.02	0	226960..227163	+	67	123440585	-	YE0191	-	putative lipoprotein
183	 50.67	0	227252..228076	+	274	123440586	dapF	YE0192	-	diaminopimelate epimerase
184	 51.35	0	228170..228874	+	234	123440587	-	YE0193	-	hypothetical protein
185	 53.62	+1	228871..229782	+	303	123440588	xerC	YE0194	-	site-specific tyrosine recombinase XerC
186	 50.91	0	229782..230498	+	238	123440589	-	YE0195	-	flavin mononucleotide phosphatase
187	 52.47	+1	230599..232761	+	720	123440590	uvrD	YE0196	-	DNA-dependent helicase II
188	 48.34	0	233186..233758	-	190	123440591	-	YE0197	-	TetR family regulatory protein
189	 51.66	0	234065..235297	+	410	123440592	-	YE0198	-	hypothetical protein
190	 50.78	0	235324..236154	+	276	123440593	-	YE0199	-	hypothetical protein
191	 49.32	0	236657..237607	+	316	123440594	corA	YE0200	-	magnesium/nickel/cobalt transporter CorA
192	 49.94	0	237795..238685	-	296	123440595	rarD	YE0201	-	hypothetical protein
193	 48.41	0	238765..239235	-	156	123440596	-	YE0202	-	hypothetical protein
194	 46.42	0	239416..240294	+	292	123440597	pldA	YE0203	-	phospholipase A
47.74	MEAN

4.70	STD DEV
