IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

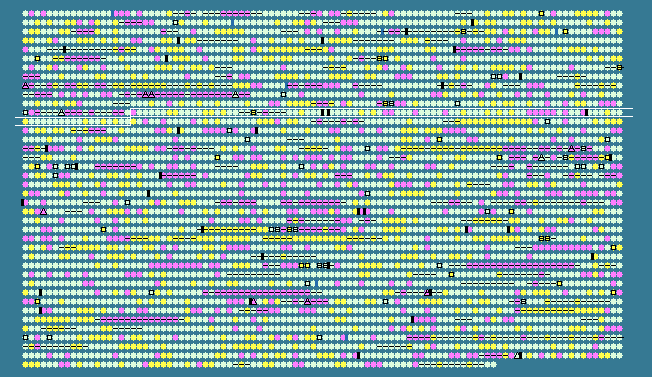

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1119	 41.89	-1	1321502..1322389	-	295	123441522	-	YE1182	-	putative plasmid-related transcriptional repressor protein
1120	 47.77	0	1322394..1322774	-	126	123441523	-	YE1183	-	hypothetical protein
1121	 49.03	0	1323318..1323731	-	137	123441524	ygiW	YE1185	-	hypothetical protein
1122	 46.41	0	1324114..1324725	+	203	123441525	yfeY	YE1186	-	hypothetical protein
1123	 44.81	0	1324901..1325806	+	301	123441526	-	YE1187	-	hypothetical protein
1124	 47.47	0	1325879..1326769	-	296	123441527	nanA	YE1188	-	N-acetylneuraminate lyase
1125	 52.20	0	1326851..1327486	-	211	123441528	-	YE1189	-	N-acetylmannosamine-6-phosphate 2-epimerase
1126	 52.68	+1	1327796..1328710	+	304	123441529	-	YE1190	-	N-acetylmannosamine kinase
1127	 46.23	0	1328792..1329202	+	136	123441530	-	YE1191	-	hypothetical protein
1128	 48.81	0	1329398..1330276	+	292	123441531	-	YE1192	-	rpiR family transcriptional regulatory protein
1129	 50.64	0	1330685..1332157	+	490	123441532	nanT	YE1193	-	putative sialic acid transporter
1130	 48.93	0	1332509..1333444	+	311	123441533	cysP	YE1194	-	thiosulfate transporter subunit
1131	 52.81	+1	1333444..1334280	+	278	123441534	cysT	YE1195	-	sulfate/thiosulfate transporter subunit
1132	 53.20	+1	1334280..1335155	+	291	123441535	cysW	YE1196	-	sulfate/thiosulfate transporter permease subunit
1133	 51.19	0	1335145..1336236	+	363	123441536	cysA	YE1197	-	sulfate/thiosulfate transporter subunit
1134	 54.11	+1	1336464..1337291	+	275	123441537	cysM	YE1198	-	cysteine synthase B
1135	 50.51	0	1337339..1339294	-	651	123441538	-	YE1199	-	putative ABC transporter, ATP-binding protein
1136	 50.21	0	1339325..1340533	-	402	123441539	-	YE1200	-	HlyD family secretion protein
1137	 50.00	0	1340722..1341405	+	227	123441540	-	YE1201	-	putative two-component system response regulator
1138	 50.37	0	1341431..1342798	+	455	123441541	-	YE1202	-	putative two-component system sensor kinase
1139	 51.25	0	1342839..1343636	-	265	123441542	-	YE1203	-	putative transposase for insertion element IS1669
1140	 50.48	0	1343654..1343968	-	104	123441543	-	YE1204	-	IS1669 hypothetical protein
1141	 42.55	-1	1344156..1344665	-	169	123441544	crr	YE1205	-	glucose-specific PTS system component
1142	 48.15	0	1344714..1346441	-	575	123441545	ptsI	YE1206	-	phosphoenolpyruvate-protein phosphotransferase
1143	 48.06	0	1346489..1346746	-	85	123441546	hpr	YE1207	-	phosphohistidinoprotein-hexose phosphotransferase component of PTS system (Hpr)
1144	 49.33	0	1347198..1348166	-	322	123441547	cysK	YE1208	-	cysteine synthase A
1145	 49.11	0	1348362..1349033	-	223	123441548	cysZ	YE1209	-	putative sulfate transport protein CysZ
1146	 50.64	0	1349310..1350332	+	340	123441549	zipA	YE1210	-	cell division protein ZipA
1147	 51.96	0	1350408..1352426	+	672	123441550	ligA	YE1211	-	NAD-dependent DNA ligase LigA
1148	 48.40	0	1352441..1352659	+	72	123441551	-	YE1212	-	hypothetical protein
1149	 44.44	0	1352849..1353190	-	113	123441552	-	YE1213	-	hypothetical protein
1150	 45.99	0	1353347..1353907	-	186	123441553	-	YE1214	-	hypothetical protein
1151	 49.93	0	1354417..1355832	-	471	123441554	gltX	YE1215	-	glutamyl-tRNA synthetase
1152	 44.47	0	1357395..1358579	-	394	123441555	cru	YE1217	-	nucleoside permease
1153	 49.43	0	1358978..1360207	+	409	123441556	mntH	YE1219	-	manganese transport protein MntH
1154	 44.29	0	1360258..1360686	-	142	123441557	-	YE1220	-	hypothetical protein
1155	 48.08	0	1360857..1361846	-	329	123441558	-	YE1221	-	putative ion channel protein
1156	 50.93	0	1362066..1363730	+	554	123441559	ipdC	YE1222	-	indole-3-pyruvate decarboxylase
1157	 52.25	0	1363702..1364589	-	295	123441560	-	YE1223	-	LysR family transcriptional regulator
1158	 47.59	0	1364691..1365167	+	158	123441561	-	YE1224	-	hypothetical protein
1159	 51.23	0	1365353..1366324	+	323	123441562	glk	YE1225	-	glucokinase
1160	 50.36	0	1366581..1367825	-	414	123441563	-	YE1226	-	putative membrane transport protein
1161	 41.57	-1	1368049..1368789	-	246	123441564	-	YE1227	-	putative two-component system response-regulator
1162	 44.15	0	1368793..1370493	-	566	123441565	-	YE1228	-	two-component system histidine kinase
1163	 49.28	0	1370664..1371911	-	415	123441566	-	YE1229	-	hypothetical protein
1164	 49.56	0	1372113..1372685	+	190	123441567	-	YE1230	-	putative acetyltransferase
1165	 50.89	0	1372817..1374052	+	411	123441568	-	YE1231	-	aminotransferase
1166	 43.62	0	1374220..1374744	+	174	123441569	-	YE1232	-	putative B-type cytochrome
1167	 48.38	0	1375159..1375590	-	143	123441570	-	YE1233	-	hypothetical protein
1168	 45.09	0	1376102..1376773	+	223	123441571	-	YE1234	-	putative lipoprotein
1169	 45.10	0	1376803..1377159	+	118	123441572	-	YE1235	-	putative lipoprotein
1170	 47.79	0	1377156..1377812	+	218	123441573	-	YE1236	-	putative lipoprotein
1171	 38.04	-2	1378318..1378848	+	176	123441574	-	YE1237	-	hypothetical protein
1172	 51.02	0	1378874..1379512	-	212	123441575	yfuD	YE1238	-	putative membrane transport protein
1173	 50.95	0	1379635..1380684	-	349	123441576	sfuC	YE1239	-	iron(III)-transport ATP-binding protein
1174	 52.43	0	1380681..1382267	-	528	123441577	sfuB	YE1240	-	iron(III)-transport system permease
1175	 48.18	0	1382354..1383370	-	338	123441578	sfuA	YE1241	-	iron(III)-binding periplasmic protein
1176	 50.78	0	1383664..1384758	+	364	123441579	mltB	YE1242	-	murein hydrolase B
1177	 49.89	0	1384987..1386327	-	446	123441580	-	YE1243	-	putative eamino acid permease
1178	 53.21	+1	1386752..1388482	-	576	123441581	-	YE1244	-	hypothetical protein
1179	 49.58	0	1388642..1389232	-	196	123441582	-	YE1245	-	TetR family regulatory protein
1180	 51.94	0	1389366..1390859	+	497	123441583	-	YE1246	-	major facilitator transporter
1181	 49.13	0	1391203..1392348	+	381	123441584	-	YE1247	-	ABC transporter, membrane permease
1182	 53.86	+1	1392345..1393148	+	267	123441585	-	YE1248	-	ABC transporter, ATP-binding component
1183	 49.36	0	1393149..1394090	+	313	123441586	-	YE1249	-	hypothetical protein
1184	 51.10	0	1394087..1394722	+	211	123441587	-	YE1250	-	hypothetical protein
1185	 37.48	-2	1394764..1395558	-	264	123441588	-	YE1251	-	putative regulatory protein
1186	 43.47	0	1395649..1396575	-	308	123441589	-	YE1252	-	hypothetical protein
1187	 43.06	0	1396957..1397511	+	184	123441590	-	YE1253	-	hypothetical protein
1188	 42.14	-1	1397537..1398115	+	192	123441591	-	YE1254	-	hypothetical protein
1189	 41.38	-1	1398513..1399544	-	343	123441592	ascG	YE1255	-	putative regulatory protein
1190	 49.28	0	1399879..1401345	+	488	123441593	ascF	YE1256	-	cellobiose/arbutin/salicin-specific PTS system components IIBC
1191	 43.75	0	1401361..1402791	+	476	123441594	ascB	YE1257	-	cryptic 6-phospho-beta-glucosidase
1192	 45.51	0	1402884..1403195	-	103	123441595	-	YE1258	-	hypothetical protein
1193	 47.12	0	1403195..1403854	-	219	123441596	-	YE1259	-	hypothetical protein
1194	 43.54	0	1404268..1404600	-	110	123441597	-	YE1260	-	hypothetical protein
1195	 45.72	0	1405460..1406371	-	303	123441598	-	YE1262	-	putative inner membrane protein
1196	 49.92	0	1406645..1407271	+	208	123441599	ccmA	YE1263	-	cytochrome c biogenesis protein CcmA
1197	 51.21	0	1407271..1407930	+	219	123441600	ccmB	YE1264	-	heme exporter protein B
1198	 52.30	0	1408101..1408838	+	245	123441601	ccmC	YE1265	-	putative heme exporter protein C
1199	 49.59	0	1408835..1409080	+	81	123441602	ccmD	YE1266	-	putative heme exporter protein D
1200	 50.51	0	1409080..1409574	+	164	123441603	ccmE	YE1267	-	cytochrome c-type biogenesis protein CcmE
1201	 51.98	0	1409571..1411538	+	655	123441604	ccmF	YE1268	-	putative cytochrome c-type biogenesis protein
1202	 50.97	0	1411538..1412104	+	188	123441605	ccmG	YE1269	-	thiol:disulfide interchange protein DsbE
1203	 50.61	0	1412197..1412607	+	136	123441606	ccmH	YE1270	-	putative cytochrome c-type biogenesis protein
1204	 50.04	0	1412607..1413827	+	406	123441607	vacJ	YE1271	-	VacJ lipoprotein
1205	 50.59	0	1413864..1414628	+	254	123441608	vacJ	YE1272	-	VacJ lipoprotein
1206	 44.32	0	1414914..1415177	+	87	123441609	-	YE1273	-	hypothetical protein
1207	 49.57	0	1415768..1417042	-	424	123441610	fadL	YE1274	-	long-chain fatty acid outer membrane transporter
1208	 46.15	0	1417467..1417778	+	103	123441611	-	YE1275	-	hypothetical protein
1209	 50.95	0	1418075..1419385	+	436	123441612	fadI	YE1276	-	3-ketoacyl-CoA thiolase
1210	 50.71	0	1419523..1421622	+	699	123441613	fadJ	YE1277	-	multifunctional fatty acid oxidation complex subunit alpha
1211	 51.63	0	1422004..1422495	+	163	123441614	sixA	YE1278	-	phosphohistidine phosphatase
1212	 47.27	0	1422623..1423153	-	176	123441615	-	YE1279	-	hypothetical protein
1213	 48.12	0	1423360..1424292	+	310	123441616	-	YE1280	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1214	 52.76	+1	1424369..1425454	+	361	123441617	aroC	YE1281	-	chorismate synthase
1215	 50.85	0	1425460..1426287	+	275	123441618	mepA	YE1282	-	penicillin-insensitive murein endopeptidase
1216	 51.80	0	1426291..1427097	+	268	123441619	yfcA	YE1283	-	hypothetical protein
1217	 46.04	0	1427181..1427723	+	180	123441620	-	YE1284	-	hypothetical protein
1218	 50.36	0	1427974..1428249	+	91	123441621	-	YE1285	-	hypothetical protein
47.74	MEAN

4.70	STD DEV
