IslandPathversion 1.0

IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

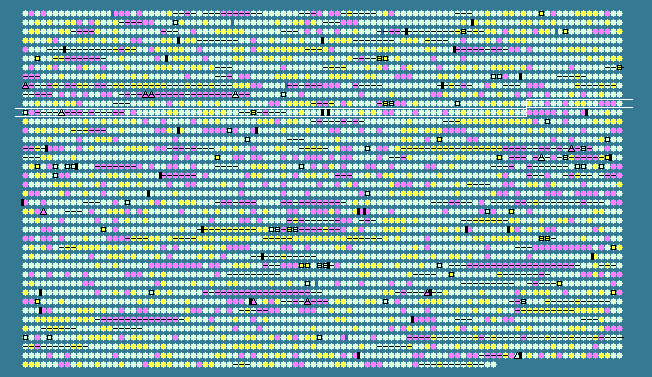

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1085	 52.30	0	1285154..1286281	-	375	123441488	dapE	YE1147	-	succinyl-diaminopimelate desuccinylase
1086	 45.63	0	1286283..1286705	-	140	123441489	-	YE1148	-	hypothetical protein
1087	 46.41	0	1286868..1287341	-	157	123441490	-	YE1149	-	hypothetical protein
1088	 40.33	-1	1287801..1289015	-	404	123441491	-	YE1150	-	hypothetical protein
1089	 49.62	0	1289613..1292744	-	1043	123441492	-	YE1151	-	aminoglycoside/multidrug efflux system
1090	 47.31	0	1293154..1293432	+	92	123441493	-	YE1152	-	hypothetical protein
1091	 43.49	0	1293471..1294100	-	209	123441494	narP	YE1153	-	nitrate/nitrite response regulator protein NarP
1092	 51.19	0	1294605..1295108	+	167	123441495	napF	YE1154	-	ferredoxin-type protein NapF
1093	 51.69	0	1295098..1295364	+	88	123441496	napD	YE1155	-	assembly protein for periplasmic nitrate reductase
1094	 51.28	0	1295361..1297856	+	831	123441497	napA	YE1156	-	nitrate reductase
1095	 49.34	0	1297939..1298394	+	151	123441498	napB	YE1157	-	diheme cytochrome c550
1096	 49.00	0	1298422..1299021	+	199	123441499	napC	YE1158	-	cytochrome c-type protein NapC
1097	 42.46	-1	1299175..1299426	+	83	123441500	-	YE1159	-	hypothetical protein
1098	 39.93	-1	1299423..1299710	+	95	123441501	-	YE1160	-	hypothetical protein
1099	 43.75	0	1299739..1300314	+	191	123441502	-	YE1161	-	hypothetical protein
1100	 50.44	0	1300535..1302814	+	759	123441503	maeB	YE1162	-	malic enzyme
1101	 47.35	0	1303231..1304250	-	339	123441504	-	YE1163	-	putative transposase for IS1667
1102	 30.13	-2	1304987..1305673	+	228	123441505	-	YE1165	-	LuxR family transcriptional regulatory protein
1103	 39.53	-1	1305680..1306582	-	300	123441506	-	YE1166	-	LysR family transcriptional regulator
1104	 47.28	0	1306694..1307152	-	152	123441507	-	YE1167	-	hypothetical protein
1105	 49.51	0	1307152..1308078	-	308	123441508	hemF	YE1168	-	coproporphyrinogen III oxidase
1106	 49.30	0	1308309..1308734	+	141	123441509	-	YE1169	-	putative acetyltransferase
1107	 47.10	0	1308992..1310110	+	372	123441510	-	YE1170	-	putative integrase/recombinase protein
1108	 26.21	-2	1310337..1311557	+	406	123441511	-	YE1171	-	putative maturase protein
1109	 28.20	-2	1311562..1313568	+	668	123441512	-	YE1172	-	putative DNA-binding protein
1110	 42.89	-1	1314461..1315768	-	435	123441513	-	YE1175	-	hypothetical protein
1111	 44.36	0	1315768..1316175	-	135	123441514	-	YE1175A	-	Cro/CI family transcriptional regulator
1112	 42.67	-1	1316273..1316497	-	74	123441515	-	YE1176	-	hypothetical protein
1113	 44.90	0	1316984..1318384	-	466	123441516	-	YE1177	-	putative conjugal transfer protein
1114	 46.11	0	1318398..1318577	-	59	123441517	-	YE1177A	-	hypothetical protein
1115	 48.85	0	1318588..1319367	-	259	123441518	-	YE1178	-	putative conjugal transfer protein
1116	 38.96	-1	1319687..1319917	-	76	123441519	-	YE1179	-	hypothetical protein
1117	 37.84	-2	1320077..1320742	+	221	123441520	-	YE1180	-	hypothetical protein
1118	 46.30	0	1320959..1321228	-	89	123441521	-	YE1181	-	hypothetical protein
1119	 41.89	-1	1321502..1322389	-	295	123441522	-	YE1182	-	putative plasmid-related transcriptional repressor protein
1120	 47.77	0	1322394..1322774	-	126	123441523	-	YE1183	-	hypothetical protein
1121	 49.03	0	1323318..1323731	-	137	123441524	ygiW	YE1185	-	hypothetical protein
1122	 46.41	0	1324114..1324725	+	203	123441525	yfeY	YE1186	-	hypothetical protein
1123	 44.81	0	1324901..1325806	+	301	123441526	-	YE1187	-	hypothetical protein
1124	 47.47	0	1325879..1326769	-	296	123441527	nanA	YE1188	-	N-acetylneuraminate lyase
1125	 52.20	0	1326851..1327486	-	211	123441528	-	YE1189	-	N-acetylmannosamine-6-phosphate 2-epimerase
1126	 52.68	+1	1327796..1328710	+	304	123441529	-	YE1190	-	N-acetylmannosamine kinase
1127	 46.23	0	1328792..1329202	+	136	123441530	-	YE1191	-	hypothetical protein
1128	 48.81	0	1329398..1330276	+	292	123441531	-	YE1192	-	rpiR family transcriptional regulatory protein
1129	 50.64	0	1330685..1332157	+	490	123441532	nanT	YE1193	-	putative sialic acid transporter
1130	 48.93	0	1332509..1333444	+	311	123441533	cysP	YE1194	-	thiosulfate transporter subunit
1131	 52.81	+1	1333444..1334280	+	278	123441534	cysT	YE1195	-	sulfate/thiosulfate transporter subunit
1132	 53.20	+1	1334280..1335155	+	291	123441535	cysW	YE1196	-	sulfate/thiosulfate transporter permease subunit
1133	 51.19	0	1335145..1336236	+	363	123441536	cysA	YE1197	-	sulfate/thiosulfate transporter subunit
1134	 54.11	+1	1336464..1337291	+	275	123441537	cysM	YE1198	-	cysteine synthase B
1135	 50.51	0	1337339..1339294	-	651	123441538	-	YE1199	-	putative ABC transporter, ATP-binding protein
1136	 50.21	0	1339325..1340533	-	402	123441539	-	YE1200	-	HlyD family secretion protein
1137	 50.00	0	1340722..1341405	+	227	123441540	-	YE1201	-	putative two-component system response regulator
1138	 50.37	0	1341431..1342798	+	455	123441541	-	YE1202	-	putative two-component system sensor kinase
1139	 51.25	0	1342839..1343636	-	265	123441542	-	YE1203	-	putative transposase for insertion element IS1669
1140	 50.48	0	1343654..1343968	-	104	123441543	-	YE1204	-	IS1669 hypothetical protein
1141	 42.55	-1	1344156..1344665	-	169	123441544	crr	YE1205	-	glucose-specific PTS system component
1142	 48.15	0	1344714..1346441	-	575	123441545	ptsI	YE1206	-	phosphoenolpyruvate-protein phosphotransferase
1143	 48.06	0	1346489..1346746	-	85	123441546	hpr	YE1207	-	phosphohistidinoprotein-hexose phosphotransferase component of PTS system (Hpr)
1144	 49.33	0	1347198..1348166	-	322	123441547	cysK	YE1208	-	cysteine synthase A
1145	 49.11	0	1348362..1349033	-	223	123441548	cysZ	YE1209	-	putative sulfate transport protein CysZ
1146	 50.64	0	1349310..1350332	+	340	123441549	zipA	YE1210	-	cell division protein ZipA
1147	 51.96	0	1350408..1352426	+	672	123441550	ligA	YE1211	-	NAD-dependent DNA ligase LigA
1148	 48.40	0	1352441..1352659	+	72	123441551	-	YE1212	-	hypothetical protein
1149	 44.44	0	1352849..1353190	-	113	123441552	-	YE1213	-	hypothetical protein
1150	 45.99	0	1353347..1353907	-	186	123441553	-	YE1214	-	hypothetical protein
1151	 49.93	0	1354417..1355832	-	471	123441554	gltX	YE1215	-	glutamyl-tRNA synthetase
1152	 44.47	0	1357395..1358579	-	394	123441555	cru	YE1217	-	nucleoside permease
1153	 49.43	0	1358978..1360207	+	409	123441556	mntH	YE1219	-	manganese transport protein MntH
1154	 44.29	0	1360258..1360686	-	142	123441557	-	YE1220	-	hypothetical protein
1155	 48.08	0	1360857..1361846	-	329	123441558	-	YE1221	-	putative ion channel protein
1156	 50.93	0	1362066..1363730	+	554	123441559	ipdC	YE1222	-	indole-3-pyruvate decarboxylase
1157	 52.25	0	1363702..1364589	-	295	123441560	-	YE1223	-	LysR family transcriptional regulator
1158	 47.59	0	1364691..1365167	+	158	123441561	-	YE1224	-	hypothetical protein
1159	 51.23	0	1365353..1366324	+	323	123441562	glk	YE1225	-	glucokinase
1160	 50.36	0	1366581..1367825	-	414	123441563	-	YE1226	-	putative membrane transport protein
1161	 41.57	-1	1368049..1368789	-	246	123441564	-	YE1227	-	putative two-component system response-regulator
1162	 44.15	0	1368793..1370493	-	566	123441565	-	YE1228	-	two-component system histidine kinase
1163	 49.28	0	1370664..1371911	-	415	123441566	-	YE1229	-	hypothetical protein
1164	 49.56	0	1372113..1372685	+	190	123441567	-	YE1230	-	putative acetyltransferase
1165	 50.89	0	1372817..1374052	+	411	123441568	-	YE1231	-	aminotransferase
1166	 43.62	0	1374220..1374744	+	174	123441569	-	YE1232	-	putative B-type cytochrome
1167	 48.38	0	1375159..1375590	-	143	123441570	-	YE1233	-	hypothetical protein
1168	 45.09	0	1376102..1376773	+	223	123441571	-	YE1234	-	putative lipoprotein
1169	 45.10	0	1376803..1377159	+	118	123441572	-	YE1235	-	putative lipoprotein
1170	 47.79	0	1377156..1377812	+	218	123441573	-	YE1236	-	putative lipoprotein
1171	 38.04	-2	1378318..1378848	+	176	123441574	-	YE1237	-	hypothetical protein
1172	 51.02	0	1378874..1379512	-	212	123441575	yfuD	YE1238	-	putative membrane transport protein
1173	 50.95	0	1379635..1380684	-	349	123441576	sfuC	YE1239	-	iron(III)-transport ATP-binding protein
1174	 52.43	0	1380681..1382267	-	528	123441577	sfuB	YE1240	-	iron(III)-transport system permease
1175	 48.18	0	1382354..1383370	-	338	123441578	sfuA	YE1241	-	iron(III)-binding periplasmic protein
1176	 50.78	0	1383664..1384758	+	364	123441579	mltB	YE1242	-	murein hydrolase B
1177	 49.89	0	1384987..1386327	-	446	123441580	-	YE1243	-	putative eamino acid permease
1178	 53.21	+1	1386752..1388482	-	576	123441581	-	YE1244	-	hypothetical protein
1179	 49.58	0	1388642..1389232	-	196	123441582	-	YE1245	-	TetR family regulatory protein
1180	 51.94	0	1389366..1390859	+	497	123441583	-	YE1246	-	major facilitator transporter
1181	 49.13	0	1391203..1392348	+	381	123441584	-	YE1247	-	ABC transporter, membrane permease
1182	 53.86	+1	1392345..1393148	+	267	123441585	-	YE1248	-	ABC transporter, ATP-binding component
1183	 49.36	0	1393149..1394090	+	313	123441586	-	YE1249	-	hypothetical protein
1184	 51.10	0	1394087..1394722	+	211	123441587	-	YE1250	-	hypothetical protein
47.74	MEAN

4.70	STD DEV
