IslandPath Analysis: Yersinia enterocolitica subsp. enterocolitica 8081

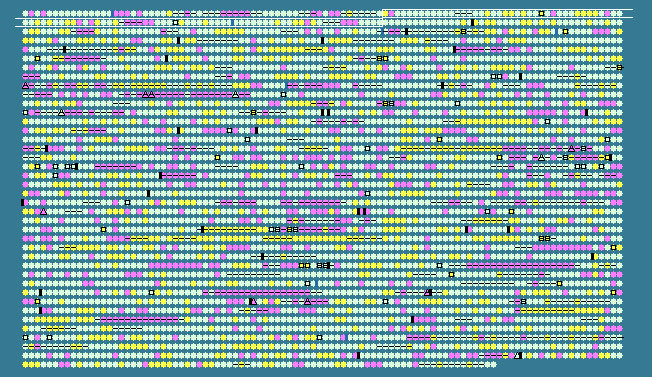

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 47.74 STD DEV: 4.70
Yersinia enterocolitica subsp. enterocolitica 8081, complete genome - 1..4615899
3979 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
61	 52.32	0	74374..74610	+	78	123440464	rpmB	YE0064	-	50S ribosomal protein L28
62	 40.48	-1	74622..74789	+	55	123440465	rpmG	YE0065	-	50S ribosomal protein L33
63	 48.77	0	74876..75685	+	269	123440466	fpg	YE0066	-	formamidopyrimidine-DNA glycosylase
64	 47.50	0	75792..76271	-	159	123440467	coaD	YE0067	-	phosphopantetheine adenylyltransferase
65	 47.25	0	76268..77050	-	260	123440468	kdtX	YE0068	-	lipopolysaccharide core biosynthesis glycosyl transferase
66	 50.08	0	77051..78328	-	425	123440469	kdtA	YE0069	-	3-deoxy-D-manno-octulosonic-acid transferase
67	 50.21	0	78869..79834	-	321	123440470	rfa-2	YE0070	-	ADP-heptose:LPS heptosyl transferase I
68	 50.14	0	79834..80898	-	354	123440471	rfaF	YE0071	-	ADP-heptose:LPS heptosyltransferase II
69	 47.59	0	80929..81861	-	310	123440472	rfaD	YE0072	-	ADP-L-glycero-D-mannoheptose-6-epimerase
70	 48.93	0	82105..83316	+	403	123440473	kbl	YE0073	-	2-amino-3-ketobutyrate coenzyme A ligase
71	 47.86	0	83341..84366	+	341	123440474	tdh	YE0074	-	L-threonine 3-dehydrogenase
72	 49.03	0	84557..85582	-	341	123440475	-	YE0075	-	hypothetical protein
73	 49.70	0	85606..86760	-	384	123440476	-	YE0076	-	hypothetical protein
74	 49.74	0	86983..88530	-	515	123440477	-	YE0077	-	phosphoglyceromutase
75	 48.74	0	88772..89206	+	144	123440478	-	YE0078	-	hypothetical protein
76	 50.60	0	89256..89504	+	82	123440479	grxC	YE0079	-	glutaredoxin 3
77	 50.74	0	89596..90066	+	156	123440480	secB	YE0080	-	preprotein translocase subunit SecB
78	 52.75	+1	90066..91085	+	339	123440481	gpsA	YE0081	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
79	 50.12	0	91211..92032	+	273	123440482	cysE	YE0082	-	serine acetyltransferase
80	 48.61	0	92213..92716	-	167	123440483	-	YE0083	-	putative methyltransferase
81	 52.55	+1	92988..93986	+	332	123440484	-	YE0084	-	bifunctional regulatory protein/DNA repair protein
82	 51.34	0	94056..95432	-	458	123440485	cpxA	YE0085	-	two-component sensor protein
83	 48.21	0	95429..96127	-	232	123440486	cpxR	YE0086	-	DNA-binding transcriptional regulator CpxR
84	 53.12	+1	96348..96812	+	154	123440487	cpxP	YE0087	-	periplasmic stress adaptor protein CpxP
85	 48.28	0	96944..97846	+	300	123440488	fieF	YE0088	-	ferrous iron efflux protein F
86	 48.39	0	98096..99091	+	331	123440489	pfkA	YE0089	-	6-phosphofructokinase
87	 55.96	+1	99139..100473	-	444	123440490	-	YE0090	-	transposase for insertion sequence element IS1660
88	 46.57	0	100712..101701	+	329	123440491	sbp1	YE0091	-	sulfate transporter subunit
89	 43.23	0	101902..102093	+	63	123440492	-	YE0092	-	hypothetical protein
90	 49.48	0	102318..103085	-	255	123440493	tpiA	YE0093	-	triosephosphate isomerase
91	 49.57	0	103214..103798	-	194	123440494	-	YE0094	-	hypothetical protein
92	 50.11	0	104103..104537	+	144	123440495	-	YE0095	-	hypothetical protein
93	 51.81	0	104780..105526	-	248	123440496	fpr	YE0096	-	ferredoxin-NADP reductase
94	 54.09	+1	105845..107029	+	394	123440497	emrD	YE0097	-	multidrug resistance protein D
95	 51.34	0	107115..108125	-	336	123440498	glpX	YE0098	-	fructose 1,6-bisphosphatase II
96	 52.10	0	108307..109830	-	507	123440499	glpK	YE0099	-	glycerol kinase
97	 50.53	0	109907..110755	-	282	123440500	glpF	YE0100	-	glycerol uptake facilitator protein
98	 44.17	0	111350..111589	+	79	123440501	-	YE0101	-	hypothetical protein
99	 45.47	0	111726..112211	-	161	123440502	menG	YE0102	-	ribonuclease activity regulator protein RraA
100	 50.29	0	112342..113196	-	284	123440503	menA	YE0103	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
101	 49.55	0	113424..114755	-	443	123440504	hslU	YE0104	-	ATP-dependent protease ATP-binding subunit
102	 49.71	0	114810..115334	-	174	123440505	hslV	YE0105	-	ATP-dependent protease peptidase subunit
103	 56.60	+1	115434..116297	-	287	123440506	ftsN	YE0106	-	cell division protein FtsN
104	 48.59	0	116363..117391	-	342	123440507	cytR	YE0107	-	DNA-binding transcriptional regulator CytR
105	 53.52	+1	117622..119820	-	732	123440508	priA	YE0108	-	primosome assembly protein PriA
106	 50.23	0	120213..120431	+	72	123440509	rpmE	YE0109	-	50S ribosomal protein L31
107	 49.06	0	120521..120838	-	105	123440510	metJ	YE0110	-	transcriptional repressor protein MetJ
108	 52.33	0	121214..122371	+	385	123440511	metB	YE0111	-	cystathionine gamma-synthase
109	 53.24	+1	122379..124814	+	811	123440512	metL	YE0112	-	bifunctional aspartate kinase II/homoserine dehydrogenase II
110	 32.57	-2	124892..127000	-	702	123440513	-	YE0113	-	hypothetical protein
111	 48.47	0	127374..128258	+	294	123440514	metF	YE0114	-	5,10-methylenetetrahydrofolate reductase
112	 41.23	-1	128578..129780	+	400	123440515	-	YE0115	-	hypothetical protein
113	 53.14	+1	129861..132500	-	879	123440516	glu	YE0116	-	phosphoenolpyruvate carboxylase
114	 50.80	0	132848..134032	-	394	123440517	argE	YE0117	-	acetylornithine deacetylase
115	 50.65	0	134395..135399	+	334	123440518	argC	YE0119	-	N-acetyl-gamma-glutamyl-phosphate reductase
116	 52.55	+1	135487..136251	+	254	123440519	argB	YE0120	-	acetylglutamate kinase
117	 49.27	0	136489..137862	+	457	123440520	argH	YE0121	-	argininosuccinate lyase
118	 43.77	0	138584..140911	+	775	123440521	-	YE0122	-	putative TonB dependent receptor protein
119	 40.25	-1	141014..141649	+	211	123440522	-	YE0123	-	hemophore HasA
120	 40.98	-1	141797..142450	+	217	123440523	-	YE0124	-	hemophore
121	 39.41	-1	142509..143150	+	213	123440524	-	YE0125	-	hemophore
122	 35.80	-2	143211..143819	+	202	123440525	-	YE0126	-	hemophore
123	 47.03	0	144005..145786	+	593	123440526	-	YE0127	-	ABC transporter protein
124	 47.20	0	145917..147149	+	410	123440527	-	YE0128	-	HlyD family secretion protein
125	 46.32	0	147226..148026	+	266	123440528	-	YE0129	-	hypothetical protein
126	 44.39	0	148114..149307	-	397	123440529	tpn1330	YE0130	-	transposase for IS1330
127	 51.48	0	149422..150870	-	482	123440530	-	YE0131	-	dihydrolipoamide dehydrogenase
128	 47.54	0	151070..151801	-	243	123440531	-	YE0132	-	putative peroxiredoxin/glutaredoxin family protein
129	 49.09	0	151949..152881	+	310	123440532	oxyR	YE0133	-	DNA-binding transcriptional regulator OxyR
130	 48.89	0	152864..154264	-	466	123440533	sth	YE0134	-	soluble pyridine nucleotide transhydrogenase
131	 53.02	+1	154470..155114	+	214	123440534	-	YE0135	-	DNA-binding transcriptional repressor FabR
132	 44.35	0	155245..155607	+	120	123440535	yijD	YE0136	-	hypothetical protein
133	 49.18	0	155840..156943	-	367	123440536	trmA	YE0138	-	tRNA (uracil-5-)-methyltransferase
134	 47.66	0	157369..159267	+	632	123440537	btuB	YE0139	-	vitamin B12/cobalamin outer membrane transporter
135	 50.23	0	159212..160075	+	287	123440538	dga	YE0140	-	glutamate racemase
136	 44.93	0	166814..167770	+	318	123440539	-	YE0141	-	putative periplasmic protein precursor
137	 45.61	0	167855..169345	+	496	123440540	-	YE0142	-	putative sugar transport system ATP-binding protein
138	 48.24	0	169357..170376	+	339	123440541	-	YE0143	-	putative sugar transport system permease
139	 45.72	0	170376..171344	+	322	123440542	-	YE0144	-	inner membrane ABC transporter permease protein YjfF
140	 47.05	0	171355..172236	-	293	123440543	-	YE0145	-	transcriptional regulator HdfR
141	 50.74	0	172356..172694	+	112	123440544	-	YE0146	-	hypothetical protein
142	 50.07	0	172798..174321	-	507	123440545	-	YE0147	-	putative magnesium chelatase family protein
143	 52.40	0	174892..176538	+	548	123440546	ilvG	YE0148	-	acetolactate synthase 2 catalytic subunit
144	 46.90	0	176535..176792	+	85	123440547	ilvM	YE0149	-	acetolactate synthase 2 regulatory subunit
145	 50.92	0	176815..177741	+	308	123440548	ilvE	YE0150	-	branched-chain amino acid aminotransferase
146	 53.00	+1	177853..179703	+	616	123440549	ilvD	YE0151	-	dihydroxy-acid dehydratase
147	 53.66	+1	179709..181253	+	514	123440550	ilvA	YE0152	-	threonine dehydratase
148	 33.47	-2	181439..182935	+	498	123440551	-	YE0153	-	hypothetical protein
149	 52.15	0	182937..183818	-	293	123440552	ilvY	YE0154	-	DNA-binding transcriptional regulator IlvY
150	 48.95	0	184071..185549	+	492	123440553	ilvC	YE0155	-	ketol-acid reductoisomerase
151	 45.72	0	185847..186524	-	225	123440554	-	YE0157	-	putative chaperone protein
152	 49.34	0	186571..187938	-	455	123440555	-	YE0158	-	hypothetical protein
153	 44.91	0	187956..190175	-	739	123440556	-	YE0159	-	putative outer membrane usher protein
154	 42.04	-1	190653..191330	-	225	123440557	-	YE0160	-	putative fimbrial chaperone
155	 44.26	0	191517..192047	-	176	123440558	-	YE0161	-	putative fimbrial protein
156	 42.20	-1	192664..192945	-	93	123440559	ppiC	YE0162	-	peptidyl-prolyl cis-trans isomerase C
157	 48.20	0	193159..195183	+	674	123440560	rep	YE0163	-	ATP-dependent DNA helicase Rep
158	 46.63	0	195239..197065	-	608	123440561	pehX	YE0164	-	exo-poly-alpha-D-galacturonosidase precursor
159	 50.43	0	197407..198903	-	498	123440562	gppA	YE0165	-	guanosine pentaphosphate phosphohydrolase
160	 48.10	0	198907..199983	-	358	123440563	mmrA	YE0166	-	putative DEAD-box helicase
47.74	MEAN

4.70	STD DEV
