IslandPath Analysis: Xylella fastidiosa 9a5c

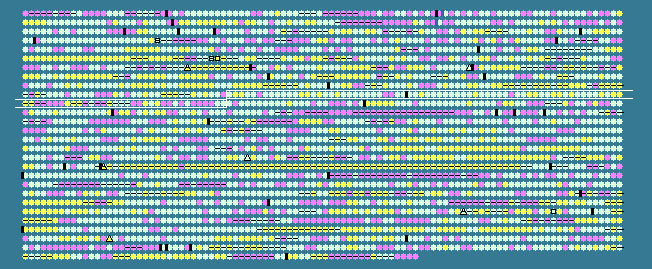

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
935	 54.47	0	901122..902015	-	297	15837540	-	XF0938	-	hypothetical protein
936	 57.43	0	902103..903098	+	331	15837541	-	XF0939	-	ribosomal large subunit pseudouridine synthase D
937	 58.49	+1	903100..903882	+	260	15837542	-	XF0940	-	hypothetical protein
938	 54.03	0	904363..904821	+	152	15837543	-	XF0941	-	hypothetical protein
939	 52.99	0	904986..906674	-	562	15837544	-	XF0942	-	malate:quinone oxidoreductase
940	 27.62	-2	906761..906865	+	34	15837545	-	XF0943	-	hypothetical protein
941	 53.57	0	907231..908895	-	554	15837546	-	XF0944	-	putative ABC transporter ATP-binding protein
942	 49.54	0	909058..909273	-	71	15837547	-	XF0945	-	hypothetical protein
943	 53.57	0	909556..910830	+	424	15837548	glyA	XF0946	-	serine hydroxymethyltransferase
944	 49.00	0	910959..911456	+	165	15837549	-	XF0947	-	hypothetical protein
945	 54.76	0	911484..912029	+	181	15837550	-	XF0948	-	transcriptional regulator NrdR
946	 52.71	0	912136..912393	+	85	15837551	-	XF0949	-	hypothetical protein
947	 58.72	+1	912455..913549	+	364	15837552	-	XF0950	-	riboflavin-specific deaminase
948	 57.50	0	913782..914021	-	79	15837553	-	XF0951	-	hypothetical protein
949	 55.56	0	914136..914738	+	200	15837554	-	XF0952	-	riboflavin synthase subunit alpha
950	 57.32	0	914735..915868	+	377	15837555	-	XF0953	-	GTP cyclohydrolase II/3,4-dihydroxy-2-butanone 4-phosphate synthase
951	 55.48	0	915898..916362	+	154	15837556	ribH	XF0954	-	riboflavin synthase subunit beta
952	 53.16	0	916359..916832	+	157	15837557	nusB	XF0955	-	transcription antitermination protein NusB
953	 56.21	0	916923..917897	+	324	15837558	-	XF0956	-	thiamine monophosphate kinase
954	 52.44	0	918607..918831	+	74	15837559	-	XF0957	-	hypothetical protein
955	 50.35	0	918941..919222	+	93	15837560	-	XF0958	-	hypothetical protein
956	 55.61	0	919201..919797	-	198	15837561	-	XF0959	-	hypothetical protein
957	 49.06	0	919858..920601	-	247	15837562	-	XF0960	-	hypothetical protein
958	 49.38	0	920666..921145	-	159	15837563	-	XF0961	-	bacterioferritin comigratory protein
959	 52.79	0	921192..921818	-	208	15837564	-	XF0962	-	transcriptional regulator
960	 55.12	0	921920..922828	+	302	77747527	dapA	XF0963	-	dihydrodipicolinate synthase
961	 48.23	0	922818..923354	+	178	15837566	-	XF0964	-	hypothetical protein
962	 34.09	-2	923500..923631	+	43	15837567	-	XF0965	-	hypothetical protein
963	 48.75	0	923820..924377	-	185	15837568	-	XF0966	-	hypothetical protein
964	 50.20	0	924533..926542	+	669	15837569	-	XF0967	-	excinuclease ABC subunit B
965	 52.64	0	926826..927659	-	277	15837570	-	XF0968	-	hypothetical protein
966	 54.11	0	927910..928116	-	68	15837571	-	XF0969	-	hypothetical protein
967	 58.44	+1	928106..928336	+	76	15837572	-	XF0970	-	hypothetical protein
968	 51.85	0	928347..928508	+	53	15837573	-	XF0971	-	hypothetical protein
969	 52.13	0	928656..929288	+	210	15837574	-	XF0972	-	LuxR/UhpA family transcriptional regulator
970	 55.62	0	929325..930962	-	545	15837575	-	XF0973	-	two-component system, sensor protein
971	 54.17	0	931261..931500	+	79	15837576	-	XF0974	-	hypothetical protein
972	 54.44	0	931734..932903	-	389	15837577	-	XF0975	-	polyphosphate-selective porin O
973	 49.90	0	933078..934550	+	490	15837578	-	XF0976	-	C4-dicarboxylate transporter DctA
974	 54.34	0	934718..937012	+	764	15837579	-	XF0977	-	malic enzyme
975	 52.93	0	937243..939156	-	637	15837580	-	XF0978	-	heat shock protein 90
976	 58.53	+1	939331..939957	+	208	77747528	-	XF0979	-	hypothetical protein
977	 54.40	0	939954..940442	+	162	15837582	coaD	XF0980	-	phosphopantetheine adenylyltransferase
978	 52.38	0	940501..940983	+	160	15837583	-	XF0981	-	hypothetical protein
979	 49.23	0	940961..941155	+	64	15837584	-	XF0982	-	hypothetical protein
980	 50.76	0	941176..941439	+	87	15837585	-	XF0983	-	ferredoxin
981	 55.08	0	941436..943247	+	603	15837586	-	XF0984	-	gamma-glutamyltranspeptidase
982	 41.98	-1	943733..943894	-	53	15837587	-	XF0985	-	hypothetical protein
983	 54.51	0	943995..945779	+	594	15837588	-	XF0986	-	hypothetical protein
984	 55.13	0	945879..946736	-	285	15837589	-	XF0987	-	hypothetical protein
985	 56.74	0	946736..948085	-	449	15837590	-	XF0988	-	dihydroorotase
986	 57.95	0	948082..948345	-	87	15837591	-	XF0989	-	hypothetical protein
987	 50.26	0	948453..949397	+	314	77747529	-	XF0991	-	DnaK supressor
988	 50.54	0	948809..948994	-	61	15837592	-	XF0990	-	hypothetical protein
989	 58.03	0	949625..950608	+	327	15837594	-	XF0992	-	hypothetical protein
990	 56.17	0	950792..952048	-	418	15837595	-	XF0993	-	drug:proton antiporter
991	 53.29	0	952045..952485	-	146	15837596	-	XF0994	-	hypothetical protein
992	 59.09	+1	952570..953994	-	474	15837597	cysS	XF0995	-	cysteinyl-tRNA synthetase
993	 51.52	0	954141..954668	+	175	15837598	-	XF0996	-	hypothetical protein
994	 49.82	0	954674..954958	+	94	15837599	-	XF0997	-	hypothetical protein
995	 54.01	0	955057..956067	+	336	15837600	-	XF0998	-	N-acetylornithine carbamoyltransferase
996	 55.06	0	956098..957303	+	401	15837601	-	XF0999	-	argininosuccinate synthase
997	 60.18	+1	957374..958468	+	364	15837602	-	XF1000	-	acetylornithine deacetylase
998	 55.20	0	958533..959849	+	438	15837603	-	XF1001	-	acetylglutamate kinase
999	 60.48	+1	959852..960853	+	333	15837604	argC	XF1002	-	N-acetyl-gamma-glutamyl-phosphate reductase
1000	 62.86	+1	960871..962208	+	445	15837605	-	XF1003	-	argininosuccinate lyase
1001	 64.16	+1	962344..963498	+	384	15837606	-	XF1004	-	gamma-glutamyl kinase
1002	 61.31	+1	963581..965035	+	484	15837607	-	XF1005	-	gamma-glutamyl phosphate reductase
1003	 45.81	-1	965337..965849	+	170	15837608	-	XF1006	-	hypothetical protein
1004	 46.85	0	965867..966310	+	147	15837609	-	XF1007	-	hypothetical protein
1005	 45.44	-1	966351..966854	+	167	15837610	-	XF1008	-	hypothetical protein
1006	 44.62	-1	966932..967321	+	129	15837611	-	XF1009	-	hypothetical protein
1007	 42.75	-1	967332..967841	+	169	15837612	-	XF1010	-	hypothetical protein
1008	 59.09	+1	967865..972775	+	1636	15837613	-	XF1011	-	hemolysin-type calcium binding protein
1009	 62.50	+1	972969..973472	-	167	15837614	-	XF1012	-	hypothetical protein
1010	 57.14	0	973480..973962	-	160	15837615	-	XF1013	-	manganese transport regulator MntR
1011	 47.54	0	973943..974125	+	60	15837616	-	XF1014	-	hypothetical protein
1012	 54.69	0	974127..975545	+	472	15837617	-	XF1015	-	manganese transport protein MntH
1013	 48.48	0	975561..975725	+	54	15837618	-	XF1016	-	hypothetical protein
1014	 45.40	-1	975703..975876	-	57	15837619	-	XF1017	-	hypothetical protein
1015	 57.12	0	976043..976807	-	254	15837620	-	XF1018	-	arginyl-tRNA-protein transferase
1016	 50.00	0	976989..977108	+	39	15837621	-	XF1019	-	hypothetical protein
1017	 52.85	0	977229..977720	-	163	15837622	-	XF1020	-	pathogenicity-related protein
1018	 52.30	0	977724..978656	-	310	15837623	-	XF1021	-	hypothetical protein
1019	 38.74	-2	978685..978795	-	36	15837624	-	XF1022	-	hypothetical protein
1020	 43.54	-1	979234..979380	+	48	15837625	-	XF1023	-	hypothetical protein
1021	 56.92	0	979490..979807	-	105	15837626	-	XF1024	-	outer membrane protein H.8 precursor
1022	 54.43	0	980782..981165	-	127	15837627	-	XF1025	-	hypothetical protein
1023	 56.76	0	980867..983875	+	1002	77747530	-	XF1026	-	serine protease
1024	 45.93	-1	984121..984366	-	81	15837629	-	XF1027	-	hypothetical protein
1025	 47.26	0	984687..984887	-	66	15837630	-	XF1028	-	hypothetical protein
1026	 52.56	0	985119..987110	-	663	15837631	-	XF1029	-	glutaryl-7-ACA acylase precursor
1027	 44.83	-1	987384..987557	+	57	15837632	-	XF1030	-	hypothetical protein
1028	 52.24	0	987747..990359	-	870	15837633	-	XF1031	-	glycerol-3-phosphate acyltransferase
1029	 38.16	-2	990976..991182	-	68	15837634	-	XF1032	-	hypothetical protein
1030	 45.70	-1	991364..991549	+	61	15837635	-	XF1033	-	hypothetical protein
1031	 44.44	-1	991519..991734	+	71	15837636	-	XF1034	-	hypothetical protein
1032	 47.19	0	991854..992156	+	100	15837637	-	XF1035	-	hypothetical protein
1033	 50.78	0	992251..995277	+	1008	15837638	-	XF1036	-	hypothetical protein
1034	 51.14	0	995383..996825	-	480	77747531	-	XF1037	-	S-adenosyl-L-homocysteine hydrolase
52.19	MEAN

6.22	STD DEV
