IslandPath Analysis: Xylella fastidiosa 9a5c

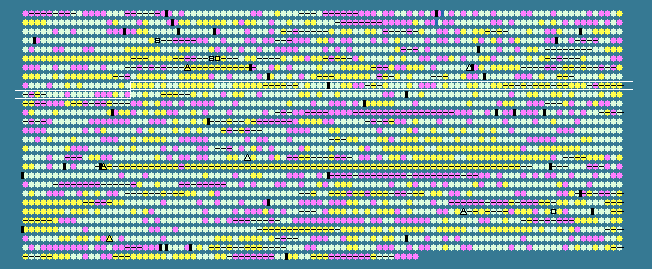

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
819	 58.33	0	774081..775484	-	467	15837424	gltX	XF0822	-	glutamyl-tRNA synthetase
820	 55.87	0	776092..777267	+	391	77747522	pgk	XF0823	-	phosphoglycerate kinase
821	 55.90	0	777685..779151	+	488	161378173	-	XF0824	-	pyruvate kinase
822	 59.26	+1	779370..779639	+	89	15837427	-	XF0825	-	hypothetical protein
823	 53.03	0	779868..780872	+	334	15837428	-	XF0826	-	fructose-bisphosphate aldolase
824	 57.00	0	781043..781849	-	268	15837429	-	XF0827	-	hypothetical protein
825	 49.83	0	782048..782629	+	193	15837430	-	XF0828	-	hypothetical protein
826	 52.63	0	782674..782901	+	75	15837431	-	XF0829	-	hypothetical protein
827	 57.07	0	782958..783374	-	138	15837432	-	XF0830	-	hypothetical protein
828	 58.36	0	783385..784383	-	332	15837433	-	XF0831	-	cysteine synthase
829	 61.71	+1	784408..785838	-	476	15837434	-	XF0832	-	siroheme synthase
830	 57.22	0	785990..786973	+	327	161378172	-	XF0833	-	transcriptional regulator CysB-like protein
831	 61.40	+1	787165..788361	-	398	15837436	-	XF0834	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
832	 61.62	+1	788343..789551	-	402	15837437	-	XF0835	-	2-octaprenyl-6-methoxyphenyl hydroxylase
833	 52.65	0	789746..790009	-	87	15837438	-	XF0836	-	hypothetical protein
834	 52.21	0	790042..792420	+	792	15837439	-	XF0837	-	organic solvent tolerance protein
835	 54.19	0	792417..793811	+	464	15837440	-	XF0838	-	peptidyl-prolyl cis-trans isomerase
836	 58.81	+1	793815..794807	+	330	15837441	pdxA	XF0839	-	4-hydroxythreonine-4-phosphate dehydrogenase
837	 58.73	+1	795191..797029	-	612	15837442	-	XF0840	-	beta-galactosidase
838	 57.86	0	797028..797186	+	52	15837443	-	XF0841	-	hypothetical protein
839	 60.85	+1	797255..799627	-	790	15837444	-	XF0842	-	hypothetical protein
840	 59.51	+1	799685..801235	-	516	15837445	-	XF0843	-	hypothetical protein
841	 56.38	0	801212..801493	+	93	15837446	-	XF0844	-	hypothetical protein
842	 62.82	+1	801585..804233	-	882	15837447	-	XF0845	-	family 3 glycoside hydrolase
843	 61.29	+1	804318..806993	-	891	15837448	-	XF0846	-	beta-mannosidase precursor
844	 60.37	+1	807008..809533	-	841	15837449	-	XF0847	-	beta-hexosaminidase precursor
845	 54.73	0	809508..810563	-	351	15837450	-	XF0848	-	hypothetical protein
846	 57.48	0	810753..811220	-	155	15837451	-	XF0849	-	methionine sulfoxide reductase B
847	 49.51	0	811295..811498	+	67	15837452	-	XF0850	-	hypothetical protein
848	 55.96	0	811609..812916	+	435	15837453	-	XF0851	-	D-amino acid dehydrogenase small subunit
849	 54.74	0	812886..813983	+	365	15837454	alr	XF0852	-	alanine racemase
850	 53.60	0	814460..815959	+	499	15837455	-	XF0853	-	two-component system, sensor protein
851	 53.33	0	816235..816444	+	69	15837456	-	XF0854	-	hypothetical protein
852	 53.77	0	817122..817850	-	242	15837457	-	XF0855	-	lipoprotein
853	 54.53	0	817850..818467	-	205	15837458	-	XF0856	-	hypothetical protein
854	 56.19	0	818487..819164	-	225	15837459	-	XF0857	-	L-isoaspartate O-methyltransferase
855	 57.41	0	819161..819949	-	262	15837460	surE	XF0858	-	stationary phase survival protein SurE
856	 47.79	0	819968..820216	+	82	15837461	-	XF0859	-	hypothetical protein
857	 45.34	-1	820210..820917	-	235	15837462	-	XF0860	-	hypothetical protein
858	 51.69	0	821212..821478	+	88	15837463	-	XF0861	-	hypothetical protein
859	 58.88	+1	821561..822433	-	290	77747523	-	XF0862	-	hypothetical protein
860	 54.62	0	822754..823791	+	345	15837465	-	XF0863	-	homoserine O-acetyltransferase
861	 55.99	0	823788..825005	+	405	15837466	-	XF0864	-	cystathionine gamma-synthase
862	 50.31	0	825067..825225	+	52	15837467	-	XF0865	-	hypothetical protein
863	 53.83	0	825372..826337	+	321	15837468	-	XF0866	-	cobalt-zinc-cadmium resistance protein
864	 54.57	0	826353..826691	+	112	15837469	-	XF0867	-	hypothetical protein
865	 56.02	0	827092..828903	-	603	15837470	-	XF0868	-	dihydrolipoamide dehydrogenase
866	 53.26	0	828949..830604	-	551	15837471	-	XF0869	-	dihydrolipoamide acetyltransferase
867	 44.07	-1	830897..831073	+	58	15837472	-	XF0870	-	hypothetical protein
868	 45.33	-1	831239..831463	+	74	15837473	-	XF0871	-	hypothetical protein
869	 48.35	0	831594..832139	+	181	15837474	-	XF0872	-	outer membrane protein
870	 49.49	0	832245..833030	-	261	15837475	-	XF0873	-	outer membrane protein
871	 56.07	0	833124..833831	-	235	15837476	-	XF0874	-	ABC transporter permease protein
872	 55.32	0	833828..834832	-	334	15837477	-	XF0875	-	ABC transporter ATP-binding protein
873	 49.51	0	835250..835558	-	102	15837478	-	XF0876	-	hypothetical protein
874	 50.16	0	835819..836133	+	104	15837479	-	XF0877	-	hypothetical protein
875	 56.46	0	836126..836899	+	257	15837480	-	XF0878	-	hypothetical protein
876	 57.77	0	836896..838008	+	370	15837481	-	XF0879	-	lipopolysaccharide biosynthesis protein
877	 51.28	0	838143..838805	+	220	15837482	-	XF0880	-	carbonic anhydrase
878	 53.37	0	838834..839442	+	202	15837483	-	XF0881	-	hypothetical protein
879	 59.10	+1	839676..841802	-	708	15837484	-	XF0882	-	ATP-dependent helicase
880	 59.14	+1	841823..842380	-	185	15837485	-	XF0883	-	hypothetical protein
881	 57.56	0	842377..844803	-	808	77747524	-	XF0884	-	penicillin binding protein 1B
882	 57.33	0	845057..846181	+	374	77747525	-	XF0885	-	hypothetical protein
883	 54.55	0	846203..846433	+	76	15837488	-	XF0886	-	hypothetical protein
884	 56.79	0	846430..849012	+	860	15837489	-	XF0887	-	mannosyltransferase
885	 53.33	0	849013..849192	-	59	15837490	-	XF0888	-	hypothetical protein
886	 66.13	+2	849238..859086	+	3282	15837491	-	XF0889	-	hemagglutinin-like secreted protein
887	 55.95	0	859344..860192	+	282	15837492	-	XF0890	-	hypothetical protein
888	 58.64	+1	860277..861260	+	327	15837493	-	XF0891	-	hypothetical protein
889	 55.48	0	861481..862329	+	282	15837494	-	XF0892	-	hypothetical protein
890	 61.98	+1	862384..862788	+	134	15837495	-	XF0893	-	hypothetical protein
891	 56.18	0	862801..863649	+	282	15837496	-	XF0894	-	hypothetical protein
892	 57.16	0	863870..864721	+	283	15837497	-	XF0895	-	hypothetical protein
893	 57.63	0	864942..865793	+	283	15837498	-	XF0896	-	hypothetical protein
894	 60.87	+1	865790..866617	+	275	15837499	-	XF0897	-	hypothetical protein
895	 49.15	0	866864..867217	-	117	15837500	-	XF0898	-	hypothetical protein
896	 46.03	0	867221..867409	-	62	15837501	-	XF0899	-	hypothetical protein
897	 56.83	0	867800..868897	-	365	15837502	-	XF0900	-	magnesium and cobalt transport protein
898	 55.97	0	870030..871001	-	323	15837503	-	XF0901	-	polar amino acid transporter
899	 57.33	0	871010..871534	-	174	15837504	-	XF0902	-	hypothetical protein
900	 55.97	0	871534..872019	-	161	15837505	-	XF0903	-	putative metalloprotease
901	 54.47	0	872090..873073	-	327	15837506	-	XF0904	-	ATP-binding protein
902	 40.00	-1	873199..873393	-	64	15837507	-	XF0905	-	hypothetical protein
903	 55.82	0	873404..874897	-	497	15837508	-	XF0906	-	hypothetical protein
904	 54.36	0	875047..875940	+	297	15837509	-	XF0907	-	soluble lytic murein transglycosylase precursor
905	 55.45	0	876078..876710	+	210	15837510	-	XF0908	-	ubiquinol cytochrome C oxidoreductase, iron-sulfur subunit
906	 49.72	0	876715..877977	+	420	15837511	-	XF0909	-	ubiquinol cytochrome C oxidoreductase, cytochrome B subunit
907	 51.18	0	877970..878731	+	253	15837512	-	XF0910	-	ubiquinol cytochrome C oxidoreductase, cytochrome C1 subunit
908	 48.27	0	878873..879508	+	211	15837513	-	XF0911	-	stringent starvation protein A
909	 53.97	0	879539..879979	+	146	15837514	-	XF0912	-	ClpXP protease specificity-enhancing factor
910	 53.82	0	879990..880775	+	261	15837515	-	XF0913	-	tropinone reductase
911	 49.30	0	880998..881423	+	141	15837516	-	XF0914	-	hypothetical protein
912	 51.95	0	881586..881918	+	110	15837517	-	XF0915	-	hypothetical protein
913	 45.53	-1	881959..882204	+	81	15837518	-	XF0916	-	hypothetical protein
914	 41.87	-1	882189..882563	+	124	15837519	-	XF0917	-	hypothetical protein
915	 46.36	0	882560..883204	+	214	15837520	-	XF0918	-	acyl-[ACP]-UDP-N-acetylglucosamine
916	 58.16	0	883569..884132	-	187	15837521	-	XF0919	-	hypothetical protein
917	 51.92	0	884246..886693	-	815	15837522	-	XF0920	-	DNA topoisomerase III
918	 47.95	0	886899..887117	+	72	15837523	-	XF0921	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
