IslandPath Analysis: Xylella fastidiosa 9a5c

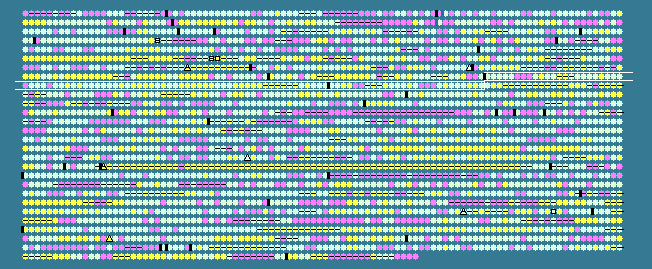

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
778	 55.46	0	732248..734041	-	597	15837383	-	XF0781	-	lipase/esterase
779	 50.88	0	734156..734383	+	75	15837384	-	XF0782	-	sulfur carrier protein ThiS
780	 53.74	0	734399..735226	+	275	15837385	thiG	XF0783	-	thiazole synthase
781	 51.97	0	735223..735957	+	244	15837386	trmB	XF0784	-	tRNA (guanine-N(7))-methyltransferase
782	 52.76	0	735988..737850	+	620	15837387	-	XF0785	-	sulfur deprivation response regulator
783	 35.71	-2	738072..738239	+	55	15837388	-	XF0786	-	hypothetical protein
784	 45.41	-1	738450..738656	+	68	15837389	-	XF0787	-	hypothetical protein
785	 40.38	-1	738707..738862	+	51	15837390	-	XF0788	-	hypothetical protein
786	 50.68	0	739092..739604	+	170	15837391	-	XF0789	-	cell division protein MraZ
787	 56.48	0	739660..740601	+	313	15837392	mraW	XF0790	-	S-adenosyl-methyltransferase MraW
788	 51.89	0	740598..740861	+	87	15837393	-	XF0791	-	cell division protein
789	 54.78	0	740858..742699	+	613	15837394	-	XF0792	-	penicillin binding protein 3
790	 57.19	0	742696..744183	+	495	15837395	murE	XF0793	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
791	 56.93	0	744180..745586	+	468	15837396	-	XF0794	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
792	 49.45	0	745576..746661	+	361	15837397	mraY	XF0795	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
793	 51.49	0	746661..747932	+	423	15837398	-	XF0796	-	cell division protein
794	 54.08	0	747929..749032	+	367	15837399	murG	XF0797	-	N-acetylglucosaminyl transferase
795	 53.84	0	749088..750521	+	477	15837400	murC	XF0798	-	UDP-N-acetylmuramate--L-alanine ligase
796	 53.58	0	750524..751486	+	320	15837401	ddl	XF0799	-	D-alanine--D-alanine ligase
797	 56.03	0	751593..752429	+	278	15837402	-	XF0800	-	cell division protein
798	 52.91	0	752426..753661	+	411	15837403	-	XF0801	-	cell division protein
799	 54.45	0	753831..755066	+	411	77747520	-	XF0802	-	cell division protein FtsZ
800	 50.27	0	755439..756353	+	304	15837405	lpxC	XF0803	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
801	 42.12	-1	756513..756785	-	90	15837406	-	XF0804	-	hypothetical protein
802	 50.73	0	756966..757925	+	319	15837407	-	XF0805	-	hypothetical protein
803	 52.57	0	758073..760817	+	914	15837408	-	XF0806	-	preprotein translocase subunit SecA
804	 49.40	0	760796..760963	+	55	15837409	-	XF0807	-	hypothetical protein
805	 46.67	0	761414..761548	+	44	15837410	-	XF0808	-	hypothetical protein
806	 50.85	0	761538..761714	-	58	15837411	-	XF0809	-	hypothetical protein
807	 52.47	0	761713..763410	+	565	15837412	-	XF0810	-	extracellular endoglucanase precursor
808	 56.56	0	763690..764550	-	286	15837413	-	XF0811	-	hypothetical protein
809	 51.06	0	764617..764757	+	46	15837414	-	XF0812	-	hypothetical protein
810	 57.69	0	764864..765520	+	218	15837415	-	XF0813	-	hypothetical protein
811	 50.33	0	765771..765923	+	50	15837416	-	XF0814	-	hypothetical protein
812	 54.94	0	765965..766126	+	53	15837417	-	XF0815	-	hypothetical protein
813	 53.72	0	766252..769224	-	990	15837418	-	XF0816	-	zinc protease
814	 54.24	0	769272..769448	+	58	15837419	-	XF0817	-	hypothetical protein
815	 54.92	0	769640..771418	-	592	15837420	-	XF0818	-	endo-1,4-beta-glucanase
816	 54.49	0	771651..771806	-	51	15837421	-	XF0819	-	hypothetical protein
817	 58.17	0	771718..773376	+	552	77747521	-	XF0820	-	hypothetical protein
818	 54.51	0	773555..774064	-	169	15837423	-	XF0821	-	FUR family transcriptional regulator
819	 58.33	0	774081..775484	-	467	15837424	gltX	XF0822	-	glutamyl-tRNA synthetase
820	 55.87	0	776092..777267	+	391	77747522	pgk	XF0823	-	phosphoglycerate kinase
821	 55.90	0	777685..779151	+	488	161378173	-	XF0824	-	pyruvate kinase
822	 59.26	+1	779370..779639	+	89	15837427	-	XF0825	-	hypothetical protein
823	 53.03	0	779868..780872	+	334	15837428	-	XF0826	-	fructose-bisphosphate aldolase
824	 57.00	0	781043..781849	-	268	15837429	-	XF0827	-	hypothetical protein
825	 49.83	0	782048..782629	+	193	15837430	-	XF0828	-	hypothetical protein
826	 52.63	0	782674..782901	+	75	15837431	-	XF0829	-	hypothetical protein
827	 57.07	0	782958..783374	-	138	15837432	-	XF0830	-	hypothetical protein
828	 58.36	0	783385..784383	-	332	15837433	-	XF0831	-	cysteine synthase
829	 61.71	+1	784408..785838	-	476	15837434	-	XF0832	-	siroheme synthase
830	 57.22	0	785990..786973	+	327	161378172	-	XF0833	-	transcriptional regulator CysB-like protein
831	 61.40	+1	787165..788361	-	398	15837436	-	XF0834	-	2-octaprenyl-3-methyl-6-methoxy-1,4-benzoquinol hydroxylase
832	 61.62	+1	788343..789551	-	402	15837437	-	XF0835	-	2-octaprenyl-6-methoxyphenyl hydroxylase
833	 52.65	0	789746..790009	-	87	15837438	-	XF0836	-	hypothetical protein
834	 52.21	0	790042..792420	+	792	15837439	-	XF0837	-	organic solvent tolerance protein
835	 54.19	0	792417..793811	+	464	15837440	-	XF0838	-	peptidyl-prolyl cis-trans isomerase
836	 58.81	+1	793815..794807	+	330	15837441	pdxA	XF0839	-	4-hydroxythreonine-4-phosphate dehydrogenase
837	 58.73	+1	795191..797029	-	612	15837442	-	XF0840	-	beta-galactosidase
838	 57.86	0	797028..797186	+	52	15837443	-	XF0841	-	hypothetical protein
839	 60.85	+1	797255..799627	-	790	15837444	-	XF0842	-	hypothetical protein
840	 59.51	+1	799685..801235	-	516	15837445	-	XF0843	-	hypothetical protein
841	 56.38	0	801212..801493	+	93	15837446	-	XF0844	-	hypothetical protein
842	 62.82	+1	801585..804233	-	882	15837447	-	XF0845	-	family 3 glycoside hydrolase
843	 61.29	+1	804318..806993	-	891	15837448	-	XF0846	-	beta-mannosidase precursor
844	 60.37	+1	807008..809533	-	841	15837449	-	XF0847	-	beta-hexosaminidase precursor
845	 54.73	0	809508..810563	-	351	15837450	-	XF0848	-	hypothetical protein
846	 57.48	0	810753..811220	-	155	15837451	-	XF0849	-	methionine sulfoxide reductase B
847	 49.51	0	811295..811498	+	67	15837452	-	XF0850	-	hypothetical protein
848	 55.96	0	811609..812916	+	435	15837453	-	XF0851	-	D-amino acid dehydrogenase small subunit
849	 54.74	0	812886..813983	+	365	15837454	alr	XF0852	-	alanine racemase
850	 53.60	0	814460..815959	+	499	15837455	-	XF0853	-	two-component system, sensor protein
851	 53.33	0	816235..816444	+	69	15837456	-	XF0854	-	hypothetical protein
852	 53.77	0	817122..817850	-	242	15837457	-	XF0855	-	lipoprotein
853	 54.53	0	817850..818467	-	205	15837458	-	XF0856	-	hypothetical protein
854	 56.19	0	818487..819164	-	225	15837459	-	XF0857	-	L-isoaspartate O-methyltransferase
855	 57.41	0	819161..819949	-	262	15837460	surE	XF0858	-	stationary phase survival protein SurE
856	 47.79	0	819968..820216	+	82	15837461	-	XF0859	-	hypothetical protein
857	 45.34	-1	820210..820917	-	235	15837462	-	XF0860	-	hypothetical protein
858	 51.69	0	821212..821478	+	88	15837463	-	XF0861	-	hypothetical protein
859	 58.88	+1	821561..822433	-	290	77747523	-	XF0862	-	hypothetical protein
860	 54.62	0	822754..823791	+	345	15837465	-	XF0863	-	homoserine O-acetyltransferase
861	 55.99	0	823788..825005	+	405	15837466	-	XF0864	-	cystathionine gamma-synthase
862	 50.31	0	825067..825225	+	52	15837467	-	XF0865	-	hypothetical protein
863	 53.83	0	825372..826337	+	321	15837468	-	XF0866	-	cobalt-zinc-cadmium resistance protein
864	 54.57	0	826353..826691	+	112	15837469	-	XF0867	-	hypothetical protein
865	 56.02	0	827092..828903	-	603	15837470	-	XF0868	-	dihydrolipoamide dehydrogenase
866	 53.26	0	828949..830604	-	551	15837471	-	XF0869	-	dihydrolipoamide acetyltransferase
867	 44.07	-1	830897..831073	+	58	15837472	-	XF0870	-	hypothetical protein
868	 45.33	-1	831239..831463	+	74	15837473	-	XF0871	-	hypothetical protein
869	 48.35	0	831594..832139	+	181	15837474	-	XF0872	-	outer membrane protein
870	 49.49	0	832245..833030	-	261	15837475	-	XF0873	-	outer membrane protein
871	 56.07	0	833124..833831	-	235	15837476	-	XF0874	-	ABC transporter permease protein
872	 55.32	0	833828..834832	-	334	15837477	-	XF0875	-	ABC transporter ATP-binding protein
873	 49.51	0	835250..835558	-	102	15837478	-	XF0876	-	hypothetical protein
874	 50.16	0	835819..836133	+	104	15837479	-	XF0877	-	hypothetical protein
875	 56.46	0	836126..836899	+	257	15837480	-	XF0878	-	hypothetical protein
876	 57.77	0	836896..838008	+	370	15837481	-	XF0879	-	lipopolysaccharide biosynthesis protein
877	 51.28	0	838143..838805	+	220	15837482	-	XF0880	-	carbonic anhydrase
52.19	MEAN

6.22	STD DEV
