IslandPath Analysis: Xylella fastidiosa 9a5c

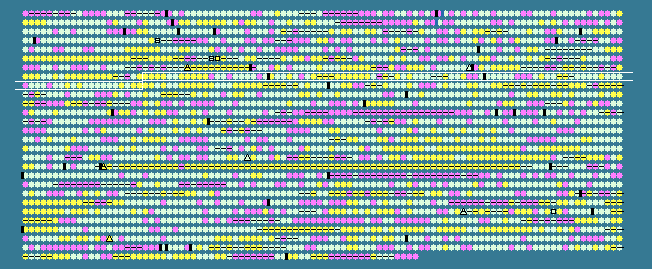

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
721	 59.28	+1	681178..682071	+	297	15837326	-	XF0724	-	phage-related baseplate assembly protein
722	 60.04	+1	682064..682621	+	185	15837327	-	XF0725	-	phage-related tail protein
723	 57.79	0	683072..684220	+	382	15837328	-	XF0726	-	hypothetical protein
724	 57.93	0	684273..685463	+	396	15837329	-	XF0727	-	phage tail sheath protein
725	 53.33	0	685463..685972	+	169	15837330	-	XF0728	-	phage tail tube protein
726	 54.86	0	685975..686262	+	95	15837331	-	XF0729	-	hypothetical protein
727	 58.33	0	686389..688608	+	739	15837332	-	XF0730	-	phage-related tail protein
728	 59.42	+1	688605..689087	+	160	15837333	-	XF0731	-	phage-related tail protein
729	 61.19	+1	689084..689302	+	72	15837334	-	XF0732	-	phage-related tail protein
730	 58.91	+1	689293..690375	+	360	15837335	-	XF0733	-	phage-related tail protein
731	 62.02	+1	690409..690537	-	42	15837336	-	XF0734	-	hypothetical protein
732	 44.00	-1	690919..691293	-	124	15837337	-	XF0735	-	hypothetical protein
733	 51.47	0	691467..693374	+	635	15837338	-	XF0736	-	threonyl-tRNA synthetase
734	 49.58	0	693490..693969	+	159	15837339	infC	XF0737	-	translation initiation factor IF-3
735	 42.71	-1	694154..694249	+	31	15837340	-	XF0738	-	hypothetical protein
736	 52.02	0	694230..694427	+	65	15837341	rpmI	XF0739	-	50S ribosomal protein L35
737	 49.44	0	694438..694797	+	119	15837342	rplT	XF0740	-	50S ribosomal protein L20
738	 50.60	0	695069..696070	+	333	15837343	pheS	XF0741	-	phenylalanyl-tRNA synthetase subunit alpha
739	 54.69	0	696154..698532	+	792	15837344	pheT	XF0742	-	phenylalanyl-tRNA synthetase subunit beta
740	 46.67	0	698556..698855	+	99	15837345	ihfA	XF0743	-	integration host factor subunit alpha
741	 53.99	0	698830..699192	+	120	15837346	-	XF0744	-	hypothetical protein
742	 59.17	+1	699444..699563	+	39	15837347	-	XF0745	-	hypothetical protein
743	 53.99	0	699868..700143	+	91	15837348	-	XF0746	-	hypothetical protein
744	 53.96	0	700140..700871	-	243	15837349	-	XF0747	-	hypothetical protein
745	 55.68	0	700887..701942	+	351	15837350	-	XF0748	-	putative RNA 2'-O-ribose methyltransferase
746	 50.37	0	702728..703132	-	134	15837351	-	XF0749	-	virulence regulator
747	 43.43	-1	703259..703357	-	32	15837352	-	XF0750	-	hypothetical protein
748	 52.89	0	703411..704499	-	362	15837353	-	XF0751	-	ribonuclease D
749	 58.97	+1	704814..706424	+	536	77747514	-	XF0752	-	hypothetical protein
750	 55.91	0	706483..706668	-	61	15837355	-	XF0753	-	hypothetical protein
751	 55.94	0	706550..707407	+	285	77747515	-	XF0754	-	virulence protein
752	 59.40	+1	707473..708807	-	444	15837357	xseA	XF0755	-	exodeoxyribonuclease VII large subunit
753	 55.95	0	708799..709050	+	83	15837358	-	XF0756	-	hypothetical protein
754	 62.64	+1	709257..710747	+	496	77747516	-	XF0757	-	hypothetical protein
755	 57.87	0	710744..711232	+	162	15837360	-	XF0758	-	hypothetical protein
756	 57.96	0	711291..712910	+	539	15837361	-	XF0759	-	N-acetylmuramoyl-L-alanine amidase precursor
757	 58.55	+1	713046..714905	+	619	15837362	mutL	XF0760	-	DNA mismatch repair protein
758	 55.77	0	714950..715867	+	305	15837363	-	XF0761	-	hypothetical protein
759	 52.26	0	716136..716711	-	191	15837364	dcd	XF0762	-	deoxycytidine triphosphate deaminase
760	 46.94	0	716788..717081	-	97	15837365	-	XF0763	-	hypothetical protein
761	 56.10	0	717284..718078	-	264	15837366	-	XF0764	-	membrane protein
762	 55.10	0	718066..718506	-	146	15837367	-	XF0765	-	hypothetical protein
763	 58.09	0	718503..718910	-	135	15837368	-	XF0766	-	hypothetical protein
764	 55.36	0	718907..719251	-	114	15837369	-	XF0767	-	ArsR family transcriptional regulator
765	 57.33	0	719245..720540	-	431	15837370	-	XF0768	-	hypothetical protein
766	 54.88	0	720966..721856	-	296	77747517	-	XF0769	-	pteridine-dependent deoxygenase
767	 51.82	0	721873..722283	-	136	15837372	-	XF0770	-	hypothetical protein
768	 51.11	0	722310..722579	+	89	77747518	-	XF0771	-	acyl carrier protein
769	 55.60	0	722554..723294	+	246	15837374	-	XF0772	-	hypothetical protein
770	 50.48	0	723417..723521	-	34	15837375	-	XF0773	-	hypothetical protein
771	 59.38	+1	723536..723823	+	95	77747519	-	XF0774	-	hypothetical protein
772	 54.64	0	723820..724800	+	326	15837377	-	XF0775	-	hypothetical protein
773	 54.67	0	725350..725574	+	74	15837378	-	XF0776	-	hypothetical protein
774	 57.54	0	725567..727933	+	788	15837379	-	XF0777	-	membrane protein
775	 44.79	-1	728706..730826	-	706	15837380	-	XF0778	-	O-antigen acetylase
776	 39.27	-2	730806..731462	+	218	15837381	-	XF0779	-	hypothetical protein
777	 54.32	0	731613..731855	+	80	15837382	-	XF0780	-	hypothetical protein
778	 55.46	0	732248..734041	-	597	15837383	-	XF0781	-	lipase/esterase
779	 50.88	0	734156..734383	+	75	15837384	-	XF0782	-	sulfur carrier protein ThiS
780	 53.74	0	734399..735226	+	275	15837385	thiG	XF0783	-	thiazole synthase
781	 51.97	0	735223..735957	+	244	15837386	trmB	XF0784	-	tRNA (guanine-N(7))-methyltransferase
782	 52.76	0	735988..737850	+	620	15837387	-	XF0785	-	sulfur deprivation response regulator
783	 35.71	-2	738072..738239	+	55	15837388	-	XF0786	-	hypothetical protein
784	 45.41	-1	738450..738656	+	68	15837389	-	XF0787	-	hypothetical protein
785	 40.38	-1	738707..738862	+	51	15837390	-	XF0788	-	hypothetical protein
786	 50.68	0	739092..739604	+	170	15837391	-	XF0789	-	cell division protein MraZ
787	 56.48	0	739660..740601	+	313	15837392	mraW	XF0790	-	S-adenosyl-methyltransferase MraW
788	 51.89	0	740598..740861	+	87	15837393	-	XF0791	-	cell division protein
789	 54.78	0	740858..742699	+	613	15837394	-	XF0792	-	penicillin binding protein 3
790	 57.19	0	742696..744183	+	495	15837395	murE	XF0793	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
791	 56.93	0	744180..745586	+	468	15837396	-	XF0794	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
792	 49.45	0	745576..746661	+	361	15837397	mraY	XF0795	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
793	 51.49	0	746661..747932	+	423	15837398	-	XF0796	-	cell division protein
794	 54.08	0	747929..749032	+	367	15837399	murG	XF0797	-	N-acetylglucosaminyl transferase
795	 53.84	0	749088..750521	+	477	15837400	murC	XF0798	-	UDP-N-acetylmuramate--L-alanine ligase
796	 53.58	0	750524..751486	+	320	15837401	ddl	XF0799	-	D-alanine--D-alanine ligase
797	 56.03	0	751593..752429	+	278	15837402	-	XF0800	-	cell division protein
798	 52.91	0	752426..753661	+	411	15837403	-	XF0801	-	cell division protein
799	 54.45	0	753831..755066	+	411	77747520	-	XF0802	-	cell division protein FtsZ
800	 50.27	0	755439..756353	+	304	15837405	lpxC	XF0803	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
801	 42.12	-1	756513..756785	-	90	15837406	-	XF0804	-	hypothetical protein
802	 50.73	0	756966..757925	+	319	15837407	-	XF0805	-	hypothetical protein
803	 52.57	0	758073..760817	+	914	15837408	-	XF0806	-	preprotein translocase subunit SecA
804	 49.40	0	760796..760963	+	55	15837409	-	XF0807	-	hypothetical protein
805	 46.67	0	761414..761548	+	44	15837410	-	XF0808	-	hypothetical protein
806	 50.85	0	761538..761714	-	58	15837411	-	XF0809	-	hypothetical protein
807	 52.47	0	761713..763410	+	565	15837412	-	XF0810	-	extracellular endoglucanase precursor
808	 56.56	0	763690..764550	-	286	15837413	-	XF0811	-	hypothetical protein
809	 51.06	0	764617..764757	+	46	15837414	-	XF0812	-	hypothetical protein
810	 57.69	0	764864..765520	+	218	15837415	-	XF0813	-	hypothetical protein
811	 50.33	0	765771..765923	+	50	15837416	-	XF0814	-	hypothetical protein
812	 54.94	0	765965..766126	+	53	15837417	-	XF0815	-	hypothetical protein
813	 53.72	0	766252..769224	-	990	15837418	-	XF0816	-	zinc protease
814	 54.24	0	769272..769448	+	58	15837419	-	XF0817	-	hypothetical protein
815	 54.92	0	769640..771418	-	592	15837420	-	XF0818	-	endo-1,4-beta-glucanase
816	 54.49	0	771651..771806	-	51	15837421	-	XF0819	-	hypothetical protein
817	 58.17	0	771718..773376	+	552	77747521	-	XF0820	-	hypothetical protein
818	 54.51	0	773555..774064	-	169	15837423	-	XF0821	-	FUR family transcriptional regulator
819	 58.33	0	774081..775484	-	467	15837424	gltX	XF0822	-	glutamyl-tRNA synthetase
820	 55.87	0	776092..777267	+	391	77747522	pgk	XF0823	-	phosphoglycerate kinase
52.19	MEAN

6.22	STD DEV
