IslandPath Analysis: Xylella fastidiosa 9a5c

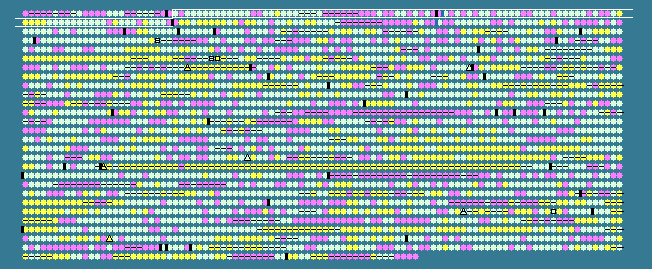

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
26	 51.05	0	21732..22826	-	364	77747482	-	XF0026	-	phospho-2-dehydro-3-deoxyheptonate aldolase
27	 43.92	-1	22847..23035	-	62	15836632	-	XF0027	-	hypothetical protein
28	 53.72	0	23999..24562	+	187	15836633	-	XF0028	-	pre-pilin like leader sequence
29	 50.31	0	24572..25048	+	158	15836634	-	XF0029	-	pre-pilin leader sequence
30	 50.47	0	25045..25995	+	316	15836635	-	XF0030	-	hypothetical protein
31	 49.66	0	25992..26579	+	195	15836636	-	XF0031	-	PilX protein
32	 53.61	0	26603..30295	+	1230	15836637	-	XF0032	-	PilY1 gene product
33	 51.19	0	30298..30717	+	139	15836638	-	XF0033	-	PilE protein
34	 54.29	0	31159..31893	-	244	15836639	-	XF0034	-	orotidine 5'-phosphate decarboxylase
35	 49.63	0	32677..32811	+	44	15836640	-	XF0035	-	hypothetical protein
36	 52.45	0	33018..34220	+	400	15836641	-	XF0036	-	aromatic amino acid aminotransferase
37	 48.92	0	34249..34434	+	61	15836642	-	XF0037	-	hypothetical protein
38	 53.21	0	34755..34910	-	51	15836643	-	XF0038	-	hypothetical protein
39	 45.93	-1	35095..35499	-	134	15836644	-	XF0039	-	large-conductance mechanosensitive channel
40	 47.46	0	35823..36176	-	117	15836645	-	XF0040	-	hypothetical protein
41	 49.04	0	36199..36459	+	86	15836646	-	XF0041	-	hypothetical protein
42	 53.60	0	36474..37736	+	420	15836647	-	XF0042	-	hypothetical protein
43	 56.58	0	37919..38800	+	293	15836648	-	XF0043	-	hypothetical protein
44	 54.26	0	39398..39937	+	179	15836649	-	XF0044	-	hypothetical protein
45	 55.08	0	40005..43586	+	1193	15836650	-	XF0045	-	transcription-repair coupling factor
46	 50.00	0	43591..43686	+	31	15836651	-	XF0046	-	hypothetical protein
47	 52.80	0	44209..44655	+	148	77747483	-	XF0047	-	3-dehydroquinate dehydratase
48	 54.12	0	44718..45203	+	161	15836653	-	XF0048	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
49	 53.73	0	45261..46628	+	455	161378180	-	XF0049	-	acetyl-CoA carboxylase biotin carboxylase subunit
50	 55.14	0	46805..48991	-	728	15836655	uvrD	XF0050	-	DNA-dependent helicase II
51	 47.54	0	49381..49746	-	121	15836656	-	XF0051	-	hypothetical protein
52	 37.63	-2	50226..50411	-	61	15836657	-	XF0052	-	hypothetical protein
53	 47.82	0	50551..51744	+	397	15836658	-	XF0053	-	nitric oxide dioxygenase
54	 39.57	-2	51758..52126	-	122	15836659	-	XF0054	-	hypothetical protein
55	 42.59	-1	52212..52319	+	35	15836660	-	XF0055	-	hypothetical protein
56	 37.36	-2	52453..52626	+	57	15836661	-	XF0056	-	hypothetical protein
57	 34.23	-2	52710..52820	+	36	15836662	-	XF0057	-	hypothetical protein
58	 46.34	0	53457..53579	-	40	15836663	-	XF0058	-	hypothetical protein
59	 46.79	0	53596..53907	+	103	15836664	-	XF0059	-	hypothetical protein
60	 51.85	0	53904..54686	+	260	15836665	-	XF0060	-	pyridoxal phosphate biosynthetic protein PdxJ
61	 44.72	-1	55178..56257	-	359	15836666	-	XF0061	-	transcriptional repressor
62	 39.45	-2	56232..56558	-	108	15836667	-	XF0062	-	hypothetical protein
63	 51.93	0	57328..58053	-	241	15836668	-	XF0063	-	competence protein F
64	 51.36	0	58103..59128	+	341	15836669	-	XF0064	-	biotin synthase
65	 44.12	-1	59182..59283	+	33	15836670	-	XF0065	-	hypothetical protein
66	 50.51	0	59387..60574	+	395	15836671	-	XF0066	-	hypothetical protein
67	 42.50	-1	61039..61278	+	79	15836672	-	XF0067	-	hypothetical protein
68	 52.99	0	61395..62396	-	333	15836673	ubiA	XF0068	-	4-hydroxybenzoate octaprenyltransferase
69	 46.31	0	62418..62810	-	130	15836674	-	XF0069	-	hypothetical protein
70	 45.91	-1	64213..64371	-	52	15836675	-	XF0070	-	hypothetical protein
71	 52.33	0	71808..72623	+	271	15836676	-	XF0071	-	formamidopyrimidine-DNA glycosylase
72	 47.11	0	72755..73603	-	282	15836677	-	XF0072	-	hypothetical protein
73	 48.81	0	73755..75059	+	434	15836678	-	XF0073	-	signal recognition particle protein
74	 46.94	0	75334..75627	+	97	15836679	-	XF0074	-	hypothetical protein
75	 55.22	0	75779..76582	+	267	15836680	-	XF0075	-	hypothetical protein
76	 40.48	-1	76738..76905	-	55	15836681	-	XF0076	-	hypothetical protein
77	 51.44	0	76892..77863	-	323	77747484	-	XF0077	-	fimbrial adhesin precursor
78	 50.97	0	78097..79077	-	326	77747485	-	XF0078	-	fimbrial adhesin precursor
79	 39.24	-2	79229..79465	+	78	15836684	-	XF0079	-	hypothetical protein
80	 49.95	0	79744..80706	-	320	15836685	-	XF0080	-	fimbrial adhesin precursor
81	 52.66	0	80781..83486	-	901	15836686	-	XF0081	-	outer membrane usher protein precursor
82	 49.31	0	83513..84313	-	266	15836687	-	XF0082	-	chaperone protein precursor
83	 52.25	0	84385..84939	-	184	15836688	-	XF0083	-	fimbrial subunit precursor
84	 37.50	-2	85353..85448	+	31	15836689	-	XF0084	-	hypothetical protein
85	 42.42	-1	85611..85775	+	54	15836690	-	XF0085	-	hypothetical protein
86	 53.37	0	86421..86909	-	162	15836691	-	XF0086	-	hypothetical protein
87	 51.68	0	86989..88296	-	435	15836692	-	XF0087	-	alpha-ketoglutarate permease symporter
88	 53.95	0	88345..89697	-	450	15836693	-	XF0088	-	GTP-binding protein
89	 46.95	0	89712..89990	-	92	15836694	hfq	XF0089	-	RNA-binding protein Hfq
90	 53.46	0	90094..91047	-	317	15836695	miaA	XF0090	-	tRNA delta(2)-isopentenylpyrophosphate transferase
91	 54.74	0	91047..91943	-	298	15836696	-	XF0091	-	dihydropteroate synthase
92	 48.79	0	92044..92250	+	68	15836697	-	XF0092	-	hypothetical protein
93	 50.88	0	92252..94189	-	645	15836698	-	XF0093	-	cell division protein
94	 49.38	0	94237..94878	-	213	15836699	-	XF0094	-	cell division protein
95	 48.37	0	94948..95253	+	101	15836700	-	XF0095	-	hypothetical protein
96	 54.86	0	95272..95652	+	126	15836701	-	XF0096	-	hypothetical protein
97	 42.42	-1	95805..95969	+	54	15836702	-	XF0097	-	hypothetical protein
98	 47.69	0	96040..96234	-	64	15836703	-	XF0098	-	hypothetical protein
99	 54.83	0	96231..98063	-	610	15836704	-	XF0099	-	dihydroxy-acid dehydratase
100	 56.64	0	98328..98726	-	132	15836705	-	XF0100	-	hypothetical protein
101	 59.09	+1	99079..99276	+	65	77747486	-	XF0101	-	hypothetical protein
102	 57.21	0	99277..100407	+	376	15836707	-	XF0102	-	hypothetical protein
103	 56.16	0	100388..101719	+	443	15836708	-	XF0103	-	membrane protein
104	 56.90	0	101904..102743	-	279	15836709	-	XF0104	-	lipid A biosynthesis lauroyl acyltransferase
105	 53.82	0	102867..104213	+	448	15836710	-	XF0105	-	3-deoxy-D-manno-octulosonic-acid transferase
106	 52.28	0	104597..105979	+	460	15836711	-	XF0106	-	hypothetical protein
107	 54.41	0	106195..106455	+	86	15836712	rpsP	XF0107	-	30S ribosomal protein S16
108	 51.66	0	106499..107011	+	170	15836713	rimM	XF0108	-	16S rRNA-processing protein
109	 53.31	0	107121..107906	+	261	15836714	trmD	XF0109	-	tRNA (guanine-N(1)-)-methyltransferase
110	 50.36	0	108071..108481	+	136	15836715	rplS	XF0110	-	50S ribosomal protein L19
111	 52.95	0	108906..109685	+	259	15836716	-	XF0111	-	methionine aminopeptidase
112	 52.31	0	109735..109929	+	64	15836717	-	XF0112	-	hypothetical protein
113	 48.81	0	110043..110210	+	55	15836718	-	XF0113	-	hypothetical protein
114	 54.08	0	110437..111270	+	277	161378154	dapD	XF0114	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
115	 48.27	0	111267..111641	+	124	15836720	-	XF0115	-	hypothetical protein
116	 57.41	0	111713..112846	+	377	15836721	-	XF0116	-	succinyl-diaminopimelate desuccinylase
117	 52.47	0	112932..113093	+	53	15836722	-	XF0117	-	hypothetical protein
118	 55.44	0	113246..114937	+	563	15836723	asnB	XF0118	-	asparagine synthetase B
119	 50.34	0	114995..116023	-	342	15836724	-	XF0119	-	hypothetical protein
120	 46.15	0	116775..116930	+	51	15836725	-	XF0120	-	hypothetical protein
121	 58.82	+1	117045..118076	+	343	15836726	-	XF0121	-	hypothetical protein
122	 51.79	0	118513..119184	+	223	15836727	-	XF0122	-	LexA repressor
123	 51.92	0	119366..120409	+	347	15836728	recA	XF0123	-	recombinase A
124	 52.82	0	120812..123562	+	916	15836729	alaS	XF0124	-	alanyl-tRNA synthetase
125	 48.15	0	123701..123916	+	71	161378179	-	XF0125	-	carbon storage regulator
52.19	MEAN

6.22	STD DEV
