IslandPath Analysis: Xylella fastidiosa 9a5c

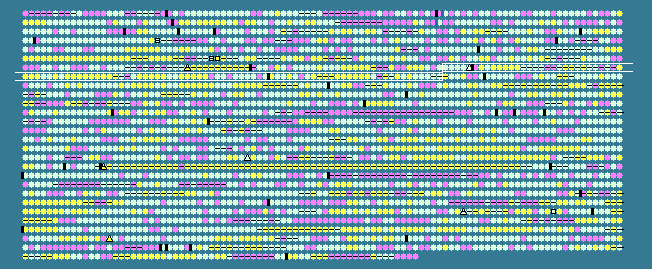

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
671	 54.30	0	645178..646536	+	452	15837276	-	XF0674	-	hypothetical protein
672	 53.56	0	646650..647702	+	350	15837277	-	XF0675	-	hypothetical protein
673	 55.42	0	647732..648691	+	319	77747513	-	XF0676	-	DNA polymerase III subunit delta'
674	 52.10	0	648688..649044	+	118	15837279	-	XF0677	-	type 4 fimbriae assembly protein
675	 53.61	0	649115..650278	-	387	15837280	-	XF0678	-	phage-related integrase
676	 46.84	0	650441..650677	-	78	15837281	-	XF0679	-	hypothetical protein
677	 57.08	0	650674..652092	-	472	15837282	-	XF0680	-	hypothetical protein
678	 54.29	0	652089..652589	-	166	15837283	-	XF0681	-	hypothetical protein
679	 59.86	+1	652586..652864	-	92	15837284	-	XF0682	-	hypothetical protein
680	 63.09	+1	652861..655041	-	726	15837285	-	XF0683	-	phage-related DNA polymerase
681	 55.75	0	655043..656554	-	503	15837286	-	XF0684	-	hypothetical protein
682	 58.38	0	656627..657193	-	188	15837287	-	XF0685	-	hypothetical protein
683	 60.88	+1	657193..658470	-	425	15837288	-	XF0686	-	hypothetical protein
684	 51.56	0	658467..658691	-	74	15837289	-	XF0687	-	hypothetical protein
685	 53.12	0	658964..659155	-	63	15837290	-	XF0688	-	hypothetical protein
686	 50.55	0	659152..659424	-	90	15837291	-	XF0689	-	hypothetical protein
687	 52.31	0	659456..659650	-	64	15837292	-	XF0690	-	hypothetical protein
688	 48.51	0	659647..660048	-	133	15837293	-	XF0691	-	hypothetical protein
689	 46.67	0	660048..660437	-	129	15837294	-	XF0692	-	hypothetical protein
690	 53.05	0	660434..660991	-	185	15837295	-	XF0693	-	hypothetical protein
691	 57.41	0	660982..661143	+	53	15837296	-	XF0694	-	hypothetical protein
692	 57.09	0	661281..661541	+	86	15837297	-	XF0695	-	hypothetical protein
693	 50.60	0	661716..662381	-	221	15837298	-	XF0696	-	phage-related repressor protein
694	 57.78	0	662446..662670	+	74	15837299	-	XF0697	-	hypothetical protein
695	 50.90	0	662844..663065	-	73	15837300	-	XF0698	-	hypothetical protein
696	 51.23	0	663047..663208	-	53	15837301	-	XF0699	-	hypothetical protein
697	 48.69	0	663335..663829	-	164	15837302	-	XF0700	-	hypothetical protein
698	 52.94	0	663845..663997	+	50	15837303	-	XF0701	-	hypothetical protein
699	 46.59	0	663994..664242	+	82	15837304	-	XF0702	-	hypothetical protein
700	 59.50	+1	664312..664674	-	120	15837305	-	XF0703	-	hypothetical protein
701	 56.24	0	664858..665490	+	210	15837306	-	XF0704	-	hypothetical protein
702	 57.57	0	665624..668161	+	845	15837307	-	XF0705	-	hypothetical protein
703	 62.63	+1	668704..668901	+	65	15837308	-	XF0706	-	hypothetical protein
704	 54.34	0	669678..670172	+	164	15837309	-	XF0707	-	hypothetical protein
705	 54.81	0	670183..670494	+	103	15837310	-	XF0708	-	hypothetical protein
706	 57.71	0	670466..670945	+	159	15837311	-	XF0709	-	hypothetical protein
707	 55.67	0	671302..671883	+	193	15837312	-	XF0710	-	hypothetical protein
708	 58.52	+1	672086..673828	+	580	15837313	-	XF0711	-	phage-related terminase large subunit
709	 58.65	+1	673832..674380	+	182	15837314	-	XF0712	-	hypothetical protein
710	 57.41	0	674377..675975	+	532	15837315	-	XF0713	-	phage-related portal protein
711	 59.86	+1	675959..677839	+	626	15837316	-	XF0714	-	hypothetical protein
712	 61.69	+1	677857..678117	+	86	15837317	-	XF0715	-	hypothetical protein
713	 56.88	0	678114..678440	+	108	15837318	-	XF0716	-	hypothetical protein
714	 59.58	+1	678437..678958	+	173	15837319	-	XF0717	-	hypothetical protein
715	 63.77	+1	679063..679476	+	137	15837320	-	XF0718	-	hypothetical protein
716	 64.80	+2	679473..680060	+	195	15837321	-	XF0719	-	phage-related baseplate assembly protein
717	 54.35	0	680065..680340	-	91	15837322	-	XF0720	-	proteic killer active protein
718	 47.48	0	680351..680668	-	105	15837323	-	XF0721	-	proteic killer suppression protein
719	 55.56	0	680747..680899	-	50	15837324	-	XF0722	-	hypothetical protein
720	 65.58	+2	680903..681178	+	91	15837325	-	XF0723	-	phage-related baseplate assembly protein
721	 59.28	+1	681178..682071	+	297	15837326	-	XF0724	-	phage-related baseplate assembly protein
722	 60.04	+1	682064..682621	+	185	15837327	-	XF0725	-	phage-related tail protein
723	 57.79	0	683072..684220	+	382	15837328	-	XF0726	-	hypothetical protein
724	 57.93	0	684273..685463	+	396	15837329	-	XF0727	-	phage tail sheath protein
725	 53.33	0	685463..685972	+	169	15837330	-	XF0728	-	phage tail tube protein
726	 54.86	0	685975..686262	+	95	15837331	-	XF0729	-	hypothetical protein
727	 58.33	0	686389..688608	+	739	15837332	-	XF0730	-	phage-related tail protein
728	 59.42	+1	688605..689087	+	160	15837333	-	XF0731	-	phage-related tail protein
729	 61.19	+1	689084..689302	+	72	15837334	-	XF0732	-	phage-related tail protein
730	 58.91	+1	689293..690375	+	360	15837335	-	XF0733	-	phage-related tail protein
731	 62.02	+1	690409..690537	-	42	15837336	-	XF0734	-	hypothetical protein
732	 44.00	-1	690919..691293	-	124	15837337	-	XF0735	-	hypothetical protein
733	 51.47	0	691467..693374	+	635	15837338	-	XF0736	-	threonyl-tRNA synthetase
734	 49.58	0	693490..693969	+	159	15837339	infC	XF0737	-	translation initiation factor IF-3
735	 42.71	-1	694154..694249	+	31	15837340	-	XF0738	-	hypothetical protein
736	 52.02	0	694230..694427	+	65	15837341	rpmI	XF0739	-	50S ribosomal protein L35
737	 49.44	0	694438..694797	+	119	15837342	rplT	XF0740	-	50S ribosomal protein L20
738	 50.60	0	695069..696070	+	333	15837343	pheS	XF0741	-	phenylalanyl-tRNA synthetase subunit alpha
739	 54.69	0	696154..698532	+	792	15837344	pheT	XF0742	-	phenylalanyl-tRNA synthetase subunit beta
740	 46.67	0	698556..698855	+	99	15837345	ihfA	XF0743	-	integration host factor subunit alpha
741	 53.99	0	698830..699192	+	120	15837346	-	XF0744	-	hypothetical protein
742	 59.17	+1	699444..699563	+	39	15837347	-	XF0745	-	hypothetical protein
743	 53.99	0	699868..700143	+	91	15837348	-	XF0746	-	hypothetical protein
744	 53.96	0	700140..700871	-	243	15837349	-	XF0747	-	hypothetical protein
745	 55.68	0	700887..701942	+	351	15837350	-	XF0748	-	putative RNA 2'-O-ribose methyltransferase
746	 50.37	0	702728..703132	-	134	15837351	-	XF0749	-	virulence regulator
747	 43.43	-1	703259..703357	-	32	15837352	-	XF0750	-	hypothetical protein
748	 52.89	0	703411..704499	-	362	15837353	-	XF0751	-	ribonuclease D
749	 58.97	+1	704814..706424	+	536	77747514	-	XF0752	-	hypothetical protein
750	 55.91	0	706483..706668	-	61	15837355	-	XF0753	-	hypothetical protein
751	 55.94	0	706550..707407	+	285	77747515	-	XF0754	-	virulence protein
752	 59.40	+1	707473..708807	-	444	15837357	xseA	XF0755	-	exodeoxyribonuclease VII large subunit
753	 55.95	0	708799..709050	+	83	15837358	-	XF0756	-	hypothetical protein
754	 62.64	+1	709257..710747	+	496	77747516	-	XF0757	-	hypothetical protein
755	 57.87	0	710744..711232	+	162	15837360	-	XF0758	-	hypothetical protein
756	 57.96	0	711291..712910	+	539	15837361	-	XF0759	-	N-acetylmuramoyl-L-alanine amidase precursor
757	 58.55	+1	713046..714905	+	619	15837362	mutL	XF0760	-	DNA mismatch repair protein
758	 55.77	0	714950..715867	+	305	15837363	-	XF0761	-	hypothetical protein
759	 52.26	0	716136..716711	-	191	15837364	dcd	XF0762	-	deoxycytidine triphosphate deaminase
760	 46.94	0	716788..717081	-	97	15837365	-	XF0763	-	hypothetical protein
761	 56.10	0	717284..718078	-	264	15837366	-	XF0764	-	membrane protein
762	 55.10	0	718066..718506	-	146	15837367	-	XF0765	-	hypothetical protein
763	 58.09	0	718503..718910	-	135	15837368	-	XF0766	-	hypothetical protein
764	 55.36	0	718907..719251	-	114	15837369	-	XF0767	-	ArsR family transcriptional regulator
765	 57.33	0	719245..720540	-	431	15837370	-	XF0768	-	hypothetical protein
766	 54.88	0	720966..721856	-	296	77747517	-	XF0769	-	pteridine-dependent deoxygenase
767	 51.82	0	721873..722283	-	136	15837372	-	XF0770	-	hypothetical protein
768	 51.11	0	722310..722579	+	89	77747518	-	XF0771	-	acyl carrier protein
769	 55.60	0	722554..723294	+	246	15837374	-	XF0772	-	hypothetical protein
770	 50.48	0	723417..723521	-	34	15837375	-	XF0773	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
