IslandPath Analysis: Xylella fastidiosa 9a5c

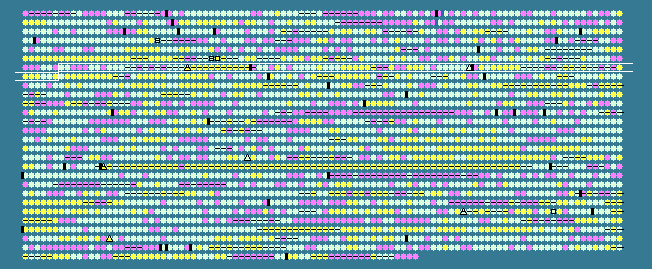

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
607	 49.10	0	588420..589307	+	295	15837212	-	XF0610	-	UDP-glucose 4-epimerase
608	 48.89	0	589338..590327	+	329	15837213	-	XF0611	-	dTDP-glucose 4-6-dehydratase
609	 47.06	0	590330..591283	+	317	15837214	-	XF0612	-	dolichol-phosphate mannosyltransferase
610	 37.54	-2	591683..592276	+	197	15837215	-	XF0613	-	hypothetical protein
611	 41.71	-1	592267..594354	+	695	15837216	-	XF0614	-	hypothetical protein
612	 51.52	0	594635..596278	-	547	15837217	groEL	XF0615	-	chaperonin GroEL
613	 52.43	0	596389..596676	-	95	15837218	groES	XF0616	-	co-chaperonin GroES
614	 45.77	-1	596806..597006	+	66	15837219	-	XF0617	-	hypothetical protein
615	 53.76	0	597091..597183	+	30	15837220	-	XF0618	-	hypothetical protein
616	 49.56	0	597292..597630	+	112	15837221	-	XF0619	-	periplasmic divalent cation tolerance protein
617	 52.31	0	597627..599903	+	758	15837222	-	XF0620	-	c-type cytochrome biogenesis protein (copper tolerance)
618	 54.42	0	600068..600892	-	274	15837223	-	XF0621	-	phosphomethylpyrimidine kinase
619	 51.85	0	600874..601089	-	71	15837224	-	XF0622	-	hypothetical protein
620	 47.75	0	601839..602171	+	110	15837225	-	XF0623	-	hypothetical protein
621	 54.89	0	602559..603407	+	282	15837226	aroE	XF0624	-	shikimate 5-dehydrogenase
622	 47.57	0	603402..603668	-	88	15837227	-	XF0625	-	hypothetical protein
623	 55.56	0	603792..604403	-	203	15837228	-	XF0626	-	hypothetical protein
624	 43.65	-1	604465..604716	-	83	15837229	-	XF0627	-	hypothetical protein
625	 48.89	0	604931..605290	-	119	15837230	-	XF0628	-	hypothetical protein
626	 53.59	0	605696..606406	-	236	15837231	-	XF0629	-	hypothetical protein
627	 54.72	0	606421..606897	-	158	15837232	-	XF0630	-	hypothetical protein
628	 58.21	0	607242..608483	+	413	15837233	-	XF0631	-	phage-related integrase
629	 58.84	+1	608597..608941	+	114	15837234	-	XF0632	-	hypothetical protein
630	 60.56	+1	609069..610427	+	452	15837235	-	XF0633	-	hypothetical protein
631	 64.20	+1	610624..611109	-	161	15837236	-	XF0634	-	hypothetical protein
632	 60.17	+1	611355..612077	+	240	15837237	-	XF0635	-	hypothetical protein
633	 62.39	+1	612114..612581	+	155	15837238	-	XF0636	-	hypothetical protein
634	 59.15	+1	612578..612790	+	70	15837239	-	XF0637	-	hypothetical protein
635	 63.04	+1	612929..613534	-	201	15837240	-	XF0638	-	hypothetical protein
636	 67.15	+2	613531..613737	-	68	15837241	-	XF0639	-	hypothetical protein
637	 57.39	0	613830..614681	-	283	15837242	-	XF0640	-	hypothetical protein
638	 56.69	0	614678..615820	-	380	15837243	-	XF0641	-	DNA methyltransferase
639	 47.85	0	616284..616469	+	61	15837244	-	XF0642	-	hypothetical protein
640	 52.38	0	616520..616708	-	62	15837245	-	XF0643	-	hypothetical protein
641	 51.95	0	616918..617610	-	230	15837246	-	XF0644	-	peptidyl-prolyl cis-trans isomerase
642	 43.09	-1	617813..617935	+	40	15837247	-	XF0645	-	hypothetical protein
643	 57.64	0	618171..618602	+	143	15837248	-	XF0646	-	hypothetical protein
644	 51.29	0	618629..619285	+	218	15837249	-	XF0647	-	endonuclease III
645	 48.65	0	619405..619626	+	73	15837250	-	XF0648	-	hypothetical protein
646	 51.85	0	619605..620279	-	224	15837251	-	XF0649	-	hypothetical protein
647	 49.57	0	620313..620429	+	38	15837252	-	XF0650	-	hypothetical protein
648	 54.29	0	620725..622017	-	430	15837253	-	XF0651	-	transport protein
649	 53.75	0	622038..622517	-	159	15837254	-	XF0652	-	peptidyl-prolyl cis-trans isomerase
650	 56.18	0	622544..623182	+	212	15837255	-	XF0653	-	hypothetical protein
651	 52.94	0	623228..624094	+	288	15837256	-	XF0654	-	hypothetical protein
652	 52.11	0	624428..624688	-	86	15837257	-	XF0655	-	hypothetical protein
653	 54.79	0	624833..626146	-	437	15837258	-	XF0656	-	glutamate symport protein
654	 58.35	0	626294..627988	+	564	77747510	-	XF0657	-	alkaline phosphatase
655	 57.47	0	628192..628365	-	57	15837260	-	XF0658	-	hypothetical protein
656	 62.56	+1	628432..629745	+	437	15837261	-	XF0659	-	cell cycle protein
657	 56.55	0	629777..630043	+	88	15837262	-	XF0660	-	exodeoxyribonuclease VII small subunit
658	 59.02	+1	630040..630915	+	291	15837263	-	XF0661	-	geranyltranstransferase (farnesyl-diphosphate synthase)
659	 58.46	+1	631084..631278	-	64	15837264	-	XF0662	-	hypothetical protein
660	 38.57	-2	631395..631910	+	171	15837265	-	XF0663	-	hypothetical protein
661	 36.36	-2	632085..632546	+	153	15837266	-	XF0664	-	hypothetical protein
662	 55.95	0	632771..633022	+	83	15837267	-	XF0665	-	hypothetical protein
663	 37.18	-2	633032..633577	+	181	15837268	-	XF0666	-	hypothetical protein
664	 36.62	-2	633735..634160	+	141	15837269	-	XF0667	-	hypothetical protein
665	 56.62	0	634160..637783	+	1207	77747511	-	XF0668	-	hemolysin-type calcium binding protein
666	 56.41	0	638190..640880	-	896	77747512	aceE	XF0669	-	pyruvate dehydrogenase subunit E1
667	 55.87	0	641367..642320	+	317	15837272	-	XF0670	-	acyl-carrier-protein S-malonyltransferase
668	 53.36	0	642421..643164	+	247	15837273	fabG	XF0671	-	3-ketoacyl-(acyl-carrier-protein) reductase
669	 47.67	0	643311..643568	+	85	15837274	-	XF0672	-	hypothetical protein
670	 51.62	0	643726..644961	+	411	15837275	-	XF0673	-	3-oxoacyl-(acyl carrier protein) synthase II
671	 54.30	0	645178..646536	+	452	15837276	-	XF0674	-	hypothetical protein
672	 53.56	0	646650..647702	+	350	15837277	-	XF0675	-	hypothetical protein
673	 55.42	0	647732..648691	+	319	77747513	-	XF0676	-	DNA polymerase III subunit delta'
674	 52.10	0	648688..649044	+	118	15837279	-	XF0677	-	type 4 fimbriae assembly protein
675	 53.61	0	649115..650278	-	387	15837280	-	XF0678	-	phage-related integrase
676	 46.84	0	650441..650677	-	78	15837281	-	XF0679	-	hypothetical protein
677	 57.08	0	650674..652092	-	472	15837282	-	XF0680	-	hypothetical protein
678	 54.29	0	652089..652589	-	166	15837283	-	XF0681	-	hypothetical protein
679	 59.86	+1	652586..652864	-	92	15837284	-	XF0682	-	hypothetical protein
680	 63.09	+1	652861..655041	-	726	15837285	-	XF0683	-	phage-related DNA polymerase
681	 55.75	0	655043..656554	-	503	15837286	-	XF0684	-	hypothetical protein
682	 58.38	0	656627..657193	-	188	15837287	-	XF0685	-	hypothetical protein
683	 60.88	+1	657193..658470	-	425	15837288	-	XF0686	-	hypothetical protein
684	 51.56	0	658467..658691	-	74	15837289	-	XF0687	-	hypothetical protein
685	 53.12	0	658964..659155	-	63	15837290	-	XF0688	-	hypothetical protein
686	 50.55	0	659152..659424	-	90	15837291	-	XF0689	-	hypothetical protein
687	 52.31	0	659456..659650	-	64	15837292	-	XF0690	-	hypothetical protein
688	 48.51	0	659647..660048	-	133	15837293	-	XF0691	-	hypothetical protein
689	 46.67	0	660048..660437	-	129	15837294	-	XF0692	-	hypothetical protein
690	 53.05	0	660434..660991	-	185	15837295	-	XF0693	-	hypothetical protein
691	 57.41	0	660982..661143	+	53	15837296	-	XF0694	-	hypothetical protein
692	 57.09	0	661281..661541	+	86	15837297	-	XF0695	-	hypothetical protein
693	 50.60	0	661716..662381	-	221	15837298	-	XF0696	-	phage-related repressor protein
694	 57.78	0	662446..662670	+	74	15837299	-	XF0697	-	hypothetical protein
695	 50.90	0	662844..663065	-	73	15837300	-	XF0698	-	hypothetical protein
696	 51.23	0	663047..663208	-	53	15837301	-	XF0699	-	hypothetical protein
697	 48.69	0	663335..663829	-	164	15837302	-	XF0700	-	hypothetical protein
698	 52.94	0	663845..663997	+	50	15837303	-	XF0701	-	hypothetical protein
699	 46.59	0	663994..664242	+	82	15837304	-	XF0702	-	hypothetical protein
700	 59.50	+1	664312..664674	-	120	15837305	-	XF0703	-	hypothetical protein
701	 56.24	0	664858..665490	+	210	15837306	-	XF0704	-	hypothetical protein
702	 57.57	0	665624..668161	+	845	15837307	-	XF0705	-	hypothetical protein
703	 62.63	+1	668704..668901	+	65	15837308	-	XF0706	-	hypothetical protein
704	 54.34	0	669678..670172	+	164	15837309	-	XF0707	-	hypothetical protein
705	 54.81	0	670183..670494	+	103	15837310	-	XF0708	-	hypothetical protein
706	 57.71	0	670466..670945	+	159	15837311	-	XF0709	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
