IslandPathversion 1.0

IslandPath Analysis: Xylella fastidiosa 9a5c

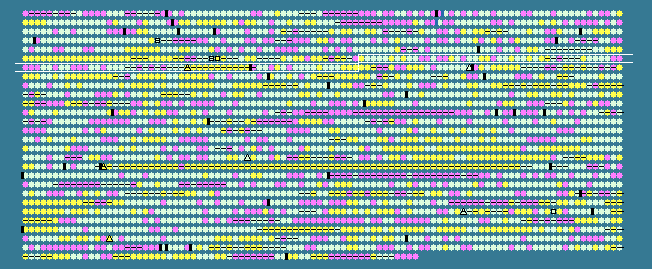

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
557	 57.54	0	547223..547945	+	240	15837162	-	XF0560	-	glutamine amidotransferase
558	 51.73	0	548216..549112	+	298	77747506	-	XF0561	-	hypothetical protein
559	 54.12	0	549180..549920	-	246	15837164	-	XF0562	-	sec-independent protein translocase
560	 52.01	0	549917..550339	-	140	15837165	-	XF0563	-	sec-independent translocase
561	 55.56	0	550357..550572	-	71	15837166	tatA	XF0564	-	twin argininte translocase protein A
562	 55.74	0	550647..551552	-	301	15837167	-	XF0565	-	hypothetical protein
563	 55.52	0	551674..552687	+	337	15837168	hemH	XF0566	-	ferrochelatase
564	 56.73	0	553023..553787	-	254	15837169	-	XF0567	-	hypothetical protein
565	 51.49	0	553855..554763	-	302	15837170	rdgC	XF0568	-	recombination associated protein
566	 54.22	0	554802..555701	-	299	77747507	-	XF0569	-	hypothetical protein
567	 39.39	-2	556098..556328	+	76	15837172	-	XF0570	-	hypothetical protein
568	 47.95	0	556369..556539	-	56	15837173	-	XF0571	-	hypothetical protein
569	 52.11	0	556753..557274	-	173	15837174	-	XF0572	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
570	 45.98	0	557480..557653	+	57	15837175	-	XF0573	-	hypothetical protein
571	 47.93	0	557691..558101	+	136	15837176	-	XF0574	-	hypothetical protein
572	 55.84	0	558092..558442	+	116	15837177	-	XF0575	-	hypothetical protein
573	 54.21	0	558463..560565	-	700	15837178	-	XF0576	-	metallopeptidase
574	 46.00	0	560716..560865	+	49	15837179	-	XF0577	-	hypothetical protein
575	 55.07	0	560900..561037	+	45	15837180	-	XF0578	-	hypothetical protein
576	 53.15	0	561109..561330	+	73	15837181	-	XF0579	-	hypothetical protein
577	 56.27	0	561340..561993	+	217	15837182	tdk	XF0580	-	thymidylate kinase
578	 55.71	0	562089..562298	+	69	15837183	-	XF0581	-	hypothetical protein
579	 45.31	-1	562336..562527	+	63	15837184	-	XF0582	-	hypothetical protein
580	 51.17	0	562566..563249	-	227	77747508	-	XF0583	-	hypothetical protein
581	 53.15	0	563253..564110	-	285	77747509	-	XF0584	-	hypothetical protein
582	 57.70	0	564176..564844	-	222	15837187	purN	XF0585	-	phosphoribosylglycinamide formyltransferase
583	 50.68	0	564862..565155	-	97	15837188	-	XF0586	-	hypothetical protein
584	 55.40	0	565157..566212	-	351	15837189	-	XF0587	-	phosphoribosylaminoimidazole synthetase
585	 56.27	0	566263..567435	+	390	15837190	-	XF0588	-	hypothetical protein
586	 51.21	0	567432..568589	+	385	15837191	-	XF0589	-	permease
587	 56.55	0	568586..569287	+	233	15837192	-	XF0590	-	hypothetical protein
588	 57.81	0	569473..570195	-	240	15837193	-	XF0591	-	virulence factor
589	 53.57	0	570192..571298	-	368	15837194	-	XF0592	-	hypothetical protein
590	 47.58	0	571736..572065	+	109	15837195	-	XF0593	-	hypothetical protein
591	 55.66	0	572810..573745	-	311	15837196	-	XF0594	-	thiamine biosynthesis lipoprotein ApbE precursor
592	 53.48	0	573856..574659	-	267	15837197	-	XF0595	-	hypothetical protein
593	 55.24	0	574684..575208	-	174	15837198	-	XF0596	-	hypothetical protein
594	 60.58	+1	575234..575890	-	218	15837199	-	XF0597	-	hypothetical protein
595	 55.56	0	575900..576592	-	230	15837200	-	XF0598	-	putative hydroxylase
596	 53.50	0	576636..578966	-	776	15837201	-	XF0599	-	catecholate siderophore receptor Fiu
597	 50.85	0	579289..579699	+	136	15837202	-	XF0600	-	hypothetical protein
598	 53.58	0	579699..580592	+	297	15837203	-	XF0601	-	hypothetical protein
599	 43.69	-1	580922..581143	+	73	15837204	-	XF0602	-	hypothetical protein
600	 48.36	0	581277..582647	+	456	15837205	-	XF0603	-	cystathionine beta-synthase
601	 45.06	-1	582700..582861	-	53	15837206	-	XF0604	-	hypothetical protein
602	 31.91	-2	582883..583023	+	46	15837207	-	XF0605	-	hypothetical protein
603	 39.88	-1	583171..583338	+	55	15837208	-	XF0606	-	hypothetical protein
604	 51.20	0	583338..584708	+	456	15837209	-	XF0607	-	hypothetical protein
605	 51.76	0	584709..587258	+	849	15837210	-	XF0608	-	mannosyltransferase
606	 47.36	0	587350..588390	+	346	15837211	-	XF0609	-	GDP-mannose 4,6 dehydratase
607	 49.10	0	588420..589307	+	295	15837212	-	XF0610	-	UDP-glucose 4-epimerase
608	 48.89	0	589338..590327	+	329	15837213	-	XF0611	-	dTDP-glucose 4-6-dehydratase
609	 47.06	0	590330..591283	+	317	15837214	-	XF0612	-	dolichol-phosphate mannosyltransferase
610	 37.54	-2	591683..592276	+	197	15837215	-	XF0613	-	hypothetical protein
611	 41.71	-1	592267..594354	+	695	15837216	-	XF0614	-	hypothetical protein
612	 51.52	0	594635..596278	-	547	15837217	groEL	XF0615	-	chaperonin GroEL
613	 52.43	0	596389..596676	-	95	15837218	groES	XF0616	-	co-chaperonin GroES
614	 45.77	-1	596806..597006	+	66	15837219	-	XF0617	-	hypothetical protein
615	 53.76	0	597091..597183	+	30	15837220	-	XF0618	-	hypothetical protein
616	 49.56	0	597292..597630	+	112	15837221	-	XF0619	-	periplasmic divalent cation tolerance protein
617	 52.31	0	597627..599903	+	758	15837222	-	XF0620	-	c-type cytochrome biogenesis protein (copper tolerance)
618	 54.42	0	600068..600892	-	274	15837223	-	XF0621	-	phosphomethylpyrimidine kinase
619	 51.85	0	600874..601089	-	71	15837224	-	XF0622	-	hypothetical protein
620	 47.75	0	601839..602171	+	110	15837225	-	XF0623	-	hypothetical protein
621	 54.89	0	602559..603407	+	282	15837226	aroE	XF0624	-	shikimate 5-dehydrogenase
622	 47.57	0	603402..603668	-	88	15837227	-	XF0625	-	hypothetical protein
623	 55.56	0	603792..604403	-	203	15837228	-	XF0626	-	hypothetical protein
624	 43.65	-1	604465..604716	-	83	15837229	-	XF0627	-	hypothetical protein
625	 48.89	0	604931..605290	-	119	15837230	-	XF0628	-	hypothetical protein
626	 53.59	0	605696..606406	-	236	15837231	-	XF0629	-	hypothetical protein
627	 54.72	0	606421..606897	-	158	15837232	-	XF0630	-	hypothetical protein
628	 58.21	0	607242..608483	+	413	15837233	-	XF0631	-	phage-related integrase
629	 58.84	+1	608597..608941	+	114	15837234	-	XF0632	-	hypothetical protein
630	 60.56	+1	609069..610427	+	452	15837235	-	XF0633	-	hypothetical protein
631	 64.20	+1	610624..611109	-	161	15837236	-	XF0634	-	hypothetical protein
632	 60.17	+1	611355..612077	+	240	15837237	-	XF0635	-	hypothetical protein
633	 62.39	+1	612114..612581	+	155	15837238	-	XF0636	-	hypothetical protein
634	 59.15	+1	612578..612790	+	70	15837239	-	XF0637	-	hypothetical protein
635	 63.04	+1	612929..613534	-	201	15837240	-	XF0638	-	hypothetical protein
636	 67.15	+2	613531..613737	-	68	15837241	-	XF0639	-	hypothetical protein
637	 57.39	0	613830..614681	-	283	15837242	-	XF0640	-	hypothetical protein
638	 56.69	0	614678..615820	-	380	15837243	-	XF0641	-	DNA methyltransferase
639	 47.85	0	616284..616469	+	61	15837244	-	XF0642	-	hypothetical protein
640	 52.38	0	616520..616708	-	62	15837245	-	XF0643	-	hypothetical protein
641	 51.95	0	616918..617610	-	230	15837246	-	XF0644	-	peptidyl-prolyl cis-trans isomerase
642	 43.09	-1	617813..617935	+	40	15837247	-	XF0645	-	hypothetical protein
643	 57.64	0	618171..618602	+	143	15837248	-	XF0646	-	hypothetical protein
644	 51.29	0	618629..619285	+	218	15837249	-	XF0647	-	endonuclease III
645	 48.65	0	619405..619626	+	73	15837250	-	XF0648	-	hypothetical protein
646	 51.85	0	619605..620279	-	224	15837251	-	XF0649	-	hypothetical protein
647	 49.57	0	620313..620429	+	38	15837252	-	XF0650	-	hypothetical protein
648	 54.29	0	620725..622017	-	430	15837253	-	XF0651	-	transport protein
649	 53.75	0	622038..622517	-	159	15837254	-	XF0652	-	peptidyl-prolyl cis-trans isomerase
650	 56.18	0	622544..623182	+	212	15837255	-	XF0653	-	hypothetical protein
651	 52.94	0	623228..624094	+	288	15837256	-	XF0654	-	hypothetical protein
652	 52.11	0	624428..624688	-	86	15837257	-	XF0655	-	hypothetical protein
653	 54.79	0	624833..626146	-	437	15837258	-	XF0656	-	glutamate symport protein
654	 58.35	0	626294..627988	+	564	77747510	-	XF0657	-	alkaline phosphatase
655	 57.47	0	628192..628365	-	57	15837260	-	XF0658	-	hypothetical protein
656	 62.56	+1	628432..629745	+	437	15837261	-	XF0659	-	cell cycle protein
52.19	MEAN

6.22	STD DEV
