IslandPath Analysis: Xylella fastidiosa 9a5c

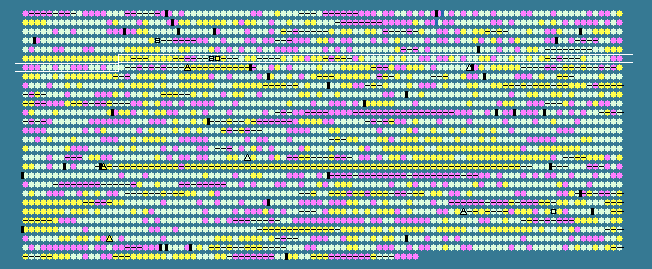

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
517	 61.90	+1	514422..514589	+	55	15837122	-	XF0520	-	hypothetical protein
518	 60.94	+1	514590..517103	+	837	15837123	-	XF0521	-	hypothetical protein
519	 64.81	+2	517096..518283	+	395	15837124	-	XF0522	-	hypothetical protein
520	 62.23	+1	518273..519715	+	480	15837125	-	XF0523	-	hypothetical protein
521	 65.03	+2	519706..520134	+	142	15837126	-	XF0524	-	hypothetical protein
522	 61.18	+1	520131..520367	+	78	15837127	-	XF0525	-	hypothetical protein
523	 61.36	+1	520357..523182	+	941	15837128	-	XF0526	-	hypothetical protein
524	 62.77	+1	523175..523687	+	170	15837129	-	XF0527	-	hypothetical protein
525	 56.94	0	523823..524110	+	95	15837130	-	XF0528	-	hypothetical protein
526	 60.92	+1	524186..524881	+	231	15837131	-	XF0529	-	hypothetical protein
527	 59.52	+1	525069..525194	+	41	15837132	-	XF0530	-	hypothetical protein
528	 40.90	-1	525339..526343	+	334	15837133	-	XF0531	-	hypothetical protein
529	 48.30	0	526772..527065	-	97	15837134	-	XF0532	-	hypothetical protein
530	 50.00	0	527049..527336	-	95	15837135	-	XF0533	-	hypothetical protein
531	 50.43	0	527619..527963	-	114	15837136	-	XF0534	-	hypothetical protein
532	 54.92	0	528651..528965	+	104	15837137	-	XF0535	-	transposase OrfA
533	 56.23	0	529095..530138	+	347	77747504	-	XF0536	-	transposase OrfB
534	 57.35	0	530235..530642	+	135	15837139	-	XF0537	-	hypothetical protein
535	 53.83	0	530636..531196	-	186	15837140	-	XF0538	-	fimbrillin
536	 51.60	0	531197..531760	-	187	15837141	-	XF0539	-	fimbrillin
537	 55.64	0	532316..532696	+	126	15837142	-	XF0540	-	hypothetical protein
538	 57.53	0	532672..532857	+	61	15837143	-	XF0541	-	hypothetical protein
539	 56.61	0	532901..533089	-	62	15837144	-	XF0542	-	hypothetical protein
540	 51.12	0	533197..533865	+	222	15837145	-	XF0543	-	hypothetical protein
541	 54.76	0	533877..534044	-	55	15837146	-	XF0544	-	hypothetical protein
542	 49.73	0	534020..534202	+	60	15837147	-	XF0545	-	hypothetical protein
543	 50.75	0	534357..534557	+	66	15837148	-	XF0546	-	hypothetical protein
544	 61.25	+1	534674..535153	-	159	15837149	-	XF0547	-	ferredoxin
545	 50.00	0	535158..535319	-	53	15837150	-	XF0548	-	hypothetical protein
546	 56.78	0	535409..537481	-	690	77747505	metG	XF0549	-	methionyl-tRNA synthetase
547	 56.14	0	537646..540771	-	1041	15837152	-	XF0550	-	hypothetical protein
548	 40.00	-1	540833..541027	+	64	15837153	-	XF0551	-	hypothetical protein
549	 58.52	+1	541289..542110	-	273	15837154	-	XF0552	-	hypothetical protein
550	 58.58	+1	542192..543922	+	576	15837155	-	XF0553	-	hypothetical protein
551	 56.01	0	543926..544291	+	121	15837156	-	XF0554	-	hypothetical protein
552	 45.36	-1	544425..544607	+	60	15837157	-	XF0555	-	hypothetical protein
553	 59.36	+1	544600..545625	+	341	15837158	-	XF0556	-	ribosome-associated GTPase
554	 55.70	0	545847..546302	-	151	15837159	-	XF0557	-	electron transfer protein azurin I
555	 53.17	0	546449..546574	-	41	15837160	-	XF0558	-	hypothetical protein
556	 46.56	0	547063..547251	+	62	15837161	-	XF0559	-	hypothetical protein
557	 57.54	0	547223..547945	+	240	15837162	-	XF0560	-	glutamine amidotransferase
558	 51.73	0	548216..549112	+	298	77747506	-	XF0561	-	hypothetical protein
559	 54.12	0	549180..549920	-	246	15837164	-	XF0562	-	sec-independent protein translocase
560	 52.01	0	549917..550339	-	140	15837165	-	XF0563	-	sec-independent translocase
561	 55.56	0	550357..550572	-	71	15837166	tatA	XF0564	-	twin argininte translocase protein A
562	 55.74	0	550647..551552	-	301	15837167	-	XF0565	-	hypothetical protein
563	 55.52	0	551674..552687	+	337	15837168	hemH	XF0566	-	ferrochelatase
564	 56.73	0	553023..553787	-	254	15837169	-	XF0567	-	hypothetical protein
565	 51.49	0	553855..554763	-	302	15837170	rdgC	XF0568	-	recombination associated protein
566	 54.22	0	554802..555701	-	299	77747507	-	XF0569	-	hypothetical protein
567	 39.39	-2	556098..556328	+	76	15837172	-	XF0570	-	hypothetical protein
568	 47.95	0	556369..556539	-	56	15837173	-	XF0571	-	hypothetical protein
569	 52.11	0	556753..557274	-	173	15837174	-	XF0572	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
570	 45.98	0	557480..557653	+	57	15837175	-	XF0573	-	hypothetical protein
571	 47.93	0	557691..558101	+	136	15837176	-	XF0574	-	hypothetical protein
572	 55.84	0	558092..558442	+	116	15837177	-	XF0575	-	hypothetical protein
573	 54.21	0	558463..560565	-	700	15837178	-	XF0576	-	metallopeptidase
574	 46.00	0	560716..560865	+	49	15837179	-	XF0577	-	hypothetical protein
575	 55.07	0	560900..561037	+	45	15837180	-	XF0578	-	hypothetical protein
576	 53.15	0	561109..561330	+	73	15837181	-	XF0579	-	hypothetical protein
577	 56.27	0	561340..561993	+	217	15837182	tdk	XF0580	-	thymidylate kinase
578	 55.71	0	562089..562298	+	69	15837183	-	XF0581	-	hypothetical protein
579	 45.31	-1	562336..562527	+	63	15837184	-	XF0582	-	hypothetical protein
580	 51.17	0	562566..563249	-	227	77747508	-	XF0583	-	hypothetical protein
581	 53.15	0	563253..564110	-	285	77747509	-	XF0584	-	hypothetical protein
582	 57.70	0	564176..564844	-	222	15837187	purN	XF0585	-	phosphoribosylglycinamide formyltransferase
583	 50.68	0	564862..565155	-	97	15837188	-	XF0586	-	hypothetical protein
584	 55.40	0	565157..566212	-	351	15837189	-	XF0587	-	phosphoribosylaminoimidazole synthetase
585	 56.27	0	566263..567435	+	390	15837190	-	XF0588	-	hypothetical protein
586	 51.21	0	567432..568589	+	385	15837191	-	XF0589	-	permease
587	 56.55	0	568586..569287	+	233	15837192	-	XF0590	-	hypothetical protein
588	 57.81	0	569473..570195	-	240	15837193	-	XF0591	-	virulence factor
589	 53.57	0	570192..571298	-	368	15837194	-	XF0592	-	hypothetical protein
590	 47.58	0	571736..572065	+	109	15837195	-	XF0593	-	hypothetical protein
591	 55.66	0	572810..573745	-	311	15837196	-	XF0594	-	thiamine biosynthesis lipoprotein ApbE precursor
592	 53.48	0	573856..574659	-	267	15837197	-	XF0595	-	hypothetical protein
593	 55.24	0	574684..575208	-	174	15837198	-	XF0596	-	hypothetical protein
594	 60.58	+1	575234..575890	-	218	15837199	-	XF0597	-	hypothetical protein
595	 55.56	0	575900..576592	-	230	15837200	-	XF0598	-	putative hydroxylase
596	 53.50	0	576636..578966	-	776	15837201	-	XF0599	-	catecholate siderophore receptor Fiu
597	 50.85	0	579289..579699	+	136	15837202	-	XF0600	-	hypothetical protein
598	 53.58	0	579699..580592	+	297	15837203	-	XF0601	-	hypothetical protein
599	 43.69	-1	580922..581143	+	73	15837204	-	XF0602	-	hypothetical protein
600	 48.36	0	581277..582647	+	456	15837205	-	XF0603	-	cystathionine beta-synthase
601	 45.06	-1	582700..582861	-	53	15837206	-	XF0604	-	hypothetical protein
602	 31.91	-2	582883..583023	+	46	15837207	-	XF0605	-	hypothetical protein
603	 39.88	-1	583171..583338	+	55	15837208	-	XF0606	-	hypothetical protein
604	 51.20	0	583338..584708	+	456	15837209	-	XF0607	-	hypothetical protein
605	 51.76	0	584709..587258	+	849	15837210	-	XF0608	-	mannosyltransferase
606	 47.36	0	587350..588390	+	346	15837211	-	XF0609	-	GDP-mannose 4,6 dehydratase
607	 49.10	0	588420..589307	+	295	15837212	-	XF0610	-	UDP-glucose 4-epimerase
608	 48.89	0	589338..590327	+	329	15837213	-	XF0611	-	dTDP-glucose 4-6-dehydratase
609	 47.06	0	590330..591283	+	317	15837214	-	XF0612	-	dolichol-phosphate mannosyltransferase
610	 37.54	-2	591683..592276	+	197	15837215	-	XF0613	-	hypothetical protein
611	 41.71	-1	592267..594354	+	695	15837216	-	XF0614	-	hypothetical protein
612	 51.52	0	594635..596278	-	547	15837217	groEL	XF0615	-	chaperonin GroEL
613	 52.43	0	596389..596676	-	95	15837218	groES	XF0616	-	co-chaperonin GroES
614	 45.77	-1	596806..597006	+	66	15837219	-	XF0617	-	hypothetical protein
615	 53.76	0	597091..597183	+	30	15837220	-	XF0618	-	hypothetical protein
616	 49.56	0	597292..597630	+	112	15837221	-	XF0619	-	periplasmic divalent cation tolerance protein
52.19	MEAN

6.22	STD DEV
