IslandPathversion 1.0

IslandPath Analysis: Xylella fastidiosa 9a5c

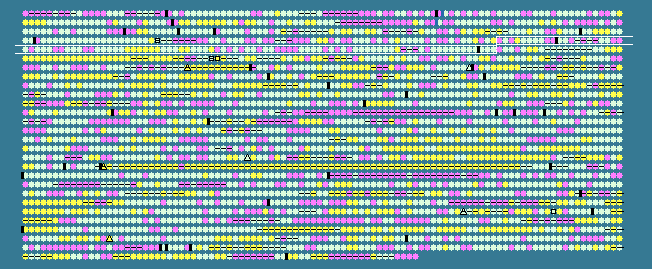

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
380	 46.88	0	394790..395269	-	159	15836985	-	XF0383	-	hypothetical protein
381	 50.83	0	395356..397401	+	681	15836986	-	XF0384	-	outer membrane hemin receptor
382	 45.26	-1	397940..398308	-	122	15836987	-	XF0385	-	hypothetical protein
383	 57.25	0	398796..398933	-	45	15836988	-	XF0386	-	hypothetical protein
384	 51.12	0	399121..400143	+	340	15836989	-	XF0387	-	tRNA-dihydrouridine synthase A
385	 50.81	0	400361..400732	+	123	15836990	-	XF0388	-	hypothetical protein
386	 49.71	0	400823..401506	+	227	15836991	-	XF0389	-	two-component system, regulatory protein
387	 51.00	0	401522..402970	+	482	15836992	-	XF0390	-	two-component system, sensor protein
388	 44.96	-1	403893..404150	+	85	15836993	-	XF0391	-	hypothetical protein
389	 48.27	0	404470..405681	+	403	15836994	-	XF0392	-	S-adenosylmethionine synthetase
390	 50.96	0	406080..406652	+	190	15836995	-	XF0393	-	dinucleoside polyphosphate hydrolase
391	 52.00	0	406755..406979	+	74	15836996	-	XF0394	-	hypothetical protein
392	 45.59	-1	407061..407525	+	154	15836997	-	XF0395	-	bacterioferritin
393	 52.48	0	407540..407821	+	93	15836998	-	XF0396	-	hypothetical protein
394	 48.07	0	408157..408570	-	137	15836999	-	XF0397	-	hypothetical protein
395	 51.97	0	408615..409199	-	194	15837000	-	XF0398	-	hypothetical protein
396	 47.18	0	409292..409486	-	64	15837001	-	XF0399	-	hypothetical protein
397	 49.24	0	409578..409973	-	131	15837002	-	XF0400	-	hypothetical protein
398	 48.91	0	409978..411678	-	566	15837003	-	XF0401	-	hypothetical protein
399	 48.33	0	412520..412759	+	79	15837004	-	XF0402	-	hypothetical protein
400	 48.16	0	412605..413339	+	244	77747500	-	XF0403	-	hypothetical protein
401	 49.25	0	413314..413778	+	154	15837006	-	XF0404	-	hypothetical protein
402	 48.06	0	413813..414199	+	128	15837007	-	XF0405	-	iron-sulfur cluster insertion protein ErpA
403	 50.94	0	414291..415250	-	319	15837008	-	XF0406	-	export protein
404	 54.53	0	415519..416688	+	389	15837009	-	XF0407	-	hypothetical protein
405	 54.82	0	417063..418505	-	480	77747501	-	XF0408	-	amino acid transporter
406	 44.23	-1	418692..418847	-	51	15837011	-	XF0409	-	hypothetical protein
407	 46.06	0	418822..418986	+	54	15837012	-	XF0410	-	hypothetical protein
408	 55.38	0	419259..421013	+	584	15837013	-	XF0411	-	ABC transporter nitrate permease
409	 54.07	0	421059..422360	+	433	15837014	-	XF0412	-	nitrate ABC transporter ATP-binding protein
410	 54.19	0	422702..424072	+	456	15837015	-	XF0413	-	hypothetical protein
411	 45.64	-1	424311..424505	+	64	15837016	-	XF0414	-	hypothetical protein
412	 47.26	0	424508..424708	+	66	15837017	-	XF0415	-	hypothetical protein
413	 54.26	0	424760..425815	-	351	15837018	-	XF0416	-	lipoprotein precursor
414	 53.59	0	425830..426135	-	101	15837019	-	XF0417	-	hypothetical protein
415	 51.29	0	426125..426781	-	218	15837020	-	XF0418	-	toluene tolerance protein
416	 52.70	0	426778..427314	-	178	15837021	-	XF0419	-	toluene tolerance protein
417	 54.80	0	427456..428205	-	249	15837022	-	XF0420	-	toluene tolerance protein
418	 57.74	0	428205..428999	-	264	15837023	-	XF0421	-	toluene tolerance protein
419	 61.05	+1	429245..432610	+	1121	15837024	-	XF0422	-	exodeoxyribonuclease V gamma chain
420	 61.09	+1	432697..436335	+	1212	15837025	-	XF0423	-	exodeoxyribonuclease V beta chain
421	 59.67	+1	436326..436568	+	80	15837026	-	XF0424	-	hypothetical protein
422	 62.66	+1	436565..438484	+	639	15837027	-	XF0425	-	exodeoxyribonuclease V alpha chain
423	 57.86	0	438577..438735	-	52	15837028	-	XF0426	-	hypothetical protein
424	 53.01	0	438786..438968	+	60	15837029	-	XF0427	-	hypothetical protein
425	 55.33	0	439143..440447	+	434	15837030	-	XF0428	-	tryptophanyl-tRNA synthetase
426	 54.17	0	440656..440847	-	63	15837031	-	XF0429	-	hypothetical protein
427	 56.29	0	440844..442577	-	577	15837032	dnaG	XF0430	-	DNA primase
428	 57.89	0	442591..442761	+	56	15837033	-	XF0431	-	hypothetical protein
429	 54.07	0	442832..443641	-	269	15837034	-	XF0432	-	BrkB protein
430	 50.56	0	443954..444400	-	148	15837035	-	XF0433	-	hypothetical protein
431	 52.78	0	444587..444802	-	71	15837036	rpsU	XF0434	-	30S ribosomal protein S21
432	 56.06	0	444975..446021	+	348	15837037	-	XF0435	-	O-sialoglycoprotein endopeptidase
433	 48.48	0	446104..446466	+	120	15837038	-	XF0436	-	dihydroneopterin aldolase
434	 49.68	0	446580..447998	+	472	15837039	-	XF0437	-	hypothetical protein
435	 43.59	-1	448138..448254	+	38	15837040	-	XF0438	-	hypothetical protein
436	 54.21	0	448471..450693	+	740	15837041	-	XF0439	-	beta-glucosidase
437	 36.95	-2	450905..451153	+	82	15837042	-	XF0440	-	hypothetical protein
438	 49.68	0	451421..451891	-	156	15837043	-	XF0441	-	ribosomal-protein-alanine acetyltransferase
439	 50.71	0	452314..453084	-	256	15837044	-	XF0442	-	phosphatidyltransferase
440	 45.10	-1	453138..453290	-	50	15837045	-	XF0443	-	hypothetical protein
441	 54.42	0	453277..453627	+	116	15837046	-	XF0444	-	hypothetical protein
442	 50.27	0	453712..455406	+	564	77747502	-	XF0445	-	prolyl-tRNA synthetase
443	 46.40	0	455556..455930	+	124	15837048	-	XF0446	-	DNA-binding protein
444	 33.83	-2	456269..456469	-	66	15837049	-	XF0447	-	hypothetical protein
445	 35.19	-2	456635..456742	+	35	15837050	-	XF0448	-	hypothetical protein
446	 44.16	-1	457038..457388	+	116	15837051	-	XF0449	-	hypothetical protein
447	 50.63	0	457972..458370	-	132	15837052	-	XF0450	-	two-component system, regulatory protein
448	 53.75	0	458451..459542	-	363	15837053	-	XF0451	-	hypothetical protein
449	 54.91	0	459602..460741	+	379	15837054	-	XF0452	-	integral membrane protease
450	 49.54	0	460738..461601	+	287	15837055	-	XF0453	-	integral membrane proteinase
451	 47.57	0	461680..461946	+	88	15837056	-	XF0454	-	hypothetical protein
452	 52.08	0	462109..463431	+	440	15837057	-	XF0455	-	adenylosuccinate synthetase
453	 37.29	-2	463737..463913	-	58	15837058	-	XF0456	-	hypothetical protein
454	 50.45	0	463948..464952	-	334	15837059	-	XF0457	-	glyceraldehyde-3-phosphate dehydrogenase
455	 47.65	0	466482..466907	+	141	15837060	ndk	XF0458	-	nucleoside diphosphate kinase
456	 50.45	0	466918..468138	+	406	15837061	-	XF0459	-	hypothetical protein
457	 52.90	0	468194..468934	+	246	15837062	-	XF0460	-	hypothetical protein
458	 54.72	0	468941..469576	+	211	15837063	-	XF0461	-	hypothetical protein
459	 54.05	0	469587..469808	+	73	15837064	-	XF0462	-	hypothetical protein
460	 51.60	0	469869..470525	+	218	15837065	-	XF0463	-	hypothetical protein
461	 53.35	0	470538..471761	+	407	15837066	-	XF0464	-	hypothetical protein
462	 54.29	0	471787..473184	+	465	15837067	engA	XF0465	-	GTP-binding protein EngA
463	 59.47	+1	473417..474556	-	379	15837068	-	XF0466	-	molybdopterin biosynthesis protein MoeB
464	 46.51	0	474553..474681	-	42	15837069	-	XF0467	-	hypothetical protein
465	 49.46	0	474935..475120	-	61	15837070	-	XF0468	-	hypothetical protein
466	 44.06	-1	475196..475456	-	86	15837071	-	XF0469	-	hypothetical protein
467	 51.82	0	475480..477048	+	522	77747503	-	XF0470	-	hypothetical protein
468	 46.51	0	477158..477286	+	42	15837073	-	XF0471	-	hypothetical protein
469	 51.41	0	477566..478915	+	449	15837074	-	XF0472	-	hypothetical protein
470	 54.39	0	479061..479573	+	170	15837075	-	XF0473	-	hypothetical protein
471	 51.94	0	479564..480052	+	162	15837076	-	XF0474	-	hypothetical protein
472	 51.56	0	480055..481305	+	416	15837077	-	XF0475	-	hypothetical protein
473	 49.49	0	481305..481799	+	164	15837078	-	XF0476	-	hypothetical protein
474	 53.45	0	481796..481969	+	57	15837079	-	XF0477	-	hypothetical protein
475	 50.89	0	481950..486368	+	1472	15837080	-	XF0478	-	fimbrial assembly protein
476	 50.26	0	486443..486820	+	125	15837081	-	XF0479	-	type IV pilin
477	 54.13	0	487057..488229	-	390	15837082	-	XF0480	-	hypothetical protein
478	 54.58	0	488229..488501	-	90	15837083	-	XF0481	-	hypothetical protein
479	 55.48	0	488523..488969	-	148	15837084	-	XF0482	-	single-strand DNA-binding protein
52.19	MEAN

6.22	STD DEV
