IslandPath Analysis: Xylella fastidiosa 9a5c

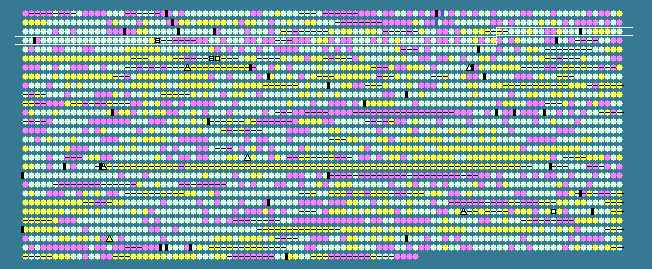

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
280	 59.04	+1	291312..292766	-	484	15836885	-	XF0280	-	leucine aminopeptidase
281	 52.56	0	292803..293972	-	389	15836886	-	XF0281	-	transport protein
282	 49.08	0	293992..294372	-	126	15836887	-	XF0282	-	hypothetical protein
283	 54.48	0	294369..294803	-	144	15836888	-	XF0283	-	hypothetical protein
284	 54.37	0	294851..295216	-	121	15836889	-	XF0284	-	hypothetical protein
285	 55.74	0	295471..296916	-	481	15836890	-	XF0285	-	heat shock protein
286	 54.74	0	297184..298080	-	298	15836891	-	XF0286	-	cell division inhibitor
287	 49.06	0	298786..300495	-	569	15836892	-	XF0287	-	putative long-chain fatty acyl CoA ligase
288	 42.86	-1	300514..300681	-	55	15836893	-	XF0288	-	hypothetical protein
289	 41.00	-1	301179..301478	+	99	15836894	-	XF0289	-	hypothetical protein
290	 56.47	0	302002..304728	-	908	15836895	-	XF0290	-	aconitate hydratase
291	 53.33	0	305165..305599	+	144	15836896	-	XF0291	-	hypothetical protein
292	 54.53	0	305596..308256	+	886	15836897	-	XF0292	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
293	 51.79	0	308408..308575	+	55	15836898	-	XF0293	-	hypothetical protein
294	 55.65	0	309111..309455	-	114	15836899	-	XF0294	-	hypothetical protein
295	 55.38	0	312391..313719	-	442	15836900	-	XF0296	-	type I restriction-modification system specificity determinant
296	 60.28	+1	315284..315565	-	93	15836901	-	XF0298	-	hypothetical protein
297	 58.52	+1	315883..316017	-	44	15836902	-	XF0299	-	hypothetical protein
298	 59.49	+1	316606..316842	+	78	15836903	-	XF0300	-	hypothetical protein
299	 52.15	0	316957..317259	+	100	15836904	-	XF0301	-	hypothetical protein
300	 54.17	0	317243..317530	+	95	15836905	-	XF0302	-	hypothetical protein
301	 54.13	0	317821..318570	+	249	15836906	tpiA	XF0303	-	triosephosphate isomerase
302	 52.63	0	318612..319010	+	132	15836907	secG	XF0304	-	preprotein translocase subunit SecG
303	 46.32	0	319215..319622	+	135	15836908	-	XF0305	-	NADH dehydrogenase subunit A
304	 53.30	0	319592..320167	+	191	15836909	-	XF0306	-	NADH dehydrogenase subunit B
305	 55.51	0	320219..320971	+	250	15836910	-	XF0307	-	NADH dehydrogenase subunit C
306	 52.22	0	320968..322275	+	435	15836911	-	XF0308	-	NADH dehydrogenase subunit D
307	 51.89	0	322272..322799	+	175	15836912	-	XF0309	-	NADH dehydrogenase subunit E
308	 54.01	0	322804..324138	+	444	15836913	-	XF0310	-	NADH-ubiquinone oxidoreductase, NQO1 subunit
309	 55.66	0	324135..326369	+	744	15836914	-	XF0311	-	NADH dehydrogenase subunit G
310	 49.20	0	326399..327457	+	352	161378174	-	XF0312	-	NADH dehydrogenase subunit H
311	 49.59	0	327458..327949	+	163	15836916	-	XF0313	-	NADH dehydrogenase subunit I
312	 52.77	0	327954..328622	+	222	15836917	-	XF0314	-	NADH dehydrogenase subunit J
313	 50.65	0	328619..328924	+	101	15836918	-	XF0315	-	NADH dehydrogenase subunit K
314	 50.84	0	328932..331073	+	713	15836919	-	XF0316	-	NADH dehydrogenase subunit L
315	 49.67	0	331095..332600	+	501	15836920	-	XF0317	-	NADH dehydrogenase subunit M
316	 51.10	0	332635..334092	+	485	15836921	-	XF0318	-	NADH dehydrogenase subunit N
317	 55.33	0	334769..335509	-	246	15836922	fabG	XF0319	-	3-ketoacyl-(acyl-carrier-protein) reductase
318	 53.90	0	335568..336899	-	443	77747498	-	XF0320	-	Mg++/citrate complex transporter
319	 55.30	0	337032..338228	-	398	15836924	-	XF0321	-	porin O precursor
320	 54.74	0	338428..339123	+	231	15836925	-	XF0322	-	two-component system, regulatory protein
321	 55.60	0	339107..340489	+	460	15836926	-	XF0323	-	two-component system, sensor protein
322	 56.10	0	340489..341529	+	346	77747499	-	XF0324	-	periplasmic iron-binding protein
323	 54.92	0	341646..341960	+	104	15836928	-	XF0325	-	transposase OrfA
324	 53.09	0	343099..343260	-	53	15836929	-	XF0327	-	hypothetical protein
325	 51.16	0	343458..343844	-	128	15836930	-	XF0328	-	hypothetical protein
326	 37.14	-2	343885..343989	-	34	15836931	-	XF0329	-	hypothetical protein
327	 48.21	0	344131..344715	+	194	15836932	-	XF0330	-	hypothetical protein
328	 48.25	0	344700..345155	-	151	15836933	-	XF0331	-	hypothetical protein
329	 45.05	-1	345344..345454	+	36	15836934	-	XF0332	-	hypothetical protein
330	 46.85	0	345727..345837	-	36	15836935	-	XF0333	-	hypothetical protein
331	 43.72	-1	345863..346045	+	60	15836936	-	XF0334	-	hypothetical protein
332	 50.25	0	346026..346226	+	66	15836937	-	XF0335	-	hypothetical protein
333	 49.15	0	346223..346399	+	58	15836938	-	XF0336	-	hypothetical protein
334	 45.95	-1	346387..346497	-	36	15836939	-	XF0337	-	hypothetical protein
335	 48.85	0	346772..347248	-	158	15836940	-	XF0338	-	SPOUT methyltransferase superfamily protein
336	 51.98	0	347467..350250	+	927	15836941	-	XF0339	-	hypothetical protein
337	 48.85	0	350618..351139	-	173	15836942	-	XF0340	-	disulfide bond formation protein B
338	 19.79	-2	351338..351433	+	31	15836943	-	XF0341	-	hypothetical protein
339	 41.27	-1	351572..351760	+	62	15836944	-	XF0342	-	hypothetical protein
340	 51.37	0	352099..353268	-	389	15836945	-	XF0343	-	outer membrane protein
341	 37.14	-2	353360..353464	-	34	15836946	-	XF0344	-	hypothetical protein
342	 36.75	-2	353543..353776	+	77	15836947	-	XF0345	-	hypothetical protein
343	 49.52	0	354295..354399	+	34	15836948	-	XF0346	-	hypothetical protein
344	 55.05	0	355141..356526	-	461	15836949	-	XF0347	-	D-lactate dehydrogenase
345	 45.75	-1	356842..356994	-	50	15836950	-	XF0348	-	hypothetical protein
346	 40.80	-1	357037..357210	+	57	15836951	-	XF0349	-	hypothetical protein
347	 44.79	-1	357217..357312	+	31	15836952	-	XF0350	-	hypothetical protein
348	 46.22	0	357360..357584	-	74	15836953	-	XF0351	-	hypothetical protein
349	 51.77	0	357824..360031	+	735	15836954	-	XF0352	-	pentaphosphate guanosine-3'-pyrophosphohydrolase
350	 55.73	0	360245..360628	+	127	15836955	-	XF0353	-	translation initiation inhibitor
351	 56.51	0	360636..362792	+	718	15836956	-	XF0354	-	ATP-dependent DNA helicase
352	 46.26	0	362867..363013	+	48	15836957	-	XF0355	-	hypothetical protein
353	 51.04	0	363376..364578	+	400	15836958	-	XF0356	-	cytochrome P-450 hydroxylase
354	 46.82	0	365164..366327	+	387	15836959	-	XF0357	-	hypothetical protein
355	 46.55	0	367442..368599	+	385	15836960	-	XF0358	-	hypothetical protein
356	 53.55	0	369020..369202	+	60	15836961	-	XF0359	-	hypothetical protein
357	 50.00	0	369172..369285	+	37	15836962	-	XF0360	-	hypothetical protein
358	 50.71	0	369297..370712	+	471	15836963	-	XF0361	-	replicative DNA helicase
359	 48.15	0	370914..371237	-	107	15836964	-	XF0362	-	hypothetical protein
360	 52.54	0	371375..372103	+	242	15836965	-	XF0363	-	hypothetical protein
361	 42.49	-1	372111..372383	-	90	15836966	-	XF0364	-	hypothetical protein
362	 49.51	0	372813..373016	-	67	15836967	-	XF0365	-	hypothetical protein
363	 56.39	0	373267..374220	-	317	15836968	-	XF0366	-	ribokinase
364	 52.06	0	374531..375694	+	387	15836969	-	XF0367	-	voltage-gated potassium channel beta subunit
365	 51.72	0	375998..378493	-	831	15836970	-	XF0368	-	penicillin binding protein 1A
366	 50.47	0	378548..379726	+	392	15836971	-	XF0369	-	fimbrial assembly membrane protein
367	 49.02	0	379726..380388	+	220	15836972	-	XF0370	-	fimbrial assembly membrane protein
368	 45.14	-1	380388..381056	+	222	15836973	-	XF0371	-	fimbrial assembly membrane protein
369	 49.91	0	381053..381583	+	176	15836974	-	XF0372	-	fimbrial assembly protein
370	 48.64	0	381583..383496	+	637	15836975	-	XF0373	-	fimbrial assembly protein
371	 47.27	0	384864..385631	+	255	15836976	-	XF0374	-	hypothetical protein
372	 49.91	0	385628..387286	+	552	15836977	-	XF0375	-	inner membrane protein
373	 43.21	-1	387598..387759	-	53	15836978	-	XF0376	-	hypothetical protein
374	 49.46	0	387900..389108	-	402	15836979	-	XF0377	-	cytochrome P450-like enzyme
375	 51.77	0	389990..390694	-	234	15836980	thiE	XF0378	-	thiamine-phosphate pyrophosphorylase
376	 56.32	0	390696..390869	+	57	15836981	-	XF0379	-	rubredoxin
377	 27.98	-2	391003..391170	-	55	15836982	-	XF0380	-	hypothetical protein
378	 51.66	0	391356..393941	+	861	15836983	-	XF0381	-	ATP-dependent Clp protease subunit
379	 56.28	0	394483..394665	-	60	15836984	-	XF0382	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
