IslandPath Analysis: Xylella fastidiosa 9a5c

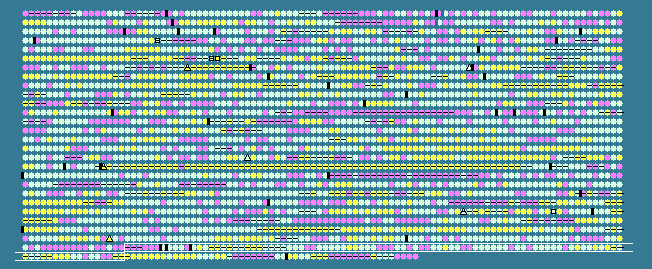

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2618	 46.07	0	2520307..2520675	-	122	15839223	rplL	XF2634	-	50S ribosomal protein L7/L12
2619	 46.59	0	2520730..2521257	-	175	161378156	rplJ	XF2635	-	50S ribosomal protein L10
2620	 44.64	-1	2521760..2522458	-	232	15839225	rplA	XF2636	-	50S ribosomal protein L1
2621	 48.25	0	2522463..2522891	-	142	161378155	rplK	XF2637	-	50S ribosomal protein L11
2622	 46.77	0	2523088..2523645	-	185	15839227	nusG	XF2638	-	transcription antitermination protein NusG
2623	 43.63	-1	2523659..2524066	-	135	15839228	secE	XF2639	-	preprotein translocase subunit SecE
2624	 50.88	0	2524305..2525495	-	396	15839229	tuf	XF2640	-	elongation factor Tu
2625	 49.27	0	2526040..2527131	-	363	15839230	-	XF2641	-	translation-associated GTPase
2626	 49.22	0	2527145..2527723	-	192	15839231	-	XF2642	-	peptidyl-tRNA hydrolase
2627	 50.40	0	2527779..2528405	-	208	15839232	-	XF2643	-	50S ribosomal protein L25/general stress protein Ctc
2628	 48.67	0	2528514..2529452	-	312	15839233	-	XF2644	-	ribose-phosphate pyrophosphokinase
2629	 54.07	0	2529683..2530579	-	298	15839234	-	XF2645	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2630	 56.53	0	2530558..2531208	-	216	15839235	lolB	XF2646	-	outer membrane lipoprotein LolB
2631	 54.64	0	2531205..2532884	-	559	15839236	-	XF2647	-	hypothetical protein
2632	 56.89	0	2532951..2534249	+	432	15839237	hemA	XF2648	-	glutamyl-tRNA reductase
2633	 56.63	0	2534227..2535312	+	361	15839238	prfA	XF2649	-	peptide chain release factor 1
2634	 54.64	0	2535339..2535521	-	60	15839239	-	XF2650	-	hypothetical protein
2635	 58.16	0	2535774..2537948	-	724	77747618	-	XF2651	-	23S rRNA m(2)G2445 methyltransferase
2636	 53.99	0	2537992..2538204	+	70	15839241	-	XF2652	-	hypothetical protein
2637	 50.98	0	2538178..2538330	-	50	15839242	-	XF2653	-	hypothetical protein
2638	 58.52	+1	2538305..2538832	-	175	15839243	-	XF2654	-	hypothetical protein
2639	 59.02	+1	2538858..2539040	-	60	15839244	-	XF2655	-	hypothetical protein
2640	 59.82	+1	2539018..2539587	+	189	15839245	-	XF2656	-	hypothetical protein
2641	 53.85	0	2539675..2539986	+	103	15839246	-	XF2657	-	hypothetical protein
2642	 53.56	0	2539983..2540249	-	88	15839247	-	XF2658	-	hypothetical protein
2643	 54.10	0	2540433..2541140	+	235	15839248	-	XF2659	-	hypothetical protein
2644	 51.13	0	2541146..2541454	+	102	15839249	-	XF2660	-	hypothetical protein
2645	 52.67	0	2541476..2541718	-	80	15839250	-	XF2661	-	hypothetical protein
2646	 53.33	0	2541771..2542130	+	119	15839251	-	XF2662	-	hypothetical protein
2647	 51.01	0	2542232..2543317	+	361	15839252	-	XF2663	-	hypothetical protein
2648	 46.04	0	2543314..2543982	+	222	15839253	-	XF2664	-	hypothetical protein
2649	 40.33	-1	2544045..2544287	-	80	15839254	-	XF2665	-	hypothetical protein
2650	 53.60	0	2544540..2545136	-	198	15839255	-	XF2666	-	hypothetical protein
2651	 50.81	0	2545135..2545380	+	81	15839256	-	XF2667	-	hypothetical protein
2652	 55.56	0	2545458..2545592	+	44	15839257	-	XF2668	-	hypothetical protein
2653	 50.79	0	2545849..2546163	-	104	15839258	-	XF2669	-	hypothetical protein
2654	 50.39	0	2546278..2546406	-	42	15839259	-	XF2670	-	hypothetical protein
2655	 55.84	0	2546495..2547676	-	393	15839260	-	XF2671	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
2656	 56.35	0	2547673..2548176	-	167	15839261	-	XF2672	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
2657	 50.00	0	2548239..2548508	+	89	15839262	-	XF2673	-	hypothetical protein
2658	 48.81	0	2548897..2549064	+	55	15839263	-	XF2674	-	hypothetical protein
2659	 53.95	0	2549045..2550082	+	345	15839264	-	XF2675	-	hypothetical protein
2660	 37.63	-2	2550292..2550384	-	30	15839265	-	XF2676	-	hypothetical protein
2661	 39.61	-2	2551143..2553308	-	721	15839266	-	XF2677	-	L-ascorbate oxidase
2662	 30.89	-2	2553538..2553660	-	40	15839267	-	XF2678	-	hypothetical protein
2663	 52.10	0	2554533..2555891	-	452	15839268	-	XF2679	-	virulence protein
2664	 51.40	0	2556133..2558175	-	680	15839269	-	XF2680	-	ATP-dependent DNA helicase
2665	 43.48	-1	2558586..2558723	-	45	15839270	-	XF2681	-	hypothetical protein
2666	 51.05	0	2558938..2560551	-	537	15839271	mdoD	XF2682	-	glucan biosynthesis protein D
2667	 40.91	-1	2560574..2560705	-	43	15839272	-	XF2683	-	hypothetical protein
2668	 48.59	0	2560964..2561140	-	58	15839273	-	XF2684	-	hypothetical protein
2669	 50.74	0	2561252..2563153	-	633	15839274	-	XF2685	-	protease IV
2670	 51.21	0	2563236..2564645	-	469	15839275	-	XF2686	-	multidrug efflux protein
2671	 56.63	0	2564919..2565446	-	175	15839276	-	XF2687	-	hypothetical protein
2672	 54.45	0	2565485..2566450	-	321	15839277	-	XF2688	-	hypothetical protein
2673	 54.68	0	2566888..2569089	+	733	15839278	-	XF2689	-	primosome assembly protein PriA
2674	 46.83	0	2569988..2570113	-	41	15839279	-	XF2690	-	hypothetical protein
2675	 47.73	0	2570566..2571447	-	293	15839280	-	XF2691	-	RNA polymerase factor sigma-32
2676	 51.05	0	2571566..2572327	-	253	77747619	-	XF2692	-	uracil-DNA glycosylase
2677	 50.06	0	2572333..2573127	-	264	15839282	-	XF2693	-	hypothetical protein
2678	 51.76	0	2573195..2574133	-	312	15839283	-	XF2694	-	cell division protein
2679	 50.07	0	2574130..2574816	-	228	15839284	-	XF2695	-	ABC transporter ATP-binding protein
2680	 51.99	0	2574884..2576518	-	544	15839285	-	XF2696	-	ATP-dependent RNA helicase RhlB
2681	 49.02	0	2576558..2576659	+	33	15839286	-	XF2697	-	hypothetical protein
2682	 45.91	-1	2576711..2577052	+	113	15839287	-	XF2698	-	thioredoxin
2683	 49.80	0	2577677..2578957	+	426	77747620	rho	XF2699	-	transcription termination factor Rho
2684	 49.93	0	2579537..2581819	-	760	15839289	-	XF2700	-	isocitrate dehydrogenase
2685	 48.40	0	2581796..2582107	+	103	15839290	-	XF2701	-	hypothetical protein
2686	 49.40	0	2582340..2582507	+	55	15839291	-	XF2702	-	hypothetical protein
2687	 50.51	0	2582536..2582733	+	65	15839292	-	XF2703	-	hypothetical protein
2688	 53.31	0	2582849..2584375	-	508	15839293	-	XF2704	-	carboxyl-terminal protease
2689	 54.61	0	2584456..2585823	-	455	15839294	-	XF2705	-	hypothetical protein
2690	 53.08	0	2585963..2587684	+	573	15839295	-	XF2706	-	hypothetical protein
2691	 47.46	0	2587664..2587840	-	58	15839296	-	XF2707	-	hypothetical protein
2692	 50.23	0	2588067..2589137	+	356	15839297	-	XF2708	-	endo-1,4-beta-glucanase
2693	 57.04	0	2590119..2591603	-	494	15839298	gltD	XF2709	-	glutamate synthase subunit beta
2694	 55.01	0	2591744..2596213	-	1489	15839299	gltB	XF2710	-	glutamate synthase subunit alpha
2695	 52.00	0	2596200..2596499	+	99	15839300	-	XF2711	-	hypothetical protein
2696	 59.26	+1	2596613..2597530	+	305	15839301	-	XF2712	-	pyrroline-5-carboxylate reductase
2697	 52.59	0	2598251..2600857	+	868	15839302	-	XF2713	-	hypothetical protein
2698	 56.94	0	2600944..2602341	+	465	15839303	-	XF2714	-	alpha-L-fucosidase
2699	 56.49	0	2603746..2604315	+	189	15839304	-	XF2715	-	hypothetical protein
2700	 54.32	0	2604406..2605296	+	296	15839305	-	XF2716	-	ketoreductase
2701	 56.84	0	2605684..2605968	+	94	15839306	-	XF2717	-	hypothetical protein
2702	 48.97	0	2606073..2606462	-	129	15839307	-	XF2718	-	hypothetical protein
2703	 50.54	0	2606518..2606610	-	30	15839308	-	XF2719	-	hypothetical protein
2704	 57.32	0	2606616..2606861	+	81	15839309	-	XF2720	-	hypothetical protein
2705	 60.07	+1	2606910..2609987	-	1025	15839310	-	XF2721	-	type I restriction-modification system endonuclease
2706	 62.40	+1	2609968..2611374	-	468	15839311	-	XF2722	-	type I restriction-modification system specificity determinant
2707	 61.80	+1	2611371..2612645	-	424	15839312	-	XF2723	-	type I restriction-modification system DNA methylase
2708	 59.97	+1	2612646..2613794	-	382	15839313	-	XF2724	-	type I restriction-modification system
2709	 52.19	0	2614467..2617451	-	994	77747621	-	XF2725	-	type I restriction-modification system endonuclease
2710	 49.19	0	2617487..2618716	-	409	15839315	-	XF2726	-	type I restriction-modification system specificity determinant
2711	 48.54	0	2618691..2618861	+	56	15839316	-	XF2727	-	hypothetical protein
2712	 52.47	0	2618983..2620560	-	525	15839317	-	XF2728	-	type I restriction-modification system DNA methylase
2713	 52.50	0	2620692..2620931	-	79	15839318	-	XF2729	-	hypothetical protein
2714	 47.98	0	2621041..2621682	+	213	15839319	-	XF2730	-	amino acid transporter
2715	 47.83	0	2621690..2621896	+	68	15839320	-	XF2731	-	hypothetical protein
2716	 62.61	+1	2622035..2622478	-	147	15839321	-	XF2732	-	hypothetical protein
2717	 60.40	+1	2622640..2624172	+	510	15839322	-	XF2733	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
