IslandPath Analysis: Xylella fastidiosa 9a5c

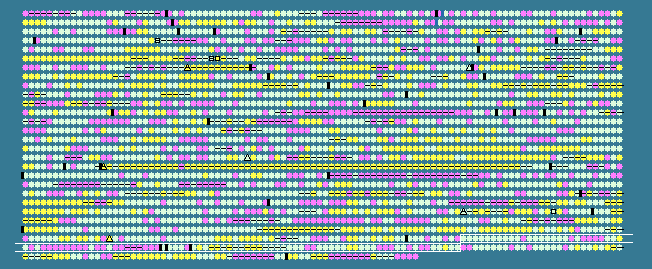

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2574	 55.40	0	2467821..2469347	-	508	15839179	-	XF2590	-	exopolyphosphatase
2575	 52.12	0	2469416..2471512	-	698	15839180	-	XF2591	-	polyphosphate kinase
2576	 52.27	0	2471617..2472957	-	446	15839181	-	XF2592	-	two-component system, sensor protein
2577	 51.81	0	2472975..2473775	-	266	15839182	-	XF2593	-	two-component system, regulatory protein
2578	 54.45	0	2473753..2475381	-	542	77747615	-	XF2594	-	hypothetical protein
2579	 50.14	0	2475449..2475805	+	118	15839184	-	XF2595	-	glutaredoxin
2580	 52.58	0	2476491..2477498	+	335	15839185	-	XF2596	-	isocitrate dehydrogenase
2581	 51.08	0	2477800..2478447	-	215	15839186	-	XF2597	-	hypothetical protein
2582	 52.68	0	2479082..2479603	+	173	15839187	-	XF2598	-	6-O-methylguanine-DNA methyltransferase
2583	 54.45	0	2479632..2480933	+	433	15839188	-	XF2599	-	phosphodiesterase-nucleotide pyrophosphatase precursor
2584	 42.59	-1	2481107..2481322	+	71	15839189	-	XF2600	-	hypothetical protein
2585	 52.16	0	2481488..2481811	+	107	15839190	-	XF2601	-	ferredoxin
2586	 54.02	0	2481857..2483350	-	497	15839191	-	XF2602	-	hypothetical protein
2587	 53.11	0	2483467..2483997	-	176	15839192	-	XF2603	-	hypothetical protein
2588	 51.00	0	2484156..2484506	+	116	15839193	phhB	XF2604	-	pterin-4-alpha-carbinolamine dehydratase
2589	 55.07	0	2484514..2484927	+	137	15839194	-	XF2605	-	TonB protein
2590	 53.58	0	2485339..2486331	-	330	15839195	-	XF2606	-	pseudouridylate synthase
2591	 50.43	0	2486732..2490130	+	1132	15839196	-	XF2607	-	ribonuclease E
2592	 46.46	0	2490561..2491223	-	220	15839197	-	XF2608	-	LuxR/UhpA family transcriptional regulator
2593	 49.89	0	2491473..2492372	-	299	15839198	-	XF2609	-	hypothetical protein
2594	 39.81	-1	2492565..2492672	-	35	15839199	-	XF2610	-	hypothetical protein
2595	 45.76	-1	2493039..2493368	+	109	15839200	-	XF2611	-	hypothetical protein
2596	 43.56	-1	2493748..2494011	-	87	15839201	-	XF2612	-	hypothetical protein
2597	 42.00	-1	2493990..2494139	-	49	15839202	-	XF2613	-	hypothetical protein
2598	 49.51	0	2494416..2495027	-	203	15839203	-	XF2614	-	superoxide dismutase
2599	 52.38	0	2495269..2495709	+	146	77747616	-	XF2615	-	ribonuclease
2600	 56.35	0	2495706..2496122	+	138	15839205	-	XF2616	-	hypothetical protein
2601	 52.19	0	2496177..2498048	-	623	15839206	-	XF2617	-	ABC transporter ATP-binding protein
2602	 46.24	0	2498117..2498302	+	61	15839207	-	XF2618	-	hypothetical protein
2603	 54.29	0	2498328..2499887	-	519	15839208	-	XF2619	-	hypothetical protein
2604	 46.86	0	2499868..2500074	-	68	15839209	-	XF2620	-	hypothetical protein
2605	 42.06	-1	2500050..2500175	+	41	15839210	-	XF2621	-	hypothetical protein
2606	 45.74	-1	2500290..2500547	-	85	15839211	-	XF2622	-	temperature acclimation protein B
2607	 46.88	0	2501062..2501157	-	31	15839212	-	XF2623	-	hypothetical protein
2608	 48.09	0	2502027..2504099	+	690	15839213	-	XF2624	-	hypothetical protein
2609	 48.51	0	2504341..2505210	-	289	15839214	-	XF2625	-	heat shock protein HtpX
2610	 37.96	-2	2505837..2505944	-	35	15839215	-	XF2626	-	hypothetical protein
2611	 41.50	-1	2506257..2506403	+	48	15839216	-	XF2627	-	hypothetical protein
2612	 50.88	0	2506923..2508113	-	396	15839217	tuf	XF2628	-	elongation factor Tu
2613	 47.12	0	2508220..2510337	-	705	15839218	-	XF2629	-	elongation factor G
2614	 47.44	0	2510474..2510941	-	155	15839219	-	XF2630	-	30S ribosomal protein S7
2615	 50.67	0	2510957..2511331	-	124	77747617	rpsL	XF2631	-	30S ribosomal protein S12
2616	 46.77	0	2511584..2515876	-	1430	15839221	-	XF2632	-	DNA-directed RNA polymerase subunit beta'
2617	 46.77	0	2515906..2520072	-	1388	15839222	rpoB	XF2633	-	DNA-directed RNA polymerase subunit beta
2618	 46.07	0	2520307..2520675	-	122	15839223	rplL	XF2634	-	50S ribosomal protein L7/L12
2619	 46.59	0	2520730..2521257	-	175	161378156	rplJ	XF2635	-	50S ribosomal protein L10
2620	 44.64	-1	2521760..2522458	-	232	15839225	rplA	XF2636	-	50S ribosomal protein L1
2621	 48.25	0	2522463..2522891	-	142	161378155	rplK	XF2637	-	50S ribosomal protein L11
2622	 46.77	0	2523088..2523645	-	185	15839227	nusG	XF2638	-	transcription antitermination protein NusG
2623	 43.63	-1	2523659..2524066	-	135	15839228	secE	XF2639	-	preprotein translocase subunit SecE
2624	 50.88	0	2524305..2525495	-	396	15839229	tuf	XF2640	-	elongation factor Tu
2625	 49.27	0	2526040..2527131	-	363	15839230	-	XF2641	-	translation-associated GTPase
2626	 49.22	0	2527145..2527723	-	192	15839231	-	XF2642	-	peptidyl-tRNA hydrolase
2627	 50.40	0	2527779..2528405	-	208	15839232	-	XF2643	-	50S ribosomal protein L25/general stress protein Ctc
2628	 48.67	0	2528514..2529452	-	312	15839233	-	XF2644	-	ribose-phosphate pyrophosphokinase
2629	 54.07	0	2529683..2530579	-	298	15839234	-	XF2645	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2630	 56.53	0	2530558..2531208	-	216	15839235	lolB	XF2646	-	outer membrane lipoprotein LolB
2631	 54.64	0	2531205..2532884	-	559	15839236	-	XF2647	-	hypothetical protein
2632	 56.89	0	2532951..2534249	+	432	15839237	hemA	XF2648	-	glutamyl-tRNA reductase
2633	 56.63	0	2534227..2535312	+	361	15839238	prfA	XF2649	-	peptide chain release factor 1
2634	 54.64	0	2535339..2535521	-	60	15839239	-	XF2650	-	hypothetical protein
2635	 58.16	0	2535774..2537948	-	724	77747618	-	XF2651	-	23S rRNA m(2)G2445 methyltransferase
2636	 53.99	0	2537992..2538204	+	70	15839241	-	XF2652	-	hypothetical protein
2637	 50.98	0	2538178..2538330	-	50	15839242	-	XF2653	-	hypothetical protein
2638	 58.52	+1	2538305..2538832	-	175	15839243	-	XF2654	-	hypothetical protein
2639	 59.02	+1	2538858..2539040	-	60	15839244	-	XF2655	-	hypothetical protein
2640	 59.82	+1	2539018..2539587	+	189	15839245	-	XF2656	-	hypothetical protein
2641	 53.85	0	2539675..2539986	+	103	15839246	-	XF2657	-	hypothetical protein
2642	 53.56	0	2539983..2540249	-	88	15839247	-	XF2658	-	hypothetical protein
2643	 54.10	0	2540433..2541140	+	235	15839248	-	XF2659	-	hypothetical protein
2644	 51.13	0	2541146..2541454	+	102	15839249	-	XF2660	-	hypothetical protein
2645	 52.67	0	2541476..2541718	-	80	15839250	-	XF2661	-	hypothetical protein
2646	 53.33	0	2541771..2542130	+	119	15839251	-	XF2662	-	hypothetical protein
2647	 51.01	0	2542232..2543317	+	361	15839252	-	XF2663	-	hypothetical protein
2648	 46.04	0	2543314..2543982	+	222	15839253	-	XF2664	-	hypothetical protein
2649	 40.33	-1	2544045..2544287	-	80	15839254	-	XF2665	-	hypothetical protein
2650	 53.60	0	2544540..2545136	-	198	15839255	-	XF2666	-	hypothetical protein
2651	 50.81	0	2545135..2545380	+	81	15839256	-	XF2667	-	hypothetical protein
2652	 55.56	0	2545458..2545592	+	44	15839257	-	XF2668	-	hypothetical protein
2653	 50.79	0	2545849..2546163	-	104	15839258	-	XF2669	-	hypothetical protein
2654	 50.39	0	2546278..2546406	-	42	15839259	-	XF2670	-	hypothetical protein
2655	 55.84	0	2546495..2547676	-	393	15839260	-	XF2671	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
2656	 56.35	0	2547673..2548176	-	167	15839261	-	XF2672	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
2657	 50.00	0	2548239..2548508	+	89	15839262	-	XF2673	-	hypothetical protein
2658	 48.81	0	2548897..2549064	+	55	15839263	-	XF2674	-	hypothetical protein
2659	 53.95	0	2549045..2550082	+	345	15839264	-	XF2675	-	hypothetical protein
2660	 37.63	-2	2550292..2550384	-	30	15839265	-	XF2676	-	hypothetical protein
2661	 39.61	-2	2551143..2553308	-	721	15839266	-	XF2677	-	L-ascorbate oxidase
2662	 30.89	-2	2553538..2553660	-	40	15839267	-	XF2678	-	hypothetical protein
2663	 52.10	0	2554533..2555891	-	452	15839268	-	XF2679	-	virulence protein
2664	 51.40	0	2556133..2558175	-	680	15839269	-	XF2680	-	ATP-dependent DNA helicase
2665	 43.48	-1	2558586..2558723	-	45	15839270	-	XF2681	-	hypothetical protein
2666	 51.05	0	2558938..2560551	-	537	15839271	mdoD	XF2682	-	glucan biosynthesis protein D
2667	 40.91	-1	2560574..2560705	-	43	15839272	-	XF2683	-	hypothetical protein
2668	 48.59	0	2560964..2561140	-	58	15839273	-	XF2684	-	hypothetical protein
2669	 50.74	0	2561252..2563153	-	633	15839274	-	XF2685	-	protease IV
2670	 51.21	0	2563236..2564645	-	469	15839275	-	XF2686	-	multidrug efflux protein
2671	 56.63	0	2564919..2565446	-	175	15839276	-	XF2687	-	hypothetical protein
2672	 54.45	0	2565485..2566450	-	321	15839277	-	XF2688	-	hypothetical protein
2673	 54.68	0	2566888..2569089	+	733	15839278	-	XF2689	-	primosome assembly protein PriA
52.19	MEAN

6.22	STD DEV
