IslandPath Analysis: Xylella fastidiosa 9a5c

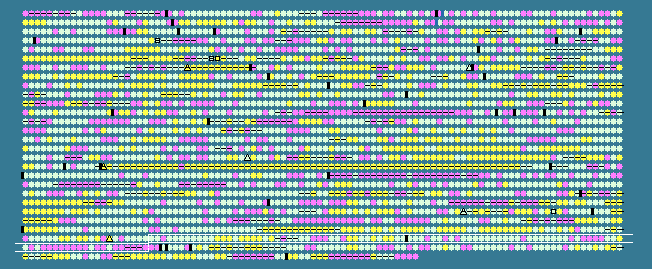

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.19   STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2522	 49.88	0	2411323..2412525	-	400	77747609	-	XF2538	-	fimbrial assembly protein
2523	 50.34	0	2412967..2413413	+	148	15839128	-	XF2539	-	fimbrial protein
2524	 40.20	-1	2413674..2413877	-	67	15839129	-	XF2540	-	hypothetical protein
2525	 55.56	0	2414023..2414148	-	41	15839130	-	XF2541	-	hypothetical protein
2526	 53.47	0	2414710..2415156	+	148	15839131	-	XF2542	-	fimbrial protein
2527	 48.92	0	2415594..2415824	-	76	15839132	-	XF2543	-	hypothetical protein
2528	 52.36	0	2415976..2417709	+	577	15839133	-	XF2544	-	pilus biogenesis protein
2529	 52.41	0	2417803..2419296	-	497	15839134	-	XF2545	-	two-component system, regulatory protein
2530	 52.08	0	2419401..2421011	-	536	77747610	-	XF2546	-	two-component system, sensor protein
2531	 52.49	0	2421266..2422429	+	387	15839136	sucC	XF2547	-	succinyl-CoA synthetase subunit beta
2532	 51.43	0	2422458..2423330	+	290	15839137	-	XF2548	-	succinyl-CoA synthetase subunit alpha
2533	 61.04	+1	2423722..2424201	+	159	15839138	-	XF2549	-	hypothetical protein
2534	 55.69	0	2424313..2426106	-	597	15839139	-	XF2550	-	outer membrane hemolysin activator protein
2535	 58.99	+1	2426592..2429093	-	833	77747611	-	XF2551	-	hypothetical protein
2536	 55.37	0	2429336..2432017	-	893	15839141	-	XF2552	-	DNA gyrase subunit A
2537	 59.81	+1	2432210..2433274	-	354	15839142	mtnA	XF2553	-	methylthioribose-1-phosphate isomerase
2538	 55.94	0	2433431..2434120	-	229	15839143	-	XF2554	-	hypothetical protein
2539	 57.84	0	2434326..2435231	-	301	15839144	-	XF2555	-	lysyl-tRNA synthetase
2540	 57.97	0	2435757..2438252	-	831	77747612	ligA	XF2556	-	NAD-dependent DNA ligase LigA
2541	 55.05	0	2438999..2439730	-	243	15839146	-	XF2557	-	cell division protein ZipA
2542	 57.56	0	2439789..2443292	-	1167	15839147	-	XF2558	-	chromosome segregation protein
2543	 54.44	0	2443510..2443959	-	149	15839148	rplI	XF2559	-	50S ribosomal protein L9
2544	 45.02	-1	2444117..2444347	-	76	15839149	rpsR	XF2560	-	30S ribosomal protein S18
2545	 50.69	0	2444359..2444790	-	143	15839150	rpsF	XF2561	-	30S ribosomal protein S6
2546	 54.87	0	2445030..2445368	-	112	15839151	-	XF2562	-	hypothetical protein
2547	 54.53	0	2445579..2446979	+	466	15839152	asnC	XF2563	-	asparaginyl-tRNA synthetase
2548	 55.56	0	2446954..2447106	+	50	15839153	-	XF2564	-	hypothetical protein
2549	 45.03	-1	2447083..2447253	-	56	15839154	-	XF2565	-	hypothetical protein
2550	 43.50	-1	2447508..2447684	-	58	15839155	-	XF2566	-	hypothetical protein
2551	 47.64	0	2447778..2448581	+	267	15839156	-	XF2567	-	ABC transporter permease protein
2552	 49.26	0	2448588..2449328	+	246	15839157	-	XF2568	-	ABC transporter ATP-binding protein
2553	 52.78	0	2449366..2449581	-	71	15839158	-	XF2569	-	hypothetical protein
2554	 48.51	0	2449643..2449978	+	111	15839159	-	XF2570	-	hypothetical protein
2555	 56.16	0	2450268..2451323	+	351	77747613	-	XF2571	-	dihydroorotate dehydrogenase 2
2556	 56.06	0	2451320..2452375	+	351	15839161	murB	XF2572	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2557	 55.24	0	2452369..2453304	+	311	15839162	-	XF2573	-	hypothetical protein
2558	 54.09	0	2453314..2453997	-	227	15839163	-	XF2574	-	hypothetical protein
2559	 55.69	0	2453978..2455243	-	421	77747614	ispG	XF2575	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
2560	 51.52	0	2455273..2455470	-	65	15839165	-	XF2576	-	hypothetical protein
2561	 56.24	0	2455465..2456682	+	405	15839166	-	XF2577	-	two-component system, sensor protein
2562	 55.79	0	2456679..2457257	+	192	15839167	-	XF2578	-	two-component system, regulatory protein
2563	 49.94	0	2457517..2458395	-	292	161378157	tsf	XF2579	-	elongation factor Ts
2564	 53.93	0	2458584..2459384	-	266	15839169	rpsB	XF2580	-	30S ribosomal protein S2
2565	 53.92	0	2459969..2460376	+	135	15839170	-	XF2581	-	hypothetical protein
2566	 54.63	0	2460403..2462097	+	564	15839171	-	XF2582	-	ABC transporter ATP-binding protein
2567	 53.59	0	2462080..2462232	-	50	15839172	-	XF2583	-	hypothetical protein
2568	 48.45	0	2463046..2463303	-	85	15839173	-	XF2584	-	hypothetical protein
2569	 54.49	0	2463660..2464316	+	218	15839174	-	XF2585	-	protein-L-isoaspartate O-methyltransferase
2570	 54.01	0	2464339..2465697	+	452	15839175	-	XF2586	-	outer membrane export factor
2571	 47.30	0	2465769..2465990	+	73	15839176	-	XF2587	-	hypothetical protein
2572	 52.99	0	2466336..2467088	-	250	15839177	-	XF2588	-	UDP-2,3-diacylglucosamine hydrolase
2573	 45.02	-1	2467210..2467440	+	76	15839178	-	XF2589	-	hypothetical protein
2574	 55.40	0	2467821..2469347	-	508	15839179	-	XF2590	-	exopolyphosphatase
2575	 52.12	0	2469416..2471512	-	698	15839180	-	XF2591	-	polyphosphate kinase
2576	 52.27	0	2471617..2472957	-	446	15839181	-	XF2592	-	two-component system, sensor protein
2577	 51.81	0	2472975..2473775	-	266	15839182	-	XF2593	-	two-component system, regulatory protein
2578	 54.45	0	2473753..2475381	-	542	77747615	-	XF2594	-	hypothetical protein
2579	 50.14	0	2475449..2475805	+	118	15839184	-	XF2595	-	glutaredoxin
2580	 52.58	0	2476491..2477498	+	335	15839185	-	XF2596	-	isocitrate dehydrogenase
2581	 51.08	0	2477800..2478447	-	215	15839186	-	XF2597	-	hypothetical protein
2582	 52.68	0	2479082..2479603	+	173	15839187	-	XF2598	-	6-O-methylguanine-DNA methyltransferase
2583	 54.45	0	2479632..2480933	+	433	15839188	-	XF2599	-	phosphodiesterase-nucleotide pyrophosphatase precursor
2584	 42.59	-1	2481107..2481322	+	71	15839189	-	XF2600	-	hypothetical protein
2585	 52.16	0	2481488..2481811	+	107	15839190	-	XF2601	-	ferredoxin
2586	 54.02	0	2481857..2483350	-	497	15839191	-	XF2602	-	hypothetical protein
2587	 53.11	0	2483467..2483997	-	176	15839192	-	XF2603	-	hypothetical protein
2588	 51.00	0	2484156..2484506	+	116	15839193	phhB	XF2604	-	pterin-4-alpha-carbinolamine dehydratase
2589	 55.07	0	2484514..2484927	+	137	15839194	-	XF2605	-	TonB protein
2590	 53.58	0	2485339..2486331	-	330	15839195	-	XF2606	-	pseudouridylate synthase
2591	 50.43	0	2486732..2490130	+	1132	15839196	-	XF2607	-	ribonuclease E
2592	 46.46	0	2490561..2491223	-	220	15839197	-	XF2608	-	LuxR/UhpA family transcriptional regulator
2593	 49.89	0	2491473..2492372	-	299	15839198	-	XF2609	-	hypothetical protein
2594	 39.81	-1	2492565..2492672	-	35	15839199	-	XF2610	-	hypothetical protein
2595	 45.76	-1	2493039..2493368	+	109	15839200	-	XF2611	-	hypothetical protein
2596	 43.56	-1	2493748..2494011	-	87	15839201	-	XF2612	-	hypothetical protein
2597	 42.00	-1	2493990..2494139	-	49	15839202	-	XF2613	-	hypothetical protein
2598	 49.51	0	2494416..2495027	-	203	15839203	-	XF2614	-	superoxide dismutase
2599	 52.38	0	2495269..2495709	+	146	77747616	-	XF2615	-	ribonuclease
2600	 56.35	0	2495706..2496122	+	138	15839205	-	XF2616	-	hypothetical protein
2601	 52.19	0	2496177..2498048	-	623	15839206	-	XF2617	-	ABC transporter ATP-binding protein
2602	 46.24	0	2498117..2498302	+	61	15839207	-	XF2618	-	hypothetical protein
2603	 54.29	0	2498328..2499887	-	519	15839208	-	XF2619	-	hypothetical protein
2604	 46.86	0	2499868..2500074	-	68	15839209	-	XF2620	-	hypothetical protein
2605	 42.06	-1	2500050..2500175	+	41	15839210	-	XF2621	-	hypothetical protein
2606	 45.74	-1	2500290..2500547	-	85	15839211	-	XF2622	-	temperature acclimation protein B
2607	 46.88	0	2501062..2501157	-	31	15839212	-	XF2623	-	hypothetical protein
2608	 48.09	0	2502027..2504099	+	690	15839213	-	XF2624	-	hypothetical protein
2609	 48.51	0	2504341..2505210	-	289	15839214	-	XF2625	-	heat shock protein HtpX
2610	 37.96	-2	2505837..2505944	-	35	15839215	-	XF2626	-	hypothetical protein
2611	 41.50	-1	2506257..2506403	+	48	15839216	-	XF2627	-	hypothetical protein
2612	 50.88	0	2506923..2508113	-	396	15839217	tuf	XF2628	-	elongation factor Tu
2613	 47.12	0	2508220..2510337	-	705	15839218	-	XF2629	-	elongation factor G
2614	 47.44	0	2510474..2510941	-	155	15839219	-	XF2630	-	30S ribosomal protein S7
2615	 50.67	0	2510957..2511331	-	124	77747617	rpsL	XF2631	-	30S ribosomal protein S12
2616	 46.77	0	2511584..2515876	-	1430	15839221	-	XF2632	-	DNA-directed RNA polymerase subunit beta'
2617	 46.77	0	2515906..2520072	-	1388	15839222	rpoB	XF2633	-	DNA-directed RNA polymerase subunit beta
2618	 46.07	0	2520307..2520675	-	122	15839223	rplL	XF2634	-	50S ribosomal protein L7/L12
2619	 46.59	0	2520730..2521257	-	175	161378156	rplJ	XF2635	-	50S ribosomal protein L10
2620	 44.64	-1	2521760..2522458	-	232	15839225	rplA	XF2636	-	50S ribosomal protein L1
2621	 48.25	0	2522463..2522891	-	142	161378155	rplK	XF2637	-	50S ribosomal protein L11
52.19	MEAN

6.22	STD DEV
