IslandPath Analysis: Xylella fastidiosa 9a5c

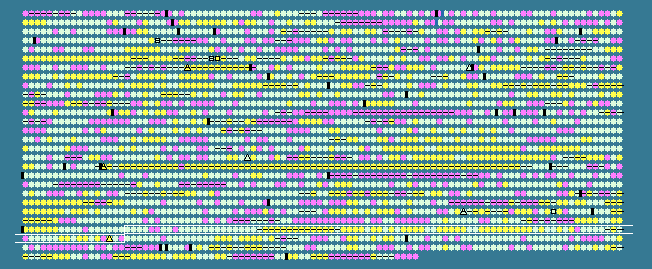

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2418	 52.19	0	2315651..2316541	-	296	15839023	-	XF2432	-	UTP-glucose-1-phosphate uridylyltransferase
2419	 52.41	0	2316541..2318448	-	635	15839024	-	XF2433	-	epimerase/dehydratase protein
2420	 51.74	0	2318461..2319438	-	325	15839025	-	XF2434	-	lipopolysaccharide core biosynthesis protein
2421	 51.46	0	2319438..2320634	-	398	15839026	-	XF2435	-	hypothetical protein
2422	 44.44	-1	2320621..2320944	-	107	15839027	-	XF2436	-	hypothetical protein
2423	 48.29	0	2320967..2321347	-	126	15839028	ihfB	XF2437	-	integration host factor subunit beta
2424	 48.77	0	2321391..2323100	-	569	15839029	rpsA	XF2438	-	30S ribosomal protein S1
2425	 51.49	0	2323296..2323967	-	223	15839030	cmk	XF2439	-	cytidylate kinase
2426	 48.41	0	2324214..2324339	+	41	15839031	rpmJ	XF2440	-	50S ribosomal protein L36
2427	 54.24	0	2324513..2324842	+	109	15839032	-	XF2441	-	hypothetical protein
2428	 54.12	0	2324842..2325933	+	363	15839033	-	XF2442	-	hypothetical protein
2429	 53.94	0	2326022..2326909	+	295	15839034	-	XF2443	-	beta-alanine synthetase
2430	 53.78	0	2326996..2328213	+	405	15839035	-	XF2444	-	pheromone shutdown protein
2431	 52.73	0	2328376..2331546	-	1056	15839036	-	XF2445	-	hypothetical protein
2432	 51.14	0	2331543..2332379	-	278	15839037	-	XF2446	-	ABC transporter sugar permease
2433	 50.79	0	2332376..2333257	-	293	15839038	-	XF2447	-	ABC transporter sugar permease
2434	 52.98	0	2333254..2334546	-	430	15839039	-	XF2448	-	ABC transporter sugar-binding protein
2435	 50.50	0	2334550..2336151	-	533	77747604	-	XF2449	-	hypothetical protein
2436	 51.89	0	2336780..2337070	-	96	15839041	-	XF2450	-	hypothetical protein
2437	 53.80	0	2337702..2338610	+	302	77747605	-	XF2451	-	hypothetical protein
2438	 53.05	0	2338597..2339580	+	327	15839043	-	XF2452	-	hypothetical protein
2439	 55.63	0	2339573..2341003	+	476	15839044	-	XF2453	-	hypothetical protein
2440	 54.55	0	2341400..2341861	-	153	15839045	-	XF2454	-	hypothetical protein
2441	 61.01	+1	2342070..2342741	+	223	15839046	-	XF2455	-	cytochrome c biogenesis protein CcmA
2442	 61.93	+1	2342738..2343433	+	231	15839047	-	XF2456	-	heme ABC transporter membrane protein
2443	 60.35	+1	2343467..2344210	+	247	15839048	-	XF2457	-	heme ABC transporter membrane protein
2444	 57.58	0	2344207..2344371	+	54	15839049	-	XF2458	-	hypothetical protein
2445	 56.28	0	2344368..2344829	+	153	15839050	-	XF2459	-	cytochrome c-type biogenesis protein CcmE
2446	 61.21	+1	2344949..2346889	+	646	15839051	-	XF2460	-	c-type cytochrome biogenesis membrane protein
2447	 57.58	0	2346882..2347475	+	197	15839052	-	XF2461	-	c-type cytochrome biogenesis protein/thioredoxin
2448	 58.16	0	2347472..2347906	+	144	15839053	-	XF2462	-	c-type cytochrome biogenesis protein
2449	 58.91	+1	2347903..2348547	+	214	15839054	-	XF2463	-	hypothetical protein
2450	 56.93	0	2348696..2348962	+	88	15839055	-	XF2464	-	hypothetical protein
2451	 56.78	0	2349138..2350250	+	370	15839056	metX	XF2465	-	homoserine O-acetyltransferase
2452	 57.41	0	2352378..2352539	-	53	15839057	-	XF2467	-	hypothetical protein
2453	 53.92	0	2352764..2352865	-	33	15839058	-	XF2468	-	hypothetical protein
2454	 62.46	+1	2353056..2353745	-	229	15839059	-	XF2469	-	hypothetical protein
2455	 57.39	0	2353779..2354468	-	229	15839060	-	XF2470	-	phosphoglycolate phosphatase
2456	 57.22	0	2354455..2355195	-	246	15839061	-	XF2471	-	3-demethylubiquinone-9 3-methyltransferase
2457	 58.79	+1	2355226..2356533	-	435	15839062	-	XF2472	-	N-ethylammeline chlorohydrolase
2458	 52.38	0	2356707..2357273	-	188	161378158	-	XF2473	-	elongation factor P
2459	 60.43	+1	2357332..2358405	+	357	15839064	-	XF2474	-	hypothetical protein
2460	 56.86	0	2358529..2359374	-	281	15839065	-	XF2475	-	tRNA/rRNA methyltransferase
2461	 54.83	0	2359411..2360238	+	275	15839066	-	XF2476	-	extragenic supressor
2462	 59.77	+1	2360408..2361088	+	226	15839067	bioD	XF2477	-	dithiobiotin synthetase
2463	 51.96	0	2361085..2361492	+	135	15839068	-	XF2478	-	hypothetical protein
2464	 58.54	+1	2361812..2362894	-	360	15839069	-	XF2479	-	hypothetical protein
2465	 61.19	+1	2362885..2363103	-	72	15839070	-	XF2480	-	phage-related tail protein
2466	 59.42	+1	2363100..2363582	-	160	15839071	-	XF2481	-	phage-related tail protein
2467	 57.93	0	2363579..2365798	-	739	15839072	-	XF2482	-	hypothetical protein
2468	 54.86	0	2365925..2366212	-	95	15839073	-	XF2483	-	hypothetical protein
2469	 53.53	0	2366215..2366724	-	169	15839074	-	XF2484	-	hypothetical protein
2470	 57.93	0	2366724..2367914	-	396	15839075	-	XF2485	-	phage tail sheath protein
2471	 58.51	+1	2367967..2369559	-	530	77747606	-	XF2486	-	hypothetical protein
2472	 60.04	+1	2369567..2370124	-	185	15839077	-	XF2487	-	phage-related tail protein
2473	 59.28	+1	2370117..2371010	-	297	15839078	-	XF2488	-	phage-related baseplate assembly protein
2474	 65.58	+2	2371010..2371285	-	91	15839079	-	XF2489	-	phage-related baseplate assembly protein
2475	 50.83	0	2371566..2371868	+	100	15839080	-	XF2490	-	hypothetical protein
2476	 52.49	0	2371871..2372272	+	133	15839081	-	XF2491	-	hypothetical protein
2477	 65.31	+2	2372341..2372928	-	195	15839082	-	XF2492	-	phage-related baseplate assembly protein
2478	 61.33	+1	2372925..2373467	-	180	15839083	-	XF2493	-	hypothetical protein
2479	 59.96	+1	2373443..2373964	-	173	15839084	-	XF2494	-	hypothetical protein
2480	 56.88	0	2373961..2374287	-	108	15839085	-	XF2495	-	hypothetical protein
2481	 61.69	+1	2374284..2374544	-	86	15839086	-	XF2496	-	hypothetical protein
2482	 59.86	+1	2374562..2376442	-	626	15839087	-	XF2497	-	hypothetical protein
2483	 57.41	0	2376426..2378024	-	532	15839088	-	XF2498	-	phage-related portal protein
2484	 58.65	+1	2378021..2378569	-	182	15839089	-	XF2499	-	hypothetical protein
2485	 58.52	+1	2378573..2380315	-	580	15839090	-	XF2500	-	phage-related terminase large subunit
2486	 55.67	0	2380518..2381099	-	193	15839091	-	XF2501	-	hypothetical protein
2487	 57.71	0	2381456..2381935	-	159	15839092	-	XF2502	-	hypothetical protein
2488	 54.81	0	2381907..2382218	-	103	15839093	-	XF2503	-	hypothetical protein
2489	 54.34	0	2382229..2382723	-	164	15839094	-	XF2504	-	hypothetical protein
2490	 57.64	0	2383798..2386257	-	819	15839095	-	XF2505	-	hypothetical protein
2491	 51.28	0	2386432..2387250	-	272	77747607	-	XF2506	-	hypothetical protein
2492	 57.06	0	2387942..2388274	+	110	15839097	-	XF2507	-	hypothetical protein
2493	 46.59	0	2388344..2388592	-	82	15839098	-	XF2508	-	hypothetical protein
2494	 51.32	0	2388589..2388777	-	62	15839099	-	XF2509	-	hypothetical protein
2495	 50.22	0	2388757..2389668	+	303	15839100	-	XF2510	-	hypothetical protein
2496	 49.68	0	2389733..2390503	+	256	15839101	-	XF2511	-	hypothetical protein
2497	 52.59	0	2390672..2391211	+	179	15839102	-	XF2512	-	hypothetical protein
2498	 54.94	0	2391398..2391559	+	53	15839103	-	XF2513	-	hypothetical protein
2499	 57.89	0	2391747..2392202	+	151	15839104	-	XF2514	-	hypothetical protein
2500	 51.54	0	2392308..2392697	+	129	15839105	-	XF2515	-	hypothetical protein
2501	 46.02	0	2392694..2393095	+	133	15839106	-	XF2516	-	hypothetical protein
2502	 50.35	0	2393095..2393940	+	281	15839107	-	XF2517	-	hypothetical protein
2503	 55.21	0	2394152..2394343	+	63	15839108	-	XF2518	-	hypothetical protein
2504	 53.03	0	2394375..2394572	+	65	15839109	-	XF2519	-	hypothetical protein
2505	 54.94	0	2394566..2394727	+	53	15839110	-	XF2520	-	hypothetical protein
2506	 51.56	0	2394843..2395067	+	74	15839111	-	XF2521	-	hypothetical protein
2507	 60.41	+1	2395064..2396341	+	425	15839112	-	XF2522	-	hypothetical protein
2508	 58.55	+1	2396341..2396907	+	188	15839113	-	XF2523	-	hypothetical protein
2509	 55.45	0	2396976..2398490	+	504	77747608	-	XF2524	-	hypothetical protein
2510	 63.41	+1	2398492..2400672	+	726	15839115	-	XF2525	-	phage-related DNA polymerase
2511	 59.86	+1	2400669..2400947	+	92	15839116	-	XF2526	-	hypothetical protein
2512	 53.03	0	2400949..2401344	-	131	15839117	-	XF2527	-	hypothetical protein
2513	 57.08	0	2401429..2402847	+	472	15839118	-	XF2528	-	hypothetical protein
2514	 43.03	-1	2402844..2403008	+	54	15839119	-	XF2529	-	hypothetical protein
2515	 55.78	0	2403249..2404268	+	339	15839120	-	XF2530	-	phage-related integrase
2516	 50.54	0	2404589..2404867	+	92	15839121	-	XF2531	-	hypothetical protein
2517	 46.35	0	2407058..2407495	+	145	15839122	-	XF2533	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
