IslandPath Analysis: Xylella fastidiosa 9a5c

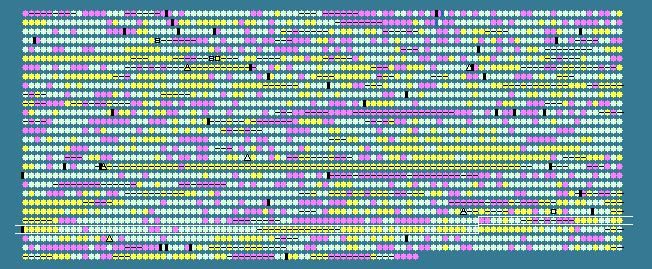

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2377	 46.79	0	2266367..2266522	-	51	15838982	-	XF2391	-	hypothetical protein
2378	 39.48	-2	2266574..2267191	-	205	15838983	-	XF2392	-	autolytic lysozyme
2379	 50.00	0	2267616..2267777	+	53	15838984	-	XF2393	-	hypothetical protein
2380	 54.05	0	2267804..2268730	-	308	77747598	-	XF2394	-	glutaredoxin-like protein
2381	 56.24	0	2268796..2269572	+	258	77747599	-	XF2395	-	acetylxylan esterase
2382	 55.22	0	2269845..2271119	-	424	77747600	-	XF2396	-	aminotransferase AlaT
2383	 54.69	0	2271534..2273696	+	720	15838988	-	XF2397	-	toxin secretion ABC transporter ATP-binding protein
2384	 54.64	0	2273693..2275114	+	473	15838989	-	XF2398	-	hemolysin secretion protein D
2385	 58.94	+1	2275164..2275409	+	81	15838990	-	XF2399	-	hypothetical protein
2386	 33.02	-2	2275725..2276354	+	209	15838991	-	XF2400	-	hypothetical protein
2387	 49.45	0	2276351..2276623	+	90	15838992	-	XF2401	-	hypothetical protein
2388	 39.97	-1	2276626..2277243	+	205	15838993	-	XF2402	-	hypothetical protein
2389	 51.28	0	2277240..2277512	+	90	15838994	-	XF2403	-	hypothetical protein
2390	 39.74	-2	2277515..2278138	+	207	15838995	-	XF2404	-	hypothetical protein
2391	 48.35	0	2278135..2278407	+	90	15838996	-	XF2405	-	hypothetical protein
2392	 41.42	-1	2278410..2279027	+	205	15838997	-	XF2406	-	hypothetical protein
2393	 57.41	0	2279027..2285218	+	2063	77747601	-	XF2407	-	bacteriocin
2394	 55.93	0	2285285..2285554	+	89	15838999	-	XF2408	-	hypothetical protein
2395	 55.96	0	2285562..2289128	+	1188	77747602	-	XF2409	-	hypothetical protein
2396	 62.64	+1	2289100..2289273	+	57	15839001	-	XF2410	-	hypothetical protein
2397	 53.56	0	2289970..2292303	-	777	15839002	-	XF2411	-	hypothetical protein
2398	 54.84	0	2292404..2292589	-	61	15839003	-	XF2412	-	hypothetical protein
2399	 59.21	+1	2292873..2293301	+	142	15839004	-	XF2413	-	hypothetical protein
2400	 56.48	0	2293298..2295103	-	601	15839005	-	XF2414	-	hypothetical protein
2401	 63.02	+1	2295246..2295437	-	63	15839006	-	XF2415	-	hypothetical protein
2402	 59.31	+1	2295710..2296660	-	316	15839007	ispH	XF2416	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
2403	 56.94	0	2296718..2297221	-	167	15839008	lspA	XF2417	-	lipoprotein signal peptidase
2404	 58.93	+1	2297370..2300201	-	943	15839009	ileS	XF2418	-	isoleucyl-tRNA synthetase
2405	 58.02	0	2300198..2301145	-	315	15839010	-	XF2419	-	bifunctional riboflavin kinase/FMN adenylyltransferase
2406	 56.18	0	2301306..2302916	-	536	15839011	-	XF2420	-	virulence factor
2407	 52.59	0	2303016..2303285	+	89	161378159	rpsT	XF2421	-	30S ribosomal protein S20
2408	 53.17	0	2303399..2304472	-	357	77747603	obgE	XF2422	-	GTPase ObgE
2409	 51.94	0	2304644..2304901	-	85	15839014	rpmA	XF2423	-	50S ribosomal protein L27
2410	 52.02	0	2304925..2305245	-	106	15839015	rplU	XF2424	-	50S ribosomal protein L21
2411	 44.31	-1	2305318..2305563	+	81	15839016	-	XF2425	-	hypothetical protein
2412	 55.04	0	2305586..2308483	+	965	15839017	uvrA	XF2426	-	excinuclease ABC subunit A
2413	 51.74	0	2308607..2309557	-	316	15839018	-	XF2427	-	hypothetical protein
2414	 52.96	0	2310051..2311115	-	354	15839019	-	XF2428	-	hypothetical protein
2415	 54.11	0	2311167..2312735	-	522	15839020	guaA	XF2429	-	bifunctional GMP synthase/glutamine amidotransferase protein
2416	 53.36	0	2312971..2314428	-	485	15839021	-	XF2430	-	inositol-5-monophosphate dehydrogenase
2417	 54.50	0	2314545..2315432	-	295	15839022	-	XF2431	-	bifunctional methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
2418	 52.19	0	2315651..2316541	-	296	15839023	-	XF2432	-	UTP-glucose-1-phosphate uridylyltransferase
2419	 52.41	0	2316541..2318448	-	635	15839024	-	XF2433	-	epimerase/dehydratase protein
2420	 51.74	0	2318461..2319438	-	325	15839025	-	XF2434	-	lipopolysaccharide core biosynthesis protein
2421	 51.46	0	2319438..2320634	-	398	15839026	-	XF2435	-	hypothetical protein
2422	 44.44	-1	2320621..2320944	-	107	15839027	-	XF2436	-	hypothetical protein
2423	 48.29	0	2320967..2321347	-	126	15839028	ihfB	XF2437	-	integration host factor subunit beta
2424	 48.77	0	2321391..2323100	-	569	15839029	rpsA	XF2438	-	30S ribosomal protein S1
2425	 51.49	0	2323296..2323967	-	223	15839030	cmk	XF2439	-	cytidylate kinase
2426	 48.41	0	2324214..2324339	+	41	15839031	rpmJ	XF2440	-	50S ribosomal protein L36
2427	 54.24	0	2324513..2324842	+	109	15839032	-	XF2441	-	hypothetical protein
2428	 54.12	0	2324842..2325933	+	363	15839033	-	XF2442	-	hypothetical protein
2429	 53.94	0	2326022..2326909	+	295	15839034	-	XF2443	-	beta-alanine synthetase
2430	 53.78	0	2326996..2328213	+	405	15839035	-	XF2444	-	pheromone shutdown protein
2431	 52.73	0	2328376..2331546	-	1056	15839036	-	XF2445	-	hypothetical protein
2432	 51.14	0	2331543..2332379	-	278	15839037	-	XF2446	-	ABC transporter sugar permease
2433	 50.79	0	2332376..2333257	-	293	15839038	-	XF2447	-	ABC transporter sugar permease
2434	 52.98	0	2333254..2334546	-	430	15839039	-	XF2448	-	ABC transporter sugar-binding protein
2435	 50.50	0	2334550..2336151	-	533	77747604	-	XF2449	-	hypothetical protein
2436	 51.89	0	2336780..2337070	-	96	15839041	-	XF2450	-	hypothetical protein
2437	 53.80	0	2337702..2338610	+	302	77747605	-	XF2451	-	hypothetical protein
2438	 53.05	0	2338597..2339580	+	327	15839043	-	XF2452	-	hypothetical protein
2439	 55.63	0	2339573..2341003	+	476	15839044	-	XF2453	-	hypothetical protein
2440	 54.55	0	2341400..2341861	-	153	15839045	-	XF2454	-	hypothetical protein
2441	 61.01	+1	2342070..2342741	+	223	15839046	-	XF2455	-	cytochrome c biogenesis protein CcmA
2442	 61.93	+1	2342738..2343433	+	231	15839047	-	XF2456	-	heme ABC transporter membrane protein
2443	 60.35	+1	2343467..2344210	+	247	15839048	-	XF2457	-	heme ABC transporter membrane protein
2444	 57.58	0	2344207..2344371	+	54	15839049	-	XF2458	-	hypothetical protein
2445	 56.28	0	2344368..2344829	+	153	15839050	-	XF2459	-	cytochrome c-type biogenesis protein CcmE
2446	 61.21	+1	2344949..2346889	+	646	15839051	-	XF2460	-	c-type cytochrome biogenesis membrane protein
2447	 57.58	0	2346882..2347475	+	197	15839052	-	XF2461	-	c-type cytochrome biogenesis protein/thioredoxin
2448	 58.16	0	2347472..2347906	+	144	15839053	-	XF2462	-	c-type cytochrome biogenesis protein
2449	 58.91	+1	2347903..2348547	+	214	15839054	-	XF2463	-	hypothetical protein
2450	 56.93	0	2348696..2348962	+	88	15839055	-	XF2464	-	hypothetical protein
2451	 56.78	0	2349138..2350250	+	370	15839056	metX	XF2465	-	homoserine O-acetyltransferase
2452	 57.41	0	2352378..2352539	-	53	15839057	-	XF2467	-	hypothetical protein
2453	 53.92	0	2352764..2352865	-	33	15839058	-	XF2468	-	hypothetical protein
2454	 62.46	+1	2353056..2353745	-	229	15839059	-	XF2469	-	hypothetical protein
2455	 57.39	0	2353779..2354468	-	229	15839060	-	XF2470	-	phosphoglycolate phosphatase
2456	 57.22	0	2354455..2355195	-	246	15839061	-	XF2471	-	3-demethylubiquinone-9 3-methyltransferase
2457	 58.79	+1	2355226..2356533	-	435	15839062	-	XF2472	-	N-ethylammeline chlorohydrolase
2458	 52.38	0	2356707..2357273	-	188	161378158	-	XF2473	-	elongation factor P
2459	 60.43	+1	2357332..2358405	+	357	15839064	-	XF2474	-	hypothetical protein
2460	 56.86	0	2358529..2359374	-	281	15839065	-	XF2475	-	tRNA/rRNA methyltransferase
2461	 54.83	0	2359411..2360238	+	275	15839066	-	XF2476	-	extragenic supressor
2462	 59.77	+1	2360408..2361088	+	226	15839067	bioD	XF2477	-	dithiobiotin synthetase
2463	 51.96	0	2361085..2361492	+	135	15839068	-	XF2478	-	hypothetical protein
2464	 58.54	+1	2361812..2362894	-	360	15839069	-	XF2479	-	hypothetical protein
2465	 61.19	+1	2362885..2363103	-	72	15839070	-	XF2480	-	phage-related tail protein
2466	 59.42	+1	2363100..2363582	-	160	15839071	-	XF2481	-	phage-related tail protein
2467	 57.93	0	2363579..2365798	-	739	15839072	-	XF2482	-	hypothetical protein
2468	 54.86	0	2365925..2366212	-	95	15839073	-	XF2483	-	hypothetical protein
2469	 53.53	0	2366215..2366724	-	169	15839074	-	XF2484	-	hypothetical protein
2470	 57.93	0	2366724..2367914	-	396	15839075	-	XF2485	-	phage tail sheath protein
2471	 58.51	+1	2367967..2369559	-	530	77747606	-	XF2486	-	hypothetical protein
2472	 60.04	+1	2369567..2370124	-	185	15839077	-	XF2487	-	phage-related tail protein
2473	 59.28	+1	2370117..2371010	-	297	15839078	-	XF2488	-	phage-related baseplate assembly protein
2474	 65.58	+2	2371010..2371285	-	91	15839079	-	XF2489	-	phage-related baseplate assembly protein
2475	 50.83	0	2371566..2371868	+	100	15839080	-	XF2490	-	hypothetical protein
2476	 52.49	0	2371871..2372272	+	133	15839081	-	XF2491	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
