IslandPath Analysis: Xylella fastidiosa 9a5c

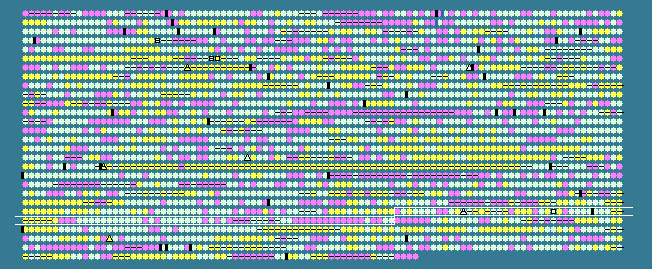

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2263	 47.88	0	2168522..2168851	-	109	15838868	-	XF2277	-	hypothetical protein
2264	 52.10	0	2168848..2169609	-	253	15838869	-	XF2278	-	dolichol-phosphate mannosyltransferase
2265	 55.69	0	2169609..2170637	-	342	15838870	-	XF2279	-	nucleotide sugar epimerase
2266	 51.11	0	2170713..2170892	+	59	15838871	-	XF2280	-	hypothetical protein
2267	 55.63	0	2170954..2171886	-	310	15838872	-	XF2281	-	chromosome partitioning protein
2268	 53.58	0	2171886..2172680	-	264	15838873	-	XF2282	-	chromosome partitioning protein
2269	 52.10	0	2172979..2173932	-	317	15838874	-	XF2283	-	hypothetical protein
2270	 46.41	0	2174038..2174274	+	78	15838875	-	XF2284	-	hypothetical protein
2271	 39.76	-1	2174254..2174502	-	82	15838876	-	XF2285	-	hypothetical protein
2272	 51.37	0	2174738..2176018	-	426	161378160	-	XF2286	-	seryl-tRNA synthetase
2273	 55.89	0	2176140..2176835	+	231	15838878	-	XF2287	-	TonB protein
2274	 51.13	0	2177071..2178132	-	353	15838879	-	XF2288	-	phage-related integrase
2275	 52.19	0	2178144..2178440	-	98	15838880	-	XF2289	-	hypothetical protein
2276	 63.58	+1	2178671..2179609	+	312	15838881	-	XF2290	-	hypothetical protein
2277	 62.71	+1	2179606..2180364	+	252	15838882	-	XF2291	-	hypothetical protein
2278	 59.86	+1	2180361..2180639	+	92	15838883	-	XF2292	-	hypothetical protein
2279	 53.40	0	2180641..2180949	-	102	15838884	-	XF2293	-	hypothetical protein
2280	 51.85	0	2180998..2181726	+	242	15838885	-	XF2294	-	hypothetical protein
2281	 58.46	+1	2181723..2183135	+	470	15838886	-	XF2295	-	hypothetical protein
2282	 37.65	-2	2183304..2183465	+	53	15838887	-	XF2296	-	hypothetical protein
2283	 58.39	0	2183736..2184206	+	156	15838888	-	XF2297	-	DNA methylase
2284	 55.91	0	2184193..2184657	-	154	15838889	-	XF2298	-	low molecular weight phosphotyrosine protein phosphatase
2285	 57.75	0	2184654..2185427	-	257	15838890	-	XF2299	-	3-deoxy-manno-octulosonate cytidylyltransferase
2286	 43.92	-1	2185648..2185836	+	62	15838891	-	XF2300	-	hypothetical protein
2287	 53.80	0	2186143..2186997	+	284	77747592	-	XF2301	-	polysaccharide export protein
2288	 57.98	0	2187092..2188426	-	444	15838893	-	XF2302	-	glutamate-1-semialdehyde aminotransferase
2289	 52.03	0	2188752..2189318	-	188	15838894	-	XF2303	-	transposase
2290	 55.95	0	2189306..2189557	+	83	15838895	-	XF2304	-	hypothetical protein
2291	 38.80	-2	2189780..2190163	+	127	15838896	-	XF2305	-	hypothetical protein
2292	 51.24	0	2190566..2191570	-	334	15838897	-	XF2306	-	delta-aminolevulinic acid dehydratase
2293	 49.00	0	2192194..2192691	+	165	77747593	-	XF2307	-	hypothetical protein
2294	 53.33	0	2192899..2193348	+	149	77747594	-	XF2308	-	hypothetical protein
2295	 51.28	0	2193735..2193890	+	51	15838900	-	XF2309	-	hypothetical protein
2296	 48.74	0	2194042..2194677	-	211	15838901	-	XF2310	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
2297	 55.63	0	2194674..2196557	-	627	15838902	uvrC	XF2311	-	excinuclease ABC subunit C
2298	 49.38	0	2196696..2196857	-	53	15838903	-	XF2312	-	hypothetical protein
2299	 56.97	0	2197200..2197931	+	243	15838904	-	XF2313	-	site-specific DNA-methyltransferase
2300	 56.28	0	2197984..2198532	+	182	15838905	-	XF2314	-	phage-related lysozyme
2301	 59.39	+1	2198525..2198689	+	54	15838906	-	XF2315	-	hypothetical protein
2302	 56.82	0	2198671..2199117	+	148	15838907	-	XF2316	-	hypothetical protein
2303	 59.58	+1	2199119..2199781	+	220	15838908	-	XF2317	-	hypothetical protein
2304	 58.51	+1	2199857..2200690	+	277	15838909	-	XF2318	-	hypothetical protein
2305	 57.50	0	2200719..2200958	+	79	15838910	-	XF2319	-	hypothetical protein
2306	 57.71	0	2200969..2201247	-	92	15838911	-	XF2320	-	hypothetical protein
2307	 38.83	-2	2201483..2201755	-	90	15838912	-	XF2321	-	hypothetical protein
2308	 40.30	-1	2202300..2202500	-	66	15838913	-	XF2322	-	hypothetical protein
2309	 43.83	-1	2202799..2202960	-	53	15838914	-	XF2323	-	hypothetical protein
2310	 54.36	0	2202957..2204321	-	454	15838915	-	XF2324	-	3-phosphoshikimate 1-carboxyvinyltransferase
2311	 50.40	0	2204374..2205498	-	374	15838916	-	XF2325	-	P-protein
2312	 51.24	0	2205578..2206666	-	362	15838917	-	XF2326	-	phosphoserine aminotransferase
2313	 50.12	0	2207240..2208442	+	400	15838918	-	XF2327	-	TonB protein
2314	 51.05	0	2208529..2209713	-	394	15838919	-	XF2328	-	ABC transporter sodium permease
2315	 52.21	0	2209710..2210456	-	248	15838920	-	XF2329	-	sodium ABC transporter ATP-binding protein
2316	 54.14	0	2210453..2212033	-	526	15838921	-	XF2330	-	proteinase
2317	 53.09	0	2212193..2212759	-	188	15838922	-	XF2331	-	dihydrofolate reductase type III
2318	 50.19	0	2212802..2213596	-	264	15838923	thyA	XF2332	-	thymidylate synthase
2319	 54.08	0	2213593..2214498	-	301	15838924	-	XF2333	-	prolipoprotein diacylglyceryl transferase
2320	 50.98	0	2214585..2215043	-	152	15838925	-	XF2334	-	diacylglycerol kinase
2321	 44.81	-1	2215021..2215203	+	60	15838926	-	XF2335	-	hypothetical protein
2322	 53.03	0	2215260..2215985	-	241	15838927	-	XF2336	-	two-component system, regulatory protein
2323	 45.69	-1	2216032..2216298	+	88	15838928	-	XF2337	-	hypothetical protein
2324	 53.21	0	2216453..2217574	-	373	15838929	-	XF2338	-	prephenate dehydrogenase
2325	 53.21	0	2217643..2218749	-	368	15838930	-	XF2339	-	DnaJ protein
2326	 50.70	0	2218887..2220803	-	638	15838931	dnaK	XF2340	-	molecular chaperone DnaK
2327	 52.90	0	2220937..2221539	-	200	15838932	-	XF2341	-	heat shock protein GrpE
2328	 53.53	0	2221578..2222681	-	367	15838933	hrcA	XF2342	-	heat-inducible transcription repressor
2329	 54.36	0	2222746..2224419	+	557	15838934	-	XF2343	-	recombination protein N
2330	 49.29	0	2224563..2225057	-	164	15838935	-	XF2344	-	FUR family transcriptional regulator
2331	 46.80	0	2225042..2225479	+	145	15838936	-	XF2345	-	outer membrane protein
2332	 52.67	0	2225508..2225750	-	80	15838937	-	XF2346	-	hypothetical protein
2333	 48.07	0	2225752..2226192	-	146	15838938	-	XF2347	-	hypothetical protein
2334	 52.98	0	2226256..2226759	+	167	15838939	smpB	XF2348	-	SsrA-binding protein
2335	 44.66	-1	2226959..2229157	-	732	77747595	-	XF2349	-	hypothetical protein
2336	 48.54	0	2229440..2229610	-	56	15838941	-	XF2350	-	hypothetical protein
2337	 43.03	-1	2229871..2230035	+	54	15838942	-	XF2351	-	hypothetical protein
2338	 48.04	0	2230084..2230287	-	67	15838943	-	XF2352	-	cold shock protein
2339	 52.10	0	2230400..2231113	-	237	15838944	-	XF2353	-	5'-methylthioadenosine phosphorylase
2340	 51.79	0	2231115..2231672	-	185	15838945	-	XF2354	-	hypoxanthine-guanine phosphoribosyltransferase
2341	 54.86	0	2231669..2232676	-	335	15838946	-	XF2355	-	beta-hexosaminidase
2342	 48.48	0	2232692..2232889	-	65	15838947	-	XF2356	-	hypothetical protein
2343	 51.20	0	2232868..2233365	-	165	15838948	-	XF2357	-	hypothetical protein
2344	 52.63	0	2233427..2234758	-	443	15838949	rumA	XF2358	-	23S rRNA 5-methyluridine methyltransferase
2345	 53.73	0	2234956..2235666	+	236	15838950	-	XF2359	-	hypothetical protein
2346	 48.25	0	2235883..2236680	-	265	15838951	-	XF2360	-	GumM protein
2347	 45.33	-1	2236827..2237960	-	377	77747596	-	XF2361	-	GumK protein
2348	 47.23	0	2238081..2239613	-	510	15838953	-	XF2362	-	GumJ protein
2349	 41.22	-1	2239610..2239888	-	92	15838954	-	XF2363	-	hypothetical protein
2350	 45.49	-1	2239990..2241132	-	380	15838955	-	XF2364	-	GumH protein
2351	 42.95	-1	2241543..2242613	-	356	77747597	-	XF2365	-	GumF protein
2352	 41.73	-1	2242631..2243905	-	424	15838957	-	XF2366	-	GumE protein
2353	 44.40	-1	2243951..2245405	-	484	15838958	-	XF2367	-	GumD protein
2354	 48.21	0	2245405..2245572	+	55	15838959	-	XF2368	-	hypothetical protein
2355	 43.66	-1	2245617..2247020	-	467	15838960	-	XF2369	-	GumC protein
2356	 48.47	0	2247023..2247676	-	217	15838961	-	XF2370	-	GumB protein
2357	 40.62	-1	2247973..2248164	-	63	15838962	-	XF2371	-	hypothetical protein
2358	 49.53	0	2248375..2249448	-	357	15838963	-	XF2372	-	3-isopropylmalate dehydrogenase
2359	 48.62	0	2249658..2249984	-	108	15838964	-	XF2373	-	hypothetical protein
2360	 48.61	0	2250032..2250679	-	215	15838965	leuD	XF2374	-	isopropylmalate isomerase small subunit
2361	 52.91	0	2250889..2252313	-	474	15838966	-	XF2375	-	isopropylmalate isomerase large subunit
2362	 50.29	0	2252915..2253085	-	56	15838967	-	XF2376	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
