IslandPath Analysis: Xylella fastidiosa 9a5c

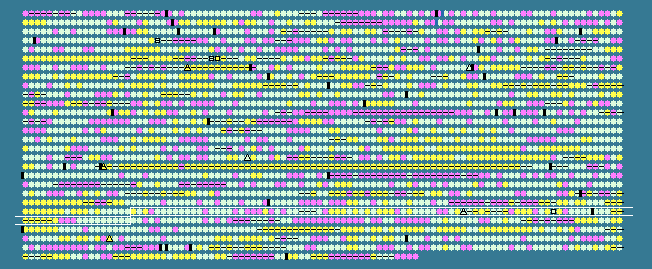

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2219	 55.90	0	2121360..2122241	-	293	15838824	-	XF2233	-	DnaJ protein
2220	 50.31	0	2122386..2122868	-	160	15838825	-	XF2234	-	low molecular weight heat shock protein
2221	 58.09	0	2123146..2125536	-	796	15838826	-	XF2235	-	bifunctional penicillin binding protein 1C precursor
2222	 40.94	-1	2125826..2125996	-	56	15838827	-	XF2236	-	hypothetical protein
2223	 51.58	0	2126364..2129240	+	958	15838828	-	XF2237	-	hypothetical protein
2224	 51.85	0	2129442..2129603	+	53	15838829	-	XF2238	-	hypothetical protein
2225	 51.05	0	2130143..2130763	+	206	15838830	-	XF2239	-	RNA polymerase sigma factor RpoE
2226	 53.42	0	2130760..2131491	+	243	15838831	-	XF2240	-	hypothetical protein
2227	 54.30	0	2131589..2133133	+	514	15838832	-	XF2241	-	periplasmic protease
2228	 54.55	0	2133171..2133335	+	54	15838833	-	XF2242	-	hypothetical protein
2229	 52.07	0	2133317..2135125	+	602	15838834	-	XF2243	-	GTP-binding protein LepA
2230	 49.44	0	2135226..2136026	+	266	15838835	-	XF2244	-	signal peptidase I
2231	 39.13	-2	2136023..2136436	+	137	15838836	-	XF2245	-	hypothetical protein
2232	 54.62	0	2136468..2137106	+	212	15838837	rnc	XF2246	-	ribonuclease III
2233	 51.39	0	2137103..2137999	+	298	15838838	era	XF2247	-	GTP-binding protein Era
2234	 53.96	0	2138170..2138901	+	243	15838839	recO	XF2248	-	DNA repair protein RecO
2235	 52.94	0	2139060..2140967	-	635	77747589	-	XF2249	-	1-deoxy-D-xylulose-5-phosphate synthase
2236	 47.26	0	2141319..2141555	+	78	15838841	-	XF2250	-	hypothetical protein
2237	 50.58	0	2141567..2143300	-	577	15838842	actP	XF2251	-	acetate permease
2238	 43.31	-1	2143297..2143677	-	126	15838843	-	XF2252	-	hypothetical protein
2239	 37.74	-2	2143772..2143930	-	52	15838844	-	XF2253	-	hypothetical protein
2240	 48.15	0	2143943..2144077	-	44	15838845	-	XF2254	-	hypothetical protein
2241	 56.33	0	2144143..2146086	+	647	15838846	-	XF2255	-	acetyl-CoA synthetase
2242	 43.92	-1	2146129..2146317	+	62	15838847	-	XF2256	-	hypothetical protein
2243	 54.26	0	2146616..2147308	+	230	15838848	-	XF2257	-	hypothetical protein
2244	 31.30	-2	2147764..2148156	+	130	15838849	-	XF2258	-	hypothetical protein
2245	 49.27	0	2148947..2150521	+	524	15838850	-	XF2259	-	polyvinylalcohol dehydrogenase
2246	 53.07	0	2150826..2152892	-	688	77747590	-	XF2260	-	alanyl dipeptidyl peptidase
2247	 55.40	0	2153316..2155277	-	653	15838852	-	XF2261	-	oligopeptide transporter
2248	 48.89	0	2155270..2155449	-	59	15838853	-	XF2262	-	hypothetical protein
2249	 53.23	0	2155456..2155641	-	61	15838854	-	XF2263	-	hypothetical protein
2250	 51.01	0	2155653..2155850	-	65	15838855	-	XF2264	-	hypothetical protein
2251	 39.46	-2	2155870..2156016	+	48	15838856	-	XF2265	-	hypothetical protein
2252	 56.43	0	2156013..2157536	+	507	15838857	glpD	XF2266	-	glycerol-3-phosphate dehydrogenase
2253	 56.40	0	2157650..2158477	+	275	15838858	-	XF2267	-	glycerol uptake facilitator protein
2254	 56.67	0	2158482..2160032	+	516	15838859	glpK	XF2268	-	glycerol kinase
2255	 55.34	0	2160246..2161013	-	255	15838860	-	XF2269	-	3-alpha-hydroxysteroid dehydrogenase
2256	 57.79	0	2161322..2162188	+	288	15838861	-	XF2270	-	hypothetical protein
2257	 55.15	0	2162380..2162787	+	135	15838862	-	XF2271	-	hypothetical protein
2258	 56.48	0	2162799..2165075	+	758	15838863	-	XF2272	-	5-methyltetrahydropteroyltriglutamate--homocysteine methyltransferase
2259	 54.29	0	2165142..2165852	+	236	15838864	-	XF2273	-	hypothetical protein
2260	 56.79	0	2165874..2166116	+	80	15838865	-	XF2274	-	hypothetical protein
2261	 62.42	+1	2166120..2166284	-	54	15838866	-	XF2275	-	hypothetical protein
2262	 57.24	0	2166585..2168228	-	547	77747591	-	XF2276	-	peptide synthase
2263	 47.88	0	2168522..2168851	-	109	15838868	-	XF2277	-	hypothetical protein
2264	 52.10	0	2168848..2169609	-	253	15838869	-	XF2278	-	dolichol-phosphate mannosyltransferase
2265	 55.69	0	2169609..2170637	-	342	15838870	-	XF2279	-	nucleotide sugar epimerase
2266	 51.11	0	2170713..2170892	+	59	15838871	-	XF2280	-	hypothetical protein
2267	 55.63	0	2170954..2171886	-	310	15838872	-	XF2281	-	chromosome partitioning protein
2268	 53.58	0	2171886..2172680	-	264	15838873	-	XF2282	-	chromosome partitioning protein
2269	 52.10	0	2172979..2173932	-	317	15838874	-	XF2283	-	hypothetical protein
2270	 46.41	0	2174038..2174274	+	78	15838875	-	XF2284	-	hypothetical protein
2271	 39.76	-1	2174254..2174502	-	82	15838876	-	XF2285	-	hypothetical protein
2272	 51.37	0	2174738..2176018	-	426	161378160	-	XF2286	-	seryl-tRNA synthetase
2273	 55.89	0	2176140..2176835	+	231	15838878	-	XF2287	-	TonB protein
2274	 51.13	0	2177071..2178132	-	353	15838879	-	XF2288	-	phage-related integrase
2275	 52.19	0	2178144..2178440	-	98	15838880	-	XF2289	-	hypothetical protein
2276	 63.58	+1	2178671..2179609	+	312	15838881	-	XF2290	-	hypothetical protein
2277	 62.71	+1	2179606..2180364	+	252	15838882	-	XF2291	-	hypothetical protein
2278	 59.86	+1	2180361..2180639	+	92	15838883	-	XF2292	-	hypothetical protein
2279	 53.40	0	2180641..2180949	-	102	15838884	-	XF2293	-	hypothetical protein
2280	 51.85	0	2180998..2181726	+	242	15838885	-	XF2294	-	hypothetical protein
2281	 58.46	+1	2181723..2183135	+	470	15838886	-	XF2295	-	hypothetical protein
2282	 37.65	-2	2183304..2183465	+	53	15838887	-	XF2296	-	hypothetical protein
2283	 58.39	0	2183736..2184206	+	156	15838888	-	XF2297	-	DNA methylase
2284	 55.91	0	2184193..2184657	-	154	15838889	-	XF2298	-	low molecular weight phosphotyrosine protein phosphatase
2285	 57.75	0	2184654..2185427	-	257	15838890	-	XF2299	-	3-deoxy-manno-octulosonate cytidylyltransferase
2286	 43.92	-1	2185648..2185836	+	62	15838891	-	XF2300	-	hypothetical protein
2287	 53.80	0	2186143..2186997	+	284	77747592	-	XF2301	-	polysaccharide export protein
2288	 57.98	0	2187092..2188426	-	444	15838893	-	XF2302	-	glutamate-1-semialdehyde aminotransferase
2289	 52.03	0	2188752..2189318	-	188	15838894	-	XF2303	-	transposase
2290	 55.95	0	2189306..2189557	+	83	15838895	-	XF2304	-	hypothetical protein
2291	 38.80	-2	2189780..2190163	+	127	15838896	-	XF2305	-	hypothetical protein
2292	 51.24	0	2190566..2191570	-	334	15838897	-	XF2306	-	delta-aminolevulinic acid dehydratase
2293	 49.00	0	2192194..2192691	+	165	77747593	-	XF2307	-	hypothetical protein
2294	 53.33	0	2192899..2193348	+	149	77747594	-	XF2308	-	hypothetical protein
2295	 51.28	0	2193735..2193890	+	51	15838900	-	XF2309	-	hypothetical protein
2296	 48.74	0	2194042..2194677	-	211	15838901	-	XF2310	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
2297	 55.63	0	2194674..2196557	-	627	15838902	uvrC	XF2311	-	excinuclease ABC subunit C
2298	 49.38	0	2196696..2196857	-	53	15838903	-	XF2312	-	hypothetical protein
2299	 56.97	0	2197200..2197931	+	243	15838904	-	XF2313	-	site-specific DNA-methyltransferase
2300	 56.28	0	2197984..2198532	+	182	15838905	-	XF2314	-	phage-related lysozyme
2301	 59.39	+1	2198525..2198689	+	54	15838906	-	XF2315	-	hypothetical protein
2302	 56.82	0	2198671..2199117	+	148	15838907	-	XF2316	-	hypothetical protein
2303	 59.58	+1	2199119..2199781	+	220	15838908	-	XF2317	-	hypothetical protein
2304	 58.51	+1	2199857..2200690	+	277	15838909	-	XF2318	-	hypothetical protein
2305	 57.50	0	2200719..2200958	+	79	15838910	-	XF2319	-	hypothetical protein
2306	 57.71	0	2200969..2201247	-	92	15838911	-	XF2320	-	hypothetical protein
2307	 38.83	-2	2201483..2201755	-	90	15838912	-	XF2321	-	hypothetical protein
2308	 40.30	-1	2202300..2202500	-	66	15838913	-	XF2322	-	hypothetical protein
2309	 43.83	-1	2202799..2202960	-	53	15838914	-	XF2323	-	hypothetical protein
2310	 54.36	0	2202957..2204321	-	454	15838915	-	XF2324	-	3-phosphoshikimate 1-carboxyvinyltransferase
2311	 50.40	0	2204374..2205498	-	374	15838916	-	XF2325	-	P-protein
2312	 51.24	0	2205578..2206666	-	362	15838917	-	XF2326	-	phosphoserine aminotransferase
2313	 50.12	0	2207240..2208442	+	400	15838918	-	XF2327	-	TonB protein
2314	 51.05	0	2208529..2209713	-	394	15838919	-	XF2328	-	ABC transporter sodium permease
2315	 52.21	0	2209710..2210456	-	248	15838920	-	XF2329	-	sodium ABC transporter ATP-binding protein
2316	 54.14	0	2210453..2212033	-	526	15838921	-	XF2330	-	proteinase
2317	 53.09	0	2212193..2212759	-	188	15838922	-	XF2331	-	dihydrofolate reductase type III
2318	 50.19	0	2212802..2213596	-	264	15838923	thyA	XF2332	-	thymidylate synthase
52.19	MEAN

6.22	STD DEV
