IslandPathversion 1.0

IslandPath Analysis: Xylella fastidiosa 9a5c

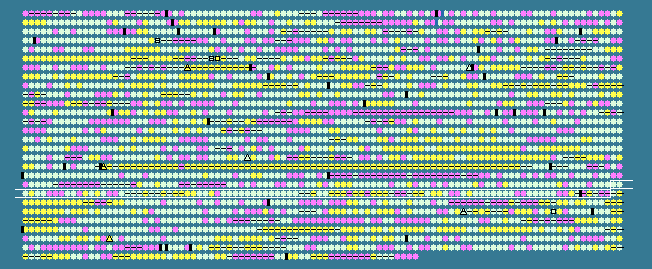

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1999	 53.58	0	1920514..1921071	-	185	15838604	-	XF2010	-	hypothetical protein
2000	 51.35	0	1921264..1921485	+	73	15838605	-	XF2011	-	hypothetical protein
2001	 53.67	0	1921482..1921781	+	99	15838606	-	XF2012	-	hypothetical protein
2002	 56.70	0	1922283..1922894	+	203	15838607	-	XF2013	-	hypothetical protein
2003	 53.60	0	1922915..1923358	+	147	15838608	-	XF2014	-	hypothetical protein
2004	 53.40	0	1923421..1924068	+	215	77747578	-	XF2015	-	ribose-5-phosphate isomerase A
2005	 44.44	-1	1924286..1924501	+	71	15838610	-	XF2016	-	hypothetical protein
2006	 47.29	0	1924521..1925093	-	190	15838611	-	XF2017	-	hypothetical protein
2007	 46.03	0	1925322..1925447	+	41	15838612	-	XF2018	-	hypothetical protein
2008	 51.16	0	1925444..1927081	-	545	77747579	-	XF2019	-	Na+:H+ antiporter
2009	 52.19	0	1927441..1927737	+	98	15838614	-	XF2020	-	hypothetical protein
2010	 41.72	-1	1928048..1929346	-	432	77747580	-	XF2021	-	hypothetical protein
2011	 56.85	0	1929563..1930999	+	478	161378162	sbcB	XF2022	-	exonuclease I
2012	 54.62	0	1930969..1931682	+	237	15838617	-	XF2023	-	hypothetical protein
2013	 58.36	0	1931814..1932812	+	332	15838618	-	XF2024	-	hypothetical protein
2014	 52.01	0	1932880..1933971	+	363	15838619	-	XF2025	-	DNA primase
2015	 38.89	-2	1933975..1934082	+	35	15838620	-	XF2026	-	hypothetical protein
2016	 41.07	-1	1934189..1934821	-	210	15838621	-	XF2027	-	hypothetical protein
2017	 52.87	0	1934942..1935499	-	185	15838622	-	XF2028	-	DNA invertase
2018	 54.40	0	1935689..1936063	-	124	15838623	-	XF2029	-	hypothetical protein
2019	 54.26	0	1936060..1936341	-	93	15838624	-	XF2030	-	hypothetical protein
2020	 52.78	0	1936530..1936781	+	83	15838625	-	XF2031	-	plasmid stabilization protein
2021	 57.61	0	1936778..1937086	+	102	15838626	-	XF2032	-	plasmid stabilization protein
2022	 49.55	0	1937083..1937304	+	73	15838627	-	XF2033	-	hypothetical protein
2023	 53.53	0	1937477..1938778	-	433	15838628	-	XF2034	-	hypothetical protein
2024	 60.00	+1	1938855..1939139	-	94	15838629	-	XF2035	-	hypothetical protein
2025	 54.81	0	1939136..1940029	-	297	15838630	-	XF2036	-	hypothetical protein
2026	 57.20	0	1940026..1941282	-	418	15838631	-	XF2037	-	hypothetical protein
2027	 59.60	+1	1941263..1941913	-	216	15838632	-	XF2038	-	transcriptional regulator
2028	 57.23	0	1941921..1942778	-	285	15838633	-	XF2039	-	hypothetical protein
2029	 56.58	0	1942781..1943881	-	366	15838634	-	XF2040	-	hypothetical protein
2030	 51.97	0	1943886..1944647	-	253	15838635	-	XF2041	-	hypothetical protein
2031	 53.50	0	1944658..1945386	-	242	15838636	-	XF2042	-	hypothetical protein
2032	 63.66	+1	1945929..1946294	-	121	15838637	-	XF2043	-	hypothetical protein
2033	 46.72	0	1947062..1947763	-	233	15838638	-	XF2044	-	hypothetical protein
2034	 50.83	0	1947827..1948432	-	201	15838639	-	XF2045	-	conjugal transfer protein
2035	 53.84	0	1948438..1949832	-	464	15838640	-	XF2046	-	conjugal transfer protein
2036	 50.21	0	1949836..1950072	-	78	15838641	-	XF2047	-	hypothetical protein
2037	 52.46	0	1950881..1952281	-	466	15838642	-	XF2049	-	conjugal transfer protein
2038	 53.25	0	1952287..1952763	-	158	15838643	-	XF2050	-	conjugal transfer protein
2039	 52.53	0	1952766..1953656	-	296	15838644	-	XF2051	-	conjugal transfer protein
2040	 49.23	0	1953673..1954389	-	238	15838645	-	XF2052	-	conjugal transfer protein
2041	 50.47	0	1956924..1957244	-	106	15838646	-	XF2054	-	conjugal transfer protein
2042	 50.34	0	1957247..1957681	-	144	15838647	-	XF2055	-	conjugal transfer protein
2043	 50.34	0	1957653..1957946	-	97	15838648	-	XF2056	-	conjugal transfer protein
2044	 49.38	0	1957985..1958146	+	53	15838649	-	XF2057	-	hypothetical protein
2045	 50.28	0	1958143..1958679	+	178	15838650	-	XF2058	-	conjugal transfer protein
2046	 51.85	0	1958708..1960765	+	685	15838651	-	XF2059	-	conjugal transfer protein
2047	 50.68	0	1960762..1961130	+	122	15838652	-	XF2060	-	conjugal transfer protein
2048	 50.17	0	1961772..1965251	+	1159	77747581	-	XF2061	-	DNA primase
2049	 58.57	+1	1965266..1965475	+	69	15838654	-	XF2062	-	transcriptional repressor
2050	 51.39	0	1966034..1966249	-	71	15838655	-	XF2064	-	hypothetical protein
2051	 50.74	0	1966289..1966558	-	89	15838656	-	XF2065	-	hypothetical protein
2052	 57.28	0	1966667..1966975	-	102	15838657	-	XF2066	-	hypothetical protein
2053	 59.71	+1	1966979..1967251	-	90	15838658	-	XF2067	-	hypothetical protein
2054	 62.28	+1	1967248..1967703	-	151	15838659	-	XF2068	-	hypothetical protein
2055	 43.51	-1	1968283..1968567	-	94	15838660	-	XF2069	-	hypothetical protein
2056	 55.91	0	1969111..1969296	-	61	15838661	-	XF2070	-	hypothetical protein
2057	 59.67	+1	1969289..1969531	-	80	15838662	-	XF2071	-	hypothetical protein
2058	 39.89	-1	1969569..1969751	+	60	15838663	-	XF2072	-	hypothetical protein
2059	 57.28	0	1969791..1970003	-	70	15838664	-	XF2073	-	hypothetical protein
2060	 55.89	0	1970188..1970484	-	98	15838665	-	XF2074	-	hypothetical protein
2061	 57.71	0	1970472..1970750	-	92	15838666	-	XF2075	-	hypothetical protein
2062	 52.12	0	1971038..1971202	+	54	15838667	-	XF2076	-	hypothetical protein
2063	 38.64	-2	1971533..1972192	+	219	15838668	-	XF2077	-	hypothetical protein
2064	 35.32	-2	1972173..1972574	+	133	15838669	-	XF2078	-	hypothetical protein
2065	 50.51	0	1972694..1973083	+	129	15838670	-	XF2079	-	hypothetical protein
2066	 57.45	0	1972992..1973273	-	93	15838671	-	XF2080	-	hypothetical protein
2067	 58.62	+1	1973260..1973520	-	86	15838672	-	XF2081	-	DNA-damage-inducible protein
2068	 50.93	0	1973850..1974656	-	268	15838673	-	XF2082	-	short chain dehydrogenase
2069	 58.86	+1	1974702..1977764	-	1020	15838674	-	XF2083	-	cation efflux system protein
2070	 56.91	0	1977761..1978867	-	368	15838675	-	XF2084	-	component of multidrug efflux system
2071	 50.65	0	1978950..1979567	-	205	15838676	-	XF2085	-	AcrR family transcriptional regulator
2072	 41.75	-1	1980176..1980769	+	197	15838677	-	XF2086	-	hypothetical protein
2073	 48.15	0	1981669..1981938	-	89	15838678	-	XF2087	-	hypothetical protein
2074	 50.00	0	1982043..1982492	-	149	77747582	-	XF2088	-	hypothetical protein
2075	 56.56	0	1982816..1983775	-	319	15838680	-	XF2089	-	5'-nucleotidase
2076	 54.56	0	1983861..1984628	-	255	77747583	ppnK	XF2090	-	inorganic polyphosphate/ATP-NAD kinase
2077	 54.11	0	1984713..1989704	-	1663	77747584	-	XF2091	-	hypothetical protein
2078	 48.72	0	1989812..1990006	+	64	15838683	-	XF2092	-	hypothetical protein
2079	 53.46	0	1990486..1991712	+	408	15838684	-	XF2093	-	precursor of drug resistance protein
2080	 51.61	0	1991727..1994894	+	1055	15838685	-	XF2094	-	multidrug-efflux transporter
2081	 51.73	0	1994975..1995610	-	211	15838686	-	XF2095	-	carbonic anhydrase
2082	 53.22	0	1995607..1996506	-	299	15838687	-	XF2096	-	putative GTP cyclohydrolase
2083	 46.12	0	1996752..1997009	+	85	15838688	-	XF2097	-	hypothetical protein
2084	 48.31	0	1997252..1997458	-	68	15838689	-	XF2098	-	hypothetical protein
2085	 54.62	0	1997839..1998726	+	295	15838690	-	XF2099	-	biotin synthesis protein
2086	 52.76	0	1998801..1999706	+	301	15838691	-	XF2100	-	aspartyl/asparaginyl beta-hydroxylase
2087	 52.55	0	2000035..2000643	-	202	15838692	-	XF2101	-	hypothetical protein
2088	 50.62	0	2000640..2000882	-	80	15838693	-	XF2102	-	hypothetical protein
2089	 50.30	0	2001237..2001572	+	111	15838694	-	XF2103	-	hypothetical protein
2090	 45.05	-1	2001754..2001864	+	36	15838695	-	XF2104	-	hypothetical protein
2091	 47.80	0	2001907..2002065	-	52	15838696	-	XF2105	-	hypothetical protein
2092	 57.88	0	2002111..2004000	+	629	15838697	-	XF2106	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
2093	 53.99	0	2004188..2004400	-	70	15838698	-	XF2107	-	hypothetical protein
2094	 48.39	0	2005047..2005232	+	61	15838699	-	XF2108	-	hypothetical protein
2095	 63.00	+1	2005406..2005732	-	108	15838700	-	XF2109	-	hypothetical protein
2096	 55.16	0	2006148..2006486	-	112	15838701	-	XF2110	-	hypothetical protein
2097	 32.97	-2	2007425..2007703	+	92	15838702	-	XF2111	-	hypothetical protein
2098	 40.97	-1	2007754..2008146	+	130	15838703	-	XF2112	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
