IslandPath Analysis: Xylella fastidiosa 9a5c

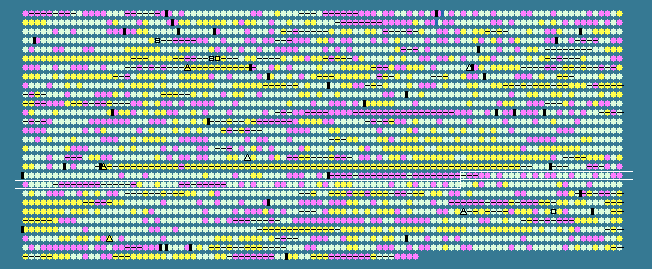

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1874	 49.32	0	1789521..1790108	-	195	15838479	-	XF1881	-	hypothetical protein
1875	 40.44	-1	1790367..1790549	-	60	15838480	-	XF1882	-	hypothetical protein
1876	 29.96	-2	1790553..1790819	-	88	15838481	-	XF1883	-	hypothetical protein
1877	 40.51	-1	1790812..1791201	-	129	15838482	-	XF1884	-	hypothetical protein
1878	 44.19	-1	1791298..1791564	-	88	15838483	-	XF1885	-	hypothetical protein
1879	 50.08	0	1791658..1792302	-	214	15838484	-	XF1886	-	phosphoglycerate mutase
1880	 47.93	0	1792367..1794517	-	716	15838485	-	XF1887	-	hypothetical protein
1881	 51.88	0	1794923..1796728	+	601	77747568	-	XF1888	-	thiamine biosynthesis protein ThiC
1882	 48.97	0	1796860..1797639	+	259	15838487	-	XF1889	-	ferredoxin-NADP reductase
1883	 49.91	0	1797633..1798205	-	190	15838488	-	XF1890	-	glutathione peroxidase-like protein
1884	 41.36	-1	1798531..1800063	+	510	15838489	-	XF1891	-	di-tripeptide ABC transporter membrane protein
1885	 50.97	0	1800225..1800944	-	239	77747569	-	XF1892	-	endonuclease V (deoxyinosine 3'endonuclease)
1886	 46.00	0	1801044..1801793	+	249	15838491	-	XF1893	-	phosphoglyceromutase
1887	 48.83	0	1801892..1802575	-	227	15838492	-	XF1894	-	hypothetical protein
1888	 46.94	0	1802593..1803408	-	271	15838493	-	XF1895	-	hypothetical protein
1889	 46.88	0	1803412..1803972	-	186	15838494	-	XF1896	-	outer membrane protein P6 precursor
1890	 49.57	0	1804014..1805306	-	430	15838495	tolB	XF1897	-	translocation protein TolB
1891	 51.49	0	1805595..1806635	-	346	15838496	-	XF1898	-	TolA protein
1892	 46.21	0	1806625..1807059	-	144	15838497	-	XF1899	-	TolR protein
1893	 51.29	0	1807093..1807866	-	257	15838498	-	XF1900	-	TolQ protein
1894	 51.45	0	1807890..1808336	-	148	15838499	-	XF1901	-	hypothetical protein
1895	 52.42	0	1808333..1809364	-	343	15838500	ruvB	XF1902	-	Holliday junction DNA helicase B
1896	 48.35	0	1809426..1811330	-	634	15838501	-	XF1903	-	potassium uptake protein
1897	 51.11	0	1811385..1811969	-	194	15838502	ruvA	XF1904	-	Holliday junction DNA helicase motor protein
1898	 52.30	0	1812055..1812576	-	173	161378163	ruvC	XF1905	-	Holliday junction resolvase
1899	 48.71	0	1812696..1813430	-	244	15838504	-	XF1906	-	hypothetical protein
1900	 41.30	-1	1813742..1813879	+	45	15838505	-	XF1907	-	hypothetical protein
1901	 47.17	0	1814150..1814467	-	105	15838506	-	XF1908	-	hypothetical protein
1902	 51.96	0	1814457..1815530	-	357	15838507	-	XF1909	-	A/G-specific adenine glycosylase
1903	 50.67	0	1815606..1816799	-	397	15838508	-	XF1910	-	cell division protein
1904	 51.27	0	1817367..1817840	+	157	15838509	-	XF1911	-	hypothetical protein
1905	 51.82	0	1818111..1818716	+	201	77747570	-	XF1912	-	hypothetical protein
1906	 52.04	0	1818848..1819654	-	268	15838511	-	XF1913	-	type V secretory pathway protein
1907	 38.61	-2	1819904..1821400	+	498	15838512	-	XF1914	-	anthranilate synthase component I
1908	 37.64	-2	1821376..1822002	+	208	15838513	-	XF1915	-	anthranilate synthase component II
1909	 37.37	-2	1821986..1823422	+	478	15838514	-	XF1916	-	coenzyme F390 synthetase
1910	 37.19	-2	1823419..1823937	+	172	15838515	-	XF1917	-	hypothetical protein
1911	 37.17	-2	1824062..1824634	+	190	15838516	-	XF1918	-	hypothetical protein
1912	 40.44	-1	1824700..1825290	+	196	15838517	-	XF1919	-	hypothetical protein
1913	 34.41	-2	1825482..1825760	-	92	15838518	-	XF1920	-	Trp operon transcriptional repressor
1914	 50.21	0	1826022..1826750	+	242	15838519	-	XF1921	-	superoxide dismutase [Mn] precursor
1915	 50.41	0	1826795..1826917	-	40	15838520	-	XF1922	-	hypothetical protein
1916	 50.00	0	1827248..1828219	+	323	77747571	-	XF1923	-	quinolinate synthetase
1917	 55.30	0	1828232..1829770	+	512	15838522	-	XF1924	-	L-aspartate oxidase
1918	 50.11	0	1829772..1830641	+	289	15838523	-	XF1925	-	nicotinate-nucleotide pyrophosphorylase
1919	 45.91	-1	1830613..1830771	-	52	15838524	-	XF1926	-	hypothetical protein
1920	 57.55	0	1832918..1833301	+	127	15838525	-	XF1928	-	hypothetical protein
1921	 48.87	0	1835668..1835976	-	102	15838526	-	XF1932	-	hypothetical protein
1922	 53.71	0	1836138..1836932	+	264	15838527	-	XF1933	-	exodeoxyribonuclease III
1923	 57.91	0	1837176..1837769	+	197	15838528	-	XF1934	-	HetI protein
1924	 53.52	0	1837995..1838633	+	212	77747572	gidB	XF1935	-	glucose-inhibited division protein B
1925	 53.32	0	1838683..1840683	-	666	15838530	-	XF1936	-	transketolase
1926	 52.38	0	1840790..1842133	-	447	15838531	-	XF1937	-	proton glutamate symport protein
1927	 44.17	-1	1842293..1842412	+	39	15838532	-	XF1938	-	hypothetical protein
1928	 43.94	-1	1842428..1842559	+	43	15838533	-	XF1939	-	hypothetical protein
1929	 49.62	0	1842787..1843437	-	216	15838534	-	XF1940	-	methionine sulfoxide reductase A
1930	 45.05	-1	1843545..1844039	-	164	15838535	-	XF1941	-	hypothetical protein
1931	 45.83	-1	1844193..1844288	-	31	15838536	-	XF1942	-	hypothetical protein
1932	 47.58	0	1844716..1845108	+	130	15838537	-	XF1943	-	histone-like protein
1933	 48.40	0	1845785..1847935	+	716	15838538	-	XF1944	-	peptidyl-dipeptidase
1934	 40.64	-1	1848018..1848455	-	145	15838539	-	XF1945	-	VirK protein
1935	 52.41	0	1849155..1850480	+	441	15838540	-	XF1946	-	folylpolyglutamate synthase/dihydrofolate synthase
1936	 51.60	0	1850519..1851487	+	322	15838541	-	XF1947	-	hypothetical protein
1937	 46.15	0	1851565..1852266	+	233	15838542	-	XF1948	-	colicin V production protein
1938	 49.38	0	1852338..1853795	+	485	15838543	-	XF1949	-	amidophosphoribosyltransferase
1939	 45.86	-1	1854185..1854655	-	156	15838544	-	XF1950	-	hypothetical protein
1940	 50.26	0	1854677..1855846	-	389	15838545	-	XF1951	-	hypothetical protein
1941	 49.34	0	1855863..1861130	-	1755	15838546	-	XF1952	-	chemotaxis-related protein kinase
1942	 49.95	0	1861127..1863208	-	693	15838547	-	XF1953	-	pilus biogenesis protein
1943	 46.89	0	1863209..1863739	-	176	15838548	-	XF1954	-	pilus biogenesis protein
1944	 42.21	-1	1863756..1864172	-	138	77747573	-	XF1955	-	pilus protein
1945	 53.76	0	1864428..1865372	+	314	15838550	-	XF1956	-	glutathione synthetase
1946	 54.00	0	1865350..1866249	+	299	15838551	-	XF1957	-	TonB protein
1947	 33.95	-2	1866558..1867367	+	269	15838552	-	XF1958	-	hypothetical protein
1948	 50.95	0	1867554..1869722	-	722	15838553	glyS	XF1959	-	glycyl-tRNA synthetase subunit beta
1949	 52.60	0	1869815..1870738	-	307	15838554	glyQ	XF1960	-	glycyl-tRNA synthetase subunit alpha
1950	 56.04	0	1871049..1872686	-	545	15838555	nadE	XF1961	-	NAD synthetase
1951	 48.65	0	1872930..1873040	+	36	15838556	-	XF1962	-	hypothetical protein
1952	 52.14	0	1873134..1873367	-	77	15838557	-	XF1963	-	hypothetical protein
1953	 58.85	+1	1873558..1873941	+	127	15838558	-	XF1964	-	ferredoxin
1954	 56.18	0	1874325..1875230	-	301	15838559	-	XF1965	-	haloalkane dehalogenase
1955	 57.95	0	1875227..1877749	-	840	15838560	-	XF1966	-	hypothetical protein
1956	 54.34	0	1877733..1877951	-	72	15838561	-	XF1967	-	hypothetical protein
1957	 53.40	0	1877948..1879552	-	534	15838562	-	XF1968	-	methyltransferase
1958	 50.31	0	1879618..1879776	+	52	15838563	-	XF1969	-	hypothetical protein
1959	 53.59	0	1880089..1881105	-	338	15838564	-	XF1970	-	3-oxoacyl-(acyl carrier protein) synthase III
1960	 52.24	0	1881257..1881568	-	103	15838565	-	XF1971	-	hypothetical protein
1961	 55.26	0	1881802..1882248	+	148	15838566	-	XF1972	-	tRNA/rRNA methylase
1962	 39.19	-2	1882645..1883037	+	130	15838567	-	XF1973	-	hypothetical protein
1963	 49.56	0	1883067..1883294	-	75	15838568	-	XF1974	-	hypothetical protein
1964	 55.54	0	1883483..1885207	+	574	15838569	purH	XF1975	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1965	 58.45	+1	1885366..1886679	+	437	15838570	-	XF1976	-	phosphoribosylamine--glycine ligase
1966	 46.91	0	1886692..1887192	+	166	15838571	-	XF1977	-	hypothetical protein
1967	 51.78	0	1887189..1889411	+	740	15838572	-	XF1978	-	hypothetical protein
1968	 54.07	0	1889583..1890527	-	314	15838573	-	XF1979	-	transmembrane protein
1969	 45.07	-1	1890629..1891003	+	124	15838574	-	XF1980	-	hypothetical protein
1970	 51.61	0	1891180..1894587	-	1135	77747574	-	XF1981	-	surface protein
1971	 32.78	-2	1895114..1895293	-	59	15838576	-	XF1982	-	hypothetical protein
1972	 51.69	0	1895679..1896299	+	206	15838577	folE	XF1983	-	GTP cyclohydrolase I
1973	 54.61	0	1896964..1897527	+	187	15838578	-	XF1984	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
