IslandPath Analysis: Xylella fastidiosa 9a5c

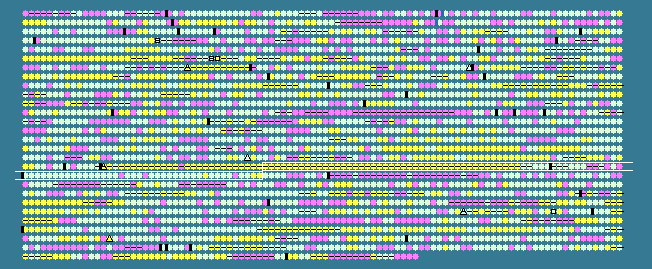

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1741	 61.46	+1	1664020..1665036	-	338	15838346	-	XF1745	-	hypothetical protein
1742	 67.62	+2	1665101..1666150	-	349	15838347	-	XF1746	-	alcohol dehydrogenase
1743	 67.13	+2	1666171..1666812	-	213	15838348	-	XF1747	-	hypothetical protein
1744	 65.41	+2	1666809..1667522	-	237	15838349	-	XF1748	-	5-amino-6-(5-phosphoribosylamino)uracil reductase
1745	 68.46	+2	1667542..1668771	-	409	15838350	-	XF1749	-	transcriptional regulator
1746	 66.48	+2	1668885..1669928	-	347	77747561	-	XF1750	-	hypothetical protein
1747	 68.85	+2	1670047..1670550	-	167	15838352	-	XF1751	-	hypothetical protein
1748	 65.33	+2	1670660..1671634	+	324	15838353	-	XF1752	-	LysR family transcriptional regulator
1749	 67.59	+2	1671676..1673526	-	616	15838354	-	XF1753	-	hypothetical protein
1750	 66.35	+2	1673842..1674468	+	208	15838355	-	XF1754	-	hypothetical protein
1751	 65.08	+2	1674481..1675110	+	209	15838356	-	XF1755	-	hypothetical protein
1752	 67.12	+2	1675195..1675413	+	72	15838357	-	XF1756	-	hypothetical protein
1753	 58.62	+1	1675818..1676078	-	86	15838358	-	XF1757	-	hypothetical protein
1754	 65.44	+2	1676095..1676502	-	135	15838359	-	XF1758	-	hypothetical protein
1755	 63.58	+1	1676603..1676926	-	107	15838360	-	XF1759	-	hypothetical protein
1756	 65.61	+2	1677021..1677683	-	220	15838361	-	XF1760	-	hypothetical protein
1757	 66.11	+2	1677741..1678643	-	300	77747562	-	XF1761	-	hypothetical protein
1758	 71.18	+2	1678907..1679416	-	169	77747563	-	XF1762	-	hypothetical protein
1759	 67.38	+2	1679422..1680264	-	280	15838364	-	XF1763	-	hypothetical protein
1760	 65.54	+2	1680412..1680765	-	117	15838365	-	XF1764	-	hypothetical protein
1761	 72.30	+2	1681958..1683376	-	472	15838366	-	XF1765	-	drug:proton antiporter
1762	 70.37	+2	1683408..1684190	-	260	15838367	-	XF1766	-	hypothetical protein
1763	 67.60	+2	1684178..1685248	+	356	15838368	-	XF1767	-	hypothetical protein
1764	 67.41	+2	1685230..1686171	+	313	15838369	-	XF1768	-	LysR family transcriptional regulator
1765	 64.33	+1	1686247..1687188	+	313	15838370	-	XF1769	-	hypothetical protein
1766	 61.62	+1	1687397..1688287	+	296	15838371	-	XF1770	-	hypothetical protein
1767	 61.83	+1	1688250..1688642	-	130	15838372	-	XF1771	-	hypothetical protein
1768	 64.23	+1	1688664..1689074	-	136	15838373	-	XF1772	-	hypothetical protein
1769	 65.09	+2	1689210..1689968	-	252	15838374	-	XF1773	-	hypothetical protein
1770	 60.44	+1	1690011..1694029	-	537	15838375	-	XF1774	-	DNA methyltransferase
1771	 66.77	+2	1694565..1696424	-	619	15838376	-	XF1776	-	DNA topoisomerase I
1772	 65.50	+2	1696611..1696781	+	56	15838377	-	XF1777	-	hypothetical protein
1773	 67.33	+2	1696852..1697304	-	150	15838378	-	XF1778	-	single-strand DNA-binding protein
1774	 63.67	+1	1697378..1697911	-	177	15838379	-	XF1779	-	hypothetical protein
1775	 67.87	+2	1697908..1698657	-	249	15838380	-	XF1780	-	hypothetical protein
1776	 66.11	+2	1698842..1700098	-	418	15838381	-	XF1781	-	hypothetical protein
1777	 63.99	+1	1700095..1700655	-	186	15838382	-	XF1782	-	hypothetical protein
1778	 68.54	+2	1700671..1701579	-	302	15838383	-	XF1783	-	hypothetical protein
1779	 65.88	+2	1701566..1702327	-	253	15838384	-	XF1784	-	hypothetical protein
1780	 67.81	+2	1702552..1703427	-	291	15838385	-	XF1785	-	chromosome partitioning related protein
1781	 61.71	+1	1703470..1703691	-	73	15838386	-	XF1786	-	hypothetical protein
1782	 62.96	+1	1703801..1704556	-	251	15838387	-	XF1787	-	hypothetical protein
1783	 59.92	+1	1704782..1705285	-	167	15838388	-	XF1788	-	hypothetical protein
1784	 49.69	0	1705455..1705613	-	52	15838389	-	XF1789	-	hypothetical protein
1785	 50.00	0	1705668..1705781	+	37	15838390	-	XF1790	-	hypothetical protein
1786	 51.89	0	1706002..1706265	+	87	15838391	-	XF1791	-	fimbrillin
1787	 55.44	0	1706262..1706546	+	94	15838392	-	XF1792	-	hypothetical protein
1788	 55.02	0	1706753..1707061	-	102	15838393	-	XF1793	-	hypothetical protein
1789	 49.12	0	1707749..1708375	-	208	15838394	-	XF1794	-	hypothetical protein
1790	 51.58	0	1708386..1709114	-	242	15838395	-	XF1795	-	pantothenate kinase
1791	 51.05	0	1709111..1710064	-	317	15838396	-	XF1796	-	biotin--protein ligase
1792	 50.00	0	1710469..1711638	-	389	15838397	-	XF1797	-	porphyrin biosynthesis protein
1793	 53.39	0	1711635..1712666	-	343	15838398	-	XF1798	-	hypothetical protein
1794	 52.51	0	1712663..1713580	-	305	15838399	-	XF1799	-	uroporphyrinogen-III synthase
1795	 47.53	0	1713970..1714455	+	161	15838400	-	XF1800	-	hypothetical protein
1796	 46.44	0	1714573..1715091	+	172	161378164	-	XF1801	-	preprotein translocase subunit SecB
1797	 51.68	0	1715112..1716152	+	346	15838402	gpsA	XF1802	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
1798	 48.17	0	1716290..1716862	-	190	15838403	-	XF1803	-	hypothetical protein
1799	 49.09	0	1717816..1718697	+	293	15838404	-	XF1804	-	site-specific DNA-methyltransferase
1800	 40.94	-1	1719045..1719215	+	56	15838405	-	XF1805	-	hypothetical protein
1801	 52.16	0	1720467..1722293	+	608	15838406	-	XF1807	-	DNA polymerase III subunits gamma and tau
1802	 49.07	0	1722297..1722620	+	107	15838407	-	XF1808	-	hypothetical protein
1803	 54.29	0	1722675..1723409	+	244	15838408	recR	XF1809	-	recombination protein RecR
1804	 50.43	0	1723471..1723815	+	114	15838409	-	XF1810	-	hypothetical protein
1805	 53.62	0	1723883..1724365	-	160	15838410	-	XF1811	-	outer membrane protein Slp precursor
1806	 55.35	0	1727304..1728257	-	317	15838411	-	XF1813	-	methanol dehydrogenase regulatory protein
1807	 53.25	0	1728267..1730114	+	615	15838412	-	XF1814	-	hypothetical protein
1808	 51.25	0	1730157..1730714	+	185	15838413	-	XF1815	-	hypothetical protein
1809	 49.23	0	1730829..1731023	+	64	15838414	rpmF	XF1816	-	50S ribosomal protein L32
1810	 51.18	0	1731118..1732092	+	324	15838415	-	XF1817	-	3-oxoacyl-(acyl carrier protein) synthase III
1811	 53.33	0	1732585..1734144	-	519	15838416	-	XF1818	-	2-isopropylmalate synthase
1812	 55.38	0	1734199..1735341	-	380	15838417	-	XF1819	-	threonine dehydratase
1813	 55.28	0	1735369..1735614	-	81	15838418	-	XF1820	-	hypothetical protein
1814	 54.79	0	1735598..1737349	-	583	15838419	-	XF1821	-	acetolactate synthase 2 catalytic subunit
1815	 50.34	0	1737396..1738412	-	338	77747564	-	XF1822	-	ketol-acid reductoisomerase
1816	 49.45	0	1739055..1741238	-	727	15838421	-	XF1823	-	tail-specific protease
1817	 39.51	-2	1741403..1741564	-	53	15838422	-	XF1824	-	hypothetical protein
1818	 53.75	0	1741620..1742618	-	332	15838423	-	XF1825	-	NAD(P)H steroid dehydrogenase
1819	 51.96	0	1742668..1742871	+	67	15838424	-	XF1826	-	hypothetical protein
1820	 49.54	0	1742868..1743299	-	143	15838425	-	XF1827	-	organic hydroperoxide resistance protein
1821	 48.60	0	1743487..1744704	-	405	15838426	-	XF1828	-	ATPase
1822	 50.67	0	1744701..1745369	-	222	15838427	-	XF1829	-	hypothetical protein
1823	 53.80	0	1745528..1746856	-	442	15838428	-	XF1830	-	nitrile hydratase activator
1824	 49.88	0	1747175..1748026	-	283	15838429	purU	XF1831	-	formyltetrahydrofolate deformylase
1825	 52.93	0	1748175..1748822	+	215	15838430	-	XF1832	-	hypothetical protein
1826	 52.08	0	1748819..1750477	+	552	15838431	ubiB	XF1833	-	putative ubiquinone biosynthesis protein UbiB
1827	 49.46	0	1750667..1751131	-	154	15838432	-	XF1834	-	disulphide isomerase
1828	 50.41	0	1751330..1752535	-	401	77747565	-	XF1835	-	trans-2-enoyl-CoA reductase
1829	 51.17	0	1752957..1753511	-	184	15838434	-	XF1836	-	hypothetical protein
1830	 53.52	0	1753508..1754359	-	283	15838435	-	XF1837	-	hypothetical protein
1831	 56.88	0	1754397..1755326	-	309	15838436	-	XF1838	-	hypothetical protein
1832	 51.63	0	1755510..1755755	-	81	15838437	-	XF1839	-	hypothetical protein
1833	 50.28	0	1755823..1756536	+	237	15838438	-	XF1840	-	hypothetical protein
1834	 49.75	0	1756687..1757472	-	261	77747566	uppP	XF1841	-	undecaprenyl pyrophosphate phosphatase
1835	 49.50	0	1757590..1759104	+	504	15838440	-	XF1842	-	glutamine synthetase
1836	 45.13	-1	1759358..1759696	+	112	15838441	-	XF1843	-	nitrogen regulatory protein P-II
1837	 49.56	0	1759686..1761164	+	492	15838442	-	XF1844	-	ammonium transporter
1838	 49.38	0	1761182..1761667	-	161	15838443	-	XF1845	-	hypothetical protein
1839	 58.48	+1	1761703..1761873	-	56	15838444	-	XF1846	-	hypothetical protein
1840	 56.57	0	1761950..1762048	+	32	15838445	-	XF1847	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
