IslandPath Analysis: Xylella fastidiosa 9a5c

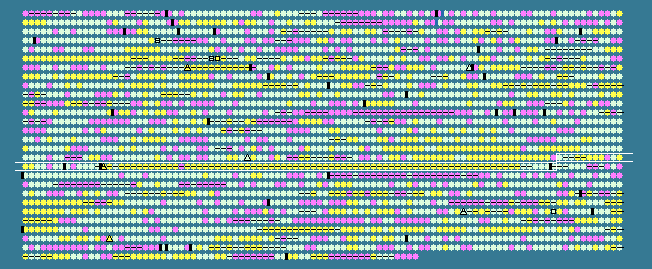

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 52.19   STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1690	 51.85	0	1620400..1620588	+	62	15838295	-	XF1694	-	hypothetical protein
1691	 49.71	0	1620593..1620763	-	56	15838296	-	XF1695	-	hypothetical protein
1692	 50.17	0	1621075..1621371	-	98	15838297	-	XF1696	-	hypothetical protein
1693	 61.74	+1	1621413..1622183	+	256	15838298	-	XF1697	-	hypothetical protein
1694	 59.12	+1	1622183..1622500	+	105	15838299	-	XF1698	-	hypothetical protein
1695	 58.12	0	1622497..1623327	+	276	15838300	-	XF1699	-	hypothetical protein
1696	 60.28	+1	1623324..1623965	+	213	15838301	-	XF1700	-	hypothetical protein
1697	 64.97	+2	1623962..1624315	+	117	15838302	-	XF1701	-	hypothetical protein
1698	 46.41	0	1624326..1624631	-	101	15838303	-	XF1702	-	hypothetical protein
1699	 51.78	0	1624628..1624936	-	102	15838304	-	XF1703	-	hypothetical protein
1700	 58.08	0	1625011..1626174	+	387	15838305	-	XF1704	-	hypothetical protein
1701	 57.93	0	1626171..1626731	+	186	15838306	-	XF1705	-	hypothetical protein
1702	 56.53	0	1626735..1627898	+	387	15838307	-	XF1706	-	phage-related tail fiber protein
1703	 50.42	0	1627931..1628410	-	159	15838308	-	XF1707	-	hypothetical protein
1704	 51.70	0	1628444..1629559	-	371	15838309	-	XF1708	-	hypothetical protein
1705	 45.70	-1	1629575..1629865	-	96	15838310	-	XF1709	-	hypothetical protein
1706	 54.05	0	1630176..1630508	+	110	15838311	-	XF1710	-	hypothetical protein
1707	 53.11	0	1630703..1631056	+	117	15838312	-	XF1711	-	hypothetical protein
1708	 49.11	0	1631811..1632761	-	316	15838313	-	XF1712	-	hypothetical protein
1709	 46.43	0	1632834..1633169	-	111	15838314	-	XF1713	-	hypothetical protein
1710	 50.46	0	1633153..1633695	-	180	15838315	-	XF1714	-	hypothetical protein
1711	 49.76	0	1633684..1634505	+	273	15838316	mtgA	XF1715	-	monofunctional biosynthetic peptidoglycan transglycosylase
1712	 54.61	0	1634849..1637560	+	903	15838317	-	XF1716	-	DNA mismatch repair protein
1713	 52.18	0	1637597..1638397	-	266	15838318	-	XF1717	-	hypothetical protein
1714	 65.34	+2	1638946..1640907	+	653	15838319	-	XF1718	-	phage-related integrase
1715	 62.16	+1	1640956..1641621	-	221	15838320	-	XF1719	-	hypothetical protein
1716	 54.40	0	1641630..1642004	+	124	15838321	-	XF1720	-	hypothetical protein
1717	 63.36	+1	1642019..1642411	-	130	15838322	-	XF1721	-	hypothetical protein
1718	 61.07	+1	1642422..1642814	-	130	15838323	-	XF1722	-	hypothetical protein
1719	 65.47	+2	1642983..1644065	-	360	77747559	-	XF1723	-	sugar-phosphate dehydrogenase
1720	 63.13	+1	1644305..1645294	-	329	15838325	-	XF1724	-	sugar-phosphate dehydrogenase
1721	 67.47	+2	1645362..1645610	-	82	15838326	-	XF1725	-	hypothetical protein
1722	 68.10	+2	1645626..1646393	-	255	15838327	-	XF1726	-	2,5-dichloro-2,5-cyclohexadiene-1,4-diol dehydrogenase
1723	 64.88	+2	1646577..1647638	-	353	15838328	-	XF1727	-	NADP-alcohol dehydrogenase
1724	 69.58	+2	1647681..1648880	-	399	77747560	-	XF1728	-	transport protein
1725	 67.01	+2	1649021..1649896	-	291	15838330	-	XF1729	-	phenylacetaldehyde dehydrogenase
1726	 70.93	+2	1650033..1650923	-	296	15838331	-	XF1730	-	LysR family transcriptional regulator
1727	 48.33	0	1650909..1651088	+	59	15838332	-	XF1731	-	hypothetical protein
1728	 65.85	+2	1651143..1652249	+	368	15838333	-	XF1732	-	NAD(P)H-dependent 2-cyclohexen-1-one reductase
1729	 66.67	+2	1652388..1652966	+	192	15838334	-	XF1733	-	tryptophan repressor binding protein
1730	 68.39	+2	1652981..1654027	+	348	15838335	-	XF1734	-	NADP-alcohol dehydrogenase
1731	 70.39	+2	1654062..1655135	+	357	15838336	-	XF1735	-	hypothetical protein
1732	 64.90	+2	1655213..1655608	+	131	15838337	-	XF1736	-	hypothetical protein
1733	 71.33	+2	1655625..1656353	-	242	15838338	-	XF1737	-	hypothetical protein
1734	 68.93	+2	1656364..1657689	-	441	15838339	-	XF1738	-	hypothetical protein
1735	 68.74	+2	1657690..1658847	-	385	15838340	-	XF1739	-	outer membrane protein
1736	 70.69	+2	1658850..1660067	-	405	15838341	-	XF1740	-	glucose dehydrogenase B
1737	 70.73	+2	1660130..1661014	-	294	15838342	-	XF1741	-	daunorubicin C-13 ketoreductase
1738	 68.81	+2	1661083..1662153	-	356	15838343	-	XF1742	-	hypothetical protein
1739	 69.70	+2	1662185..1663240	-	351	15838344	-	XF1743	-	esterase
1740	 65.05	+2	1663245..1663988	-	247	15838345	-	XF1744	-	oxidoreductase
1741	 61.46	+1	1664020..1665036	-	338	15838346	-	XF1745	-	hypothetical protein
1742	 67.62	+2	1665101..1666150	-	349	15838347	-	XF1746	-	alcohol dehydrogenase
1743	 67.13	+2	1666171..1666812	-	213	15838348	-	XF1747	-	hypothetical protein
1744	 65.41	+2	1666809..1667522	-	237	15838349	-	XF1748	-	5-amino-6-(5-phosphoribosylamino)uracil reductase
1745	 68.46	+2	1667542..1668771	-	409	15838350	-	XF1749	-	transcriptional regulator
1746	 66.48	+2	1668885..1669928	-	347	77747561	-	XF1750	-	hypothetical protein
1747	 68.85	+2	1670047..1670550	-	167	15838352	-	XF1751	-	hypothetical protein
1748	 65.33	+2	1670660..1671634	+	324	15838353	-	XF1752	-	LysR family transcriptional regulator
1749	 67.59	+2	1671676..1673526	-	616	15838354	-	XF1753	-	hypothetical protein
1750	 66.35	+2	1673842..1674468	+	208	15838355	-	XF1754	-	hypothetical protein
1751	 65.08	+2	1674481..1675110	+	209	15838356	-	XF1755	-	hypothetical protein
1752	 67.12	+2	1675195..1675413	+	72	15838357	-	XF1756	-	hypothetical protein
1753	 58.62	+1	1675818..1676078	-	86	15838358	-	XF1757	-	hypothetical protein
1754	 65.44	+2	1676095..1676502	-	135	15838359	-	XF1758	-	hypothetical protein
1755	 63.58	+1	1676603..1676926	-	107	15838360	-	XF1759	-	hypothetical protein
1756	 65.61	+2	1677021..1677683	-	220	15838361	-	XF1760	-	hypothetical protein
1757	 66.11	+2	1677741..1678643	-	300	77747562	-	XF1761	-	hypothetical protein
1758	 71.18	+2	1678907..1679416	-	169	77747563	-	XF1762	-	hypothetical protein
1759	 67.38	+2	1679422..1680264	-	280	15838364	-	XF1763	-	hypothetical protein
1760	 65.54	+2	1680412..1680765	-	117	15838365	-	XF1764	-	hypothetical protein
1761	 72.30	+2	1681958..1683376	-	472	15838366	-	XF1765	-	drug:proton antiporter
1762	 70.37	+2	1683408..1684190	-	260	15838367	-	XF1766	-	hypothetical protein
1763	 67.60	+2	1684178..1685248	+	356	15838368	-	XF1767	-	hypothetical protein
1764	 67.41	+2	1685230..1686171	+	313	15838369	-	XF1768	-	LysR family transcriptional regulator
1765	 64.33	+1	1686247..1687188	+	313	15838370	-	XF1769	-	hypothetical protein
1766	 61.62	+1	1687397..1688287	+	296	15838371	-	XF1770	-	hypothetical protein
1767	 61.83	+1	1688250..1688642	-	130	15838372	-	XF1771	-	hypothetical protein
1768	 64.23	+1	1688664..1689074	-	136	15838373	-	XF1772	-	hypothetical protein
1769	 65.09	+2	1689210..1689968	-	252	15838374	-	XF1773	-	hypothetical protein
1770	 60.44	+1	1690011..1694029	-	537	15838375	-	XF1774	-	DNA methyltransferase
1771	 66.77	+2	1694565..1696424	-	619	15838376	-	XF1776	-	DNA topoisomerase I
1772	 65.50	+2	1696611..1696781	+	56	15838377	-	XF1777	-	hypothetical protein
1773	 67.33	+2	1696852..1697304	-	150	15838378	-	XF1778	-	single-strand DNA-binding protein
1774	 63.67	+1	1697378..1697911	-	177	15838379	-	XF1779	-	hypothetical protein
1775	 67.87	+2	1697908..1698657	-	249	15838380	-	XF1780	-	hypothetical protein
1776	 66.11	+2	1698842..1700098	-	418	15838381	-	XF1781	-	hypothetical protein
1777	 63.99	+1	1700095..1700655	-	186	15838382	-	XF1782	-	hypothetical protein
1778	 68.54	+2	1700671..1701579	-	302	15838383	-	XF1783	-	hypothetical protein
1779	 65.88	+2	1701566..1702327	-	253	15838384	-	XF1784	-	hypothetical protein
1780	 67.81	+2	1702552..1703427	-	291	15838385	-	XF1785	-	chromosome partitioning related protein
1781	 61.71	+1	1703470..1703691	-	73	15838386	-	XF1786	-	hypothetical protein
1782	 62.96	+1	1703801..1704556	-	251	15838387	-	XF1787	-	hypothetical protein
1783	 59.92	+1	1704782..1705285	-	167	15838388	-	XF1788	-	hypothetical protein
1784	 49.69	0	1705455..1705613	-	52	15838389	-	XF1789	-	hypothetical protein
1785	 50.00	0	1705668..1705781	+	37	15838390	-	XF1790	-	hypothetical protein
1786	 51.89	0	1706002..1706265	+	87	15838391	-	XF1791	-	fimbrillin
1787	 55.44	0	1706262..1706546	+	94	15838392	-	XF1792	-	hypothetical protein
1788	 55.02	0	1706753..1707061	-	102	15838393	-	XF1793	-	hypothetical protein
1789	 49.12	0	1707749..1708375	-	208	15838394	-	XF1794	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
