IslandPath Analysis: Xylella fastidiosa 9a5c

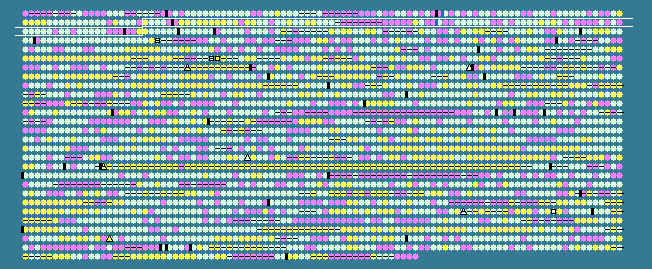

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
121	 58.82	+1	117045..118076	+	343	15836726	-	XF0121	-	hypothetical protein
122	 51.79	0	118513..119184	+	223	15836727	-	XF0122	-	LexA repressor
123	 51.92	0	119366..120409	+	347	15836728	recA	XF0123	-	recombinase A
124	 52.82	0	120812..123562	+	916	15836729	alaS	XF0124	-	alanyl-tRNA synthetase
125	 48.15	0	123701..123916	+	71	161378179	-	XF0125	-	carbon storage regulator
126	 37.22	-2	124421..124600	+	59	15836731	-	XF0126	-	hypothetical protein
127	 56.84	0	125027..127051	-	674	15836732	-	XF0127	-	oligopeptidase A
128	 56.86	0	127111..128283	-	390	15836733	-	XF0128	-	cysteine synthase
129	 51.52	0	128287..128484	+	65	15836734	-	XF0129	-	hypothetical protein
130	 59.06	+1	128544..128714	-	56	15836735	-	XF0130	-	hypothetical protein
131	 59.52	+1	128737..129114	+	125	77747488	-	XF0131	-	hypothetical protein
132	 58.39	0	129202..131037	+	611	15836737	-	XF0132	-	copper resistance protein A precursor
133	 60.10	+1	131034..132008	+	324	15836738	-	XF0133	-	copper resistance protein B precursor
134	 59.50	+1	132265..135249	-	994	15836739	valS	XF0134	-	valyl-tRNA synthetase
135	 53.85	0	135299..135493	-	64	15836740	-	XF0135	-	hypothetical protein
136	 61.50	+1	135537..135962	-	141	15836741	-	XF0136	-	DNA polymerase III subunit chi
137	 44.02	-1	135962..136429	-	155	15836742	-	XF0137	-	hypothetical protein
138	 61.86	+1	136408..137883	-	491	15836743	-	XF0138	-	leucyl aminopeptidase
139	 56.35	0	137993..139078	+	361	15836744	-	XF0139	-	hypothetical protein
140	 53.39	0	139075..140181	+	368	15836745	-	XF0140	-	hypothetical protein
141	 54.04	0	141125..142954	+	609	15836746	-	XF0141	-	D-fructose-6-phosphate amidotransferase
142	 36.50	-2	143187..144386	+	399	15836747	-	XF0142	-	hypothetical protein
143	 52.68	0	144696..145553	-	285	15836748	-	XF0143	-	spermidine synthase
144	 54.11	0	145789..147675	+	628	15836749	-	XF0144	-	arginine decarboxylase
145	 57.28	0	147702..148457	-	251	15836750	-	XF0145	-	oxidoreductase
146	 54.75	0	148592..149338	-	248	77747489	-	XF0146	-	hypothetical protein
147	 53.66	0	149378..151138	-	586	15836752	argS	XF0147	-	arginyl-tRNA synthetase
148	 57.08	0	151195..151893	-	232	15836753	radC	XF0148	-	DNA repair protein RadC
149	 55.85	0	151968..153197	+	409	15836754	-	XF0149	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
150	 54.06	0	153194..153661	+	155	15836755	dut	XF0150	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
151	 51.90	0	154644..156038	+	464	77747490	-	XF0151	-	phosphomannomutase
152	 51.66	0	156052..156624	-	190	15836757	-	XF0152	-	hypothetical protein
153	 54.09	0	156755..157414	-	219	15836758	pyrE	XF0153	-	orotate phosphoribosyltransferase
154	 44.23	-1	157666..158133	-	155	15836759	-	XF0154	-	hypothetical protein
155	 34.23	-2	158177..159064	+	295	15836760	-	XF0155	-	hypothetical protein
156	 42.28	-1	159327..160142	-	271	15836761	-	XF0156	-	cysteine protease
157	 48.44	0	160688..160879	-	63	15836762	-	XF0157	-	hypothetical protein
158	 44.65	-1	161214..161372	+	52	15836763	-	XF0158	-	hypothetical protein
159	 43.02	-1	161369..161719	+	116	15836764	-	XF0159	-	hypothetical protein
160	 43.96	-1	161774..162328	+	184	15836765	-	XF0160	-	hypothetical protein
161	 44.56	-1	162520..164328	+	602	15836766	-	XF0161	-	hypothetical protein
162	 41.48	-1	164426..164560	-	44	15836767	-	XF0162	-	hypothetical protein
163	 44.79	-1	164881..164976	+	31	15836768	-	XF0163	-	hypothetical protein
164	 48.44	0	165137..165937	+	266	15836769	-	XF0164	-	exodeoxyribonuclease
165	 48.30	0	165934..167463	+	509	15836770	-	XF0165	-	beta-lactamase induction signal transducer protein
166	 56.98	0	167622..168767	-	381	15836771	anmK	XF0166	-	anhydro-N-acetylmuramic acid kinase
167	 49.86	0	168828..170243	-	471	77747491	-	XF0167	-	hypothetical protein
168	 41.88	-1	170178..170294	+	38	15836773	-	XF0168	-	hypothetical protein
169	 47.18	0	170444..171700	+	418	15836774	-	XF0169	-	tyrosyl-tRNA synthetase
170	 52.33	0	177524..178339	+	271	15836775	-	XF0170	-	formamidopyrimidine-DNA glycosylase
171	 47.11	0	178471..179319	-	282	15836776	-	XF0171	-	hypothetical protein
172	 43.92	-1	179767..181674	+	635	77747492	-	XF0172	-	hypothetical protein
173	 50.93	0	182075..182830	-	251	15836778	fabG	XF0173	-	3-ketoacyl-(acyl-carrier-protein) reductase
174	 49.61	0	183329..184975	+	548	15836779	prfC	XF0174	-	peptide chain release factor 3
175	 50.39	0	185058..185702	+	214	15836780	-	XF0175	-	hemolysin III protein
176	 51.28	0	185927..187063	-	378	15836781	-	XF0176	-	sugar transferase
177	 52.11	0	187211..187993	-	260	15836782	-	XF0177	-	hypothetical protein
178	 49.10	0	188341..189114	+	257	15836783	-	XF0178	-	hypothetical protein
179	 48.39	0	189124..189216	+	30	15836784	-	XF0179	-	hypothetical protein
180	 45.45	-1	189953..190414	+	153	15836785	-	XF0180	-	hypothetical protein
181	 48.74	0	191779..192174	-	131	161378178	-	XF0181	-	glycine cleavage system protein H
182	 47.41	0	192282..192416	-	44	15836787	-	XF0182	-	hypothetical protein
183	 51.67	0	192696..193802	-	368	15836788	gcvT	XF0183	-	glycine cleavage system aminomethyltransferase T
184	 51.49	0	193945..194379	-	144	15836789	-	XF0184	-	hypothetical protein
185	 51.08	0	194380..195393	-	337	15836790	-	XF0185	-	hypothetical protein
186	 53.84	0	195671..196504	-	277	15836791	mazG	XF0186	-	nucleoside triphosphate pyrophosphohydrolase
187	 56.30	0	196538..197338	-	266	77747493	-	XF0187	-	sulfite synthesis pathway protein
188	 54.66	0	197335..197892	-	185	15836793	nudE	XF0188	-	ADP-ribose diphosphatase NudE
189	 55.85	0	197922..199382	+	486	15836794	-	XF0189	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
190	 53.47	0	199373..200107	+	244	15836795	-	XF0190	-	hypothetical protein
191	 29.63	-2	200292..200399	-	35	15836796	-	XF0191	-	hypothetical protein
192	 52.27	0	201673..203013	+	446	15836797	-	XF0192	-	ATP-dependent RNA helicase
193	 48.66	0	203079..203450	+	123	15836798	-	XF0193	-	6-pyruvoyl tetrahydrobiopterin synthase
194	 38.99	-2	203611..203769	+	52	15836799	-	XF0194	-	hypothetical protein
195	 45.59	-1	203937..204140	+	67	15836800	-	XF0195	-	hypothetical protein
196	 45.52	-1	204523..205047	-	174	15836801	-	XF0196	-	hypothetical protein
197	 52.94	0	205540..206202	+	220	15836802	-	XF0197	-	hypothetical protein
198	 39.39	-2	206470..206634	+	54	15836803	-	XF0198	-	hypothetical protein
199	 54.52	0	206814..207521	-	235	15836804	-	XF0199	-	hypothetical protein
200	 38.54	-2	207720..207815	-	31	15836805	-	XF0200	-	hypothetical protein
201	 53.00	0	207957..208556	-	199	15836806	-	XF0201	-	hypothetical protein
202	 53.86	0	208621..209073	+	150	15836807	-	XF0202	-	hypothetical protein
203	 52.29	0	209239..210198	-	319	15836808	-	XF0203	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
204	 54.66	0	210293..213874	-	1193	77747494	dnaE	XF0204	-	DNA polymerase III subunit alpha
205	 54.80	0	214163..215089	-	308	15836810	hemH	XF0205	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
206	 46.08	0	215170..215271	-	33	15836811	-	XF0206	-	hypothetical protein
207	 52.38	0	215580..215957	+	125	15836812	-	XF0207	-	hypothetical protein
208	 52.83	0	216002..216673	+	223	77747495	-	XF0208	-	ribulose-phosphate 3-epimerase
209	 44.61	-1	217032..217439	-	135	15836814	-	XF0209	-	hypothetical protein
210	 51.71	0	217584..219047	+	487	15836815	-	XF0210	-	anthranilate synthase component I
211	 49.40	0	219202..219786	+	194	15836816	-	XF0211	-	anthranilate synthase component II
212	 53.72	0	219855..220889	+	344	15836817	-	XF0212	-	anthranilate phosphoribosyltransferase
213	 50.69	0	220968..221762	+	264	15836818	trpC	XF0213	-	indole-3-glycerol-phosphate synthase
214	 52.70	0	221759..222481	+	240	15836819	-	XF0214	-	hypothetical protein
215	 46.78	0	223150..223320	-	56	15836820	-	XF0215	-	hypothetical protein
216	 43.39	-1	223451..223957	+	168	15836821	-	XF0216	-	MarR family transcriptional regulator
217	 47.44	0	224149..224304	-	51	15836822	-	XF0217	-	hypothetical protein
218	 39.39	-2	225250..225348	+	32	15836823	-	XF0218	-	hypothetical protein
219	 47.89	0	225511..225723	-	70	15836824	-	XF0219	-	hypothetical protein
220	 56.86	0	225879..227081	+	400	15836825	-	XF0220	-	proline dipeptidase
52.19	MEAN

6.22	STD DEV
