IslandPathversion 1.0

IslandPath Analysis: Xylella fastidiosa 9a5c

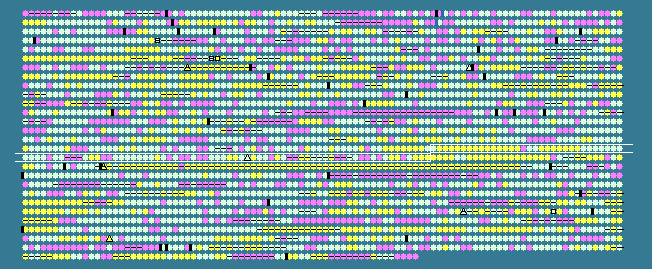

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1569	 53.39	0	1525117..1525455	-	112	15838174	-	XF1573	-	hypothetical protein
1570	 62.41	+1	1525528..1526373	+	281	15838175	-	XF1574	-	plasmid-related protein
1571	 63.40	+1	1526370..1527563	+	397	15838176	-	XF1575	-	hypothetical protein
1572	 60.25	+1	1527591..1528073	+	160	15838177	-	XF1576	-	hypothetical protein
1573	 57.52	0	1528083..1529066	+	327	15838178	-	XF1577	-	hypothetical protein
1574	 62.33	+1	1529130..1529429	+	99	15838179	-	XF1578	-	hypothetical protein
1575	 62.13	+1	1529432..1529806	+	124	15838180	-	XF1579	-	hypothetical protein
1576	 63.71	+1	1529803..1530276	+	157	15838181	-	XF1580	-	hypothetical protein
1577	 56.69	0	1530257..1530637	+	126	15838182	-	XF1581	-	hypothetical protein
1578	 63.48	+1	1530624..1531094	+	156	15838183	-	XF1582	-	hypothetical protein
1579	 58.05	0	1531095..1532591	+	498	15838184	-	XF1583	-	hypothetical protein
1580	 57.53	0	1532601..1533038	+	145	15838185	-	XF1584	-	hypothetical protein
1581	 60.05	+1	1533035..1533457	+	140	15838186	-	XF1585	-	hypothetical protein
1582	 59.39	+1	1533484..1533648	+	54	15838187	-	XF1586	-	hypothetical protein
1583	 63.02	+1	1533605..1535494	+	629	77747555	-	XF1587	-	hypothetical protein
1584	 48.48	0	1535977..1536306	-	109	15838189	-	XF1588	-	hypothetical protein
1585	 51.75	0	1536445..1536873	-	142	15838190	-	XF1589	-	plasmid stabilization protein
1586	 50.96	0	1536874..1537134	-	86	15838191	-	XF1590	-	plasmid stabilization protein
1587	 61.61	+1	1537240..1538010	+	256	15838192	-	XF1591	-	hypothetical protein
1588	 59.12	+1	1538010..1538327	+	105	15838193	-	XF1592	-	hypothetical protein
1589	 58.60	+1	1538324..1539154	+	276	15838194	-	XF1593	-	hypothetical protein
1590	 58.41	+1	1539151..1539792	+	213	15838195	-	XF1594	-	hypothetical protein
1591	 64.41	+1	1539789..1540142	+	117	15838196	-	XF1595	-	hypothetical protein
1592	 62.00	+1	1540198..1540497	-	99	15838197	-	XF1596	-	hypothetical protein
1593	 58.59	+1	1540494..1540790	-	98	15838198	-	XF1597	-	hypothetical protein
1594	 53.01	0	1540893..1541075	+	60	15838199	-	XF1598	-	hypothetical protein
1595	 51.95	0	1541057..1541287	+	76	15838200	-	XF1599	-	hypothetical protein
1596	 52.15	0	1541391..1541948	-	185	15838201	-	XF1600	-	hypothetical protein
1597	 51.02	0	1542079..1543056	-	325	15838202	-	XF1601	-	hypothetical protein
1598	 52.93	0	1543053..1543904	-	283	15838203	-	XF1602	-	ABC transporter ATP-binding protein
1599	 54.32	0	1544147..1544308	+	53	15838204	-	XF1603	-	hypothetical protein
1600	 51.11	0	1544674..1545258	+	194	15838205	-	XF1604	-	ABC transporter vitamin B12 uptake permease
1601	 52.48	0	1545976..1546863	+	295	15838206	-	XF1605	-	peptidyl-prolyl cis-trans isomerase
1602	 50.11	0	1546888..1548240	+	450	15838207	-	XF1606	-	UDP-glucose dehydrogenase
1603	 49.37	0	1548233..1548469	+	78	15838208	-	XF1607	-	hypothetical protein
1604	 52.52	0	1548515..1549150	+	211	15838209	-	XF1608	-	hypothetical protein
1605	 47.78	0	1550004..1551284	+	426	15838210	-	XF1609	-	glucose/galactose transporter
1606	 51.52	0	1551281..1552297	+	338	15838211	-	XF1610	-	fructokinase
1607	 52.49	0	1552294..1553499	+	401	15838212	-	XF1611	-	hypothetical protein
1608	 33.33	-2	1553568..1553720	-	50	15838213	-	XF1612	-	hypothetical protein
1609	 37.22	-2	1553692..1553871	+	59	15838214	-	XF1613	-	hypothetical protein
1610	 44.71	-1	1553877..1555361	-	494	15838215	-	XF1614	-	penicillin binding protein
1611	 50.00	0	1556082..1556207	-	41	15838216	-	XF1615	-	hypothetical protein
1612	 56.67	0	1556201..1556320	-	39	15838217	-	XF1616	-	hypothetical protein
1613	 56.56	0	1556498..1557427	-	309	15838218	-	XF1617	-	hypothetical protein
1614	 43.33	-1	1557573..1557782	-	69	15838219	-	XF1618	-	hypothetical protein
1615	 44.23	-1	1557944..1558099	+	51	15838220	-	XF1619	-	hypothetical protein
1616	 54.77	0	1558579..1559469	+	296	15838221	-	XF1620	-	hypothetical protein
1617	 53.14	0	1559596..1560963	-	455	15838222	-	XF1621	-	beta-lactamase
1618	 50.60	0	1561665..1561832	-	55	15838223	-	XF1622	-	hypothetical protein
1619	 52.70	0	1562455..1564359	+	634	77747556	-	XF1623	-	glucosyltransferase MdoH
1620	 53.48	0	1564388..1565062	+	224	15838225	-	XF1624	-	carboxylesterase
1621	 51.59	0	1565076..1566116	+	346	15838226	-	XF1625	-	two-component system, sensor protein
1622	 50.46	0	1566142..1566900	+	252	15838227	-	XF1626	-	two-component system, regulatory protein
1623	 56.21	0	1566917..1567834	+	305	15838228	hemC	XF1627	-	porphobilinogen deaminase
1624	 50.35	0	1567888..1568739	-	283	15838229	-	XF1628	-	hypothetical protein
1625	 47.66	0	1568994..1569356	-	120	15838230	-	XF1629	-	hypothetical protein
1626	 50.10	0	1569505..1570554	+	349	15838231	-	XF1630	-	hypothetical protein
1627	 45.75	-1	1570833..1570985	+	50	15838232	-	XF1631	-	hypothetical protein
1628	 46.77	0	1571071..1572201	-	376	15838233	-	XF1632	-	twitching motility protein
1629	 49.95	0	1572367..1573401	-	344	15838234	-	XF1633	-	twitching motility protein
1630	 41.92	-1	1573470..1573667	-	65	15838235	-	XF1634	-	hypothetical protein
1631	 45.74	-1	1573767..1573895	-	42	15838236	-	XF1635	-	hypothetical protein
1632	 49.64	0	1573991..1574266	-	91	15838237	-	XF1636	-	hypothetical protein
1633	 54.35	0	1574607..1575491	+	294	15838238	-	XF1637	-	glycosyl transferase
1634	 52.61	0	1576155..1576979	-	274	15838239	-	XF1638	-	dolichyl-phosphate mannose synthase related protein
1635	 55.83	0	1577752..1578951	-	399	15838240	-	XF1639	-	3-oxoacyl-(acyl carrier protein) synthase I
1636	 56.37	0	1579527..1582703	+	1058	15838241	-	XF1640	-	ankyrin-like protein
1637	 52.04	0	1583028..1585619	-	863	15838242	-	XF1641	-	hypothetical protein
1638	 53.24	0	1585980..1586999	-	339	15838243	-	XF1642	-	phage-related integrase
1639	 55.81	0	1586989..1587246	-	85	15838244	-	XF1643	-	hypothetical protein
1640	 54.17	0	1587265..1587720	-	151	15838245	-	XF1644	-	single-strand DNA-binding protein
1641	 54.98	0	1587790..1588422	-	210	77747557	-	XF1645	-	hypothetical protein
1642	 47.94	0	1588734..1589534	-	266	15838247	-	XF1646	-	UDP-3-O-(R-3-hydroxymyristoyl)-glucosamine N-acyltransferase
1643	 57.36	0	1589531..1591174	-	547	15838248	-	XF1647	-	hypothetical protein
1644	 53.94	0	1591171..1592097	-	308	15838249	-	XF1648	-	hypothetical protein
1645	 47.08	0	1592113..1592934	-	273	15838250	-	XF1649	-	hypothetical protein
1646	 46.93	0	1592955..1593329	-	124	15838251	-	XF1650	-	hypothetical protein
1647	 56.25	0	1593350..1593541	-	63	15838252	-	XF1651	-	hypothetical protein
1648	 58.33	0	1593565..1593756	-	63	15838253	-	XF1652	-	hypothetical protein
1649	 51.24	0	1593753..1594154	-	133	15838254	-	XF1653	-	hypothetical protein
1650	 52.07	0	1594154..1594612	-	152	15838255	-	XF1654	-	hypothetical protein
1651	 53.33	0	1594609..1595238	-	209	15838256	-	XF1655	-	hypothetical protein
1652	 57.67	0	1595546..1595734	+	62	15838257	-	XF1656	-	hypothetical protein
1653	 48.69	0	1595731..1596342	+	203	15838258	-	XF1657	-	cell filamentation protein
1654	 44.11	-1	1596393..1597088	-	231	15838259	-	XF1658	-	phage-related repressor protein
1655	 50.10	0	1597134..1598099	-	321	15838260	-	XF1659	-	hypothetical protein
1656	 52.94	0	1598115..1598267	+	50	15838261	-	XF1660	-	hypothetical protein
1657	 44.18	-1	1598264..1598512	+	82	15838262	-	XF1661	-	hypothetical protein
1658	 46.60	0	1598569..1598892	+	107	15838263	-	XF1662	-	hypothetical protein
1659	 54.19	0	1599063..1600208	+	381	15838264	-	XF1663	-	hypothetical protein
1660	 44.04	-1	1600187..1600513	+	108	15838265	-	XF1664	-	hypothetical protein
1661	 49.77	0	1600510..1601598	+	362	15838266	-	XF1665	-	hypothetical protein
1662	 58.45	+1	1602265..1602678	+	137	15838267	-	XF1666	-	hypothetical protein
1663	 65.96	+2	1603100..1603381	-	93	15838268	-	XF1667	-	hypothetical protein
1664	 44.08	-1	1603673..1604035	+	120	15838269	-	XF1668	-	HicB-related protein
1665	 54.41	0	1604183..1604794	+	203	15838270	-	XF1669	-	phage-related lysozyme
1666	 56.06	0	1604787..1605116	+	109	15838271	-	XF1670	-	hypothetical protein
1667	 59.31	+1	1605106..1605567	+	153	15838272	-	XF1671	-	hypothetical protein
1668	 64.10	+1	1605548..1605781	+	77	15838273	-	XF1672	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
