IslandPath Analysis: Xylella fastidiosa 9a5c

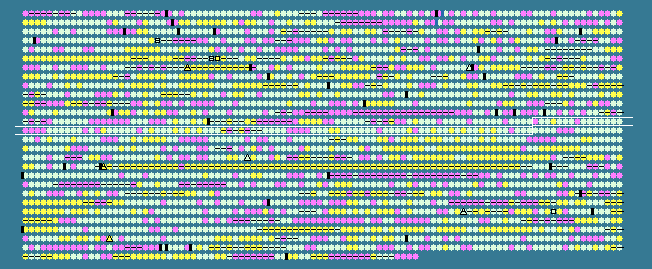

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1286	 47.88	0	1242366..1242530	+	54	15837891	-	XF1290	-	hypothetical protein
1287	 51.59	0	1242553..1243938	+	461	15837892	eno	XF1291	-	phosphopyruvate hydratase
1288	 54.06	0	1243942..1244298	+	118	15837893	ftsB	XF1292	-	cell division protein FtsB
1289	 57.90	0	1244295..1244990	+	231	15837894	ispD	XF1293	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
1290	 55.03	0	1245011..1245517	+	168	161378169	ispF	XF1294	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
1291	 54.51	0	1245760..1246302	-	180	15837896	-	XF1295	-	hypothetical protein
1292	 49.18	0	1246578..1246760	+	60	15837897	-	XF1296	-	hypothetical protein
1293	 42.97	-1	1246783..1247799	-	338	15837898	-	XF1297	-	gluconolactonase precursor
1294	 53.67	0	1247959..1249605	-	548	15837899	-	XF1298	-	electron transfer flavoprotein ubiquinone oxidoreductase
1295	 53.73	0	1249695..1250297	+	200	15837900	-	XF1299	-	DNA repair system specific for alkylated DNA
1296	 53.58	0	1250492..1251133	-	213	15837901	-	XF1300	-	hypothetical protein
1297	 52.86	0	1251130..1252056	-	308	15837902	-	XF1301	-	hypothetical protein
1298	 53.66	0	1252060..1252920	-	286	15837903	-	XF1302	-	ABC transporter ATP-binding protein
1299	 53.23	0	1252896..1254086	-	396	15837904	-	XF1303	-	hypothetical protein
1300	 53.37	0	1254124..1255386	+	420	15837905	-	XF1304	-	hypothetical protein
1301	 43.38	-1	1255566..1255784	+	72	15837906	-	XF1305	-	hypothetical protein
1302	 39.30	-2	1255840..1256040	+	66	15837907	-	XF1306	-	hypothetical protein
1303	 35.02	-2	1256059..1256295	-	78	15837908	-	XF1307	-	hypothetical protein
1304	 47.22	0	1258417..1258704	+	95	15837909	-	XF1308	-	hypothetical protein
1305	 54.59	0	1258846..1259955	+	369	15837910	-	XF1309	-	rod shape-determining protein
1306	 53.84	0	1260153..1261103	+	316	15837911	-	XF1310	-	rod shape-determining protein
1307	 53.91	0	1261100..1261585	+	161	15837912	-	XF1311	-	rod shape-determining protein
1308	 54.20	0	1261569..1263653	+	694	15837913	-	XF1312	-	penicillin binding protein 2
1309	 50.80	0	1263650..1264771	+	373	15837914	-	XF1313	-	rod shape-determining protein
1310	 50.86	0	1264867..1265910	+	347	15837915	queA	XF1314	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1311	 44.63	-1	1266370..1266546	+	58	15837916	-	XF1315	-	hypothetical protein
1312	 54.24	0	1266639..1268795	+	718	15837917	-	XF1316	-	ATP:GTP 3'-pyrophosphotranferase
1313	 48.21	0	1268807..1269001	+	64	15837918	-	XF1317	-	hypothetical protein
1314	 57.34	0	1268973..1270376	+	467	15837919	-	XF1318	-	hypothetical protein
1315	 54.04	0	1270898..1271404	-	168	15837920	-	XF1319	-	hypothetical protein
1316	 48.84	0	1271464..1271721	-	85	15837921	minE	XF1320	-	cell division topological specificity factor MinE
1317	 53.09	0	1271724..1272533	-	269	15837922	-	XF1321	-	septum site-determining protein
1318	 53.84	0	1272570..1273286	-	238	15837923	minC	XF1322	-	septum formation inhibitor
1319	 52.85	0	1273302..1273880	-	192	77747542	-	XF1323	-	hypothetical protein
1320	 47.90	0	1274283..1275470	+	395	15837925	-	XF1324	-	hypothetical protein
1321	 50.68	0	1275598..1275816	+	72	15837926	-	XF1325	-	hypothetical protein
1322	 55.76	0	1275868..1276518	+	216	15837927	-	XF1326	-	DNA-3-methyladenine glycosidase
1323	 51.23	0	1276861..1277430	-	189	15837928	-	XF1327	-	hypothetical protein
1324	 54.67	0	1277448..1278014	-	188	15837929	-	XF1328	-	cytochrome B561
1325	 53.05	0	1278027..1278731	-	234	15837930	-	XF1329	-	hypothetical protein
1326	 56.20	0	1278851..1282444	+	1197	15837931	-	XF1330	-	hypothetical protein
1327	 54.90	0	1283039..1283140	-	33	15837932	-	XF1331	-	hypothetical protein
1328	 58.69	+1	1283186..1284250	-	354	15837933	hemE	XF1332	-	uroporphyrinogen decarboxylase
1329	 52.94	0	1284335..1284589	-	84	15837934	-	XF1333	-	hypothetical protein
1330	 58.99	+1	1284586..1285770	-	394	15837935	aroB	XF1334	-	3-dehydroquinate synthase
1331	 54.88	0	1285767..1286309	-	180	15837936	aroK	XF1335	-	shikimate kinase
1332	 50.70	0	1286325..1286537	-	70	15837937	-	XF1336	-	hypothetical protein
1333	 55.18	0	1286542..1287168	+	208	15837938	-	XF1337	-	pyridoxamine 5'-phosphate oxidase
1334	 56.17	0	1287414..1289156	-	580	15837939	-	XF1338	-	glutaminyl-tRNA synthetase
1335	 46.06	0	1289263..1289427	+	54	15837940	-	XF1339	-	hypothetical protein
1336	 50.32	0	1289545..1289856	+	103	15837941	-	XF1340	-	hypothetical protein
1337	 59.70	+1	1289853..1290656	+	267	15837942	-	XF1341	-	copper homeostasis protein
1338	 41.44	-1	1290764..1290874	+	36	15837943	-	XF1342	-	hypothetical protein
1339	 51.85	0	1290910..1291206	+	98	15837944	-	XF1343	-	hypothetical protein
1340	 53.53	0	1291349..1292368	+	339	15837945	-	XF1344	-	ABC transporter sulfate binding protein
1341	 53.66	0	1292372..1293232	+	286	15837946	-	XF1345	-	ABC transporter sulfate permease
1342	 53.44	0	1293229..1294188	+	319	15837947	-	XF1346	-	ABC transporter sulfate permease
1343	 55.49	0	1294202..1295248	+	348	15837948	-	XF1347	-	sulfate ABC transporter ATP-binding protein
1344	 51.52	0	1295470..1296420	-	316	15837949	-	XF1348	-	lipid A biosynthesis lauroyl acyltransferase
1345	 43.65	-1	1296448..1296573	-	41	15837950	-	XF1349	-	hypothetical protein
1346	 46.90	0	1296789..1298645	+	618	15837951	-	XF1350	-	RNA polymerase sigma factor RpoD
1347	 43.41	-1	1298657..1298785	-	42	15837952	-	XF1351	-	hypothetical protein
1348	 38.51	-2	1298988..1299161	+	57	15837953	-	XF1352	-	hypothetical protein
1349	 54.58	0	1299220..1301469	-	749	15837954	-	XF1353	-	DNA topoisomerase IV subunit A
1350	 51.14	0	1301820..1302257	+	145	15837955	-	XF1354	-	MarR family transcriptional regulator
1351	 51.17	0	1302815..1303027	+	70	15837956	-	XF1355	-	hypothetical protein
1352	 56.90	0	1303045..1303812	-	255	15837957	-	XF1356	-	biotin biosynthesis protein
1353	 58.87	+1	1303957..1305162	-	401	15837958	-	XF1357	-	8-amino-7-oxononanoate synthase
1354	 52.92	0	1305215..1305694	+	159	15837959	-	XF1358	-	hypothetical protein
1355	 55.41	0	1305725..1306888	+	387	15837960	-	XF1359	-	hypothetical protein
1356	 51.86	0	1306885..1307796	+	303	15837961	-	XF1360	-	protoheme IX farnesyltransferase
1357	 52.38	0	1308465..1309304	+	279	15837962	-	XF1361	-	hypothetical protein
1358	 54.76	0	1309661..1310911	-	416	15837963	cca	XF1362	-	multifunctional tRNA nucleotidyl transferase/2'3'-cyclic phosphodiesterase/2'nucleotidase/phosphatase
1359	 54.62	0	1311004..1313136	-	710	15837964	-	XF1363	-	soluble lytic murein transglycosylase precursor
1360	 42.95	-1	1313126..1313281	-	51	15837965	-	XF1364	-	hypothetical protein
1361	 54.31	0	1313682..1314563	-	293	15837966	-	XF1365	-	phosphatidylserine decarboxylase
1362	 52.49	0	1314560..1314940	-	126	15837967	-	XF1366	-	hypothetical protein
1363	 54.25	0	1314918..1315070	-	50	15837968	-	XF1367	-	hypothetical protein
1364	 55.02	0	1315140..1316066	+	308	77747543	-	XF1368	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
1365	 55.91	0	1316072..1317196	+	374	15837970	-	XF1369	-	chorismate synthase
1366	 45.28	-1	1317281..1317439	+	52	15837971	-	XF1370	-	hypothetical protein
1367	 52.27	0	1317583..1318617	+	344	15837972	-	XF1371	-	aspartate-semialdehyde dehydrogenase
1368	 55.56	0	1318655..1320571	+	638	15837973	-	XF1372	-	hypothetical protein
1369	 56.98	0	1320613..1321386	+	257	15837974	truA	XF1373	-	tRNA pseudouridine synthase A
1370	 55.07	0	1321356..1322045	+	229	15837975	-	XF1374	-	N-(5'-phosphoribosyl)anthranilate isomerase
1371	 55.34	0	1322546..1323763	+	405	77747544	-	XF1375	-	tryptophan synthase subunit beta
1372	 58.74	+1	1323889..1324695	+	268	15837977	trpA	XF1376	-	tryptophan synthase subunit alpha
1373	 51.71	0	1324700..1324933	+	77	15837978	-	XF1377	-	hypothetical protein
1374	 56.90	0	1324927..1326318	-	463	15837979	-	XF1378	-	DNA repair protein RadA
1375	 55.07	0	1326516..1327481	+	321	15837980	-	XF1379	-	luciferase
1376	 54.51	0	1327682..1328158	-	158	15837981	-	XF1380	-	hypothetical protein
1377	 56.91	0	1328281..1330218	-	645	15837982	-	XF1381	-	DNA helicase
1378	 48.73	0	1330263..1330853	-	196	15837983	-	XF1382	-	hypothetical protein
1379	 57.31	0	1330898..1335298	+	1466	77747545	-	XF1383	-	helicase, ATP dependent
1380	 52.66	0	1335311..1336852	-	513	15837985	-	XF1384	-	hypothetical protein
1381	 55.13	0	1337226..1340207	+	993	15837986	-	XF1385	-	glycine dehydrogenase
1382	 47.62	0	1340274..1340420	+	48	15837987	-	XF1386	-	hypothetical protein
1383	 50.58	0	1340573..1340914	-	113	15837988	-	XF1387	-	cytochrome O ubiquinol oxidase, subunit IV
1384	 51.56	0	1340914..1341522	-	202	15837989	-	XF1388	-	cytochrome O ubiquinol oxidase, subunit III
1385	 53.29	0	1341528..1343546	-	672	15837990	-	XF1389	-	cytochrome O ubiquinol oxidase, subunit I
52.19	MEAN

6.22	STD DEV
