IslandPath Analysis: Xylella fastidiosa 9a5c

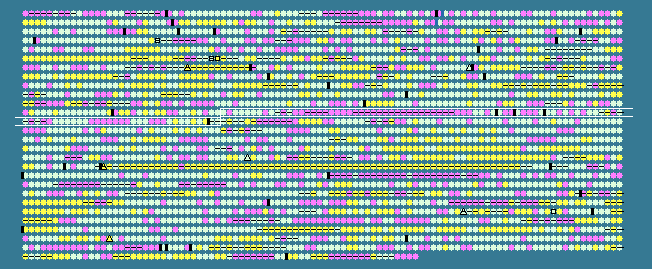

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1134	 53.48	0	1096057..1096746	+	229	15837739	-	XF1137	-	NonF-related protein
1135	 41.10	-1	1097210..1097428	+	72	15837740	-	XF1138	-	hypothetical protein
1136	 49.33	0	1097518..1097817	-	99	15837741	-	XF1139	-	hypothetical protein
1137	 54.44	0	1098222..1099595	-	457	15837742	-	XF1140	-	UDP-N-acetylglucosamine pyrophosphorylase
1138	 51.04	0	1099975..1100550	-	191	15837743	-	XF1141	-	chorismate mutase
1139	 50.69	0	1100797..1101228	-	143	15837744	atpC	XF1142	-	F0F1 ATP synthase subunit epsilon
1140	 50.11	0	1101298..1102698	-	466	15837745	-	XF1143	-	F0F1 ATP synthase subunit beta
1141	 48.61	0	1102781..1103644	-	287	15837746	-	XF1144	-	F0F1 ATP synthase subunit gamma
1142	 50.71	0	1103738..1105285	-	515	15837747	-	XF1145	-	F0F1 ATP synthase subunit alpha
1143	 50.00	0	1105335..1105862	-	175	15837748	-	XF1146	-	F0F1 ATP synthase subunit delta
1144	 44.16	-1	1105866..1106336	-	156	15837749	-	XF1147	-	F0F1 ATP synthase subunit B
1145	 52.29	0	1106457..1106762	-	101	15837750	-	XF1148	-	F0F1 ATP synthase subunit C
1146	 46.37	0	1106826..1107623	-	265	15837751	-	XF1149	-	F0F1 ATP synthase subunit A
1147	 45.70	-1	1107653..1108024	-	123	15837752	-	XF1150	-	hypothetical protein
1148	 47.12	0	1109361..1109672	+	103	15837753	rpsJ	XF1151	-	30S ribosomal protein S10
1149	 47.08	0	1109702..1110334	+	210	15837754	rplC	XF1152	-	50S ribosomal protein L3
1150	 45.98	0	1110349..1110957	+	202	15837755	rplD	XF1153	-	50S ribosomal protein L4
1151	 41.03	-1	1110945..1111256	+	103	15837756	rplW	XF1154	-	50S ribosomal protein L23
1152	 46.50	0	1111268..1112095	+	275	15837757	rplB	XF1155	-	50S ribosomal protein L2
1153	 39.63	-2	1112103..1112372	+	89	15837758	rpsS	XF1156	-	30S ribosomal protein S19
1154	 45.24	-1	1112385..1112720	+	111	15837759	rplV	XF1157	-	50S ribosomal protein L22
1155	 44.86	-1	1112739..1113458	+	239	15837760	rpsC	XF1158	-	30S ribosomal protein S3
1156	 44.93	-1	1113464..1113877	+	137	15837761	rplP	XF1159	-	50S ribosomal protein L16
1157	 39.90	-1	1113877..1114074	+	65	15837762	rpmC	XF1160	-	50S ribosomal protein L29
1158	 38.52	-2	1114071..1114340	+	89	15837763	rpsQ	XF1161	-	30S ribosomal protein S17
1159	 44.44	-1	1114364..1114732	+	122	15837764	rplN	XF1162	-	50S ribosomal protein L14
1160	 40.88	-1	1114748..1115065	+	105	15837765	rplX	XF1163	-	50S ribosomal protein L24
1161	 40.93	-1	1115077..1115616	+	179	15837766	rplE	XF1164	-	50S ribosomal protein L5
1162	 43.79	-1	1115633..1115938	+	101	15837767	rpsN	XF1165	-	30S ribosomal protein S14
1163	 40.35	-1	1116097..1116495	+	132	15837768	rpsH	XF1166	-	30S ribosomal protein S8
1164	 43.37	-1	1116510..1117037	+	175	15837769	rplF	XF1167	-	50S ribosomal protein L6
1165	 47.22	0	1117125..1117484	+	119	161378170	rplR	XF1168	-	50S ribosomal protein L18
1166	 44.26	-1	1117660..1118199	+	179	15837771	rpsE	XF1169	-	30S ribosomal protein S5
1167	 45.06	-1	1118219..1118380	+	53	15837772	rpmD	XF1170	-	50S ribosomal protein L30
1168	 45.78	-1	1118381..1118830	+	149	15837773	rplO	XF1171	-	50S ribosomal protein L15
1169	 42.14	-1	1118840..1120213	+	457	15837774	secY	XF1172	-	preprotein translocase subunit SecY
1170	 45.66	-1	1120343..1120699	+	118	15837775	rpsM	XF1173	-	30S ribosomal protein S13
1171	 44.02	-1	1120715..1121107	+	130	15837776	-	XF1174	-	30S ribosomal protein S11
1172	 42.74	-1	1121122..1121748	+	208	15837777	rpsD	XF1175	-	30S ribosomal protein S4
1173	 44.54	-1	1121803..1122801	+	332	15837778	-	XF1176	-	DNA-directed RNA polymerase subunit alpha
1174	 44.88	-1	1122931..1123311	+	126	15837779	rplQ	XF1177	-	50S ribosomal protein L17
1175	 40.50	-1	1124306..1124626	+	106	15837780	-	XF1178	-	hypothetical protein
1176	 51.55	0	1124637..1126157	+	506	15837781	-	XF1179	-	competence related protein
1177	 51.52	0	1127354..1127485	+	43	15837782	-	XF1180	-	hypothetical protein
1178	 43.92	-1	1128679..1129812	+	377	15837783	-	XF1181	-	triacylglycerol lipase precursor
1179	 49.38	0	1129813..1130865	+	350	15837784	-	XF1182	-	lipase chaperone
1180	 51.54	0	1131441..1132742	+	433	15837785	-	XF1183	-	polysaccharide biosynthetic protein
1181	 48.57	0	1133510..1133614	-	34	15837786	-	XF1184	-	hypothetical protein
1182	 46.32	0	1133878..1134339	-	153	77747533	-	XF1185	-	hypothetical protein
1183	 49.54	0	1136247..1137542	+	431	15837788	tig	XF1186	-	trigger factor
1184	 47.53	0	1137677..1138303	+	208	15837789	clpP	XF1187	-	ATP-dependent Clp protease proteolytic subunit
1185	 46.84	0	1138431..1139711	+	426	15837790	clpX	XF1188	-	ATP-dependent protease ATP-binding subunit
1186	 48.57	0	1139789..1142335	+	848	15837791	-	XF1189	-	ATP-dependent serine proteinase La
1187	 49.12	0	1142556..1142840	+	94	15837792	-	XF1190	-	histone-like protein
1188	 49.95	0	1143435..1145402	+	655	15837793	-	XF1191	-	peptidyl-prolyl cis-trans isomerase
1189	 50.39	0	1146652..1147677	+	341	15837794	-	XF1192	-	integral membrane protein
1190	 48.61	0	1147719..1147862	-	47	15837795	-	XF1193	-	hypothetical protein
1191	 50.48	0	1147981..1148190	+	69	15837796	-	XF1194	-	hypothetical protein
1192	 48.10	0	1148363..1148572	+	69	15837797	-	XF1195	-	hypothetical protein
1193	 51.99	0	1148876..1151368	+	830	15837798	-	XF1196	-	ribonucleotide-diphosphate reductase subunit alpha
1194	 48.41	0	1151446..1152486	+	346	15837799	nrdF	XF1197	-	ribonucleotide-diphosphate reductase subunit beta
1195	 53.00	0	1152498..1152980	+	160	15837800	-	XF1198	-	flavodoxin
1196	 51.38	0	1152952..1153278	+	108	15837801	-	XF1199	-	thioredoxin
1197	 52.74	0	1153699..1154409	+	236	15837802	-	XF1200	-	ribosomal small subunit pseudouridine synthase
1198	 56.68	0	1154406..1155086	+	226	15837803	-	XF1201	-	phosphoglycolate phosphatase
1199	 46.01	0	1155269..1155481	+	70	15837804	-	XF1202	-	hypothetical protein
1200	 52.43	0	1155591..1155857	-	88	15837805	-	XF1203	-	hypothetical protein
1201	 51.25	0	1155937..1156494	-	185	15837806	-	XF1204	-	hypothetical protein
1202	 46.17	0	1156550..1156915	-	121	15837807	-	XF1205	-	hypothetical protein
1203	 53.16	0	1157086..1157322	+	78	15837808	rpmB	XF1206	-	50S ribosomal protein L28
1204	 43.64	-1	1157336..1157500	+	54	15837809	rpmG	XF1207	-	50S ribosomal protein L33
1205	 44.00	-1	1157501..1157650	+	49	15837810	-	XF1208	-	hypothetical protein
1206	 52.85	0	1157684..1159087	+	467	15837811	-	XF1209	-	cardiolipin synthase
1207	 50.81	0	1159459..1160076	+	205	15837812	-	XF1210	-	glutathione S-transferase
1208	 52.38	0	1160247..1161254	-	335	15837813	-	XF1211	-	malate dehydrogenase
1209	 50.30	0	1161368..1161862	-	164	15837814	-	XF1212	-	peptidyl-prolyl cis-trans isomerase
1210	 50.22	0	1162102..1163931	+	609	77747534	-	XF1213	-	GTP-binding elongation factor protein
1211	 53.26	0	1164161..1164436	+	91	15837816	-	XF1214	-	hypothetical protein
1212	 38.98	-2	1164701..1164877	+	58	15837817	-	XF1215	-	hypothetical protein
1213	 48.54	0	1165068..1166330	+	420	15837818	-	XF1216	-	colicin V secretion protein
1214	 41.57	-1	1166556..1166810	+	84	15837819	-	XF1217	-	hypothetical protein
1215	 38.33	-2	1166966..1167265	+	99	15837820	-	XF1218	-	hypothetical protein
1216	 36.67	-2	1167500..1167739	+	79	15837821	-	XF1219	-	hypothetical protein
1217	 48.40	0	1168402..1170525	+	707	15837822	-	XF1220	-	colicin V secretion ABC transporter ATP-binding protein
1218	 41.00	-1	1170671..1170970	+	99	15837823	-	XF1221	-	hypothetical protein
1219	 50.26	0	1171040..1171819	-	259	15837824	-	XF1222	-	hypothetical protein
1220	 50.70	0	1171899..1172831	-	310	15837825	-	XF1223	-	ABC transporter ATP-binding protein
1221	 53.45	0	1173720..1177373	+	1217	15837826	-	XF1224	-	PilY1 gene product
1222	 42.53	-1	1177411..1177584	+	57	15837827	-	XF1225	-	hypothetical protein
1223	 46.14	0	1177772..1178263	-	163	15837828	-	XF1226	-	hypothetical protein
1224	 41.36	-1	1178578..1178739	+	53	15837829	-	XF1227	-	hypothetical protein
1225	 53.59	0	1179173..1179562	-	129	15837830	-	XF1228	-	hypothetical protein
1226	 57.91	0	1179829..1182330	-	833	15837831	-	XF1229	-	ATP-dependent helicase
1227	 53.99	0	1182810..1183298	-	162	15837832	-	XF1230	-	hypothetical protein
1228	 53.88	0	1183591..1185444	+	617	15837833	-	XF1231	-	hypothetical protein
1229	 56.46	0	1185441..1189262	+	1273	77747535	-	XF1232	-	hypothetical protein
1230	 49.17	0	1189365..1189484	-	39	15837835	-	XF1233	-	hypothetical protein
1231	 55.85	0	1190039..1190935	+	298	15837836	prpB	XF1234	-	2-methylisocitrate lyase
1232	 53.85	0	1191830..1191985	+	51	15837837	-	XF1235	-	hypothetical protein
1233	 50.94	0	1192109..1192426	+	105	15837838	-	XF1236	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
