IslandPath Analysis: Xylella fastidiosa 9a5c

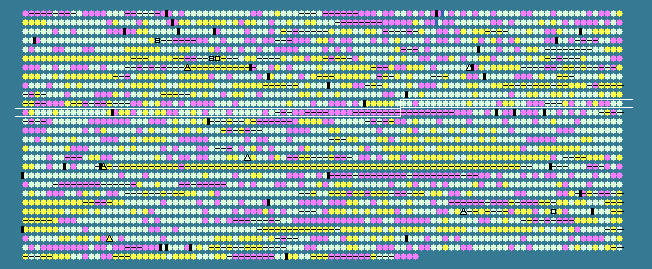

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1064	 54.34	0	1024805..1025899	+	364	15837669	-	XF1067	-	sugar ABC transporter ATP-binding protein
1065	 55.66	0	1026044..1026961	-	305	15837670	-	XF1068	-	hypothetical protein
1066	 48.40	0	1027157..1027375	+	72	15837671	-	XF1069	-	hypothetical protein
1067	 53.38	0	1027400..1027828	+	142	15837672	-	XF1070	-	succinate dehydrogenase, membrane anchor subunit
1068	 52.34	0	1027825..1028208	+	127	15837673	-	XF1071	-	succinate dehydrogenase, membrane anchor subunit
1069	 52.76	0	1028216..1030006	+	596	15837674	sdhA	XF1072	-	succinate dehydrogenase flavoprotein subunit
1070	 50.76	0	1030027..1030812	+	261	15837675	sdhB	XF1073	-	succinate dehydrogenase iron-sulfur subunit
1071	 54.08	0	1030888..1031181	+	97	15837676	-	XF1074	-	hypothetical protein
1072	 54.95	0	1031201..1031584	+	127	15837677	-	XF1075	-	hypothetical protein
1073	 53.54	0	1031610..1032851	+	413	15837678	-	XF1076	-	hypothetical protein
1074	 53.51	0	1032883..1033566	+	227	15837679	-	XF1077	-	ABC transporter ATP-binding protein
1075	 56.79	0	1033882..1036392	+	836	15837680	-	XF1078	-	DNA uptake protein
1076	 50.83	0	1036377..1037039	+	220	15837681	-	XF1079	-	hypothetical protein
1077	 50.91	0	1037044..1037481	+	145	15837682	-	XF1080	-	hypothetical protein
1078	 53.33	0	1037478..1039247	+	589	15837683	-	XF1081	-	ABC transporter ATP-binding protein
1079	 55.20	0	1039244..1040263	+	339	15837684	lpxK	XF1082	-	tetraacyldisaccharide 4'-kinase
1080	 48.59	0	1040487..1040663	-	58	15837685	-	XF1083	-	hypothetical protein
1081	 55.76	0	1040909..1041550	+	213	15837686	-	XF1084	-	partition protein
1082	 56.04	0	1041567..1042046	+	159	15837687	-	XF1085	-	hypothetical protein
1083	 52.53	0	1042066..1042638	+	190	15837688	-	XF1086	-	hypothetical protein
1084	 50.94	0	1042635..1044593	+	652	15837689	-	XF1087	-	cardiolipin synthase
1085	 28.57	-2	1044771..1044980	-	69	15837690	-	XF1088	-	hypothetical protein
1086	 41.36	-1	1045293..1045454	-	53	15837691	-	XF1089	-	hypothetical protein
1087	 46.47	0	1045600..1046010	-	136	15837692	-	XF1090	-	hypothetical protein
1088	 50.95	0	1046397..1046765	-	122	15837693	-	XF1091	-	hypothetical protein
1089	 52.94	0	1046845..1047048	-	67	15837694	-	XF1092	-	hypothetical protein
1090	 49.18	0	1047305..1047790	-	161	15837695	-	XF1093	-	hypothetical protein
1091	 58.00	0	1048033..1048632	-	199	15837696	-	XF1094	-	tryptophan repressor binding protein
1092	 43.40	-1	1048846..1049004	+	52	15837697	-	XF1095	-	hypothetical protein
1093	 53.59	0	1049034..1049186	+	50	15837698	-	XF1096	-	hypothetical protein
1094	 50.80	0	1049206..1050390	+	394	15837699	-	XF1097	-	nicotinate phosphoribosyltransferase
1095	 39.17	-2	1050443..1050562	+	39	15837700	-	XF1098	-	hypothetical protein
1096	 55.90	0	1050579..1051154	-	191	15837701	-	XF1099	-	hypothetical protein
1097	 40.09	-1	1051550..1051771	+	73	15837702	-	XF1100	-	hypothetical protein
1098	 42.77	-1	1052097..1052255	+	52	15837703	-	XF1101	-	hypothetical protein
1099	 48.98	0	1052533..1052826	-	97	15837704	-	XF1102	-	hypothetical protein
1100	 53.61	0	1052911..1055682	+	923	15837705	-	XF1103	-	DNA polymerase I
1101	 46.84	0	1056007..1056354	-	115	15837706	-	XF1104	-	hypothetical protein
1102	 58.26	0	1056325..1057038	+	237	15837707	-	XF1105	-	dihydrodipicolinate reductase
1103	 53.78	0	1057236..1058360	+	374	161378171	-	XF1106	-	carbamoyl phosphate synthase small subunit
1104	 54.58	0	1058561..1061803	+	1080	15837709	carB	XF1107	-	carbamoyl phosphate synthase large subunit
1105	 51.40	0	1061812..1062276	+	154	15837710	greA	XF1108	-	transcription elongation factor GreA
1106	 57.26	0	1062323..1063204	+	293	15837711	-	XF1109	-	hypothetical protein
1107	 55.44	0	1063270..1065015	+	581	15837712	-	XF1110	-	single-stranded DNA exonuclease
1108	 54.28	0	1065781..1066797	+	338	15837713	-	XF1111	-	peptide chain release factor 2
1109	 53.06	0	1066981..1068501	+	506	15837714	lysS	XF1112	-	lysyl-tRNA synthetase
1110	 52.97	0	1068633..1069793	+	386	15837715	-	XF1113	-	two-component system, regulatory protein
1111	 52.69	0	1069942..1071930	+	662	15837716	-	XF1114	-	regulator of pathogenicity factors
1112	 49.03	0	1071953..1072825	-	290	15837717	-	XF1115	-	enoyl-CoA hydratase
1113	 55.27	0	1073106..1075712	+	868	15837718	-	XF1116	-	bifunctional aspartate kinase/diaminopimelate decarboxylase protein
1114	 55.23	0	1075713..1077164	+	483	15837719	-	XF1117	-	hypothetical protein
1115	 59.99	+1	1077145..1078551	+	468	15837720	murD	XF1118	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1116	 45.74	-1	1079129..1079515	-	128	15837721	-	XF1119	-	hypothetical protein
1117	 59.71	+1	1079557..1080519	+	320	15837722	-	XF1120	-	hypothetical protein
1118	 56.76	0	1080582..1081409	-	275	15837723	-	XF1121	-	5,10-methylenetetrahydrofolate reductase
1119	 39.01	-2	1081691..1081831	+	46	15837724	-	XF1122	-	hypothetical protein
1120	 51.71	0	1081900..1082628	-	242	15837725	-	XF1123	-	outer membrane protein
1121	 56.50	0	1082717..1083316	+	199	15837726	maf	XF1124	-	Maf-like protein
1122	 52.21	0	1083317..1084810	+	497	15837727	-	XF1125	-	ribonuclease G
1123	 56.33	0	1084958..1088797	+	1279	77747532	-	XF1126	-	hypothetical protein
1124	 57.20	0	1088909..1090366	+	485	15837729	-	XF1127	-	TldD protein
1125	 46.67	0	1090385..1090504	+	39	15837730	-	XF1128	-	hypothetical protein
1126	 47.88	0	1090551..1090715	+	54	15837731	-	XF1129	-	hypothetical protein
1127	 52.87	0	1090815..1091372	-	185	15837732	-	XF1130	-	hypothetical protein
1128	 54.70	0	1091513..1092799	+	428	15837733	-	XF1131	-	PmbA protein
1129	 55.85	0	1092886..1093791	-	301	15837734	-	XF1132	-	LysR family transcriptional regulator
1130	 53.51	0	1094006..1094575	+	189	15837735	-	XF1133	-	tryptophan repressor binding protein
1131	 48.02	0	1094602..1094778	+	58	15837736	-	XF1134	-	hypothetical protein
1132	 52.94	0	1094756..1094908	+	50	15837737	-	XF1135	-	hypothetical protein
1133	 54.30	0	1094994..1096052	+	352	15837738	-	XF1136	-	NADP-alcohol dehydrogenase
1134	 53.48	0	1096057..1096746	+	229	15837739	-	XF1137	-	NonF-related protein
1135	 41.10	-1	1097210..1097428	+	72	15837740	-	XF1138	-	hypothetical protein
1136	 49.33	0	1097518..1097817	-	99	15837741	-	XF1139	-	hypothetical protein
1137	 54.44	0	1098222..1099595	-	457	15837742	-	XF1140	-	UDP-N-acetylglucosamine pyrophosphorylase
1138	 51.04	0	1099975..1100550	-	191	15837743	-	XF1141	-	chorismate mutase
1139	 50.69	0	1100797..1101228	-	143	15837744	atpC	XF1142	-	F0F1 ATP synthase subunit epsilon
1140	 50.11	0	1101298..1102698	-	466	15837745	-	XF1143	-	F0F1 ATP synthase subunit beta
1141	 48.61	0	1102781..1103644	-	287	15837746	-	XF1144	-	F0F1 ATP synthase subunit gamma
1142	 50.71	0	1103738..1105285	-	515	15837747	-	XF1145	-	F0F1 ATP synthase subunit alpha
1143	 50.00	0	1105335..1105862	-	175	15837748	-	XF1146	-	F0F1 ATP synthase subunit delta
1144	 44.16	-1	1105866..1106336	-	156	15837749	-	XF1147	-	F0F1 ATP synthase subunit B
1145	 52.29	0	1106457..1106762	-	101	15837750	-	XF1148	-	F0F1 ATP synthase subunit C
1146	 46.37	0	1106826..1107623	-	265	15837751	-	XF1149	-	F0F1 ATP synthase subunit A
1147	 45.70	-1	1107653..1108024	-	123	15837752	-	XF1150	-	hypothetical protein
1148	 47.12	0	1109361..1109672	+	103	15837753	rpsJ	XF1151	-	30S ribosomal protein S10
1149	 47.08	0	1109702..1110334	+	210	15837754	rplC	XF1152	-	50S ribosomal protein L3
1150	 45.98	0	1110349..1110957	+	202	15837755	rplD	XF1153	-	50S ribosomal protein L4
1151	 41.03	-1	1110945..1111256	+	103	15837756	rplW	XF1154	-	50S ribosomal protein L23
1152	 46.50	0	1111268..1112095	+	275	15837757	rplB	XF1155	-	50S ribosomal protein L2
1153	 39.63	-2	1112103..1112372	+	89	15837758	rpsS	XF1156	-	30S ribosomal protein S19
1154	 45.24	-1	1112385..1112720	+	111	15837759	rplV	XF1157	-	50S ribosomal protein L22
1155	 44.86	-1	1112739..1113458	+	239	15837760	rpsC	XF1158	-	30S ribosomal protein S3
1156	 44.93	-1	1113464..1113877	+	137	15837761	rplP	XF1159	-	50S ribosomal protein L16
1157	 39.90	-1	1113877..1114074	+	65	15837762	rpmC	XF1160	-	50S ribosomal protein L29
1158	 38.52	-2	1114071..1114340	+	89	15837763	rpsQ	XF1161	-	30S ribosomal protein S17
1159	 44.44	-1	1114364..1114732	+	122	15837764	rplN	XF1162	-	50S ribosomal protein L14
1160	 40.88	-1	1114748..1115065	+	105	15837765	rplX	XF1163	-	50S ribosomal protein L24
1161	 40.93	-1	1115077..1115616	+	179	15837766	rplE	XF1164	-	50S ribosomal protein L5
1162	 43.79	-1	1115633..1115938	+	101	15837767	rpsN	XF1165	-	30S ribosomal protein S14
1163	 40.35	-1	1116097..1116495	+	132	15837768	rpsH	XF1166	-	30S ribosomal protein S8
52.19	MEAN

6.22	STD DEV
