IslandPath Analysis: Xylella fastidiosa 9a5c

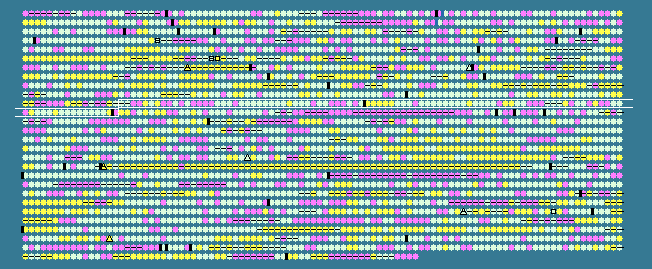

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 52.19 STD DEV: 6.22
Xylella fastidiosa 9a5c, complete genome - 1..2679306
2766 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1017	 52.85	0	977229..977720	-	163	15837622	-	XF1020	-	pathogenicity-related protein
1018	 52.30	0	977724..978656	-	310	15837623	-	XF1021	-	hypothetical protein
1019	 38.74	-2	978685..978795	-	36	15837624	-	XF1022	-	hypothetical protein
1020	 43.54	-1	979234..979380	+	48	15837625	-	XF1023	-	hypothetical protein
1021	 56.92	0	979490..979807	-	105	15837626	-	XF1024	-	outer membrane protein H.8 precursor
1022	 54.43	0	980782..981165	-	127	15837627	-	XF1025	-	hypothetical protein
1023	 56.76	0	980867..983875	+	1002	77747530	-	XF1026	-	serine protease
1024	 45.93	-1	984121..984366	-	81	15837629	-	XF1027	-	hypothetical protein
1025	 47.26	0	984687..984887	-	66	15837630	-	XF1028	-	hypothetical protein
1026	 52.56	0	985119..987110	-	663	15837631	-	XF1029	-	glutaryl-7-ACA acylase precursor
1027	 44.83	-1	987384..987557	+	57	15837632	-	XF1030	-	hypothetical protein
1028	 52.24	0	987747..990359	-	870	15837633	-	XF1031	-	glycerol-3-phosphate acyltransferase
1029	 38.16	-2	990976..991182	-	68	15837634	-	XF1032	-	hypothetical protein
1030	 45.70	-1	991364..991549	+	61	15837635	-	XF1033	-	hypothetical protein
1031	 44.44	-1	991519..991734	+	71	15837636	-	XF1034	-	hypothetical protein
1032	 47.19	0	991854..992156	+	100	15837637	-	XF1035	-	hypothetical protein
1033	 50.78	0	992251..995277	+	1008	15837638	-	XF1036	-	hypothetical protein
1034	 51.14	0	995383..996825	-	480	77747531	-	XF1037	-	S-adenosyl-L-homocysteine hydrolase
1035	 52.84	0	997769..999280	+	503	15837640	-	XF1038	-	peptide synthase
1036	 41.82	-1	999548..999712	+	54	15837641	-	XF1039	-	hypothetical protein
1037	 51.85	0	999729..999890	+	53	15837642	-	XF1040	-	hypothetical protein
1038	 53.90	0	1000079..1000783	-	234	15837643	rnhB	XF1041	-	ribonuclease HII
1039	 54.92	0	1000840..1001997	-	385	15837644	lpxB	XF1042	-	lipid-A-disaccharide synthase
1040	 52.78	0	1002074..1002865	-	263	15837645	-	XF1043	-	UDP-N-acetylglucosamine acyltransferase
1041	 49.07	0	1002887..1003369	-	160	15837646	fabZ	XF1044	-	(3R)-hydroxymyristoyl-ACP dehydratase
1042	 53.52	0	1003366..1004430	-	354	15837647	lpxD	XF1045	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1043	 50.57	0	1004577..1006931	-	784	15837648	-	XF1046	-	outer membrane antigen
1044	 53.41	0	1007030..1008334	-	434	15837649	-	XF1047	-	hypothetical protein
1045	 56.84	0	1008391..1009581	-	396	15837650	-	XF1048	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
1046	 53.22	0	1009584..1010438	-	284	15837651	-	XF1049	-	phosphatidate cytidylyltransferase
1047	 54.69	0	1010435..1011202	-	255	15837652	-	XF1050	-	undecaprenyl pyrophosphate synthetase
1048	 50.36	0	1011205..1011762	-	185	15837653	frr	XF1051	-	ribosome recycling factor
1049	 47.92	0	1011927..1012166	-	79	15837654	-	XF1052	-	hypothetical protein
1050	 51.49	0	1012513..1013856	-	447	15837655	-	XF1053	-	outer membrane protein
1051	 53.36	0	1014069..1014767	+	232	15837656	-	XF1054	-	hypothetical protein
1052	 46.42	0	1014879..1015199	+	106	15837657	-	XF1055	-	hypothetical protein
1053	 46.91	0	1015455..1015778	-	107	15837658	-	XF1056	-	hypothetical protein
1054	 47.52	0	1016078..1016380	+	100	15837659	-	XF1057	-	hypothetical protein
1055	 52.02	0	1016409..1017152	-	247	15837660	pyrH	XF1058	-	uridylate kinase
1056	 47.80	0	1017134..1017292	+	52	15837661	-	XF1059	-	hypothetical protein
1057	 52.63	0	1017524..1017751	-	75	15837662	-	XF1060	-	hypothetical protein
1058	 56.52	0	1018527..1019186	-	219	15837663	-	XF1061	-	keto-hydroxyglutarate-aldolase/keto-deoxy-phosphogluconate aldolase
1059	 60.70	+1	1019284..1021176	-	630	15837664	-	XF1062	-	phosphogluconate dehydratase
1060	 58.33	0	1021316..1022035	-	239	15837665	-	XF1063	-	6-phosphogluconolactonase
1061	 58.09	0	1022032..1023045	-	337	15837666	glk	XF1064	-	glucokinase
1062	 56.90	0	1023042..1024475	-	477	15837667	-	XF1065	-	glucose-6-phosphate 1-dehydrogenase
1063	 53.57	0	1024499..1024666	-	55	15837668	-	XF1066	-	hypothetical protein
1064	 54.34	0	1024805..1025899	+	364	15837669	-	XF1067	-	sugar ABC transporter ATP-binding protein
1065	 55.66	0	1026044..1026961	-	305	15837670	-	XF1068	-	hypothetical protein
1066	 48.40	0	1027157..1027375	+	72	15837671	-	XF1069	-	hypothetical protein
1067	 53.38	0	1027400..1027828	+	142	15837672	-	XF1070	-	succinate dehydrogenase, membrane anchor subunit
1068	 52.34	0	1027825..1028208	+	127	15837673	-	XF1071	-	succinate dehydrogenase, membrane anchor subunit
1069	 52.76	0	1028216..1030006	+	596	15837674	sdhA	XF1072	-	succinate dehydrogenase flavoprotein subunit
1070	 50.76	0	1030027..1030812	+	261	15837675	sdhB	XF1073	-	succinate dehydrogenase iron-sulfur subunit
1071	 54.08	0	1030888..1031181	+	97	15837676	-	XF1074	-	hypothetical protein
1072	 54.95	0	1031201..1031584	+	127	15837677	-	XF1075	-	hypothetical protein
1073	 53.54	0	1031610..1032851	+	413	15837678	-	XF1076	-	hypothetical protein
1074	 53.51	0	1032883..1033566	+	227	15837679	-	XF1077	-	ABC transporter ATP-binding protein
1075	 56.79	0	1033882..1036392	+	836	15837680	-	XF1078	-	DNA uptake protein
1076	 50.83	0	1036377..1037039	+	220	15837681	-	XF1079	-	hypothetical protein
1077	 50.91	0	1037044..1037481	+	145	15837682	-	XF1080	-	hypothetical protein
1078	 53.33	0	1037478..1039247	+	589	15837683	-	XF1081	-	ABC transporter ATP-binding protein
1079	 55.20	0	1039244..1040263	+	339	15837684	lpxK	XF1082	-	tetraacyldisaccharide 4'-kinase
1080	 48.59	0	1040487..1040663	-	58	15837685	-	XF1083	-	hypothetical protein
1081	 55.76	0	1040909..1041550	+	213	15837686	-	XF1084	-	partition protein
1082	 56.04	0	1041567..1042046	+	159	15837687	-	XF1085	-	hypothetical protein
1083	 52.53	0	1042066..1042638	+	190	15837688	-	XF1086	-	hypothetical protein
1084	 50.94	0	1042635..1044593	+	652	15837689	-	XF1087	-	cardiolipin synthase
1085	 28.57	-2	1044771..1044980	-	69	15837690	-	XF1088	-	hypothetical protein
1086	 41.36	-1	1045293..1045454	-	53	15837691	-	XF1089	-	hypothetical protein
1087	 46.47	0	1045600..1046010	-	136	15837692	-	XF1090	-	hypothetical protein
1088	 50.95	0	1046397..1046765	-	122	15837693	-	XF1091	-	hypothetical protein
1089	 52.94	0	1046845..1047048	-	67	15837694	-	XF1092	-	hypothetical protein
1090	 49.18	0	1047305..1047790	-	161	15837695	-	XF1093	-	hypothetical protein
1091	 58.00	0	1048033..1048632	-	199	15837696	-	XF1094	-	tryptophan repressor binding protein
1092	 43.40	-1	1048846..1049004	+	52	15837697	-	XF1095	-	hypothetical protein
1093	 53.59	0	1049034..1049186	+	50	15837698	-	XF1096	-	hypothetical protein
1094	 50.80	0	1049206..1050390	+	394	15837699	-	XF1097	-	nicotinate phosphoribosyltransferase
1095	 39.17	-2	1050443..1050562	+	39	15837700	-	XF1098	-	hypothetical protein
1096	 55.90	0	1050579..1051154	-	191	15837701	-	XF1099	-	hypothetical protein
1097	 40.09	-1	1051550..1051771	+	73	15837702	-	XF1100	-	hypothetical protein
1098	 42.77	-1	1052097..1052255	+	52	15837703	-	XF1101	-	hypothetical protein
1099	 48.98	0	1052533..1052826	-	97	15837704	-	XF1102	-	hypothetical protein
1100	 53.61	0	1052911..1055682	+	923	15837705	-	XF1103	-	DNA polymerase I
1101	 46.84	0	1056007..1056354	-	115	15837706	-	XF1104	-	hypothetical protein
1102	 58.26	0	1056325..1057038	+	237	15837707	-	XF1105	-	dihydrodipicolinate reductase
1103	 53.78	0	1057236..1058360	+	374	161378171	-	XF1106	-	carbamoyl phosphate synthase small subunit
1104	 54.58	0	1058561..1061803	+	1080	15837709	carB	XF1107	-	carbamoyl phosphate synthase large subunit
1105	 51.40	0	1061812..1062276	+	154	15837710	greA	XF1108	-	transcription elongation factor GreA
1106	 57.26	0	1062323..1063204	+	293	15837711	-	XF1109	-	hypothetical protein
1107	 55.44	0	1063270..1065015	+	581	15837712	-	XF1110	-	single-stranded DNA exonuclease
1108	 54.28	0	1065781..1066797	+	338	15837713	-	XF1111	-	peptide chain release factor 2
1109	 53.06	0	1066981..1068501	+	506	15837714	lysS	XF1112	-	lysyl-tRNA synthetase
1110	 52.97	0	1068633..1069793	+	386	15837715	-	XF1113	-	two-component system, regulatory protein
1111	 52.69	0	1069942..1071930	+	662	15837716	-	XF1114	-	regulator of pathogenicity factors
1112	 49.03	0	1071953..1072825	-	290	15837717	-	XF1115	-	enoyl-CoA hydratase
1113	 55.27	0	1073106..1075712	+	868	15837718	-	XF1116	-	bifunctional aspartate kinase/diaminopimelate decarboxylase protein
1114	 55.23	0	1075713..1077164	+	483	15837719	-	XF1117	-	hypothetical protein
1115	 59.99	+1	1077145..1078551	+	468	15837720	murD	XF1118	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
1116	 45.74	-1	1079129..1079515	-	128	15837721	-	XF1119	-	hypothetical protein
52.19	MEAN

6.22	STD DEV
