IslandPath Analysis: Xanthomonas oryzae pv. oryzae KACC10331

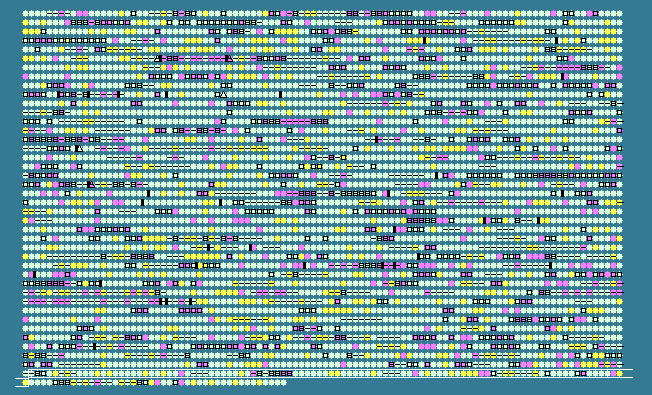

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 63.81   STD DEV: 3.50
Xanthomonas oryzae pv. oryzae KACC10331, complete genome - 1..4941439
4144 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4002	 65.36	0	4776317..4776853	+	178	58584101	-	XOO4478	-	microcystin dependent protein
4003	 62.77	0	4776881..4777906	+	341	58584102	-	XOO4479	-	transposase
4004	 60.51	0	4777919..4778194	+	91	58584103	-	XOO4480	-	putative transposase
4005	 65.32	0	4778189..4778929	-	246	58584104	sodC2	XOO4481	-	superoxide dismutase
4006	 70.30	+1	4778892..4779497	-	201	58584105	yojM	XOO4482	-	superoxide dismutase like protein
4007	 66.60	0	4779993..4781441	-	482	58584106	ntrC	XOO4483	-	two-component system regulatory protein
4008	 68.28	+1	4781413..4782468	-	351	58584107	ntrB	XOO4484	-	two-component system sensor protein
4009	 66.33	0	4782740..4784215	-	491	58584109	amtB	XOO4486	-	ammonium transporter
4010	 64.60	0	4784205..4784543	-	112	58584110	glnB	XOO4487	-	nitrogen regulatory protein P-II
4011	 61.56	0	4784821..4786230	-	469	58584111	glnA	XOO4488	-	glutamine synthetase
4012	 64.66	0	4786452..4787249	+	265	122879358	uppP	XOO4489	-	undecaprenyl pyrophosphate phosphatase
4013	 70.14	+1	4787386..4788192	+	268	58584113	-	XOO4490	-	hypothetical protein
4014	 65.20	0	4789346..4790095	-	249	58584116	-	XOO4493	-	hypothetical protein
4015	 70.09	+1	4790152..4792224	-	690	58584117	-	XOO4494	-	hypothetical protein
4016	 66.77	0	4792638..4793627	-	329	58584118	-	XOO4495	-	hypothetical protein
4017	 65.89	0	4793687..4794592	-	301	58584119	-	XOO4496	-	acetyltransferase
4018	 65.27	0	4794610..4795038	-	142	122879359	-	XOO4497	-	hypothetical protein
4019	 64.58	0	4795316..4797331	-	671	58584121	cls	XOO4498	-	cardiolipin synthase
4020	 60.38	0	4797328..4797900	-	190	58584122	-	XOO4499	-	hypothetical protein
4021	 70.13	+1	4797904..4798365	-	153	58584123	-	XOO4500	-	hypothetical protein
4022	 65.04	0	4798396..4799196	-	266	58584124	parA	XOO4501	-	partition protein
4023	 63.51	0	4799381..4800298	-	305	58584125	-	XOO4502	-	hypothetical protein
4024	 69.52	+1	4800560..4800769	-	69	58584126	-	XOO4503	-	hypothetical protein
4025	 62.76	0	4800833..4801216	-	127	58584127	-	XOO4504	-	hypothetical protein
4026	 64.64	0	4801390..4805097	+	1235	122879360	iorA	XOO4505	-	indolepyruvate ferredoxin oxidoreductase
4027	 54.75	-2	4805240..4805860	+	206	58584129	-	XOO4506	-	transcriptional regulator
4028	 61.97	0	4805857..4807134	+	425	58584130	hipA	XOO4507	-	HipA
4029	 64.84	0	4807179..4808165	-	328	122879361	-	XOO4508	-	hypothetical protein
4030	 64.42	0	4808162..4809583	-	473	58584132	-	XOO4509	-	hypothetical protein
4031	 65.74	0	4809517..4810698	+	393	58584133	-	XOO4510	-	hypothetical protein
4032	 64.36	0	4810985..4812457	-	490	58584134	yehZ	XOO4511	-	ABC transporter amino acid permease
4033	 66.16	0	4812454..4813236	-	260	58584135	yehX	XOO4512	-	ABC transporter ATP-binding protein
4034	 63.39	0	4813240..4813605	-	121	58584136	-	XOO4513	-	hypothetical protein
4035	 64.01	0	4813625..4814830	-	401	122879362	-	XOO4514	-	fatty acid desaturase
4036	 66.21	0	4814963..4815835	+	290	58584138	ylmA	XOO4515	-	ABC transporter ATP-binding protein
4037	 68.55	+1	4816024..4817034	+	336	58584140	-	XOO4517	-	hypothetical protein
4038	 66.04	0	4817458..4818579	+	373	58584141	-	XOO4518	-	hypothetical protein
4039	 52.38	-2	4819091..4819195	-	34	58584142	fpvA	XOO4519	-	ferripyoverdine receptor
4040	 63.48	0	4819207..4819896	+	229	58584143	-	XOO4520	-	transposase
4041	 60.42	0	4819851..4819946	+	31	121632140	-	XOO4949	-	hypothetical protein
4042	 60.61	0	4819943..4820041	+	32	58584144	-	XOO4521	-	transposase
4043	 65.93	0	4820090..4820224	+	44	58584145	-	XOO4522	-	transposase
4044	 59.47	-1	4822272..4822535	-	87	121632141	-	XOO4950	-	IS1404 transposase
4045	 58.73	-1	4822672..4823049	+	125	58584148	-	XOO4525	-	putative transposase
4046	 65.66	0	4823216..4823713	-	165	58584149	-	XOO4526	-	hypothetical protein
4047	 61.44	0	4823664..4824467	-	267	161898956	dkgB	XOO4527	-	2,5-diketo-D-gluconate reductase B
4048	 63.85	0	4824529..4825557	-	342	122879363	-	XOO4528	-	quinone oxidoreductase
4049	 63.07	0	4825696..4826667	-	323	58584152	mocA	XOO4529	-	oxidoreductase
4050	 62.54	0	4826786..4827754	+	322	58584153	-	XOO4530	-	hypothetical protein
4051	 67.00	0	4827817..4828419	+	200	58584154	-	XOO4531	-	pseudouridylate synthase
4052	 67.35	+1	4828742..4829182	-	146	58584155	-	XOO4532	-	hypothetical protein
4053	 70.43	+1	4829345..4831816	-	823	58584156	hrpB	XOO4533	-	ATP-dependent RNA helicase
4054	 64.77	0	4832535..4833008	-	157	58584157	-	XOO4534	-	hypothetical protein
4055	 66.74	0	4833321..4834640	-	439	58584158	-	XOO4535	-	RTS beta protein
4056	 63.17	0	4835164..4836021	-	285	58584159	-	XOO4536	-	2-hydroxyhepta-2,4-diene-1,7-dioateisomerase/5-carboxymethyl-2-oxo-hex-3-ene-1,7-dioatedecarboxylase
4057	 65.24	0	4836192..4836962	-	256	58584160	ucpA	XOO4537	-	oxidoreductase
4058	 67.24	0	4836959..4837831	-	290	58584161	-	XOO4538	-	hypothetical protein
4059	 69.61	+1	4837828..4838949	-	373	58584162	-	XOO4539	-	oxidoreductase
4060	 66.03	0	4839151..4840248	+	365	58584163	-	XOO4540	-	xylosidase
4061	 63.89	0	4840758..4840937	-	59	121632142	-	XOO4951	-	hypothetical protein
4062	 62.36	0	4841501..4842406	-	301	58584166	tcsR	XOO4543	-	two-component system regulatory protein
4063	 64.42	0	4842431..4844521	-	696	58584167	acs	XOO4544	-	acetyl-CoA synthetase
4064	 63.19	0	4844537..4845025	+	162	58584168	-	XOO4545	-	hypothetical protein
4065	 63.21	0	4845022..4846062	+	346	58584169	-	XOO4546	-	hypothetical protein
4066	 57.91	-1	4846113..4846466	+	117	58584170	-	XOO4547	-	hypothetical protein
4067	 63.48	0	4846463..4848190	+	575	58584171	actP	XOO4548	-	acetate permease
4068	 68.52	+1	4848798..4849499	-	233	58584172	-	XOO4549	-	transcriptional regulator
4069	 64.36	0	4849856..4850635	+	259	58584173	xthA1	XOO4550	-	exodeoxyribonuclease III
4070	 61.94	0	4850605..4851069	+	154	58584174	-	XOO4551	-	hypothetical protein
4071	 60.51	0	4851131..4851520	-	129	58584175	mltA	XOO4552	-	transglycosylase associated protein
4072	 69.18	+1	4851509..4852105	+	198	58584176	hetI	XOO4553	-	HetI
4073	 65.97	0	4852124..4853695	-	523	58584177	-	XOO4554	-	hypothetical protein
4074	 68.63	+1	4853872..4855500	-	542	122879364	phoD	XOO4555	-	alkaline phosphatase D
4075	 68.54	+1	4855723..4856361	+	212	122879365	gidB	XOO4556	-	glucose-inhibited division protein B
4076	 69.44	+1	4857430..4857789	+	119	58584180	-	XOO4557	-	hypothetical protein
4077	 49.40	-2	4858224..4858391	+	55	58584181	rpmG	XOO4558	-	50S ribosomal protein L33
4078	 57.91	-1	4858824..4859291	-	155	58584182	fldW	XOO4559	-	4-oxalomesaconate hydratase
4079	 63.19	0	4859288..4860523	-	411	58584183	-	XOO4560	-	transposase
4080	 67.14	0	4861395..4862450	-	351	122879366	fldA	XOO4563	-	hypothetical protein
4081	 68.90	+1	4862443..4863114	-	223	58584188	fldZ	XOO4565	-	hypothetical protein
4082	 69.04	+1	4863212..4864519	+	435	58584189	fldY	XOO4566	-	transcriptional regulator
4083	 65.19	0	4864536..4865954	+	472	58584190	cls	XOO4567	-	cardiolipin synthase
4084	 60.61	0	4866025..4866123	-	32	121632143	-	XOO4952	-	hypothetical protein
4085	 65.83	0	4866153..4866509	-	118	58584191	-	XOO4568	-	lactoylglutathione lyase and related lyase
4086	 68.32	+1	4866526..4867920	+	464	58584192	-	XOO4569	-	hypothetical protein
4087	 65.52	0	4868268..4870454	+	728	58584193	uvrD	XOO4570	-	DNA-dependent helicase II
4088	 62.51	0	4871393..4872451	-	352	58584194	-	XOO4571	-	transposase
4089	 65.96	0	4872576..4873991	-	471	122879367	yhdG	XOO4572	-	amino acid transporter
4090	 66.49	0	4874482..4876806	+	774	58584196	-	XOO4573	-	hypothetical protein
4091	 67.00	0	4876981..4877574	+	197	122879368	-	XOO4574	-	hypothetical protein
4092	 62.46	0	4877952..4878569	+	205	58584198	btuE	XOO4575	-	glutathione peroxidase
4093	 63.62	0	4878594..4879970	-	458	122879369	-	XOO4577	-	IS1478 transposase
4094	 54.81	-2	4880545..4880991	-	148	58584202	-	XOO4579	-	transposase
4095	 63.83	0	4881007..4882134	-	375	58584203	-	XOO4580	-	hypothetical protein
4096	 61.90	0	4882098..4882769	-	223	122879370	-	XOO4581	-	hypothetical protein
4097	 65.50	0	4882990..4884360	-	456	58584205	ompP1	XOO4582	-	outer membrane protein
4098	 66.53	0	4884508..4885239	+	243	58584206	-	XOO4583	-	hypothetical protein
4099	 59.06	-1	4885335..4885676	+	113	58584207	-	XOO4584	-	hypothetical protein
4100	 68.28	+1	4885676..4886668	+	330	58584208	serA	XOO4585	-	D-3-phosphoglycerate dehydrogenase
4101	 67.32	+1	4886975..4888513	-	512	58584209	ctp	XOO4586	-	carboxyl-terminal protease
63.81	MEAN

3.50	STD DEV
