IslandPathversion 1.0

IslandPath Analysis: Xanthomonas oryzae pv. oryzae KACC10331

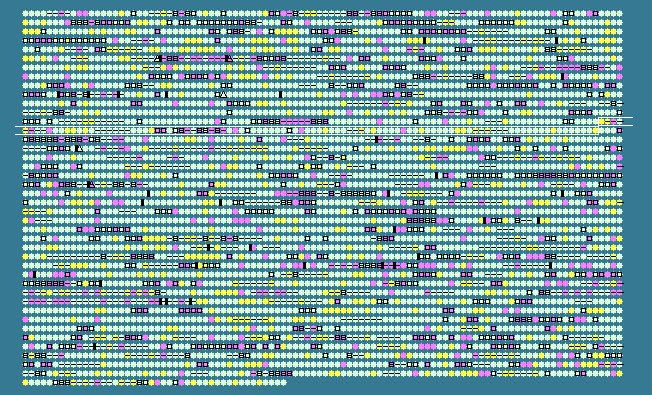

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 63.81 STD DEV: 3.50
Xanthomonas oryzae pv. oryzae KACC10331, complete genome - 1..4941439
4144 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1297	 67.38	+1	1479968..1480246	+	92	58581072	-	XOO1449	-	hypothetical protein
1298	 72.70	+2	1480248..1483232	+	994	58581073	-	XOO1450	-	hypothetical protein
1299	 56.86	-1	1483229..1484176	+	315	58581074	-	XOO1451	-	hypothetical protein
1300	 62.91	0	1486540..1488828	+	762	58581075	-	XOO1452	-	hypothetical protein
1301	 72.98	+2	1488850..1490751	+	633	58581076	-	XOO1453	-	VGR-related protein
1302	 59.40	-1	1492778..1493011	+	77	58581077	-	XOO1454	-	hypothetical protein
1303	 60.78	0	1493008..1493160	+	50	121632067	-	XOO4758	-	hypothetical protein
1304	 61.44	0	1493646..1493798	+	50	121632068	-	XOO4759	-	hypothetical protein
1305	 59.73	-1	1493779..1494585	+	268	122879104	-	XOO1455	-	hypothetical protein
1306	 65.26	0	1494582..1496990	+	802	58581079	-	XOO1456	-	hypothetical protein
1307	 65.35	0	1497335..1497790	-	151	122879105	-	XOO1457	-	hypothetical protein
1308	 68.69	+1	1498037..1498927	-	296	58581081	-	XOO1458	-	pirin-related protein
1309	 67.51	+1	1499689..1500402	-	237	122879106	nfi	XOO1459	-	endonuclease V
1310	 64.40	0	1500506..1501255	+	249	58581083	gpm	XOO1460	-	phosphoglyceromutase
1311	 69.88	+1	1501517..1501858	+	113	58581084	-	XOO1461	-	hypothetical protein
1312	 62.23	0	1502020..1504248	+	742	58581085	-	XOO1462	-	metallopeptidase
1313	 66.84	0	1506196..1507317	-	373	161899005	cheB	XOO1465	-	chemotaxis-specific methylesterase
1314	 61.35	0	1507332..1508159	-	275	58581089	cheR	XOO1466	-	response regulator for chemotaxis
1315	 66.21	0	1508143..1509444	-	433	58581090	vieA	XOO1467	-	response regulator
1316	 63.57	0	1509453..1509968	-	171	58581091	cheW	XOO1468	-	chemotaxis protein
1317	 63.99	0	1509979..1512147	-	722	58581092	mcp	XOO1469	-	chemotaxis protein
1318	 64.19	0	1512216..1514237	-	673	58581093	cheA	XOO1470	-	chemotaxis histidine protein kinase
1319	 61.21	0	1514256..1514585	-	109	58581094	-	XOO1471	-	hypothetical protein
1320	 65.69	0	1515075..1518539	-	1154	58581095	mfd	XOO1472	-	transcription-repair coupling factor
1321	 66.67	0	1518943..1519485	-	180	58581096	-	XOO1473	-	hypothetical protein
1322	 68.14	+1	1519897..1520985	-	362	58581097	-	XOO1474	-	hypothetical protein
1323	 58.91	-1	1521151..1521627	-	158	58581098	-	XOO1475	-	putative transposase
1324	 58.06	-1	1521593..1521964	-	123	58581099	-	XOO1476	-	putative transposase
1325	 63.84	0	1522250..1522816	+	188	58581100	creC	XOO1477	-	two-component system sensor protein
1326	 66.19	0	1522972..1523601	+	209	58581101	-	XOO1478	-	putative transposase
1327	 58.06	-1	1523636..1524007	+	123	58581102	-	XOO1479	-	putative transposase
1328	 58.18	-1	1524029..1524841	-	270	58581103	-	XOO1480	-	cysteine protease
1329	 64.22	0	1525256..1525828	+	190	58581104	creD	XOO1481	-	inner membrane protein
1330	 48.39	-2	1527038..1527130	-	30	58581108	-	XOO1485	-	putative transposase
1331	 64.56	0	1527183..1528082	-	299	58581109	-	XOO1486	-	putative transposase
1332	 57.93	-1	1528170..1528982	-	270	122879107	-	XOO1487	-	cysteine protease
1333	 56.99	-1	1532429..1532521	+	30	58581117	-	XOO1494	-	IS1479 transposase
1334	 57.84	-1	1533035..1533340	-	101	58581120	-	XOO1497	-	cysteine protease
1335	 62.37	0	1533445..1534002	+	185	58581121	-	XOO1498	-	hypothetical protein
1336	 59.77	-1	1534095..1534355	+	86	58581123	nthA	XOO1500	-	nitrilase
1337	 60.57	0	1534101..1534346	-	81	121632069	-	XOO4761	-	hypothetical protein
1338	 62.33	0	1534330..1535298	-	322	58581124	-	XOO1501	-	transposase
1339	 65.84	0	1535367..1536092	+	241	58581125	nthA	XOO1502	-	nitrilase
1340	 65.60	0	1536114..1536674	+	186	121632070	-	XOO4762	-	hypothetical protein
1341	 65.81	0	1536398..1537213	+	271	58581126	-	XOO1503	-	hypothetical protein
1342	 64.67	0	1537282..1538685	+	467	58581127	gltX	XOO1504	-	glutamyl-tRNA synthetase
1343	 66.10	0	1538672..1539205	+	177	58581128	-	XOO1505	-	FUR family transcriptional regulator
1344	 66.67	0	1540847..1541050	+	67	121632071	-	XOO4763	-	hypothetical protein
1345	 61.97	0	1541140..1542267	-	375	58581131	-	XOO1508	-	IS1478 transposase
1346	 64.61	0	1542612..1543097	-	161	58581132	-	XOO1509	-	hypothetical protein
1347	 56.02	-2	1543325..1543540	+	71	58581133	cspA	XOO1510	-	major cold shock protein
1348	 66.10	0	1543791..1544321	-	176	58581134	pcp	XOO1511	-	peptidoglycan-associated outer membrane lipoprotein
1349	 66.28	0	1544402..1544914	-	170	58581135	-	XOO1512	-	hypothetical protein
1350	 64.86	0	1544903..1545733	+	276	58581136	moeB	XOO1513	-	molybdopterin biosynthesis protein
1351	 68.10	+1	1545795..1546562	-	255	58581137	-	XOO1514	-	hypothetical protein
1352	 63.89	0	1546562..1546777	-	71	58581138	-	XOO1515	-	hypothetical protein
1353	 64.01	0	1546848..1547714	+	288	58581139	-	XOO1516	-	hypothetical protein
1354	 65.90	0	1547860..1549035	+	391	58581140	gcdH	XOO1517	-	glutaryl-CoA dehydrogenase
1355	 66.18	0	1549050..1549256	+	68	58581141	-	XOO1518	-	hypothetical protein
1356	 67.00	0	1549735..1550328	+	197	121632072	-	XOO4764	-	hypothetical protein
1357	 69.52	+1	1550793..1551143	+	116	58581145	-	XOO1522	-	hypothetical protein
1358	 66.19	0	1551278..1551907	+	209	122879108	gst	XOO1521	-	glutathione S-transferase
1359	 67.44	+1	1552073..1554013	+	646	122879109	-	XOO1523	-	asparagine synthase
1360	 63.42	0	1554230..1554784	+	184	58581147	-	XOO1524	-	hypothetical protein
1361	 61.68	0	1554853..1556436	+	527	58581148	dnaB	XOO1525	-	replicative DNA helicase
1362	 64.33	0	1556503..1557957	+	484	58581149	phr	XOO1526	-	photolyase
1363	 63.09	0	1558374..1559099	+	241	58581150	-	XOO1527	-	OmpA family protein
1364	 58.15	-1	1559198..1559608	+	136	58581151	-	XOO1528	-	short chain dehydrogenase
1365	 63.26	0	1559648..1560616	+	322	58581152	-	XOO1529	-	hypothetical protein
1366	 63.32	0	1560860..1563280	-	806	58581153	fhuA	XOO1530	-	TonB-dependent receptor
1367	 71.57	+2	1565447..1565650	-	67	58581155	phuR	XOO1532	-	outer membrane hemin receptor
1368	 65.45	0	1565869..1566279	+	136	58581156	-	XOO1533	-	hypothetical protein
1369	 63.91	0	1566363..1566761	+	132	58581157	-	XOO1534	-	hypothetical protein
1370	 63.69	0	1566894..1567934	-	346	58581158	-	XOO1535	-	alcohol dehydrogenase
1371	 66.53	0	1568007..1569452	-	481	58581159	yadQ	XOO1536	-	chloride channel
1372	 63.03	0	1570728..1570892	+	54	121632073	-	XOO4766	-	hypothetical protein
1373	 67.77	+1	1571142..1571687	-	181	58581161	ogt	XOO1538	-	6-O-methylguanine-DNA methyltransferase
1374	 70.49	+1	1571684..1573147	-	487	58581162	ada	XOO1539	-	DNA methylation and regulatory protein
1375	 67.15	0	1573159..1574202	+	347	58581163	-	XOO1540	-	hypothetical protein
1376	 69.54	+1	1574171..1574518	+	115	58581164	-	XOO1541	-	hypothetical protein
1377	 66.67	0	1574597..1574851	+	84	58581165	-	XOO1542	-	hypothetical protein
1378	 69.10	+1	1575254..1575787	+	177	58581166	-	XOO1543	-	hypothetical protein
1379	 64.43	0	1575813..1576214	+	133	58581167	-	XOO1544	-	inner membrane protein
1380	 63.79	0	1576560..1576802	-	80	58581168	-	XOO1545	-	hypothetic
