IslandPath Analysis: Xanthobacter autotrophicus Py2

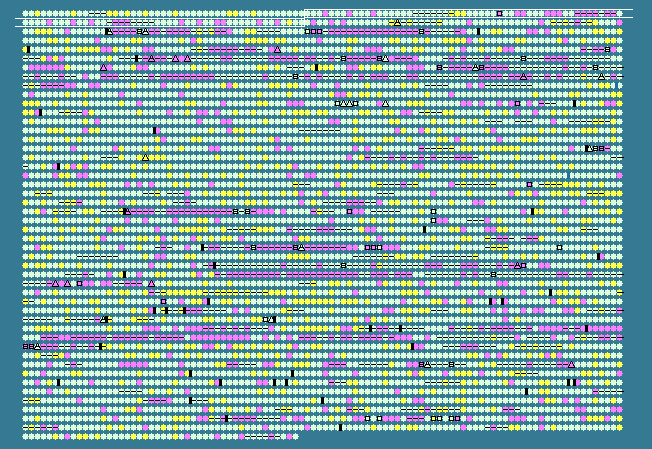

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.51   STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
48	 70.59	0	51711..52601	-	296	154244006	-	Xaut_0048	-	DNA binding domain-containing protein
49	 69.99	0	52721..53443	+	240	154244007	-	Xaut_0049	-	molybdenum cofactor synthesis domain-containing protein
50	 68.76	0	53475..54428	-	317	154244008	-	Xaut_0050	-	cation diffusion facilitator family transporter
51	 62.32	-1	54663..55421	-	252	154244009	-	Xaut_0051	-	hypothetical protein
52	 66.20	0	55577..56425	-	282	154244010	-	Xaut_0052	-	enoyl-(acyl carrier protein) reductase
53	 67.65	0	56652..57875	-	407	154244011	-	Xaut_0053	-	3-oxoacyl-(acyl carrier protein) synthase I
54	 65.95	0	57930..58487	-	185	154244012	-	Xaut_0054	-	3-hydroxydecanoyl-(acyl carrier protein) dehydratase
55	 62.41	-1	58831..59253	+	140	154244013	-	Xaut_0055	-	large conductance mechanosensitive channel protein
56	 69.55	0	59274..60347	-	357	154244014	-	Xaut_0056	-	dihydroorotate dehydrogenase 2
57	 66.24	0	60356..61054	-	232	154244015	-	Xaut_0057	-	orotate phosphoribosyltransferase
58	 69.54	0	61785..65297	-	1170	154244016	-	Xaut_0058	-	integral membrane sensor hybrid histidine kinase
59	 54.24	-2	65598..66410	+	270	154244017	-	Xaut_0059	-	hypothetical protein
60	 68.72	0	66525..67205	-	226	154244018	-	Xaut_0060	-	phospholipase/carboxylesterase
61	 67.25	0	67298..67813	-	171	154244019	-	Xaut_0061	-	MarR family transcriptional regulator
62	 68.07	0	67965..68393	+	142	154244020	-	Xaut_0062	-	OsmC family protein
63	 65.17	0	68632..69234	+	200	154244021	-	Xaut_0063	-	hypothetical protein
64	 68.39	0	69302..70864	-	520	154244022	-	Xaut_0064	-	RNA polymerase, sigma 54 subunit, RpoN
65	 68.27	0	70926..71858	-	310	154244023	-	Xaut_0065	-	ABC transporter related
66	 68.40	0	72102..72794	-	230	154244024	-	Xaut_0066	-	OstA family protein
67	 68.84	0	72791..73711	-	306	154244025	-	Xaut_0067	-	hypothetical protein
68	 68.12	0	73947..74567	-	206	154244026	-	Xaut_0068	-	3'-5' exonuclease
69	 69.34	0	74724..75209	+	161	154244027	-	Xaut_0069	-	cyanovirin containing protein
70	 69.26	0	75294..77147	-	617	154244028	-	Xaut_0070	-	dihydroxy-acid dehydratase
71	 69.82	0	77388..78812	+	474	154244029	-	Xaut_0071	-	aromatic-L-amino-acid decarboxylase
72	 75.51	+2	78818..79360	-	180	154244030	-	Xaut_0072	-	hypothetical protein
73	 73.28	+1	79363..79755	-	130	154244031	-	Xaut_0073	-	chromosomal replication initiator DnaA domain-containing protein
74	 73.41	+1	79981..80247	+	88	154244032	-	Xaut_0074	-	hypothetical protein
75	 69.20	0	80313..81299	-	328	154244033	-	Xaut_0075	-	cysteine synthase A
76	 70.52	0	81349..81789	-	146	154244034	-	Xaut_0076	-	BadM/Rrf2 family transcriptional regulator
77	 66.88	0	81800..82276	-	158	154244035	-	Xaut_0077	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
78	 70.28	0	82273..83490	-	405	154244036	-	Xaut_0078	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate--cysteine ligase
79	 69.48	0	83713..84921	+	402	154244037	-	Xaut_0079	-	putative diguanylate cyclase
80	 63.79	0	84976..86331	+	451	154244038	-	Xaut_0080	-	transposase IS4 family protein
81	 67.99	0	86322..87755	+	477	154244039	-	Xaut_0081	-	diguanylate cyclase/phosphodiesterase
82	 66.11	0	88123..89916	+	597	154244040	-	Xaut_0082	-	transcriptional regulator NifA
83	 61.03	-1	90310..90504	+	64	154244041	-	Xaut_0083	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
84	 61.89	-1	90834..92318	+	494	154244042	-	Xaut_0084	-	FeS assembly protein SufB
85	 65.22	0	92375..93136	+	253	154244043	-	Xaut_0085	-	FeS assembly ATPase SufC
86	 69.80	0	93141..94481	+	446	154244044	-	Xaut_0086	-	FeS assembly protein SufD
87	 65.00	0	94482..95744	+	420	154244045	-	Xaut_0087	-	SufS subfamily cysteine desulfurase
88	 62.83	-1	96387..97298	+	303	154244046	-	Xaut_0088	-	nitrogenase reductase
89	 61.82	-1	97375..98880	+	501	154244047	-	Xaut_0089	-	nitrogenase molybdenum-iron protein alpha chain
90	 62.24	-1	98968..100527	+	519	154244048	-	Xaut_0090	-	nitrogenase molybdenum-iron protein beta chain
91	 64.77	0	100648..102549	+	633	154244049	-	Xaut_0091	-	nitrogenase MoFe cofactor biosynthesis protein NifE
92	 64.92	0	102559..103986	+	475	154244050	-	Xaut_0092	-	nitrogenase molybdenum-iron cofactor biosynthesis protein NifN
93	 59.60	-1	104011..104406	+	131	154244051	-	Xaut_0093	-	nitrogen fixation protein NifX
94	 59.45	-2	104415..104885	+	156	154244052	-	Xaut_0094	-	hypothetical protein
95	 59.20	-2	104901..105101	+	66	154244053	-	Xaut_0095	-	hypothetical protein
96	 61.62	-1	105120..105416	+	98	154244054	-	Xaut_0096	-	ferredoxin III 4(4Fe-4S) nif-specific
97	 65.77	0	105560..106228	+	222	154244055	-	Xaut_0097	-	NifQ family protein
98	 61.64	-1	106468..106785	-	105	154244056	-	Xaut_0098	-	hypothetical protein
99	 59.92	-1	106791..107042	-	83	154244057	-	Xaut_0099	-	hypothetical protein
100	 65.51	0	107055..107915	-	286	154244058	-	Xaut_0100	-	rhodanese domain-containing protein
101	 69.26	0	108034..108495	-	153	154244059	-	Xaut_0101	-	hypothetical protein
102	 70.92	0	108815..110458	+	547	154244060	-	Xaut_0102	-	amine oxidase
103	 64.50	0	110470..110931	+	153	154244061	-	Xaut_0103	-	Rieske (2Fe-2S) domain-containing protein
104	 65.61	0	110897..111181	-	94	154244062	-	Xaut_0104	-	hypothetical protein
105	 60.71	-1	111282..111869	-	195	154244063	-	Xaut_0105	-	hypothetical protein
106	 64.80	0	112347..112667	+	106	154244064	-	Xaut_0106	-	iron-sulfur cluster assembly accessory protein
107	 66.67	0	112733..113098	+	121	154244065	-	Xaut_0107	-	NifU domain-containing protein
108	 66.75	0	113138..114340	+	400	154244066	-	Xaut_0108	-	aminotransferase class V
109	 60.65	-1	114527..114742	+	71	154244067	-	Xaut_0109	-	NifT/FixU family protein
110	 67.12	0	114749..115621	+	290	154244068	-	Xaut_0110	-	hypothetical protein
111	 64.75	0	115938..117500	+	520	154244069	-	Xaut_0111	-	nitrogenase cofactor biosynthesis protein NifB
112	 61.78	-1	117621..117845	+	74	154244070	-	Xaut_0112	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
113	 66.67	0	117857..118171	+	104	154244071	-	Xaut_0113	-	HesB/YadR/YfhF-family protein
114	 65.45	0	118238..118813	+	191	154244072	-	Xaut_0114	-	hypothetical protein
115	 67.44	0	118803..119582	+	259	154244073	-	Xaut_0115	-	LRV FeS4 cluster domain-containing protein
116	 56.57	-2	119579..119905	+	108	154244074	-	Xaut_0116	-	NifZ family protein
117	 61.79	-1	119902..120147	+	81	154244075	-	Xaut_0117	-	NifZ family protein
118	 62.73	-1	120195..120524	+	109	154244076	-	Xaut_0118	-	hypothetical protein
119	 67.42	0	120613..120876	+	87	154244077	-	Xaut_0119	-	hypothetical protein
120	 64.84	0	120876..122078	+	400	154244078	-	Xaut_0120	-	DegT/DnrJ/EryC1/StrS aminotransferase
121	 64.13	0	122130..122444	+	104	154244079	-	Xaut_0121	-	putative ferredoxin, 2Fe-2S
122	 64.44	0	122670..122894	+	74	154244080	-	Xaut_0122	-	hypothetical protein
123	 64.56	0	123228..123560	-	110	154244081	-	Xaut_0123	-	glutaredoxin-like protein
124	 64.10	0	123633..123866	-	77	154244082	-	Xaut_0124	-	BolA family protein
125	 67.08	0	124028..124987	+	319	154244083	-	Xaut_0125	-	hypothetical protein
126	 65.62	0	125030..125509	+	159	154244084	-	Xaut_0126	-	hypothetical protein
127	 59.60	-1	125612..126007	+	131	154244085	-	Xaut_0127	-	hypothetical protein
128	 64.21	0	126108..126392	-	94	154244086	-	Xaut_0128	-	hypothetical protein
129	 66.67	0	126431..127090	-	219	154244087	-	Xaut_0129	-	glutathione S-transferase domain-containing protein
130	 64.00	0	127288..127737	+	149	154244088	-	Xaut_0130	-	Rieske (2Fe-2S) domain-containing protein
131	 64.20	0	127783..128106	+	107	154244089	-	Xaut_0131	-	hypothetical protein
132	 68.28	0	128388..128822	+	144	154244090	-	Xaut_0132	-	globin
133	 61.67	-1	128879..129118	-	79	154244091	-	Xaut_0133	-	hypothetical protein
134	 62.87	-1	129246..129614	-	122	154244092	-	Xaut_0134	-	hypothetical protein
135	 65.64	0	129749..130234	+	161	154244093	-	Xaut_0135	-	hypothetical protein
136	 65.76	0	130509..130838	-	109	154244094	-	Xaut_0136	-	hypothetical protein
137	 64.69	0	131123..131881	-	252	154244095	-	Xaut_0137	-	dienelactone hydrolase
138	 68.23	0	132149..132916	-	255	154244096	-	Xaut_0138	-	LRV FeS4 cluster domain-containing protein
139	 64.67	0	133158..133457	-	99	154244097	-	Xaut_0139	-	putative ferredoxin protein, FixX
140	 62.23	-1	133567..134874	-	435	154244098	-	Xaut_0140	-	electron-transferring-flavoprotein dehydrogenase
141	 66.13	0	134887..135996	-	369	154244099	-	Xaut_0141	-	electron transfer flavoprotein alpha/beta-subunit
142	 67.61	0	136031..136879	-	282	154244100	-	Xaut_0142	-	electron transfer flavoprotein alpha/beta-subunit
143	 63.38	-1	137497..138378	-	293	154244101	-	Xaut_0143	-	nitrogenase reductase
144	 66.44	0	138962..139396	+	144	154244102	-	Xaut_0144	-	response regulator receiver protein
145	 72.45	+1	139403..139834	+	143	154244103	-	Xaut_0145	-	nitrogenase-associated protein
146	 70.14	0	139838..141508	+	556	154244104	-	Xaut_0146	-	hypothetical protein
147	 67.42	0	141529..142320	+	263	154244105	-	Xaut_0147	-	rhodanese domain-containing protein
67.51	MEAN

3.97	STD DEV
