IslandPath Analysis: Xanthobacter autotrophicus Py2

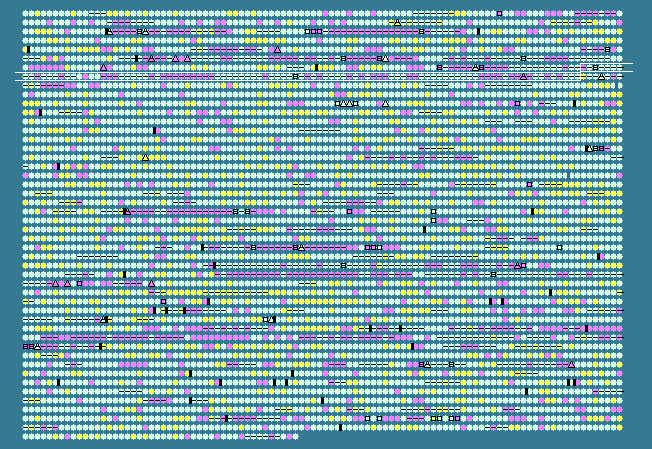

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 67.51   STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
694	 63.04	-1	790062..792047	-	661	154244652	-	Xaut_0701	-	TRAG family protein
695	 68.10	0	792069..793808	-	579	154244653	-	Xaut_0702	-	hypothetical protein
696	 66.76	0	794364..795452	-	362	154244654	-	Xaut_0703	-	transposase IS116/IS110/IS902 family protein
697	 67.59	0	795643..796398	-	251	154244655	-	Xaut_0704	-	lytic transglycosylase catalytic
698	 66.67	0	796402..796788	-	128	154244656	-	Xaut_0705	-	hypothetical protein
699	 68.86	0	796809..797354	-	181	154244657	-	Xaut_0706	-	conjugal transfer protein precursor
700	 65.10	0	797351..797860	-	169	154244658	-	Xaut_0707	-	hypothetical protein
701	 67.87	0	797857..798105	-	82	154244659	-	Xaut_0708	-	hypothetical protein
702	 67.74	0	798102..798755	-	217	154244660	-	Xaut_0709	-	cobyrinic acid ac-diamide synthase
703	 62.88	-1	798752..799912	-	386	154244661	-	Xaut_0710	-	replication protein A
704	 67.73	0	799912..800193	-	93	154244662	-	Xaut_0711	-	putative transcriptional regulator
705	 66.18	0	800333..800950	-	205	154244663	-	Xaut_0712	-	hypothetical protein
706	 66.67	0	801219..801494	-	91	154244664	-	Xaut_0713	-	hypothetical protein
707	 62.88	-1	801594..801857	-	87	154244665	-	Xaut_0714	-	XRE family transcriptional regulator
708	 66.36	0	802076..802402	-	108	154244666	-	Xaut_0715	-	hypothetical protein
709	 64.27	0	802404..802778	-	124	154244667	-	Xaut_0716	-	hypothetical protein
710	 65.99	0	802988..803428	-	146	154244668	-	Xaut_0717	-	hypothetical protein
711	 63.43	-1	803580..804506	-	308	154244669	-	Xaut_0718	-	hypothetical protein
712	 66.76	0	804811..805851	-	346	154244670	-	Xaut_0719	-	hypothetical protein
713	 66.57	0	805851..810173	-	1440	154244671	-	Xaut_0720	-	putative methylase/helicase
714	 56.72	-2	810386..810757	+	123	154244672	-	Xaut_0721	-	hypothetical protein
715	 58.36	-2	810767..811741	+	324	154244673	-	Xaut_0722	-	peptidase C14 caspase catalytic subunit p20
716	 60.62	-1	812037..812681	-	214	154244674	-	Xaut_0723	-	hypothetical protein
717	 64.75	0	812674..813090	-	138	154244675	-	Xaut_0724	-	hypothetical protein
718	 67.92	0	813157..813714	-	185	154244676	-	Xaut_0725	-	hypothetical protein
719	 66.26	0	813915..814157	-	80	154244677	-	Xaut_0726	-	hypothetical protein
720	 65.36	0	814499..814804	-	101	154244678	-	Xaut_0727	-	hypothetical protein
721	 66.19	0	814867..815286	-	139	154244679	-	Xaut_0728	-	hypothetical protein
722	 62.71	-1	815298..815777	-	159	154244680	-	Xaut_0729	-	hypothetical protein
723	 66.71	0	815878..818082	-	734	154244681	-	Xaut_0730	-	nuclease
724	 59.62	-1	818131..818343	-	70	154244682	-	Xaut_0731	-	DNA repair protein RadC
725	 51.35	-2	818411..818632	-	73	154244683	-	Xaut_0732	-	hypothetical protein
726	 55.28	-2	819336..819458	-	40	154244684	-	Xaut_0733	-	hypothetical protein
727	 61.80	-1	819561..820505	-	314	154244685	-	Xaut_0734	-	LysR family transcriptional regulator
728	 59.22	-2	820615..821151	+	178	154244686	-	Xaut_0735	-	cupin 2 domain-containing protein
729	 60.82	-1	821224..822387	+	387	154244687	-	Xaut_0736	-	RND family efflux transporter MFP subunit
730	 59.49	-2	822384..825548	+	1054	154244688	-	Xaut_0737	-	acriflavin resistance protein
731	 60.95	-1	825822..826766	+	314	154244689	-	Xaut_0738	-	LysR family transcriptional regulator
732	 61.47	-1	827145..827375	-	76	154244690	-	Xaut_0739	-	hypothetical protein
733	 67.58	0	827379..828584	-	401	154244691	-	Xaut_0740	-	conjugation TrbI family protein
734	 65.50	0	828581..829606	-	341	154244692	-	Xaut_0741	-	P-type conjugative transfer protein TrbG
735	 66.81	0	829603..830286	-	227	154244693	-	Xaut_0742	-	conjugal transfer protein
736	 68.74	0	830286..831638	-	450	154244694	-	Xaut_0743	-	P-type conjugative transfer protein TrbL
737	 69.42	0	831642..831932	-	96	154244695	-	Xaut_0744	-	hypothetical protein
738	 65.75	0	831955..832716	-	253	154244696	-	Xaut_0745	-	P-type conjugative transfer protein TrbJ
739	 66.42	0	832713..835151	-	812	154244697	-	Xaut_0746	-	AAA ATPase
740	 70.57	0	835159..835440	-	93	154244698	-	Xaut_0747	-	conjugal transfer protein TrbB
741	 62.76	-1	835440..835772	-	110	154244699	-	Xaut_0748	-	conjugal transfer protein TrbC
742	 68.70	0	835769..836752	-	327	154244700	-	Xaut_0749	-	P-type conjugative transfer ATPase TrbB
743	 65.06	0	836922..837356	-	144	154244701	-	Xaut_0750	-	hypothetical protein
744	 65.01	0	837365..839350	-	661	154244702	-	Xaut_0751	-	TRAG family protein
745	 66.29	0	839381..841258	-	625	154244703	-	Xaut_0752	-	hypothetical protein
746	 66.76	0	841677..842765	-	362	154244704	-	Xaut_0753	-	transposase IS116/IS110/IS902 family protein
747	 66.01	0	842956..843717	-	253	154244705	-	Xaut_0754	-	lytic transglycosylase catalytic
748	 63.39	-1	843721..844056	-	111	154244706	-	Xaut_0755	-	hypothetical protein
749	 65.75	0	844102..844647	-	181	154244707	-	Xaut_0756	-	putative conjugal transfer protein precursor
750	 60.95	-1	844644..845150	-	168	154244708	-	Xaut_0757	-	hypothetical protein
751	 66.67	0	845147..845401	-	84	154244709	-	Xaut_0758	-	hypothetical protein
752	 65.73	0	845398..846036	-	212	154244710	-	Xaut_0759	-	cobyrinic acid ac-diamide synthase
753	 68.73	0	846033..846323	-	96	154244711	-	Xaut_0760	-	hypothetical protein
754	 65.29	0	846479..846988	-	169	154244712	-	Xaut_0761	-	hypothetical protein
755	 63.77	0	847386..847661	-	91	154244713	-	Xaut_0762	-	hypothetical protein
756	 66.06	0	848236..848562	-	108	154244714	-	Xaut_0764	-	hypothetical protein
757	 60.51	-1	849125..849676	-	183	154244715	-	Xaut_0765	-	hypothetical protein
758	 65.53	0	849720..850160	-	146	154244716	-	Xaut_0766	-	hypothetical protein
759	 63.48	-1	850305..850586	-	93	154244717	-	Xaut_0767	-	hypothetical protein
760	 58.72	-2	850825..851529	+	234	154244718	-	Xaut_0768	-	hypothetical protein
761	 63.54	0	851575..852501	-	308	154244719	-	Xaut_0769	-	hypothetical protein
762	 66.28	0	852820..853860	-	346	154244720	-	Xaut_0770	-	hypothetical protein
763	 65.96	0	853930..856056	-	708	154244721	-	Xaut_0771	-	nuclease
764	 64.85	0	856208..857419	-	403	154244722	-	Xaut_0772	-	hypothetical protein
765	 61.55	-1	857707..859152	+	481	154244723	-	Xaut_0773	-	peptidase C14 caspase catalytic subunit p20
766	 63.51	-1	859453..860244	+	263	154244724	-	Xaut_0774	-	ECF subfamily RNA polymerase sigma-24 factor
767	 64.40	0	860241..860903	+	220	154244725	-	Xaut_0775	-	hypothetical protein
768	 67.66	0	860907..864338	+	1143	154244726	-	Xaut_0776	-	UvrD/REP helicase
769	 68.04	0	864447..864956	+	169	154244727	-	Xaut_0777	-	hypothetical protein
770	 67.93	0	864953..865426	+	157	154244728	-	Xaut_0778	-	hypothetical protein
771	 67.05	0	865374..865892	+	172	154244729	-	Xaut_0779	-	hypothetical protein
772	 69.52	0	865906..867273	+	455	154244730	-	Xaut_0780	-	UBA/ThiF-type NAD/FAD binding fold containing protein
773	 70.39	0	867537..870197	+	886	154244731	-	Xaut_0781	-	hypothetical protein
774	 68.47	0	870194..873517	+	1107	154244732	-	Xaut_0782	-	UvrD/REP helicase
775	 66.37	0	873665..874342	+	225	154244733	-	Xaut_0783	-	hypothetical protein
776	 64.32	0	874339..875445	+	368	154244734	-	Xaut_0784	-	hypothetical protein
777	 63.13	-1	875442..877817	+	791	154244735	-	Xaut_0785	-	EcoEI R domain-containing protein
778	 57.81	-2	877832..879964	+	710	154244736	-	Xaut_0786	-	N-6 DNA methylase
779	 59.16	-2	880018..881562	+	514	154244737	-	Xaut_0787	-	hypothetical protein
780	 62.59	-1	881559..882245	+	228	154244738	-	Xaut_0788	-	hypothetical protein
781	 64.60	0	882242..883402	-	386	154244739	-	Xaut_0789	-	hypothetical protein
782	 58.74	-2	883476..884207	+	243	154244740	-	Xaut_0790	-	hypothetical protein
783	 63.33	-1	884233..884652	-	139	154244741	-	Xaut_0791	-	hypothetical protein
784	 61.16	-1	884649..885902	-	417	154244742	-	Xaut_0792	-	integrase family protein
785	 62.53	-1	886057..886443	-	128	154244743	-	Xaut_0793	-	DNA repair protein RadC
786	 67.65	0	886564..886968	-	134	154244744	-	Xaut_0794	-	hypothetical protein
787	 68.02	0	886965..887186	-	73	154244745	-	Xaut_0795	-	putative ArdC antirestriction protein
788	 62.81	-1	887428..888774	-	448	154244746	-	Xaut_0796	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
789	 67.36	0	888822..891125	-	767	154244747	-	Xaut_0797	-	mercuric reductase
790	 63.30	-1	891372..891668	-	98	154244748	-	Xaut_0798	-	heavy metal transport/detoxification protein
791	 66.88	0	891690..892148	-	152	154244749	-	Xaut_0799	-	mercuric transporter MerT
792	 68.53	0	892202..892630	+	142	154244750	-	Xaut_0800	-	MerR family transcriptional regulator
793	 68.82	0	892647..893573	-	308	154244751	-	Xaut_0801	-	hypothetical protein
67.51	MEAN

3.97	STD DEV
