IslandPathversion 1.0

IslandPath Analysis: Xanthobacter autotrophicus Py2

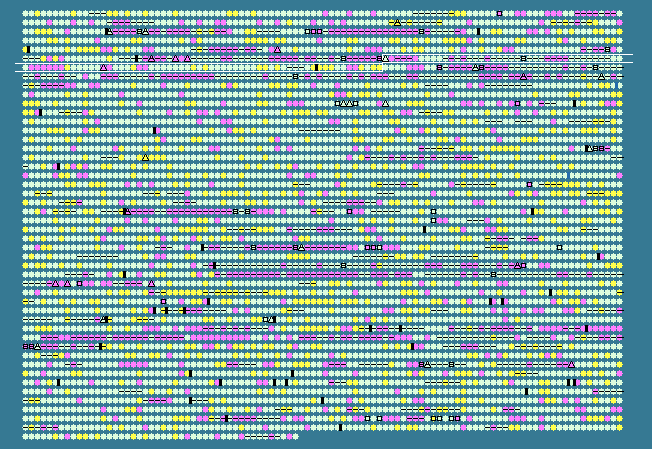

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
561	 64.38	0	636297..637172	+	291	154244519	-	Xaut_0564	-	integrase catalytic region
562	 61.11	-1	637188..638465	-	425	154244520	-	Xaut_0565	-	hypothetical protein
563	 57.93	-2	638452..639264	-	270	154244521	-	Xaut_0566	-	hypothetical protein
564	 57.78	-2	639394..639933	-	179	154244522	-	Xaut_0567	-	putative adenylate kinase
565	 56.58	-2	639930..641456	-	508	154244523	-	Xaut_0568	-	GCN5-related N-acetyltransferase
566	 59.34	-2	641431..642222	-	263	154244524	-	Xaut_0569	-	helix-turn-helix domain-containing protein
567	 68.00	0	642679..643875	+	398	154244525	-	Xaut_0570	-	hypothetical protein
568	 67.68	0	644042..646105	+	687	154244526	-	Xaut_0571	-	parB-like partition protein
569	 65.61	0	646196..647233	+	345	154244527	-	Xaut_0572	-	hypothetical protein
570	 66.23	0	647572..648492	+	306	154244528	-	Xaut_0573	-	hypothetical protein
571	 64.68	0	648845..649045	+	66	154244529	-	Xaut_0574	-	hypothetical protein
572	 61.27	-1	649066..649695	-	209	154244530	-	Xaut_0575	-	hypothetical protein
573	 66.06	0	650328..650654	+	108	154244531	-	Xaut_0576	-	hypothetical protein
574	 63.86	0	650729..650977	-	82	154244532	-	Xaut_0577	-	XRE family transcriptional regulator
575	 67.43	0	651112..651372	+	86	154244533	-	Xaut_0578	-	hypothetical protein
576	 64.52	0	651703..652260	+	185	154244534	-	Xaut_0579	-	hypothetical protein
577	 69.53	0	652400..652678	+	92	154244535	-	Xaut_0580	-	hypothetical protein
578	 62.81	-1	652693..653832	+	379	154244536	-	Xaut_0581	-	replication protein A
579	 70.18	0	653829..654482	+	217	154244537	-	Xaut_0582	-	cobyrinic acid ac-diamide synthase
580	 66.67	0	654479..654733	+	84	154244538	-	Xaut_0583	-	hypothetical protein
581	 67.42	0	654730..655260	+	176	154244539	-	Xaut_0584	-	hypothetical protein
582	 68.13	0	655257..655802	+	181	154244540	-	Xaut_0585	-	conjugal transfer protein precursor
583	 65.90	0	655844..656629	+	261	154244541	-	Xaut_0586	-	lytic transglycosylase catalytic
584	 66.76	0	656820..657908	+	362	154244542	-	Xaut_0587	-	transposase IS116/IS110/IS902 family protein
585	 70.75	0	658464..660203	+	579	154244543	-	Xaut_0588	-	hypothetical protein
586	 66.21	0	660227..662206	+	659	154244544	-	Xaut_0589	-	TRAG family protein
587	 68.76	0	662212..662640	+	142	154244545	-	Xaut_0590	-	hypothetical protein
588	 62.48	-1	663004..664125	+	373	154244546	-	Xaut_0591	-	filamentation induced by cAMP protein Fic
589	 62.83	-1	664602..666137	-	511	154244547	-	Xaut_0592	-	hypothetical protein
590	 60.73	-1	666221..667720	-	499	154244548	-	Xaut_0593	-	hypothetical protein
591	 61.26	-1	667830..668810	-	326	154244549	-	Xaut_0594	-	helix-turn-helix domain-containing protein
592	 68.90	0	669253..670239	+	328	154244550	-	Xaut_0595	-	P-type conjugative transfer ATPase TrbB
593	 66.37	0	670236..670568	+	110	154244551	-	Xaut_0596	-	conjugal transfer protein TrbC
594	 69.96	0	670568..670840	+	90	154244552	-	Xaut_0597	-	conjugal transfer protein TrbB
595	 67.28	0	670853..673282	+	809	154244553	-	Xaut_0598	-	AAA ATPase
596	 66.67	0	673279..674013	+	244	154244554	-	Xaut_0599	-	P-type conjugative transfer protein TrbJ
597	 67.82	0	674023..674283	+	86	154244555	-	Xaut_0600	-	hypothetical protein
598	 68.38	0	674280..675503	+	407	154244556	-	Xaut_0601	-	P-type conjugative transfer protein TrbL
599	 68.55	0	675500..676189	+	229	154244557	-	Xaut_0602	-	conjugal transfer protein
600	 66.38	0	676186..677238	+	350	154244558	-	Xaut_0603	-	P-type conjugative transfer protein TrbG
601	 67.71	0	677235..678482	+	415	154244559	-	Xaut_0604	-	conjugation TrbI family protein
602	 61.71	-1	678484..678705	+	73	154244560	-	Xaut_0605	-	hypothetical protein
603	 55.88	-2	678728..679645	-	305	154244561	-	Xaut_0606	-	LysR family transcriptional regulator
604	 63.32	-1	679764..682271	-	835	154244562	-	Xaut_0607	-	heavy metal translocating P-type ATPase
605	 58.97	-2	683621..684166	-	181	154244563	-	Xaut_0610	-	hypothetical protein
606	 60.13	-1	684177..684482	-	101	154244564	-	Xaut_0611	-	hypothetical protein
607	 63.37	-1	684850..685152	-	100	154244565	-	Xaut_0612	-	hypothetical protein
608	 71.97	+1	685164..685559	-	131	154244566	-	Xaut_0613	-	hypothetical protein
609	 67.29	0	685584..688793	-	1069	154244567	-	Xaut_0614	-	CzcA family heavy metal efflux protein
610	 70.40	0	688790..689191	-	133	154244568	-	Xaut_0615	-	nitrogen regulatory protein P-II
611	 69.70	0	689181..690170	-	329	154244569	-	Xaut_0616	-	RND family efflux transporter MFP subunit
612	 70.24	0	690167..691483	-	438	154244570	-	Xaut_0617	-	outer membrane efflux protein
613	 67.84	0	691549..691974	-	141	154244571	-	Xaut_0618	-	hypothetical protein
614	 62.18	-1	693196..694554	-	452	154244572	-	Xaut_0620	-	integrase family protein
615	 59.92	-1	695055..695306	+	83	154244573	-	Xaut_0621	-	hypothetical protein
616	 66.73	0	695423..697075	-	550	154244574	-	Xaut_0622	-	AMP-dependent synthetase and ligase
617	 70.02	0	697132..698889	-	585	154244575	-	Xaut_0623	-	acyl-CoA dehydrogenase domain-containing protein
618	 69.93	0	698923..701220	-	765	154244576	-	Xaut_0624	-	3-hydroxyacyl-CoA dehydrogenase NAD-binding
619	 71.33	0	701220..702356	-	378	154244577	-	Xaut_0625	-	acetyl-CoA acetyltransferase
620	 62.35	-1	702675..703322	+	215	154244578	-	Xaut_0626	-	TetR family transcriptional regulator
621	 49.84	-2	703505..705400	-	631	154244579	-	Xaut_0627	-	FkbH like protein
622	 68.05	0	706291..706797	+	168	154244580	-	Xaut_0628	-	peptide deformylase
623	 66.89	0	706834..707271	-	145	154244581	-	Xaut_0629	-	glyoxalase/bleomycin resistance protein/dioxygenase
624	 70.76	0	707363..708241	+	292	154244582	-	Xaut_0630	-	LysR family transcriptional regulator
625	 70.86	0	708266..710842	-	858	154244583	-	Xaut_0631	-	magnesium-translocating P-type ATPase
626	 70.26	0	711187..713274	+	695	154244584	-	Xaut_0632	-	PAS/PAC sensor hybrid histidine kinase
627	 67.72	0	713331..713804	+	157	154244585	-	Xaut_0633	-	globin
628	 70.44	0	713896..714663	-	255	154244586	-	Xaut_0634	-	two component transcriptional regulator
629	 71.89	+1	714779..715792	-	337	154244587	-	Xaut_0635	-	hypothetical protein
630	 69.57	0	715789..716202	-	137	154244588	-	Xaut_0636	-	hypothetical protein
631	 71.34	0	716364..717197	-	277	154244589	-	Xaut_0637	-	aspartate/glutamate/uridylate kinase
632	 68.76	0	717210..718022	-	270	154244590	-	Xaut_0638	-	aspartate/glutamate/uridylate kinase
633	 67.91	0	718354..718914	-	186	154244591	-	Xaut_0639	-	GCN5-related N-acetyltransferase
634	 66.12	0	718948..721305	-	785	154244592	-	Xaut_0640	-	ornithine decarboxylase
635	 70.21	0	721437..722141	-	234	154244593	-	Xaut_0641	-	ABC transporter related
636	 67.86	0	722134..722970	-	278	154244594	-	Xaut_0642	-	ABC transporter related
637	 68.01	0	722967..724010	-	347	154244595	-	Xaut_0643	-	inner-membrane translocator
638	 67.12	0	724007..724879	-	290	154244596	-	Xaut_0644	-	inner-membrane translocator
639	 65.37	0	725062..726222	-	386	154244597	-	Xaut_0645	-	extracellular ligand-binding receptor
640	 72.41	+1	726254..727471	-	405	154244598	-	Xaut_0646	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
641	 73.26	+1	727468..728331	-	287	154244599	-	Xaut_0647	-	molybdopterin dehydrogenase FAD-binding
642	 69.21	0	728328..730685	-	785	154244600	-	Xaut_0648	-	aldehyde oxidase and xanthine dehydrogenase molybdopterin binding
643	 72.05	+1	730682..731536	-	284	154244601	-	Xaut_0649	-	esterase/lipase-like protein
644	 68.00	0	731533..732810	-	425	154244602	-	Xaut_0650	-	dihydroorotase
645	 65.90	0	732950..733468	+	172	154244603	-	Xaut_0651	-	MarR family transcriptional regulator
646	 69.59	0	733543..734295	-	250	154244604	-	Xaut_0652	-	hypothetical protein
647	 68.92	0	734510..735307	+	265	154244605	-	Xaut_0653	-	peptidase M15D vanX D-ala-D-ala dipeptidase
648	 68.43	0	735328..735723	-	131	154244606	-	Xaut_0654	-	hypothetical protein
649	 73.37	+1	735773..736279	-	168	154244607	-	Xaut_0655	-	hypothetical protein
650	 74.47	+1	738404..739723	-	439	154244608	-	Xaut_0657	-	Sel1 domain-containing protein
651	 71.40	0	739710..741167	-	485	154244609	-	Xaut_0658	-	selenocysteine synthase
652	 72.12	+1	741177..742130	-	317	154244610	-	Xaut_0659	-	formate dehydrogenase accessory protein FdhE
653	 65.54	0	742303..743010	-	235	154244611	-	Xaut_0660	-	formate dehydrogenase, gamma subunit
654	 65.43	0	743007..743978	-	323	154244612	-	Xaut_0661	-	formate dehydrogenase, beta subunit
655	 63.02	-1	743996..746434	-	812	154244613	-	Xaut_0662	-	formate dehydrogenase, alpha subunit
656	 63.00	-1	746483..747082	-	199	154244614	-	Xaut_0663	-	molybdopterin oxidoreductase Fe4S4 region
657	 73.08	+1	747414..748130	+	238	154244615	-	Xaut_0664	-	redoxin domain-containing protein
658	 68.28	0	748132..749247	+	371	154244616	-	Xaut_0665	-	transglutaminase domain-containing protein
659	 71.23	0	749475..750527	+	350	154244617	-	Xaut_0666	-	selenide, water dikinase
660	 73.88	+1	750612..751013	+	133	154244618	-	Xaut_0667	-	hypothetical protein
67.51	MEAN

3.97	STD DEV
