IslandPath Analysis: Xanthobacter autotrophicus Py2

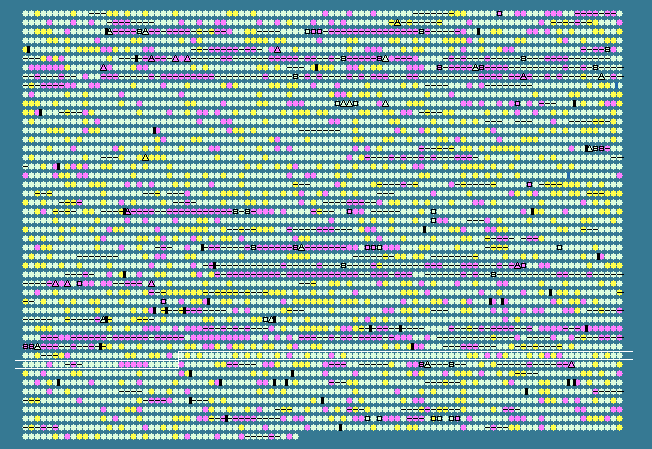

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3827	 70.34	0	4278432..4279166	-	244	154247785	-	Xaut_3862	-	NUDIX hydrolase
3828	 71.98	+1	4279233..4279778	-	181	154247786	-	Xaut_3863	-	hypothetical protein
3829	 69.63	0	4279815..4282145	-	776	154247787	-	Xaut_3864	-	ribonuclease R
3830	 72.35	+1	4282453..4283349	-	298	154247788	-	Xaut_3865	-	SH3 type 3 domain-containing protein
3831	 69.62	0	4283972..4284445	+	157	154247789	-	Xaut_3866	-	hypothetical protein
3832	 68.33	0	4284448..4286313	-	621	154247790	-	Xaut_3867	-	extracellular solute-binding protein
3833	 68.91	0	4286676..4287479	+	267	154247791	-	Xaut_3868	-	invasion associated locus B family protein
3834	 65.74	0	4287626..4287949	-	107	154247792	-	Xaut_3869	-	hemimethylated DNA binding protein
3835	 65.71	0	4288239..4289279	-	346	154247793	-	Xaut_3870	-	HpcH/HpaI aldolase
3836	 72.44	+1	4289485..4290264	+	259	154247794	-	Xaut_3871	-	hypothetical protein
3837	 66.77	0	4290277..4291251	-	324	154247795	-	Xaut_3872	-	alcohol dehydrogenase
3838	 71.05	0	4291320..4292072	-	250	154247796	-	Xaut_3873	-	short-chain dehydrogenase/reductase SDR
3839	 67.85	0	4292069..4292830	-	253	154247797	-	Xaut_3874	-	integral membrane protein TerC
3840	 71.71	+1	4293091..4294299	+	402	154247798	-	Xaut_3875	-	UbiH/UbiF/VisC/COQ6 family ubiquinone biosynthesis hydroxylase
3841	 67.71	0	4294319..4295275	-	318	154247799	-	Xaut_3876	-	auxin efflux carrier
3842	 67.29	0	4295630..4297858	+	742	154247800	-	Xaut_3877	-	(p)ppGpp synthetase I, SpoT/RelA
3843	 73.39	+1	4297917..4298690	+	257	154247801	-	Xaut_3878	-	pyridoxal phosphate biosynthetic protein PdxJ
3844	 68.63	0	4298687..4299094	+	135	154247802	-	Xaut_3879	-	holo-acyl-carrier-protein synthase
3845	 61.35	-1	4299262..4300014	+	250	154247803	-	Xaut_3880	-	signal peptidase I
3846	 69.76	0	4300011..4300721	+	236	154247804	-	Xaut_3881	-	ribonuclease III
3847	 67.36	0	4300721..4301878	+	385	154247805	-	Xaut_3882	-	GTP-binding protein Era
3848	 71.14	0	4301935..4303746	-	603	154247806	-	Xaut_3883	-	chloride channel core
3849	 68.28	0	4303751..4305988	-	745	154247807	-	Xaut_3884	-	DNA topoisomerase IV subunit A
3850	 67.07	0	4306237..4306482	-	81	154247808	-	Xaut_3885	-	hypothetical protein
3851	 70.64	0	4306539..4307267	-	242	154247809	-	Xaut_3886	-	DNA repair protein RecO
3852	 63.17	-1	4307486..4307800	+	104	154247810	-	Xaut_3887	-	septum formation initiator
3853	 65.58	0	4307962..4308969	+	335	154247811	-	Xaut_3888	-	pyruvate dehydrogenase (acetyl-transferring)
3854	 75.42	+1	4308980..4309333	+	117	154247812	-	Xaut_3889	-	hypothetical protein
3855	 67.69	0	4309339..4310709	+	456	154247813	-	Xaut_3890	-	pyruvate dehydrogenase subunit beta
3856	 68.60	0	4310722..4312068	+	448	154247814	-	Xaut_3891	-	pyruvate dehydrogenase complex dihydrolipoamide acetyltransferase
3857	 65.40	0	4312185..4312421	+	78	154247815	-	Xaut_3892	-	hypothetical protein
3858	 68.69	0	4312566..4313207	+	213	154247816	-	Xaut_3893	-	nucleoside 2-deoxyribosyltransferase
3859	 65.75	0	4313200..4314615	+	471	154247817	-	Xaut_3894	-	dihydrolipoamide dehydrogenase
3860	 65.23	0	4314735..4315013	+	92	154247818	-	Xaut_3895	-	transglycosylase-associated protein
3861	 67.47	0	4315025..4315273	+	82	154247819	-	Xaut_3896	-	hypothetical protein
3862	 67.30	0	4315444..4316397	+	317	154247820	-	Xaut_3897	-	lipoyl synthase
3863	 66.67	0	4316400..4316858	+	152	154247821	-	Xaut_3898	-	cyclase/dehydrase
3864	 69.74	0	4316864..4317253	-	129	154247822	-	Xaut_3899	-	rhodanese domain-containing protein
3865	 64.16	0	4317486..4318403	+	305	154247823	-	Xaut_3900	-	inner-membrane translocator
3866	 67.59	0	4318403..4319920	+	505	154247824	-	Xaut_3901	-	inner-membrane translocator
3867	 69.15	0	4319920..4320846	+	308	154247825	-	Xaut_3902	-	ABC transporter related
3868	 68.60	0	4320843..4321616	+	257	154247826	-	Xaut_3903	-	ABC transporter related
3869	 67.79	0	4321616..4322059	+	147	154247827	-	Xaut_3904	-	hypothetical protein
3870	 64.35	0	4322113..4323279	+	388	154247828	-	Xaut_3905	-	extracellular ligand-binding receptor
3871	 67.46	0	4323609..4324745	+	378	154247829	-	Xaut_3906	-	bile acid:sodium symporter
3872	 70.90	0	4324753..4325625	-	290	154247830	-	Xaut_3907	-	hypothetical protein
3873	 70.80	0	4325726..4326814	-	362	154247831	-	Xaut_3908	-	lysine 2,3-aminomutase YodO family protein
3874	 69.59	0	4326882..4327223	+	113	154247832	-	Xaut_3909	-	hypothetical protein
3875	 72.20	+1	4327322..4328026	+	234	154247833	-	Xaut_3910	-	xanthine dehydrogenase accessory factor
3876	 72.23	+1	4328023..4329657	+	544	154247834	-	Xaut_3911	-	molybdopterin binding domain-containing protein
3877	 69.08	0	4329638..4330093	-	151	154247835	-	Xaut_3912	-	hypothetical protein
3878	 63.68	0	4330327..4331499	+	390	154247836	-	Xaut_3913	-	hypothetical protein
3879	 68.85	0	4331621..4334326	-	901	154247837	-	Xaut_3914	-	DNA topoisomerase I
3880	 60.08	-1	4334375..4334617	+	80	154247838	-	Xaut_3915	-	hypothetical protein
3881	 72.74	+1	4334888..4336024	-	378	154247839	-	Xaut_3916	-	DNA protecting protein DprA
3882	 70.44	0	4336032..4336640	-	202	154247840	-	Xaut_3917	-	hypothetical protein
3883	 70.99	0	4336770..4338086	-	438	154247841	-	Xaut_3918	-	dihydroorotase
3884	 66.98	0	4338079..4339026	-	315	154247842	-	Xaut_3919	-	aspartate carbamoyltransferase
3885	 73.90	+1	4339321..4339776	+	151	154247843	-	Xaut_3920	-	hypothetical protein
3886	 69.20	0	4339860..4340807	-	315	154247844	-	Xaut_3921	-	auxin efflux carrier
3887	 72.69	+1	4340969..4341499	-	176	154247845	-	Xaut_3922	-	Holliday junction resolvase YqgF
3888	 62.84	-1	4341553..4341918	-	121	154247846	-	Xaut_3923	-	PilT domain-containing protein
3889	 71.21	0	4341915..4342112	-	65	154247847	-	Xaut_3924	-	hypothetical protein
3890	 63.89	0	4342285..4342572	+	95	154247848	-	Xaut_3925	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
3891	 68.69	0	4342569..4344053	+	494	154247849	-	Xaut_3926	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
3892	 69.82	0	4344232..4345371	-	379	154247850	-	Xaut_3927	-	hypothetical protein
3893	 65.93	0	4345546..4347036	+	496	154247851	-	Xaut_3928	-	glutamyl-tRNA(Gln) amidotransferase, B subunit
3894	 67.95	0	4347183..4348349	-	388	154247852	-	Xaut_3929	-	FMN-dependent alpha-hydroxy acid dehydrogenase
3895	 69.57	0	4348346..4349104	-	252	154247853	-	Xaut_3930	-	GntR domain-containing protein
3896	 72.33	+1	4349319..4351208	+	629	154247854	-	Xaut_3931	-	hypothetical protein
3897	 69.19	0	4351196..4352464	-	422	154247855	-	Xaut_3932	-	NADH dehydrogenase (quinone)
3898	 71.50	+1	4352470..4354104	-	544	154247856	-	Xaut_3933	-	L-aspartate oxidase
3899	 69.68	0	4354110..4354772	-	220	154247857	-	Xaut_3934	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
3900	 65.02	0	4355265..4357268	+	667	154247858	-	Xaut_3935	-	histidine kinase
3901	 66.06	0	4357261..4358586	+	441	154247859	-	Xaut_3936	-	two component, sigma54 specific, Fis family transcriptional regulator
3902	 64.19	0	4359008..4360660	+	550	154247860	-	Xaut_3937	-	malate dehydrogenase
3903	 64.76	0	4360773..4362452	+	559	154247861	-	Xaut_3938	-	YidE/YbjL duplication
3904	 70.20	0	4362477..4363439	+	320	154247862	-	Xaut_3939	-	LysR family transcriptional regulator
3905	 61.83	-1	4363580..4363765	-	61	154247863	-	Xaut_3940	-	hypothetical protein
3906	 66.33	0	4363997..4364296	+	99	154247864	-	Xaut_3941	-	regulatory protein ArsR
3907	 67.14	0	4364293..4365357	+	354	154247865	-	Xaut_3942	-	permease
3908	 64.47	0	4365341..4365613	+	90	154247866	-	Xaut_3943	-	thiol-disulfide isomerase and thioredoxin
3909	 61.23	-1	4365622..4366026	+	134	154247867	-	Xaut_3944	-	OsmC family protein
3910	 68.52	0	4366023..4366616	+	197	154247868	-	Xaut_3945	-	thiolase
3911	 68.26	0	4366703..4367578	+	291	154247869	-	Xaut_3946	-	phosphate/phosphonate ABC transporter
3912	 67.84	0	4367584..4369035	+	483	154247870	-	Xaut_3947	-	integral membrane sensor signal transduction histidine kinase
3913	 65.91	0	4369025..4370347	+	440	154247871	-	Xaut_3948	-	two component, sigma54 specific, Fis family transcriptional regulator
3914	 65.52	0	4370519..4371040	+	173	154247872	-	Xaut_3949	-	arsenite oxidase small subunit
3915	 65.25	0	4371052..4373514	+	820	154247873	-	Xaut_3950	-	arsenite oxidase large subunit
3916	 67.84	0	4373563..4374411	-	282	154247874	-	Xaut_3951	-	hypothetical protein
3917	 62.26	-1	4374639..4375592	+	317	154247875	-	Xaut_3952	-	DNA binding domain-containing protein
3918	 62.74	-1	4375677..4376516	-	279	154247876	-	Xaut_3953	-	phosphate ABC transporter, ATPase subunit
3919	 62.71	-1	4376516..4377451	-	311	154247877	-	Xaut_3954	-	phosphate ABC transporter, inner membrane subunit PstA
3920	 61.60	-1	4377462..4378409	-	315	154247878	-	Xaut_3955	-	phosphate ABC transporter, inner membrane subunit PstC
3921	 63.17	-1	4378476..4379477	-	333	154247879	-	Xaut_3956	-	phosphate binding protein
3922	 64.33	0	4380023..4381051	+	342	154247880	-	Xaut_3957	-	phosphate ABC transporter, periplasmic phosphate-binding protein
3923	 64.30	0	4381097..4381984	+	295	154247881	-	Xaut_3958	-	protein tyrosine phosphatase
3924	 64.50	0	4382066..4383127	+	353	154247882	-	Xaut_3959	-	arsenical-resistance protein
3925	 67.92	0	4383180..4384220	+	346	154247883	-	Xaut_3960	-	glyceraldehyde-3-phosphate dehydrogenase, type I
3926	 66.19	0	4384222..4385481	+	419	154247884	-	Xaut_3961	-	major facilitator transporter
67.51	MEAN

3.97	STD DEV
