IslandPath Analysis: Xanthobacter autotrophicus Py2

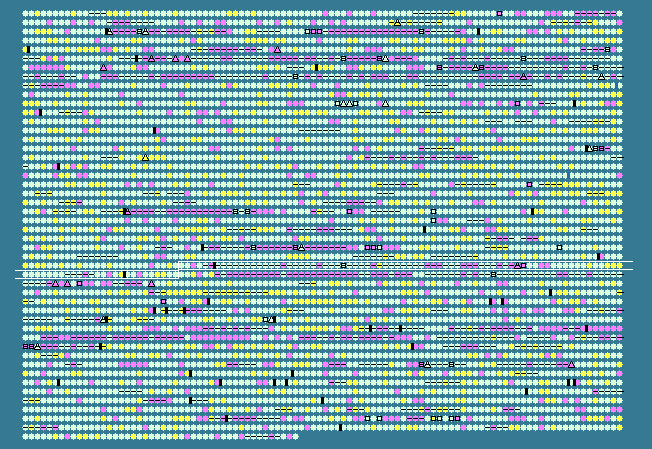

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2827	 69.82	0	3175221..3177029	+	602	154246785	-	Xaut_2846	-	integral membrane sensor signal transduction histidine kinase
2828	 67.11	0	3177033..3177482	+	149	154246786	-	Xaut_2847	-	HPr kinase
2829	 62.94	-1	3177591..3177992	+	133	154246787	-	Xaut_2848	-	PTS system fructose subfamily IIA component
2830	 69.55	0	3177973..3178353	+	126	154246788	-	Xaut_2849	-	phosphotransferase system, phosphocarrier protein HPr
2831	 70.32	0	3178471..3180030	+	519	154246789	-	Xaut_2850	-	integral membrane sensor signal transduction histidine kinase
2832	 62.37	-1	3180242..3181939	-	565	154246790	-	Xaut_2851	-	resolvase domain-containing protein
2833	 66.67	0	3181936..3182457	-	173	154246791	-	Xaut_2852	-	hypothetical protein
2834	 65.36	0	3182460..3182765	-	101	154246792	-	Xaut_2853	-	hypothetical protein
2835	 65.83	0	3182845..3183084	-	79	154246793	-	Xaut_2854	-	hypothetical protein
2836	 66.30	0	3183246..3183521	+	91	154246794	-	Xaut_2855	-	hypothetical protein
2837	 65.37	0	3183533..3184459	+	308	154246795	-	Xaut_2856	-	cation diffusion facilitator family transporter
2838	 66.25	0	3184596..3185807	+	403	154246796	-	Xaut_2857	-	hypothetical protein
2839	 66.67	0	3185956..3188085	+	709	154246797	-	Xaut_2858	-	nuclease
2840	 65.42	0	3188155..3189198	+	347	154246798	-	Xaut_2859	-	hypothetical protein
2841	 64.19	0	3189517..3190443	+	308	154246799	-	Xaut_2860	-	hypothetical protein
2842	 66.89	0	3190592..3191032	+	146	154246800	-	Xaut_2861	-	hypothetical protein
2843	 65.14	0	3191619..3191945	+	108	154246801	-	Xaut_2862	-	hypothetical protein
2844	 58.55	-2	3192104..3192448	+	114	154246802	-	Xaut_2863	-	hypothetical protein
2845	 64.86	0	3192985..3193260	+	91	154246803	-	Xaut_2865	-	hypothetical protein
2846	 66.39	0	3193458..3194171	+	237	154246804	-	Xaut_2866	-	hypothetical protein
2847	 65.99	0	3194322..3194615	+	97	154246805	-	Xaut_2867	-	putative transcriptional regulator
2848	 68.39	0	3194612..3195250	+	212	154246806	-	Xaut_2868	-	cobyrinic acid ac-diamide synthase
2849	 65.48	0	3195247..3195498	+	83	154246807	-	Xaut_2869	-	hypothetical protein
2850	 63.53	-1	3195495..3196004	+	169	154246808	-	Xaut_2870	-	hypothetical protein
2851	 66.12	0	3196001..3196546	+	181	154246809	-	Xaut_2871	-	putative conjugal transfer protein precursor
2852	 66.07	0	3196591..3196926	+	111	154246810	-	Xaut_2872	-	hypothetical protein
2853	 69.11	0	3196931..3197707	+	258	154246811	-	Xaut_2873	-	lytic transglycosylase catalytic
2854	 66.76	0	3197898..3198986	+	362	154246812	-	Xaut_2874	-	transposase IS116/IS110/IS902 family protein
2855	 68.76	0	3199525..3201288	+	587	154246813	-	Xaut_2875	-	hypothetical protein
2856	 65.31	0	3201320..3203308	+	662	154246814	-	Xaut_2876	-	TRAG family protein
2857	 65.05	0	3203320..3203751	+	143	154246815	-	Xaut_2877	-	hypothetical protein
2858	 69.21	0	3203921..3204904	+	327	154246816	-	Xaut_2878	-	P-type conjugative transfer ATPase TrbB
2859	 62.76	-1	3204901..3205233	+	110	154246817	-	Xaut_2879	-	conjugal transfer protein TrbC
2860	 71.28	0	3205233..3205514	+	93	154246818	-	Xaut_2880	-	conjugal transfer protein TrbB
2861	 66.63	0	3205522..3207960	+	812	154246819	-	Xaut_2881	-	AAA ATPase
2862	 66.54	0	3207957..3208718	+	253	154246820	-	Xaut_2882	-	P-type conjugative transfer protein TrbJ
2863	 70.45	0	3208741..3209031	+	96	154246821	-	Xaut_2883	-	hypothetical protein
2864	 68.66	0	3209035..3210387	+	450	154246822	-	Xaut_2884	-	P-type conjugative transfer protein TrbL
2865	 65.94	0	3210387..3211070	+	227	154246823	-	Xaut_2885	-	conjugal transfer protein
2866	 66.08	0	3211067..3212092	+	341	154246824	-	Xaut_2886	-	P-type conjugative transfer protein TrbG
2867	 67.74	0	3212089..3213294	+	401	154246825	-	Xaut_2887	-	conjugation TrbI family protein
2868	 58.14	-2	3214635..3215021	-	128	154246826	-	Xaut_2890	-	hypothetical protein
2869	 63.87	0	3215176..3215568	-	130	154246827	-	Xaut_2891	-	rhodanese domain-containing protein
2870	 62.58	-1	3215580..3216485	-	301	154246828	-	Xaut_2892	-	beta-lactamase domain-containing protein
2871	 67.78	0	3216509..3217315	-	268	154246829	-	Xaut_2893	-	hypothetical protein
2872	 67.32	0	3217315..3217773	-	152	154246830	-	Xaut_2894	-	protein of unknown function DUF395 YeeE/YedE
2873	 65.96	0	3217778..3218203	-	141	154246831	-	Xaut_2895	-	protein of unknown function DUF395 YeeE/YedE
2874	 58.05	-2	3218491..3218931	+	146	154246832	-	Xaut_2896	-	regulatory protein ArsR
2875	 58.96	-2	3219058..3219810	+	250	154246833	-	Xaut_2897	-	beta-lactamase domain-containing protein
2876	 61.14	-1	3219856..3221376	+	506	154246834	-	Xaut_2898	-	Bilirubin oxidase
2877	 64.70	0	3221408..3222067	-	219	154246835	-	Xaut_2899	-	flavoprotein involved in K+ transport-like protein
2878	 67.38	0	3222636..3223058	-	140	154246836	-	Xaut_2900	-	MerR family transcriptional regulator
2879	 67.61	0	3223144..3223569	+	141	154246837	-	Xaut_2901	-	mercuric transporter MerT
2880	 63.97	0	3223590..3223886	+	98	154246838	-	Xaut_2902	-	mercuric transport protein periplasmic component
2881	 67.62	0	3224132..3226435	+	767	154246839	-	Xaut_2903	-	mercuric reductase
2882	 63.77	0	3226638..3227984	+	448	154246840	-	Xaut_2904	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
2883	 64.00	0	3228347..3229207	-	286	154246841	-	Xaut_2905	-	integrase catalytic region
2884	 61.86	-1	3229204..3229494	-	96	154246842	-	Xaut_2906	-	transposase IS3/IS911 family protein
2885	 68.94	0	3229593..3230648	-	351	154246843	-	Xaut_2907	-	hypothetical protein
2886	 68.33	0	3231510..3232229	-	239	154246844	-	Xaut_2908	-	nitroreductase
2887	 63.57	0	3232658..3232948	-	96	154246845	-	Xaut_2909	-	hypothetical protein
2888	 61.90	-1	3233071..3233406	+	111	154246846	-	Xaut_2910	-	hypothetical protein
2889	 68.47	0	3234409..3235572	-	387	154246847	-	Xaut_2912	-	hypothetical protein
2890	 67.12	0	3236067..3236732	+	221	154246848	-	Xaut_2913	-	2,3-diketo-5-methylthio-1-phosphopentane phosphatase
2891	 68.18	0	3236795..3237124	+	109	154246849	-	Xaut_2914	-	ferredoxin
2892	 69.90	0	3237140..3237850	-	236	154246850	-	Xaut_2915	-	hypothetical protein
2893	 70.75	0	3238149..3240374	-	741	154246851	-	Xaut_2916	-	aldehyde oxidase and xanthine dehydrogenase molybdopterin binding
2894	 69.70	0	3240378..3240839	-	153	154246852	-	Xaut_2917	-	2Fe-2S iron-sulfur cluster binding domain-containing protein
2895	 73.37	+1	3241237..3242400	+	387	154246853	-	Xaut_2918	-	8-amino-7-oxononanoate synthase
2896	 70.87	0	3242397..3243038	+	213	154246854	-	Xaut_2919	-	dithiobiotin synthetase
2897	 69.67	0	3243035..3244300	+	421	154246855	-	Xaut_2920	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
2898	 72.53	+1	3244303..3245292	+	329	154246856	-	Xaut_2921	-	3-oxoacyl-(acyl carrier protein) synthase II
2899	 71.56	+1	3245299..3245850	-	183	154246857	-	Xaut_2922	-	superoxide dismutase copper/zinc binding
2900	 73.40	+1	3246124..3247548	-	474	154246858	-	Xaut_2923	-	type III effector Hrp-dependent outers
2901	 70.28	0	3247545..3248789	-	414	154246859	-	Xaut_2924	-	ribulose-bisphosphate carboxylase
2902	 67.15	0	3248915..3249745	-	276	154246860	-	Xaut_2925	-	semialdehyde dehydrogenase NAD - binding
2903	 67.41	0	3249815..3251155	-	446	154246861	-	Xaut_2926	-	major facilitator transporter
2904	 69.58	0	3251386..3252312	+	308	154246862	-	Xaut_2927	-	LysR family transcriptional regulator
2905	 69.67	0	3252364..3253494	-	376	154246863	-	Xaut_2928	-	helix-turn-helix domain-containing protein
2906	 67.13	0	3253673..3254104	-	143	154246864	-	Xaut_2929	-	nucleoside diphosphate kinase regulator
2907	 68.97	0	3254499..3254975	+	158	154246865	-	Xaut_2930	-	transcription elongation factor regulatory protein
2908	 69.05	0	3255479..3256525	+	348	154246866	-	Xaut_2931	-	luciferase family protein
2909	 68.91	0	3256766..3257479	-	237	154246867	-	Xaut_2932	-	short-chain dehydrogenase/reductase SDR
2910	 65.63	0	3257527..3258204	-	225	154246868	-	Xaut_2933	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
2911	 63.80	0	3258257..3259024	-	255	154246869	-	Xaut_2934	-	enoyl-CoA hydratase/isomerase
2912	 66.19	0	3259074..3259706	-	210	154246870	-	Xaut_2935	-	glutathione S-transferase domain-containing protein
2913	 69.06	0	3259819..3260697	+	292	154246871	-	Xaut_2936	-	LysR family transcriptional regulator
2914	 66.38	0	3260992..3262044	-	350	154246872	-	Xaut_2937	-	helix-turn-helix domain-containing protein
2915	 62.14	-1	3262204..3263286	+	360	154246873	-	Xaut_2938	-	NapD-like protein
2916	 64.63	0	3263331..3265001	+	556	154246874	-	Xaut_2939	-	sulfatase
2917	 71.03	0	3265159..3265410	+	83	154246875	-	Xaut_2940	-	hypothetical protein
2918	 65.21	0	3266114..3267280	+	388	154246876	-	Xaut_2941	-	spermidine/putrescine ABC transporter ATPase subunit
2919	 64.38	0	3267424..3268341	+	305	154246877	-	Xaut_2942	-	binding-protein-dependent transport systems inner membrane component
2920	 63.98	0	3268338..3269156	+	272	154246878	-	Xaut_2943	-	ornithine carbamoyltransferase
2921	 69.46	0	3269259..3269723	-	154	154246879	-	Xaut_2944	-	protein of unknown function DUF306 Meta and HslJ
2922	 70.63	0	3269723..3271789	-	688	154246880	-	Xaut_2945	-	hypothetical protein
2923	 73.16	+1	3271821..3274652	-	943	154246881	-	Xaut_2946	-	hypothetical protein
2924	 72.62	+1	3274652..3275626	-	324	154246882	-	Xaut_2947	-	hypothetical protein
2925	 70.76	0	3275623..3276624	-	333	154246883	-	Xaut_2948	-	ATPase
2926	 69.28	0	3276862..3277512	+	216	154246884	-	Xaut_2949	-	hypothetical protein
67.51	MEAN

3.97	STD DEV
