IslandPathversion 1.0

IslandPath Analysis: Xanthobacter autotrophicus Py2

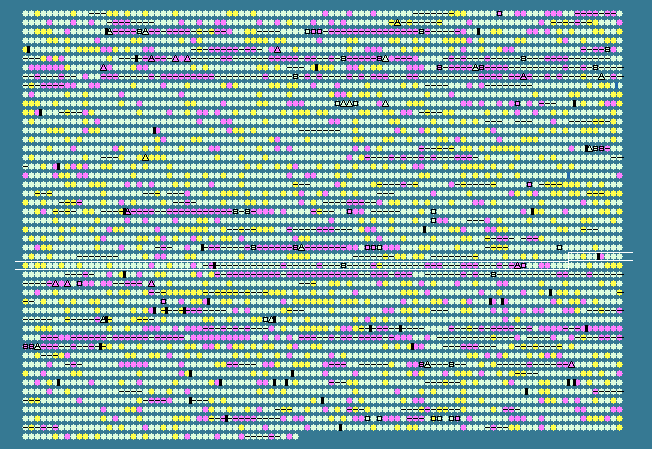

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2792	 68.92	0	3132030..3132605	-	191	154246750	-	Xaut_2811	-	hypothetical protein
2793	 67.96	0	3132901..3133674	+	257	154246751	-	Xaut_2812	-	short-chain dehydrogenase/reductase SDR
2794	 71.51	+1	3133773..3134702	+	309	154246752	-	Xaut_2813	-	methylated-DNA--protein-cysteine methyltransferase
2795	 67.14	0	3134997..3136058	-	353	154246753	-	Xaut_2814	-	ferrochelatase
2796	 65.00	0	3136423..3136842	+	139	154246754	-	Xaut_2815	-	hypothetical protein
2797	 62.81	-1	3137282..3137644	-	120	154246755	-	Xaut_2816	-	response regulator receiver protein
2798	 67.79	0	3137835..3138722	+	295	154246756	-	Xaut_2817	-	N-formylglutamate amidohydrolase
2799	 68.58	0	3139954..3140736	+	260	154246757	-	Xaut_2818	-	histidinol-phosphate phosphatase, putative
2800	 67.62	0	3140782..3141729	-	315	154246758	-	Xaut_2819	-	alpha/beta hydrolase fold
2801	 72.80	+1	3141844..3142479	-	211	154246759	-	Xaut_2820	-	hypothetical protein
2802	 64.40	0	3142730..3143215	+	161	154246760	-	Xaut_2821	-	heat shock protein Hsp20
2803	 71.02	0	3143317..3144396	+	359	154246761	-	Xaut_2822	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
2804	 73.74	+1	3144566..3144862	-	98	154246762	-	Xaut_2823	-	thiamineS protein
2805	 68.60	0	3144865..3145950	-	361	154246763	-	Xaut_2824	-	glycosyl hydrolase BNR repeat-containing glycosyl hydrolase
2806	 65.04	0	3146117..3146731	+	204	154246764	-	Xaut_2825	-	TetR family transcriptional regulator
2807	 72.38	+1	3146829..3148019	+	396	154246765	-	Xaut_2826	-	RND family efflux transporter MFP subunit
2808	 68.69	0	3148016..3151177	+	1053	154246766	-	Xaut_2827	-	acriflavin resistance protein
2809	 67.19	0	3151355..3151927	-	190	154246767	-	Xaut_2828	-	hypothetical protein
2810	 72.54	+1	3152444..3153703	-	419	154246768	-	Xaut_2829	-	ErfK/YbiS/YcfS/YnhG family protein
2811	 70.86	0	3153950..3154999	+	349	154246769	-	Xaut_2830	-	methyltransferase type 11
2812	 67.71	0	3154999..3155952	+	317	154246770	-	Xaut_2831	-	5,10-methylenetetrahydrofolate reductase
2813	 67.74	0	3156033..3159848	+	1271	154246771	-	Xaut_2832	-	B12-dependent methionine synthase
2814	 70.13	0	3159929..3160795	-	288	154246772	-	Xaut_2833	-	dimethyladenosine transferase
2815	 73.88	+1	3160792..3161844	-	350	154246773	-	Xaut_2834	-	4-hydroxythreonine-4-phosphate dehydrogenase
2816	 66.12	0	3161984..3162895	-	303	154246774	-	Xaut_2835	-	putative peptidyl-prolyl cis-trans isomerase SurA
2817	 64.10	0	3163006..3165534	-	842	154246775	-	Xaut_2836	-	organic solvent tolerance protein
2818	 64.20	0	3165531..3166625	-	364	154246776	-	Xaut_2837	-	permease YjgP/YjgQ family protein
2819	 67.57	0	3166631..3167848	-	405	154246777	-	Xaut_2838	-	permease YjgP/YjgQ family protein
2820	 68.43	0	3168083..3170179	-	698	154246778	-	Xaut_2839	-	oligopeptidase B
2821	 67.76	0	3170169..3170624	-	151	154246779	-	Xaut_2840	-	methionine-R-sulfoxide reductase
2822	 55.21	-2	3170744..3171031	+	95	154246780	-	Xaut_2841	-	hypothetical protein
2823	 65.48	0	3171110..3171529	+	139	154246781	-	Xaut_2842	-	MucR family transcriptional regulator
2824	 66.61	0	3171641..3173317	-	558	154246782	-	Xaut_2843	-	phosphoenolpyruvate carboxykinase
2825	 71.27	0	3173500..3174216	-	238	154246783	-	Xaut_2844	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
2826	 64.09	0	3174488..3175186	+	232	154246784	-	Xaut_2845	-	two component transcriptional regulator
2827	 69.82	0	3175221..3177029	+	602	154246785	-	Xaut_2846	-	integral membrane sensor signal transduction histidine kinase
2828	 67.11	0	3177033..3177482	+	149	154246786	-	Xaut_2847	-	HPr kinase
2829	 62.94	-1	3177591..3177992	+	133	154246787	-	Xaut_2848	-	PTS system fructose subfamily IIA component
2830	 69.55	0	3177973..3178353	+	126	154246788	-	Xaut_2849	-	phosphotransferase system, phosphocarrier protein HPr
2831	 70.32	0	3178471..3180030	+	519	154246789	-	Xaut_2850	-	integral membrane sensor signal transduction histidine kinase
2832	 62.37	-1	3180242..3181939	-	565	154246790	-	Xaut_2851	-	resolvase domain-containing protein
2833	 66.67	0	3181936..3182457	-	173	154246791	-	Xaut_2852	-	hypothetical protein
2834	 65.36	0	3182460..3182765	-	101	154246792	-	Xaut_2853	-	hypothetical protein
2835	 65.83	0	3182845..3183084	-	79	154246793	-	Xaut_2854	-	hypothetical protein
2836	 66.30	0	3183246..3183521	+	91	154246794	-	Xaut_2855	-	hypothetical protein
2837	 65.37	0	3183533..3184459	+	308	154246795	-	Xaut_2856	-	cation diffusion facilitator family transporter
2838	 66.25	0	3184596..3185807	+	403	154246796	-	Xaut_2857	-	hypothetical protein
2839	 66.67	0	3185956..3188085	+	709	154246797	-	Xaut_2858	-	nuclease
2840	 65.42	0	3188155..3189198	+	347	154246798	-	Xaut_2859	-	hypothetical protein
2841	 64.19	0	3189517..3190443	+	308	154246799	-	Xaut_2860	-	hypothetical protein
2842	 66.89	0	3190592..3191032	+	146	154246800	-	Xaut_2861	-	hypothetical protein
2843	 65.14	0	3191619..3191945	+	108	154246801	-	Xaut_2862	-	hypothetical protein
2844	 58.55	-2	3192104..3192448	+	114	154246802	-	Xaut_2863	-	hypothetical protein
2845	 64.86	0	3192985..3193260	+	91	154246803	-	Xaut_2865	-	hypothetical protein
2846	 66.39	0	3193458..3194171	+	237	154246804	-	Xaut_2866	-	hypothetical protein
2847	 65.99	0	3194322..3194615	+	97	154246805	-	Xaut_2867	-	putative transcriptional regulator
2848	 68.39	0	3194612..3195250	+	212	154246806	-	Xaut_2868	-	cobyrinic acid ac-diamide synthase
2849	 65.48	0	3195247..3195498	+	83	154246807	-	Xaut_2869	-	hypothetical protein
2850	 63.53	-1	3195495..3196004	+	169	154246808	-	Xaut_2870	-	hypothetical protein
2851	 66.12	0	3196001..3196546	+	181	154246809	-	Xaut_2871	-	putative conjugal transfer protein precursor
2852	 66.07	0	3196591..3196926	+	111	154246810	-	Xaut_2872	-	hypothetical protein
2853	 69.11	0	3196931..3197707	+	258	154246811	-	Xaut_2873	-	lytic transglycosylase catalytic
2854	 66.76	0	3197898..3198986	+	362	154246812	-	Xaut_2874	-	transposase IS116/IS110/IS902 family protein
2855	 68.76	0	3199525..3201288	+	587	154246813	-	Xaut_2875	-	hypothetical protein
2856	 65.31	0	3201320..3203308	+	662	154246814	-	Xaut_2876	-	TRAG family protein
2857	 65.05	0	3203320..3203751	+	143	154246815	-	Xaut_2877	-	hypothetical protein
2858	 69.21	0	3203921..3204904	+	327	154246816	-	Xaut_2878	-	P-type conjugative transfer ATPase TrbB
2859	 62.76	-1	3204901..3205233	+	110	154246817	-	Xaut_2879	-	conjugal transfer protein TrbC
2860	 71.28	0	3205233..3205514	+	93	154246818	-	Xaut_2880	-	conjugal transfer protein TrbB
2861	 66.63	0	3205522..3207960	+	812	154246819	-	Xaut_2881	-	AAA ATPase
2862	 66.54	0	3207957..3208718	+	253	154246820	-	Xaut_2882	-	P-type conjugative transfer protein TrbJ
2863	 70.45	0	3208741..3209031	+	96	154246821	-	Xaut_2883	-	hypothetical protein
2864	 68.66	0	3209035..3210387	+	450	154246822	-	Xaut_2884	-	P-type conjugative transfer protein TrbL
2865	 65.94	0	3210387..3211070	+	227	154246823	-	Xaut_2885	-	conjugal transfer protein
2866	 66.08	0	3211067..3212092	+	341	154246824	-	Xaut_2886	-	P-type conjugative transfer protein TrbG
2867	 67.74	0	3212089..3213294	+	401	154246825	-	Xaut_2887	-	conjugation TrbI family protein
2868	 58.14	-2	3214635..3215021	-	128	154246826	-	Xaut_2890	-	hypothetical protein
2869	 63.87	0	3215176..3215568	-	130	154246827	-	Xaut_2891	-	rhodanese domain-containing protein
2870	 62.58	-1	3215580..3216485	-	301	154246828	-	Xaut_2892	-	beta-lactamase domain-containing protein
2871	 67.78	0	3216509..3217315	-	268	154246829	-	Xaut_2893	-	hypothetical protein
2872	 67.32	0	3217315..3217773	-	152	154246830	-	Xaut_2894	-	protein of unknown function DUF395 YeeE/YedE
2873	 65.96	0	3217778..3218203	-	141	154246831	-	Xaut_2895	-	protein of unknown function DUF395 YeeE/YedE
2874	 58.05	-2	3218491..3218931	+	146	154246832	-	Xaut_2896	-	regulatory protein ArsR
2875	 58.96	-2	3219058..3219810	+	250	154246833	-	Xaut_2897	-	beta-lactamase domain-containing protein
2876	 61.14	-1	3219856..3221376	+	506	154246834	-	Xaut_2898	-	Bilirubin oxidase
2877	 64.70	0	3221408..3222067	-	219	154246835	-	Xaut_2899	-	flavoprotein involved in K+ transport-like protein
2878	 67.38	0	3222636..3223058	-	140	154246836	-	Xaut_2900	-	MerR family transcriptional regulator
2879	 67.61	0	3223144..3223569	+	141	154246837	-	Xaut_2901	-	mercuric transporter MerT
2880	 63.97	0	3223590..3223886	+	98	154246838	-	Xaut_2902	-	mercuric transport protein periplasmic component
2881	 67.62	0	3224132..3226435	+	767	154246839	-	Xaut_2903	-	mercuric reductase
2882	 63.77	0	3226638..3227984	+	448	154246840	-	Xaut_2904	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
2883	 64.00	0	3228347..3229207	-	286	154246841	-	Xaut_2905	-	integrase catalytic region
2884	 61.86	-1	3229204..3229494	-	96	154246842	-	Xaut_2906	-	transposase IS3/IS911 family protein
2885	 68.94	0	3229593..3230648	-	351	154246843	-	Xaut_2907	-	hypothetical protein
2886	 68.33	0	3231510..3232229	-	239	154246844	-	Xaut_2908	-	nitroreductase
2887	 63.57	0	3232658..3232948	-	96	154246845	-	Xaut_2909	-	hypothetical protein
2888	 61.90	-1	3233071..3233406	+	111	154246846	-	Xaut_2910	-	hypothetical protein
2889	 68.47	0	3234409..3235572	-	387	154246847	-	Xaut_2912	-	hypothetical protein
2890	 67.12	0	3236067..3236732	+	221	154246848	-	Xaut_2913	-	2,3-diketo-5-methylthio-1-phosphopentane phosphatase
2891	 68.18	0	3236795..3237124	+	109	154246849	-	Xaut_2914	-	ferredoxin
67.51	MEAN

3.97	STD DEV
