IslandPath Analysis: Xanthobacter autotrophicus Py2

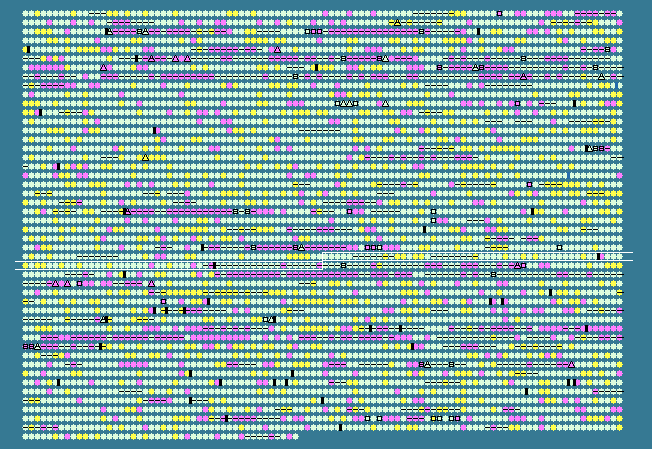

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 67.51 STD DEV: 3.97
Xanthobacter autotrophicus Py2, complete genome - 1..5308934
4746 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2751	 68.11	0	3067013..3067984	-	323	154246709	-	Xaut_2770	-	taurine dioxygenase
2752	 66.67	0	3068309..3068506	+	65	154246710	-	Xaut_2771	-	hypothetical protein
2753	 68.49	0	3068543..3069145	+	200	154246711	-	Xaut_2772	-	nitroreductase
2754	 69.02	0	3069611..3070969	+	452	154246712	-	Xaut_2773	-	xenobiotic (desulfurization)monooxygenase subunit A
2755	 68.09	0	3071118..3072239	-	373	154246713	-	Xaut_2774	-	ABC transporter substrate-binding protein
2756	 70.51	0	3072396..3073202	-	268	154246714	-	Xaut_2775	-	ABC transporter related
2757	 66.86	0	3073196..3074254	-	352	154246715	-	Xaut_2776	-	binding-protein-dependent transport systems inner membrane component
2758	 64.15	0	3074797..3075312	+	171	154246716	-	Xaut_2777	-	ECF subfamily RNA polymerase sigma-24 factor
2759	 69.89	0	3075494..3076456	+	320	154246717	-	Xaut_2778	-	anti-FecI sigma factor, FecR
2760	 64.35	0	3076603..3079194	+	863	154246718	-	Xaut_2779	-	TonB-dependent siderophore receptor
2761	 71.64	+1	3079188..3080012	+	274	154246719	-	Xaut_2780	-	ABC transporter related
2762	 70.50	0	3080093..3080875	+	260	154246720	-	Xaut_2781	-	ECF subfamily RNA polymerase sigma-24 factor
2763	 72.63	+1	3080872..3081777	+	301	154246721	-	Xaut_2782	-	periplasmic binding protein
2764	 72.80	+1	3081764..3083737	+	657	154246722	-	Xaut_2783	-	iron-hydroxamate transporter permease subunit
2765	 70.36	0	3083748..3084506	+	252	154246723	-	Xaut_2784	-	ferric iron reductase
2766	 71.82	+1	3084697..3088809	-	1370	154246724	-	Xaut_2785	-	amino acid adenylation domain-containing protein
2767	 72.29	+1	3088812..3098438	-	3208	154246725	-	Xaut_2786	-	amino acid adenylation domain-containing protein
2768	 69.55	0	3098435..3098677	-	80	154246726	-	Xaut_2787	-	MbtH domain-containing protein
2769	 70.10	0	3098758..3100503	-	581	154246727	-	Xaut_2788	-	cyclic peptide transporter
2770	 70.76	0	3100770..3101843	+	357	154246728	-	Xaut_2789	-	hypothetical protein
2771	 67.39	0	3101919..3103295	+	458	154246729	-	Xaut_2790	-	L-ornithine 5-monooxygenase (L-ornithine N5-oxygenase)
2772	 68.60	0	3103484..3103999	+	171	154246730	-	Xaut_2791	-	hypothetical protein
2773	 69.61	0	3104417..3105028	-	203	154246731	-	Xaut_2792	-	invasion associated locus B family protein
2774	 66.55	0	3105189..3110987	-	1932	154246732	-	Xaut_2793	-	outer membrane autotransporter
2775	 67.56	0	3111411..3112307	+	298	154246733	-	Xaut_2794	-	helix-turn-helix domain-containing protein
2776	 71.38	0	3112519..3114237	-	572	154246734	-	Xaut_2795	-	thiamine pyrophosphate binding domain-containing protein
2777	 69.38	0	3114508..3115869	-	453	154246735	-	Xaut_2796	-	cyclic nucleotide-binding protein
2778	 64.16	0	3115918..3116355	-	145	154246736	-	Xaut_2797	-	Ion transport 2 domain-containing protein
2779	 66.45	0	3116565..3118394	+	609	154246737	-	Xaut_2798	-	GTP-binding protein TypA
2780	 70.34	0	3118511..3119653	-	380	154246738	-	Xaut_2799	-	FAD dependent oxidoreductase
2781	 71.18	0	3119805..3120203	+	132	154246739	-	Xaut_2800	-	hypothetical protein
2782	 64.48	0	3120200..3121936	+	578	154246740	-	Xaut_2801	-	putative oxidoreductase
2783	 64.10	0	3121970..3122203	+	77	154246741	-	Xaut_2802	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2784	 73.42	+1	3122212..3123174	+	320	154246742	-	Xaut_2803	-	HEAT repeat-containing PBS lyase
2785	 65.00	0	3123371..3124390	-	339	154246743	-	Xaut_2804	-	TRAP dicarboxylate transporter, DctP subunit
2786	 75.80	+2	3124585..3125493	+	302	154246744	-	Xaut_2805	-	regulatory protein IclR
2787	 67.15	0	3125563..3127233	+	556	154246745	-	Xaut_2806	-	acyl-CoA synthetase
2788	 70.73	0	3127278..3128039	+	253	154246746	-	Xaut_2807	-	short-chain dehydrogenase/reductase SDR
2789	 70.59	0	3128226..3129755	+	509	154246747	-	Xaut_2808	-	glycerol-3-phosphate dehydrogenase
2790	 70.82	0	3129779..3131272	+	497	154246748	-	Xaut_2809	-	glycerol kinase
2791	 68.28	0	3131360..3132040	+	226	154246749	-	Xaut_2810	-	cob(II)yrinic acid a,c-diamide reductase
2792	 68.92	0	3132030..3132605	-	191	154246750	-	Xaut_2811	-	hypothetical protein
2793	 67.96	0	3132901..3133674	+	257	154246751	-	Xaut_2812	-	short-chain dehydrogenase/reductase SDR
2794	 71.51	+1	3133773..3134702	+	309	154246752	-	Xaut_2813	-	methylated-DNA--protein-cysteine methyltransferase
2795	 67.14	0	3134997..3136058	-	353	154246753	-	Xaut_2814	-	ferrochelatase
2796	 65.00	0	3136423..3136842	+	139	154246754	-	Xaut_2815	-	hypothetical protein
2797	 62.81	-1	3137282..3137644	-	120	154246755	-	Xaut_2816	-	response regulator receiver protein
2798	 67.79	0	3137835..3138722	+	295	154246756	-	Xaut_2817	-	N-formylglutamate amidohydrolase
2799	 68.58	0	3139954..3140736	+	260	154246757	-	Xaut_2818	-	histidinol-phosphate phosphatase, putative
2800	 67.62	0	3140782..3141729	-	315	154246758	-	Xaut_2819	-	alpha/beta hydrolase fold
2801	 72.80	+1	3141844..3142479	-	211	154246759	-	Xaut_2820	-	hypothetical protein
2802	 64.40	0	3142730..3143215	+	161	154246760	-	Xaut_2821	-	heat shock protein Hsp20
2803	 71.02	0	3143317..3144396	+	359	154246761	-	Xaut_2822	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
2804	 73.74	+1	3144566..3144862	-	98	154246762	-	Xaut_2823	-	thiamineS protein
2805	 68.60	0	3144865..3145950	-	361	154246763	-	Xaut_2824	-	glycosyl hydrolase BNR repeat-containing glycosyl hydrolase
2806	 65.04	0	3146117..3146731	+	204	154246764	-	Xaut_2825	-	TetR family transcriptional regulator
2807	 72.38	+1	3146829..3148019	+	396	154246765	-	Xaut_2826	-	RND family efflux transporter MFP subunit
2808	 68.69	0	3148016..3151177	+	1053	154246766	-	Xaut_2827	-	acriflavin resistance protein
2809	 67.19	0	3151355..3151927	-	190	154246767	-	Xaut_2828	-	hypothetical protein
2810	 72.54	+1	3152444..3153703	-	419	154246768	-	Xaut_2829	-	ErfK/YbiS/YcfS/YnhG family protein
2811	 70.86	0	3153950..3154999	+	349	154246769	-	Xaut_2830	-	methyltransferase type 11
2812	 67.71	0	3154999..3155952	+	317	154246770	-	Xaut_2831	-	5,10-methylenetetrahydrofolate reductase
2813	 67.74	0	3156033..3159848	+	1271	154246771	-	Xaut_2832	-	B12-dependent methionine synthase
2814	 70.13	0	3159929..3160795	-	288	154246772	-	Xaut_2833	-	dimethyladenosine transferase
2815	 73.88	+1	3160792..3161844	-	350	154246773	-	Xaut_2834	-	4-hydroxythreonine-4-phosphate dehydrogenase
2816	 66.12	0	3161984..3162895	-	303	154246774	-	Xaut_2835	-	putative peptidyl-prolyl cis-trans isomerase SurA
2817	 64.10	0	3163006..3165534	-	842	154246775	-	Xaut_2836	-	organic solvent tolerance protein
2818	 64.20	0	3165531..3166625	-	364	154246776	-	Xaut_2837	-	permease YjgP/YjgQ family protein
2819	 67.57	0	3166631..3167848	-	405	154246777	-	Xaut_2838	-	permease YjgP/YjgQ family protein
2820	 68.43	0	3168083..3170179	-	698	154246778	-	Xaut_2839	-	oligopeptidase B
2821	 67.76	0	3170169..3170624	-	151	154246779	-	Xaut_2840	-	methionine-R-sulfoxide reductase
2822	 55.21	-2	3170744..3171031	+	95	154246780	-	Xaut_2841	-	hypothetical protein
2823	 65.48	0	3171110..3171529	+	139	154246781	-	Xaut_2842	-	MucR family transcriptional regulator
2824	 66.61	0	3171641..3173317	-	558	154246782	-	Xaut_2843	-	phosphoenolpyruvate carboxykinase
2825	 71.27	0	3173500..3174216	-	238	154246783	-	Xaut_2844	-	pyridoxamine 5'-phosphate oxidase-related FMN-binding
2826	 64.09	0	3174488..3175186	+	232	154246784	-	Xaut_2845	-	two component transcriptional regulator
2827	 69.82	0	3175221..3177029	+	602	154246785	-	Xaut_2846	-	integral membrane sensor signal transduction histidine kinase
2828	 67.11	0	3177033..3177482	+	149	154246786	-	Xaut_2847	-	HPr kinase
2829	 62.94	-1	3177591..3177992	+	133	154246787	-	Xaut_2848	-	PTS system fructose subfamily IIA component
2830	 69.55	0	3177973..3178353	+	126	154246788	-	Xaut_2849	-	phosphotransferase system, phosphocarrier protein HPr
2831	 70.32	0	3178471..3180030	+	519	154246789	-	Xaut_2850	-	integral membrane sensor signal transduction histidine kinase
2832	 62.37	-1	3180242..3181939	-	565	154246790	-	Xaut_2851	-	resolvase domain-containing protein
2833	 66.67	0	3181936..3182457	-	173	154246791	-	Xaut_2852	-	hypothetical protein
2834	 65.36	0	3182460..3182765	-	101	154246792	-	Xaut_2853	-	hypothetical protein
2835	 65.83	0	3182845..3183084	-	79	154246793	-	Xaut_2854	-	hypothetical protein
2836	 66.30	0	3183246..3183521	+	91	154246794	-	Xaut_2855	-	hypothetical protein
2837	 65.37	0	3183533..3184459	+	308	154246795	-	Xaut_2856	-	cation diffusion facilitator family transporter
2838	 66.25	0	3184596..3185807	+	403	154246796	-	Xaut_2857	-	hypothetical protein
2839	 66.67	0	3185956..3188085	+	709	154246797	-	Xaut_2858	-	nuclease
2840	 65.42	0	3188155..3189198	+	347	154246798	-	Xaut_2859	-	hypothetical protein
2841	 64.19	0	3189517..3190443	+	308	154246799	-	Xaut_2860	-	hypothetical protein
2842	 66.89	0	3190592..3191032	+	146	154246800	-	Xaut_2861	-	hypothetical protein
2843	 65.14	0	3191619..3191945	+	108	154246801	-	Xaut_2862	-	hypothetical protein
2844	 58.55	-2	3192104..3192448	+	114	154246802	-	Xaut_2863	-	hypothetical protein
2845	 64.86	0	3192985..3193260	+	91	154246803	-	Xaut_2865	-	hypothetical protein
2846	 66.39	0	3193458..3194171	+	237	154246804	-	Xaut_2866	-	hypothetical protein
2847	 65.99	0	3194322..3194615	+	97	154246805	-	Xaut_2867	-	putative transcriptional regulator
2848	 68.39	0	3194612..3195250	+	212	154246806	-	Xaut_2868	-	cobyrinic acid ac-diamide synthase
2849	 65.48	0	3195247..3195498	+	83	154246807	-	Xaut_2869	-	hypothetical protein
2850	 63.53	-1	3195495..3196004	+	169	154246808	-	Xaut_2870	-	hypothetical protein
67.51	MEAN

3.97	STD DEV
